Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

10 part groups · 5 illustrations

Illustrations

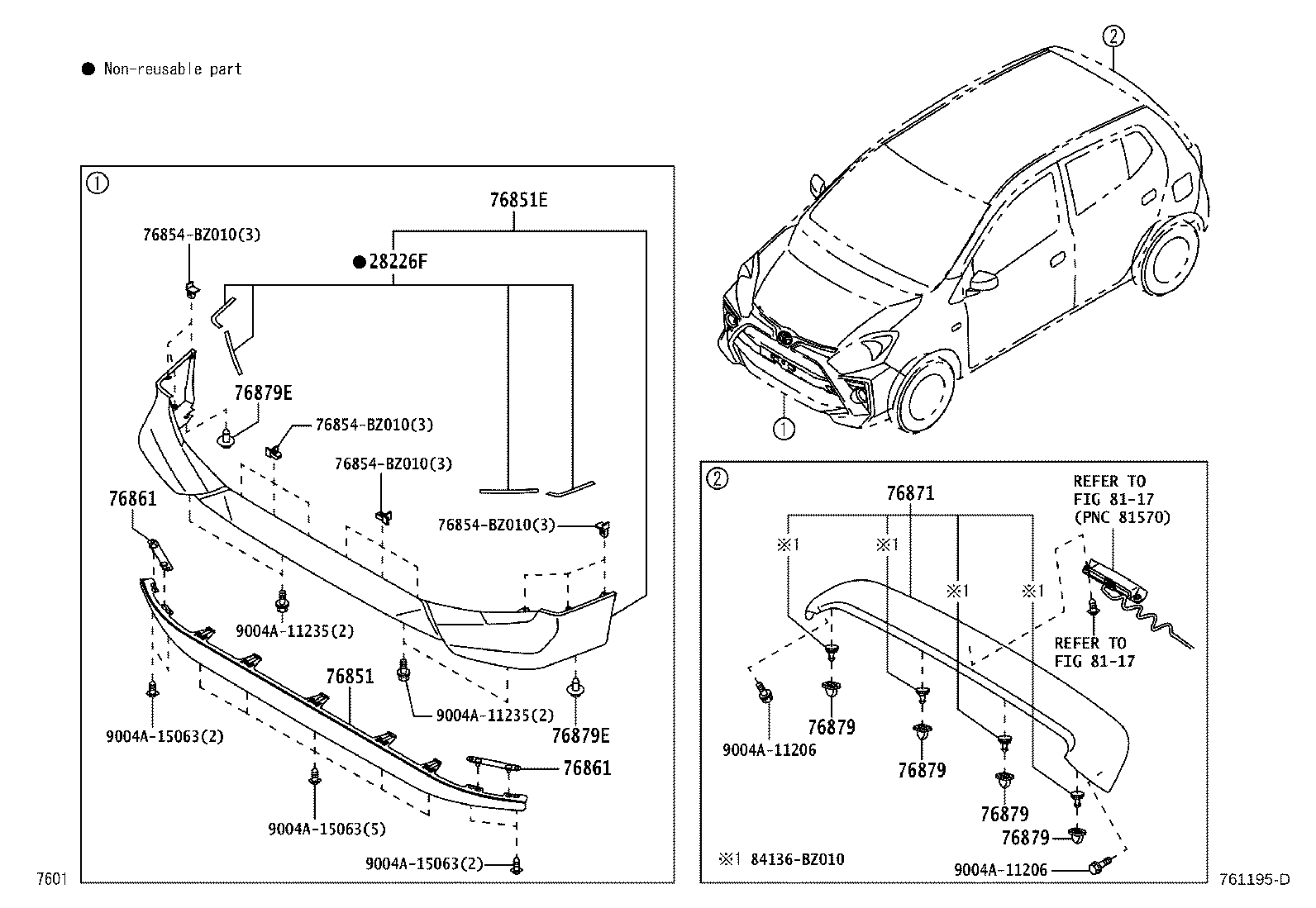

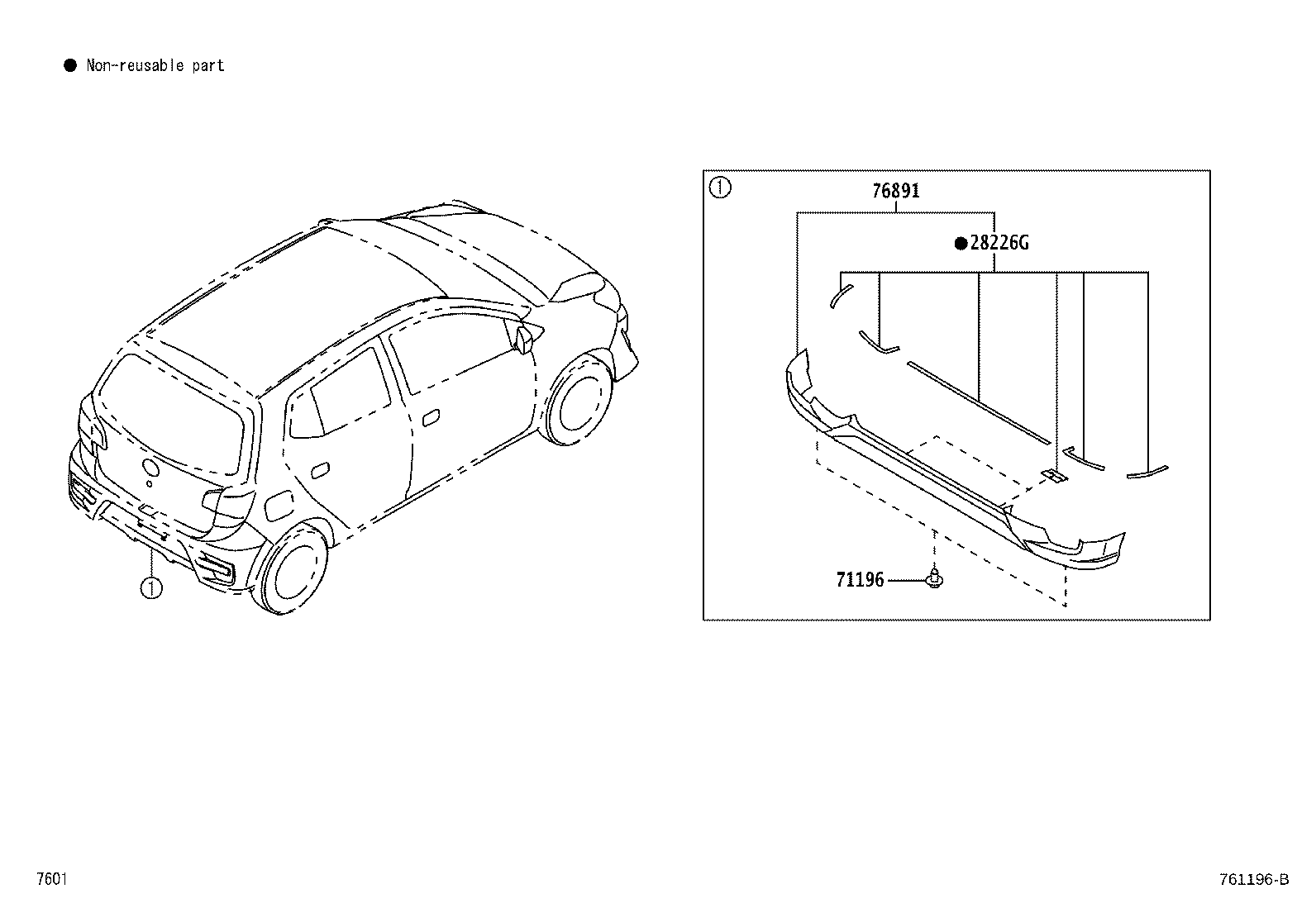

Figure 761013B 761013B 2012-12 → 2017-04 Figure 761013B 761013B 2017-04 → 2020-03 Figure 761013B 761013B 2020-03 → — Figure 761195D 761195D 2020-03 → — Figure 761196B 761196B 2020-03 → —

Part groups

PNCDescription
28226F Repair Service Kit. Front Spoiler
28226G Repair Service Kit. Rear Spoiler Cover
71196 Clip(FOR REAR SPOILER)
76851 Cover, Front Spoiler
76851E Spoiler, Front
76861 Retainer, Front Spoiler, Lower NO.1
76871 Spoiler, Rear
76879 Clip, Rear Spoiler, NO.1
76879E Clip, Front Spoiler
76891 Spoiler, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
