Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02

Fuel Tank & Tube

45 part groups · 4 illustrations

PNC	Description
23210A	Pump Assy, Fuel W/Motor & Bracket
23217D	Filter, Fuel Pump
23221	Pump, Fuel
23225A	Spacer, Fuel Pump
23232A	Gasket, Fuel Pump
23401B	Bolt
23415A	Plate
77013	Tube Sub-assy, Fuel Tank Breather, NO.2
77019J	Tube Sub-assy, Fuel Tank TO Canister

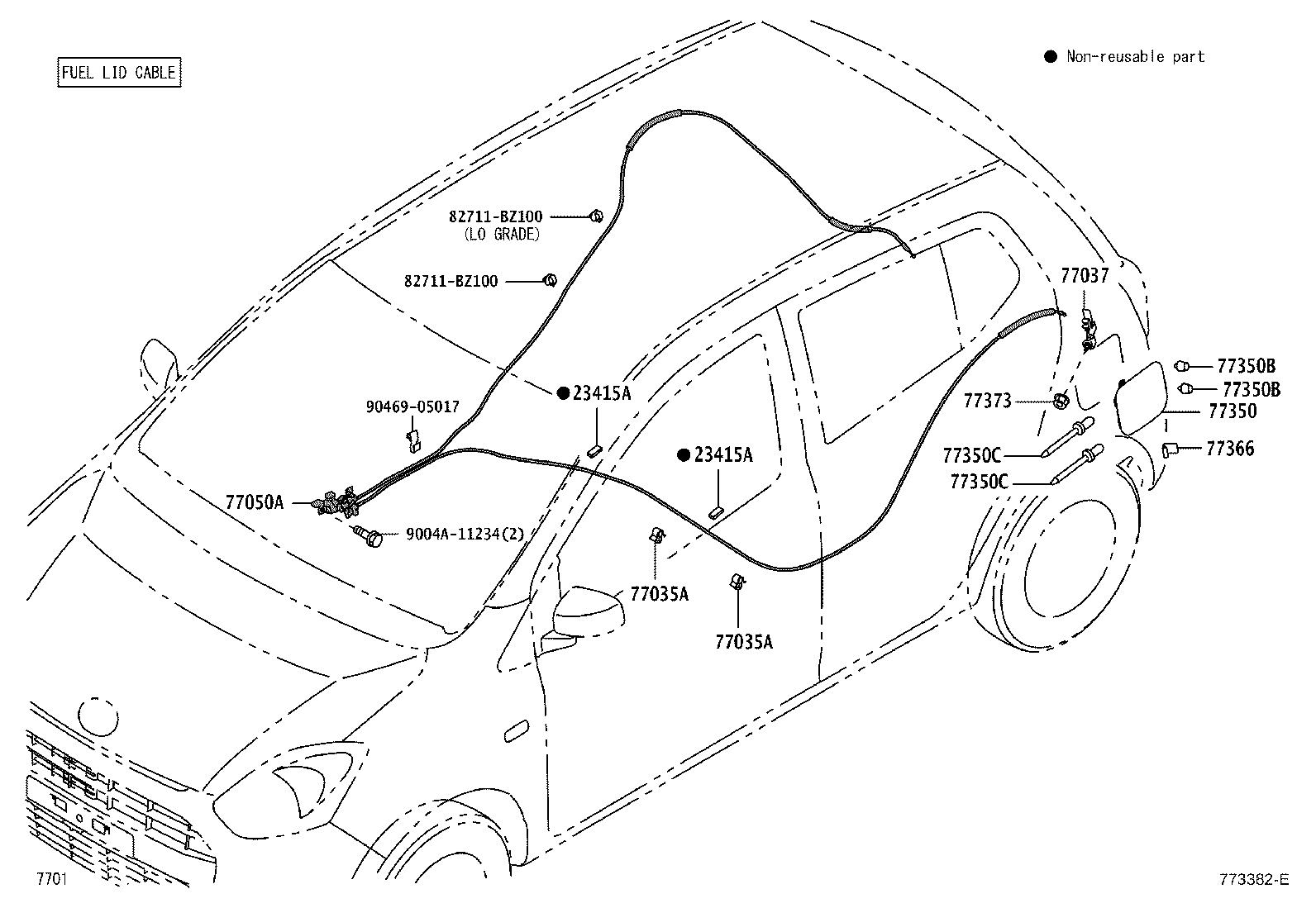

77035A	Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037	Lock Sub-assy, Fuel Filler Opening Lid
77050A	Control Opener Assy, Fuel Lid Lock
77100	Tank Assy, Fuel
77100B	Gasket(FOR FUEL TANK)
77141B	Reinforcement, Fuel Tank Flange, NO.1
77201	Pipe Sub-assy, Fuel Tank Inlet
77203A	Tube Sub-assy, Fuel Suction
77203C	Bracket, Fuel Pump
77213B	Hose, Fuel Tank TO Filler Pipe
77219	Cover, Fuel Tank Filler Pipe
77248A	Holder, Fuel Tank Filler Pipe Cover

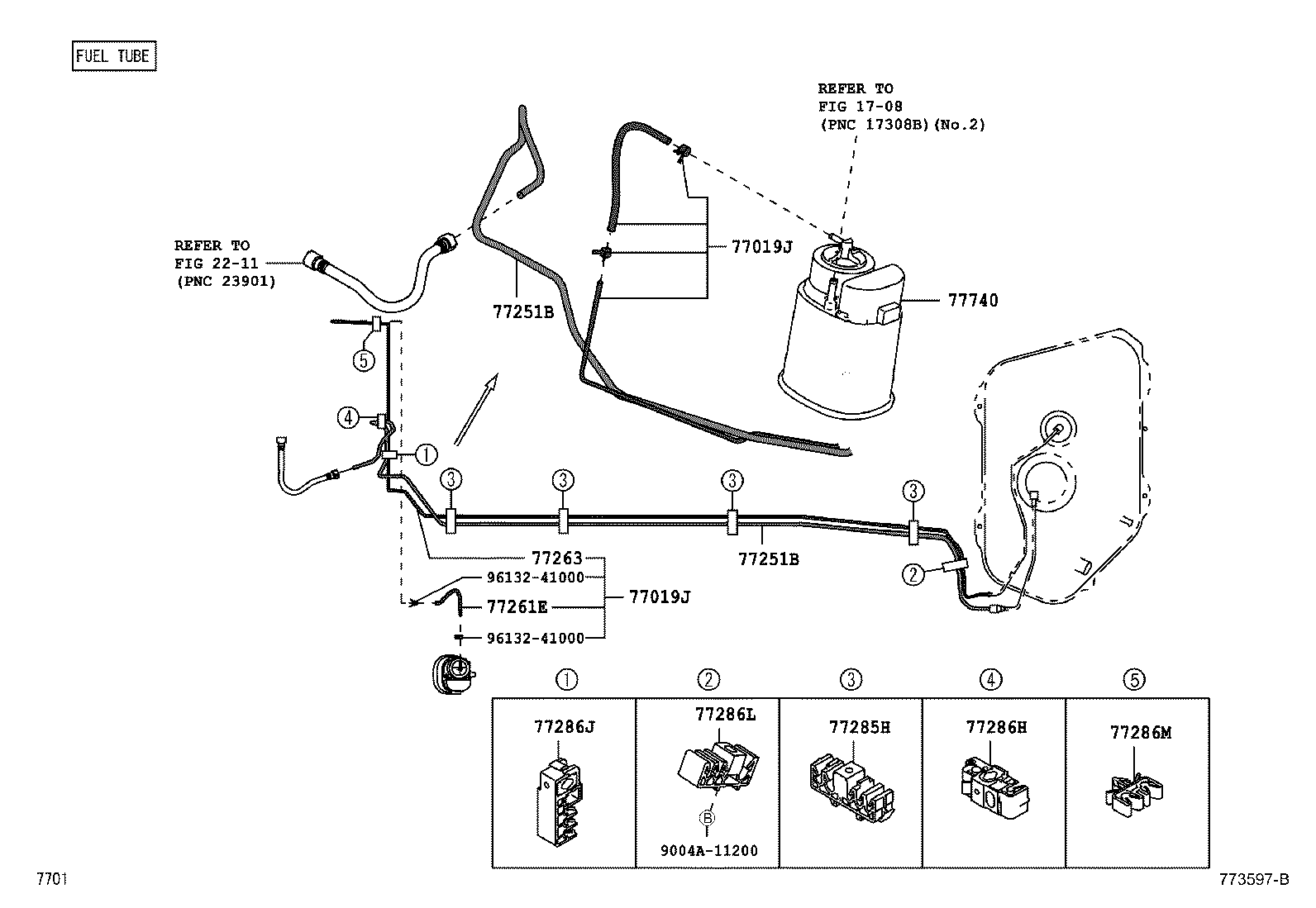

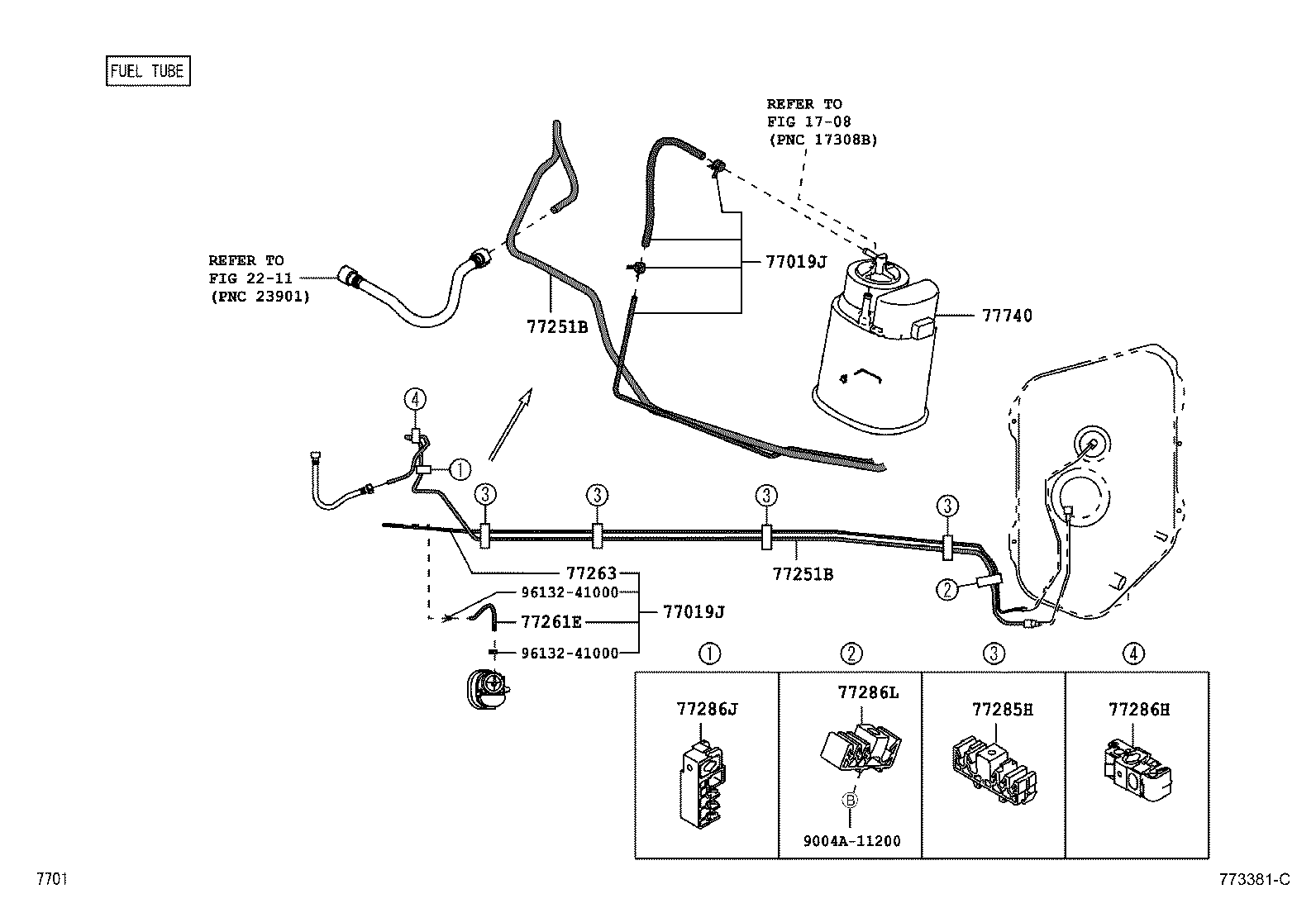

77251B	Tube, Fuel Main
77259C	Hose, Fuel
77259G	Clip, Fuel Hose
77261E	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77263	Tube, Fuel Tank TO Canister, NO.3
77269A	Hose, Fuel Tank Breather
77285H	Clamp, Fuel Tube, NO.1
77286H	Clamp, Fuel Tube, NO.3
77286J	Clamp, Fuel Tube, NO.4
77286L	Clamp, Fuel Tube, NO.5
77286M	Clamp, Fuel Tube, NO.6
77288	Clamp, Breather Hose
77289B	Clamp, Fuel Tube, NO.3
77291A	Shield, Fuel Tank Filler Pipe
77310A	Cap Assy, Fuel Tank
77350	Lid Assy, Fuel Filler Opening
77350B	Cushion(FOR FUEL FILLER OPENING LID)
77350C	Rivet
77366	Spring, Fuel Filler Opening Lid Hinge
77373	Nut, Fuel Lid Lock
77380	Valve Assy, Fuel Cut Off
77631A	Protector, Fuel Tank, Lower Center
77644	Bolt, Fuel Tank
77740	Canister Assy, Charcoal

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
