Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

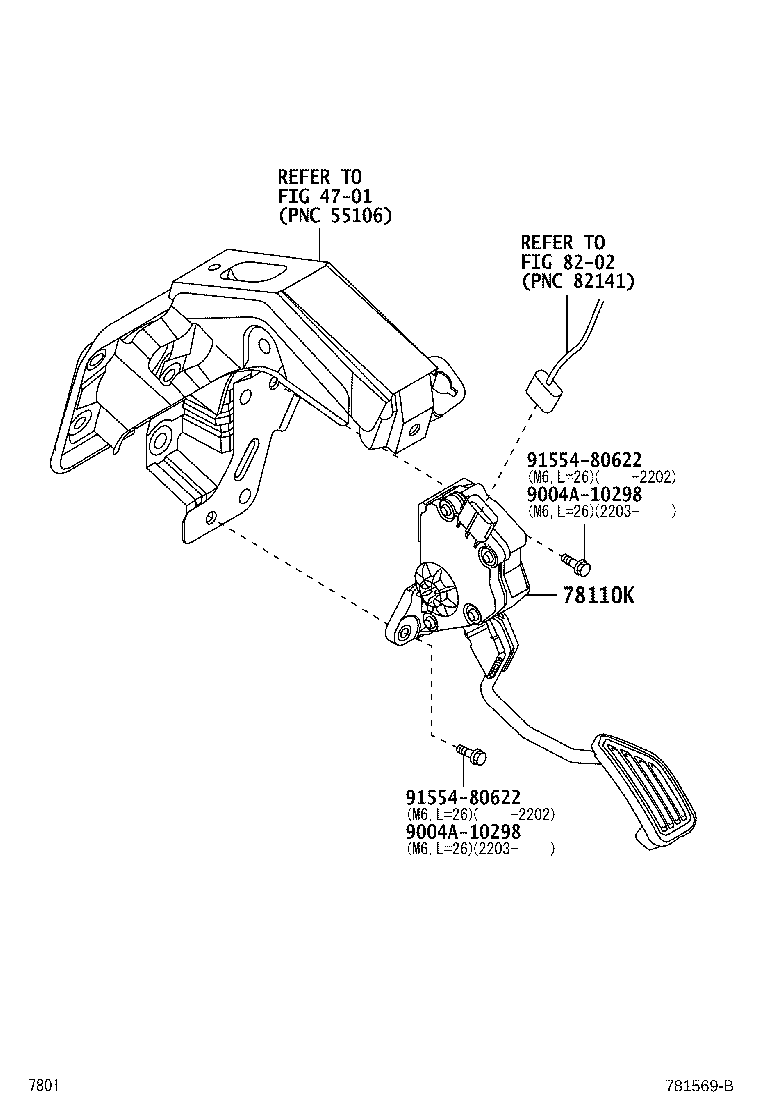

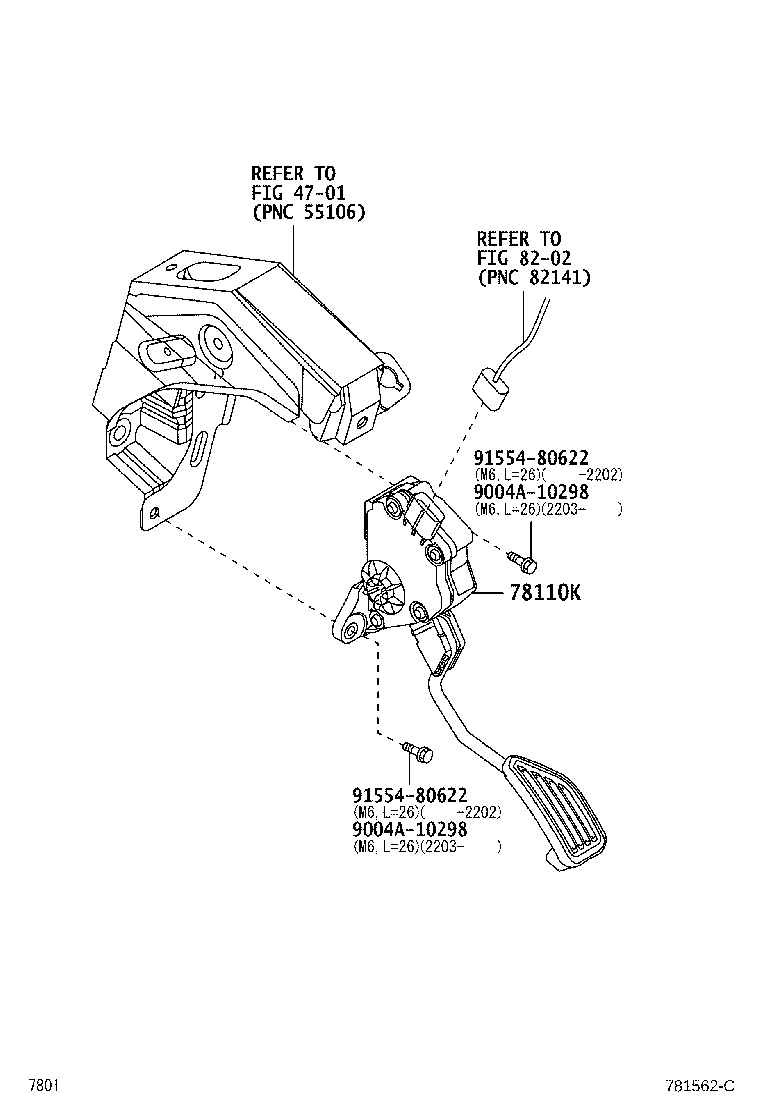

Accelerator Link
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010F | Pedal Assy, Accelerator |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110B | Clip, Accelerator Bellcrank |
| 78110C | Bush (FOR ACCELERATOR PEDAL ROD) |
| 78110K | Rod Assy, Accelerator Pedal(W/SENSOR) |
| 78180P | Cable Assy, Accelerator Control |
| 78183C | Clamp, Accelerator Control Cable |
| 78183E | Clamp, Accelerator Control Cable |
| 78184C | Bracket, Accelerator Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
