Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 11 illustrations

Illustrations

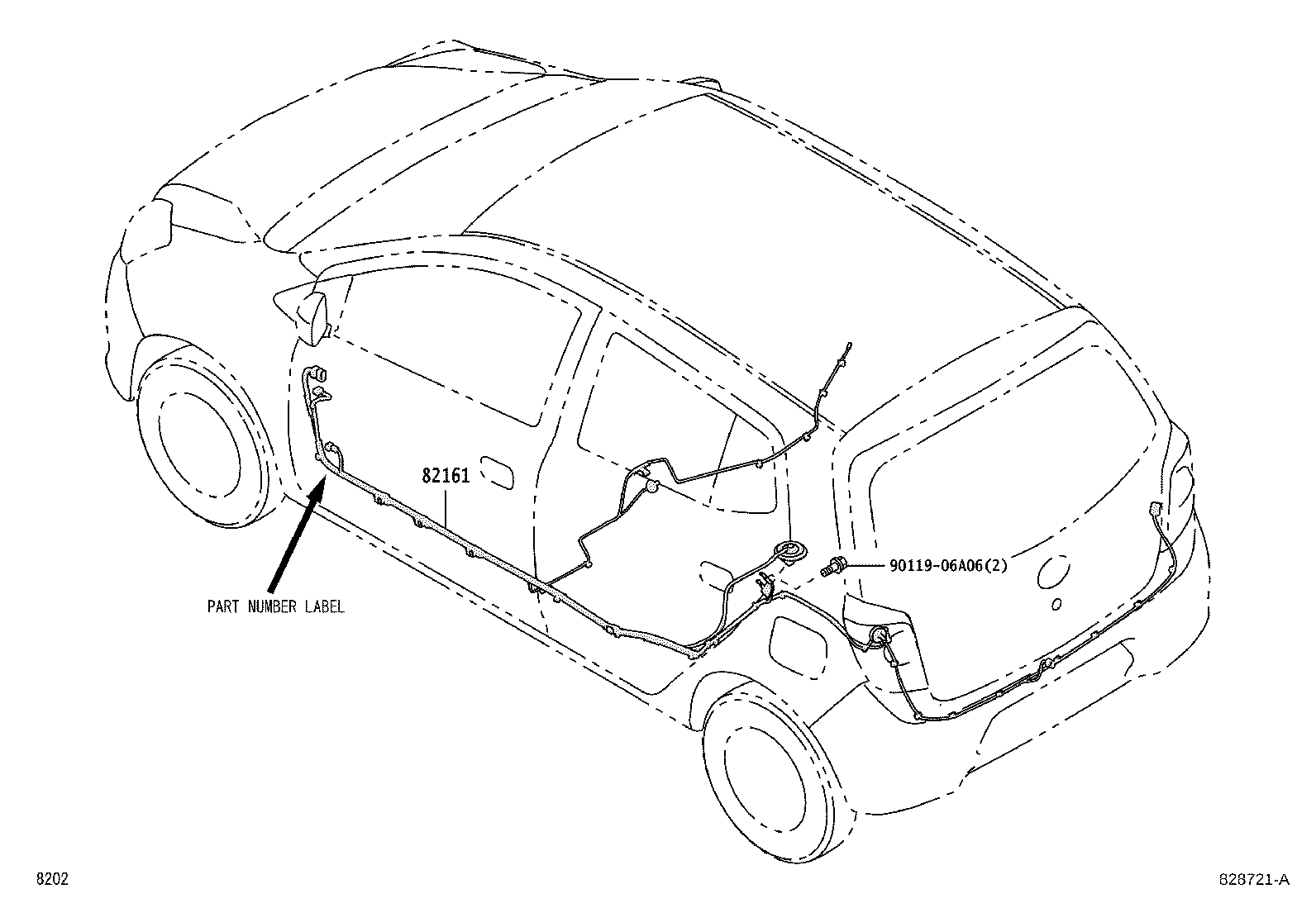

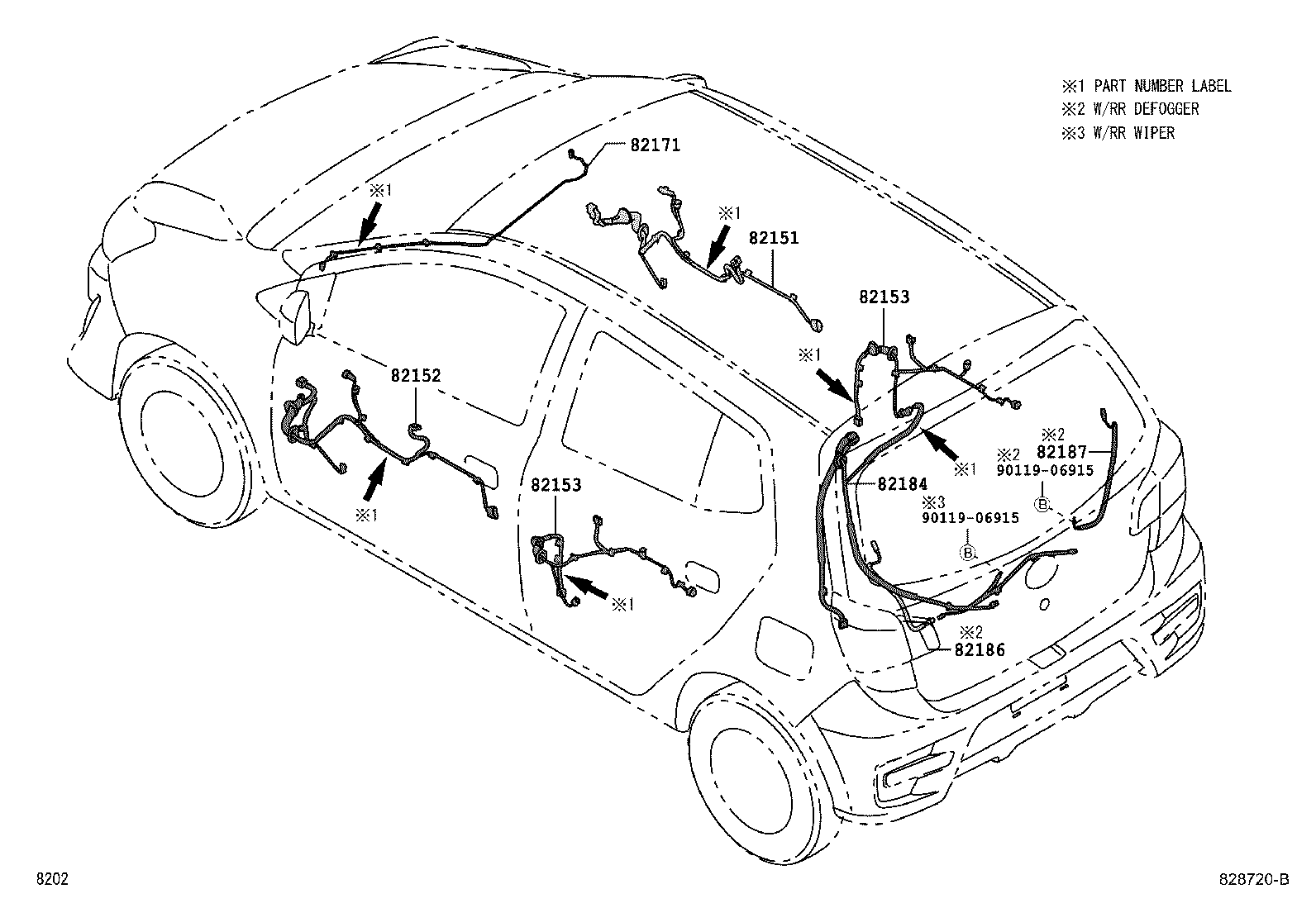

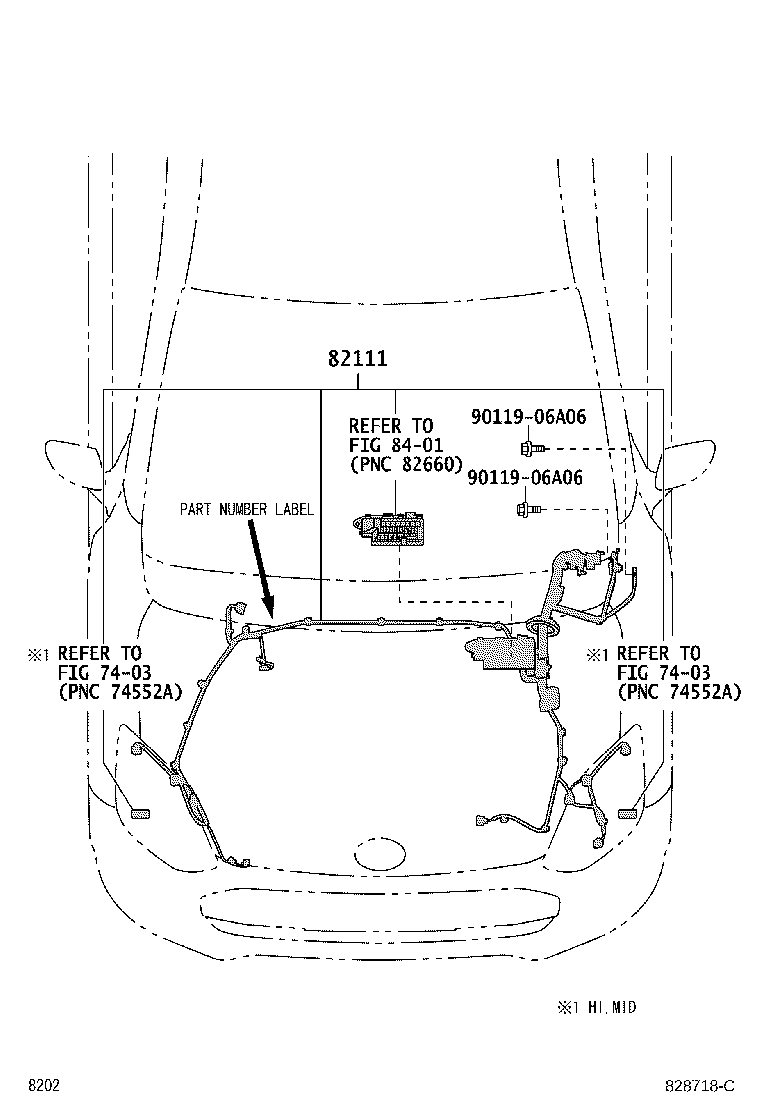

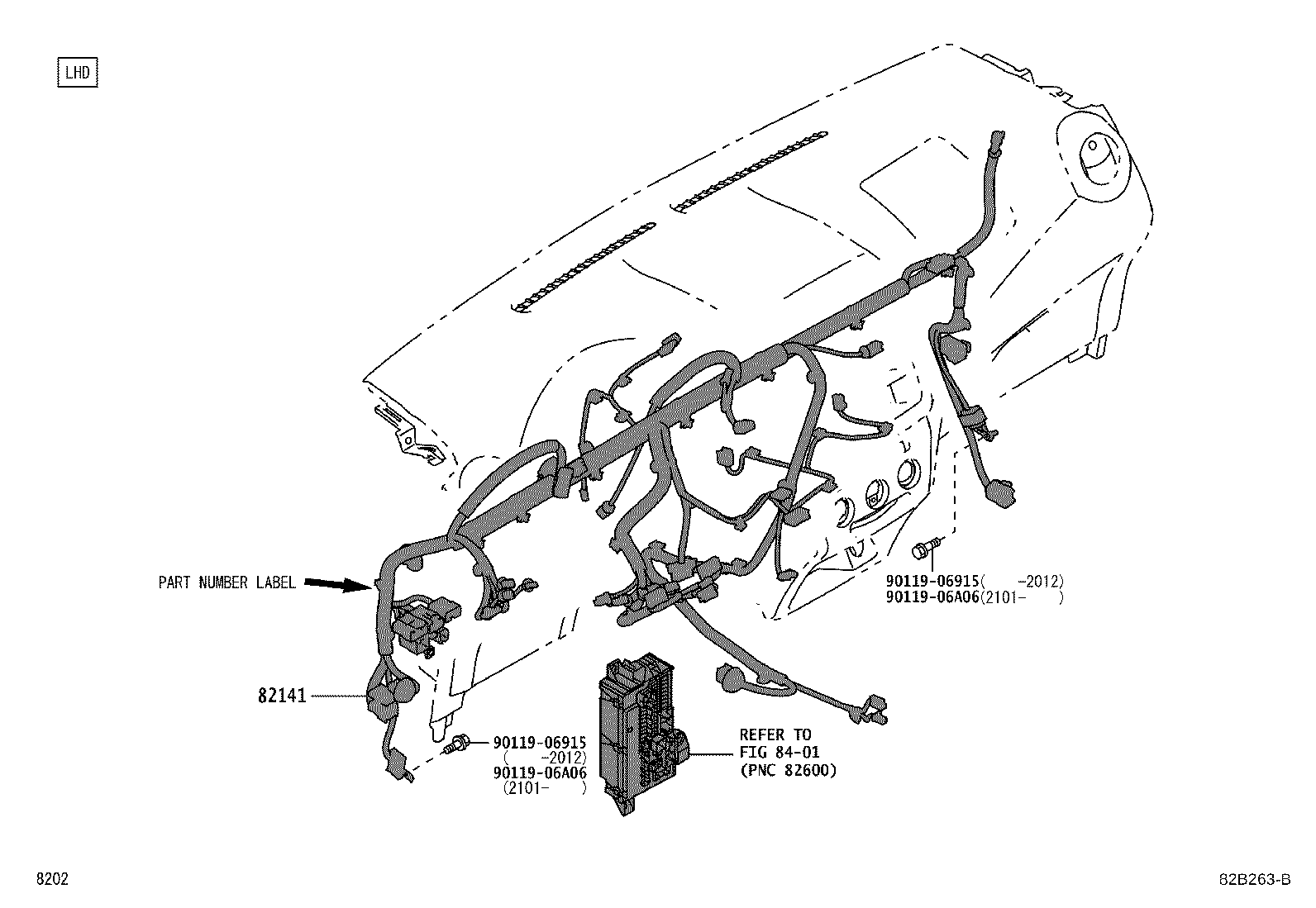

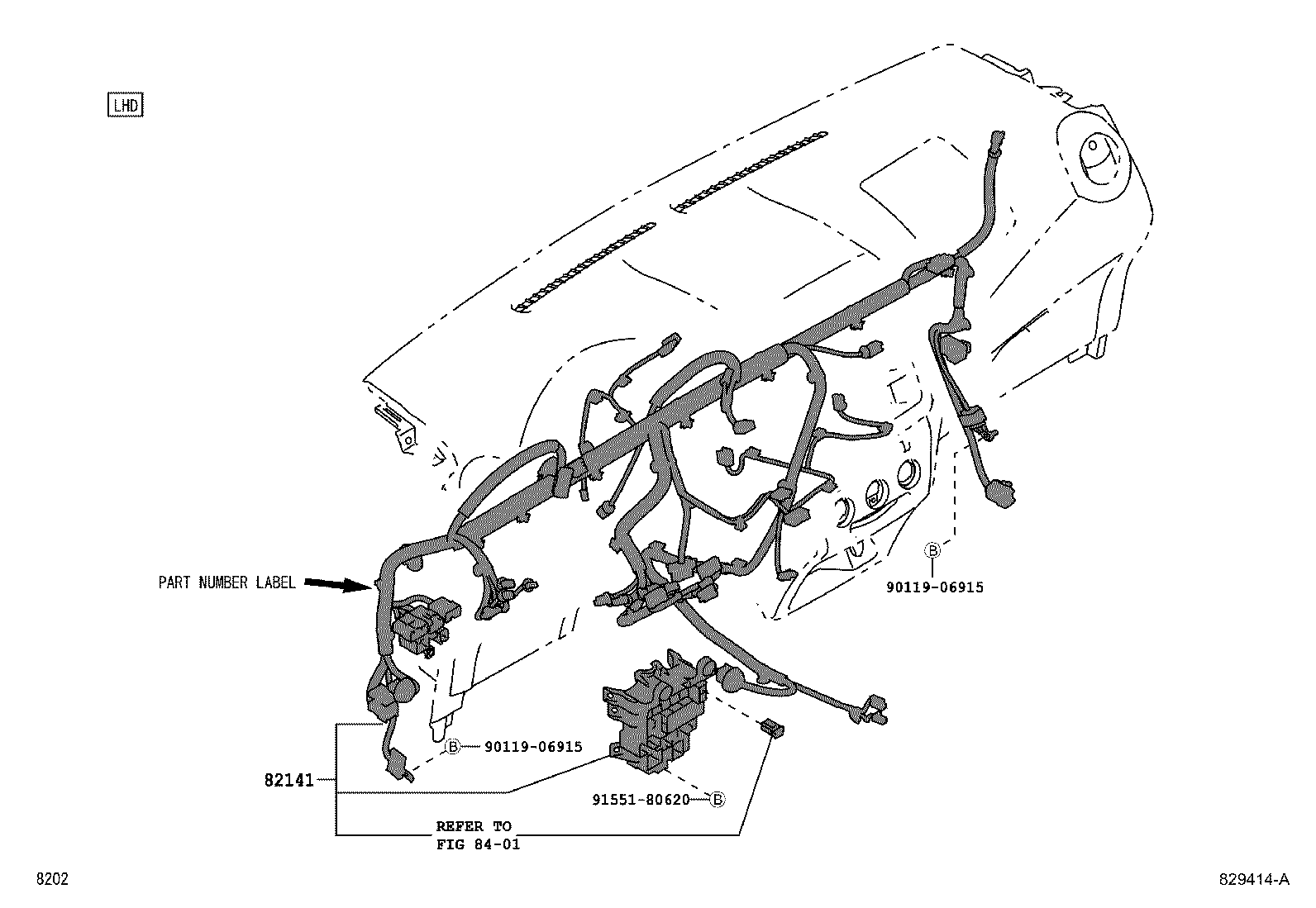

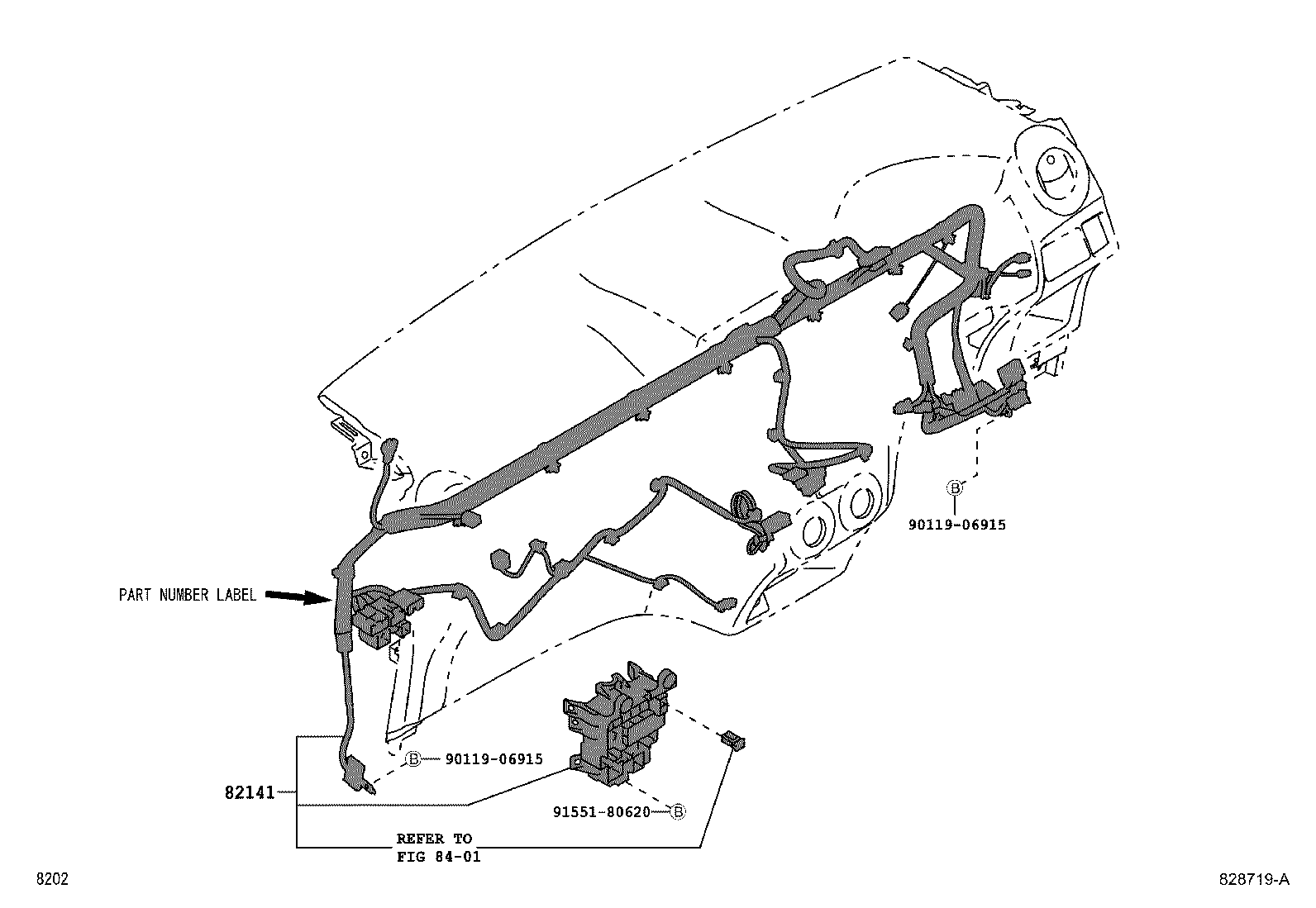

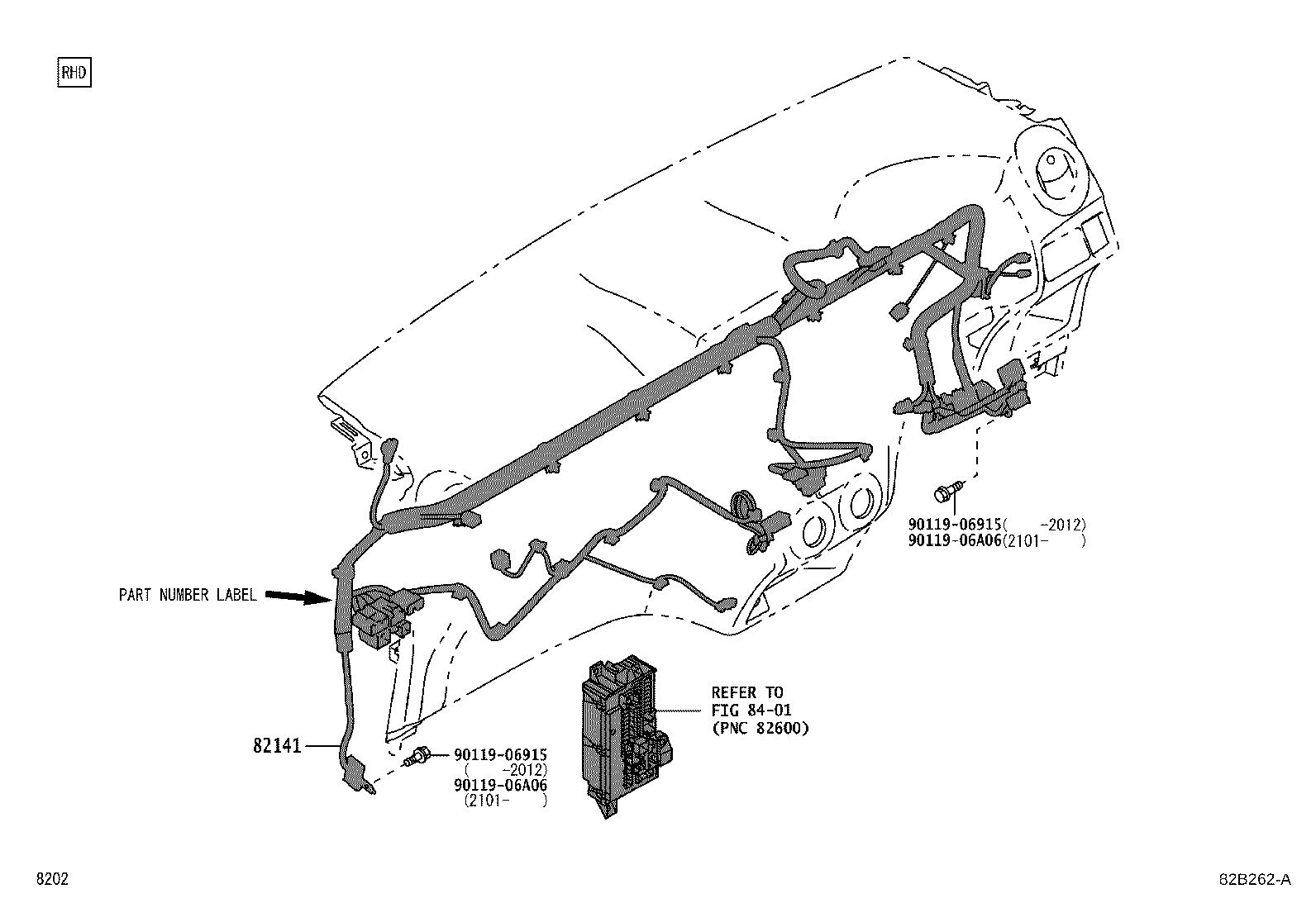

Figure 828717C 828717C 2012-12 → 2017-04 Figure 82B260B 82B260B 2017-04 → — Figure 82B261B 82B261B 2017-04 → — Figure 828718C 828718C 2012-12 → — Figure 828719A 828719A 2012-12 → 2017-04 Figure 82B262A 82B262A 2017-04 → — Figure 829414A 829414A 2014-01 → 2017-04 Figure 82B263B 82B263B 2017-04 → — Figure 828720B 828720B 2012-12 → — Figure 828721A 828721A 2012-12 → — Figure 828722B 828722B 2012-12 → —

Part groups

PNCDescription
82046D Wire, Body Ground
82111 Wire, Engine Room Main
82121 Wire, Engine
82124 Wire, Engine, NO.4
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82627A Wire, Fusible Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
