Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

65 part groups · 25 illustrations

Illustrations

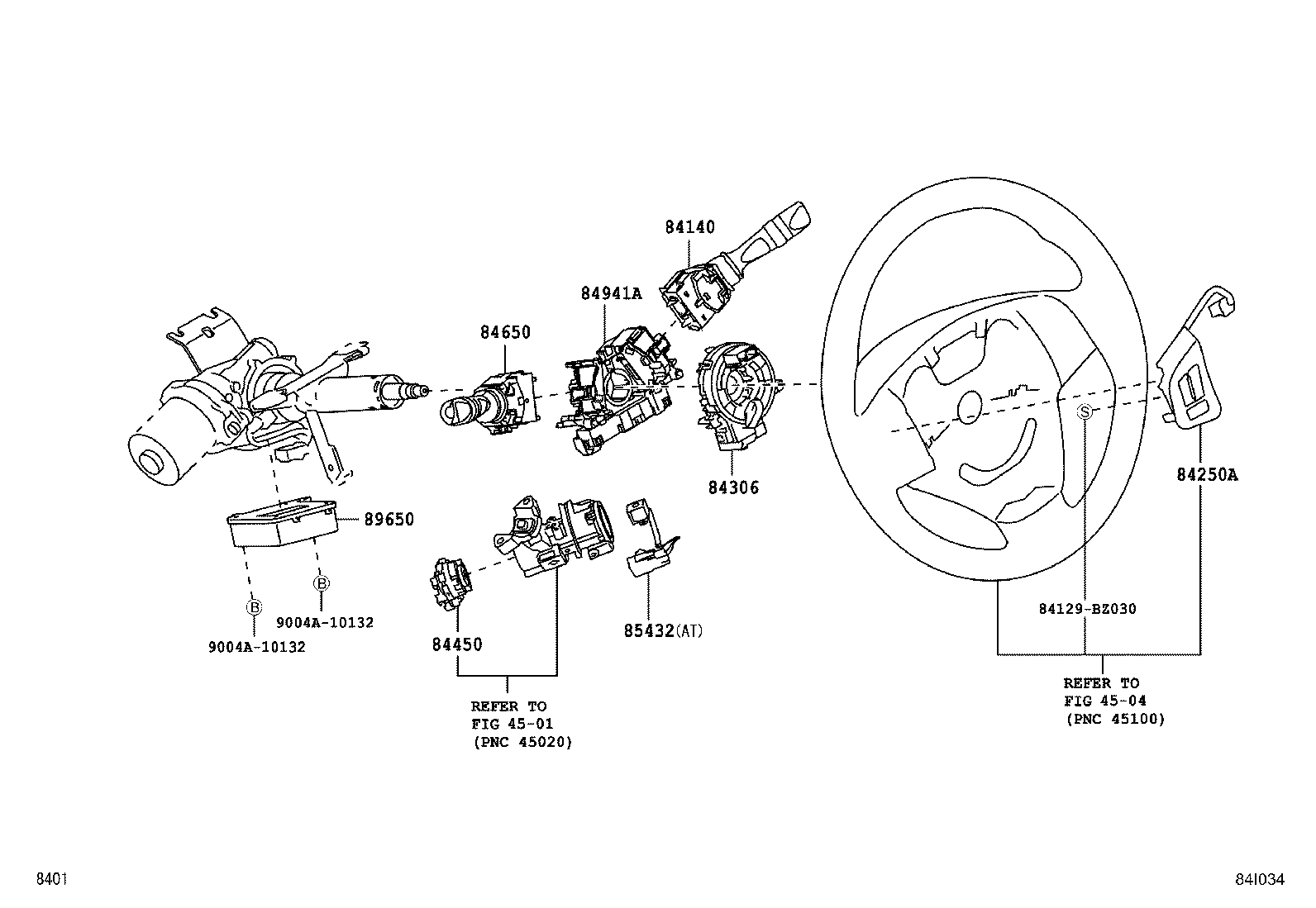

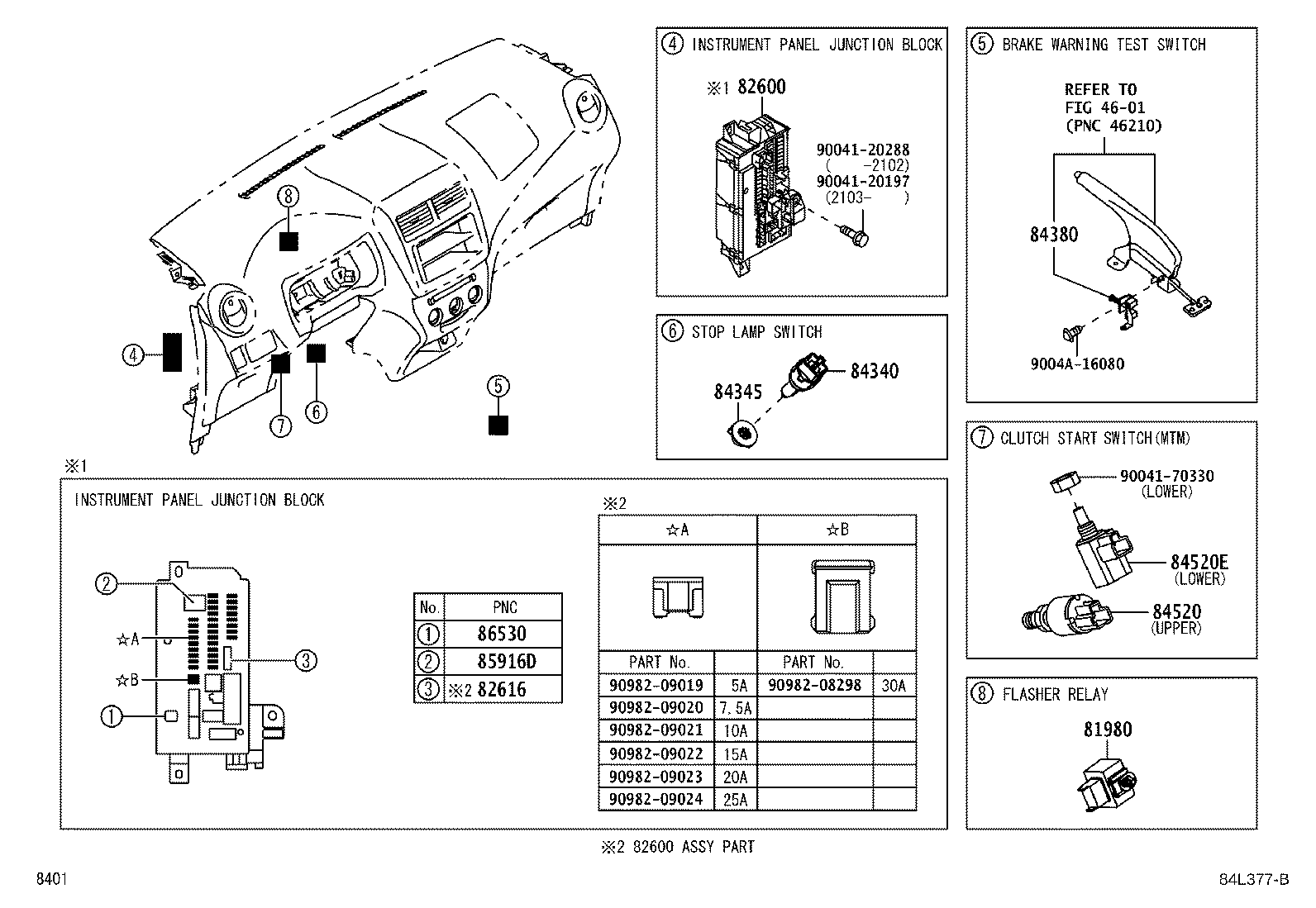

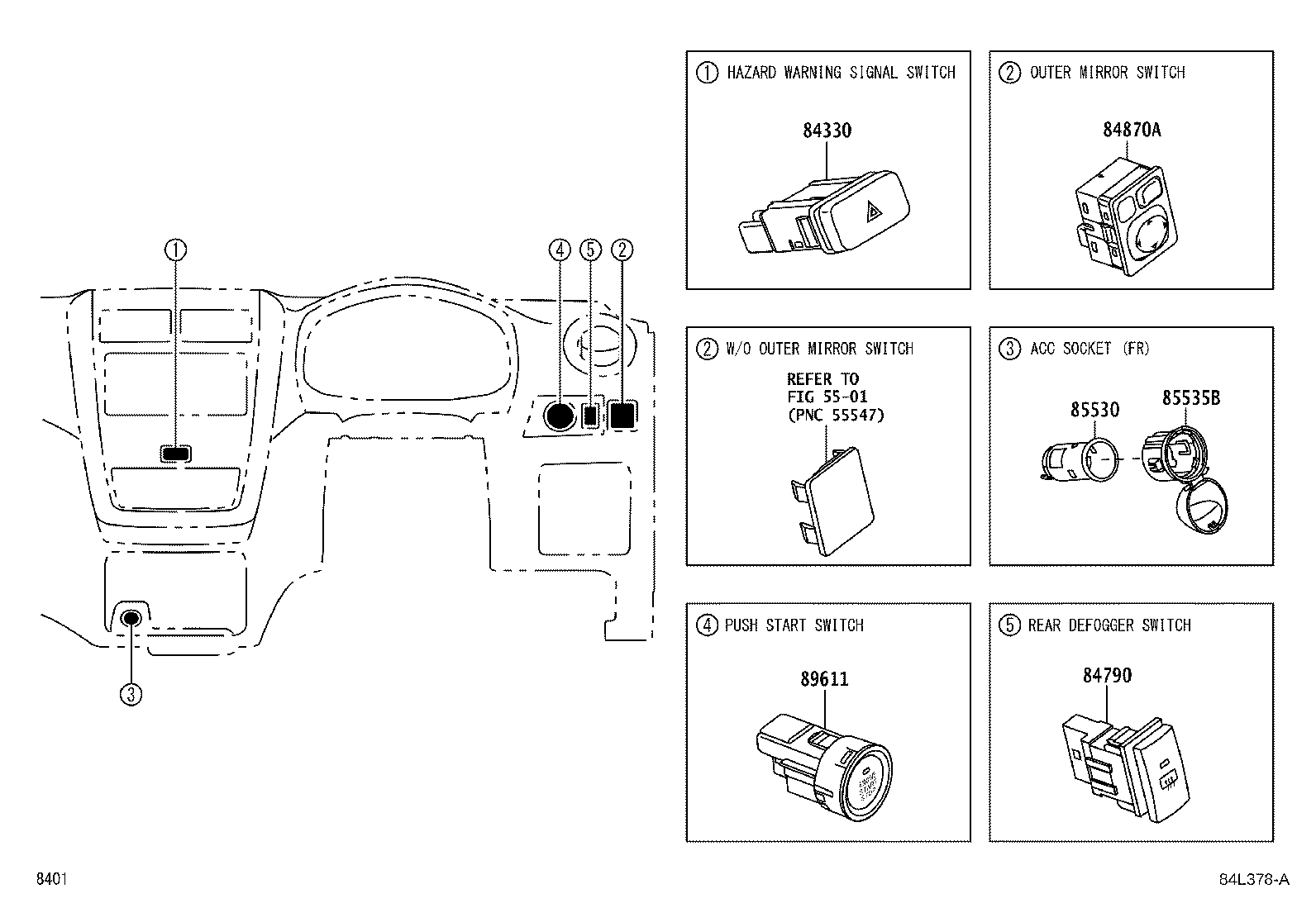

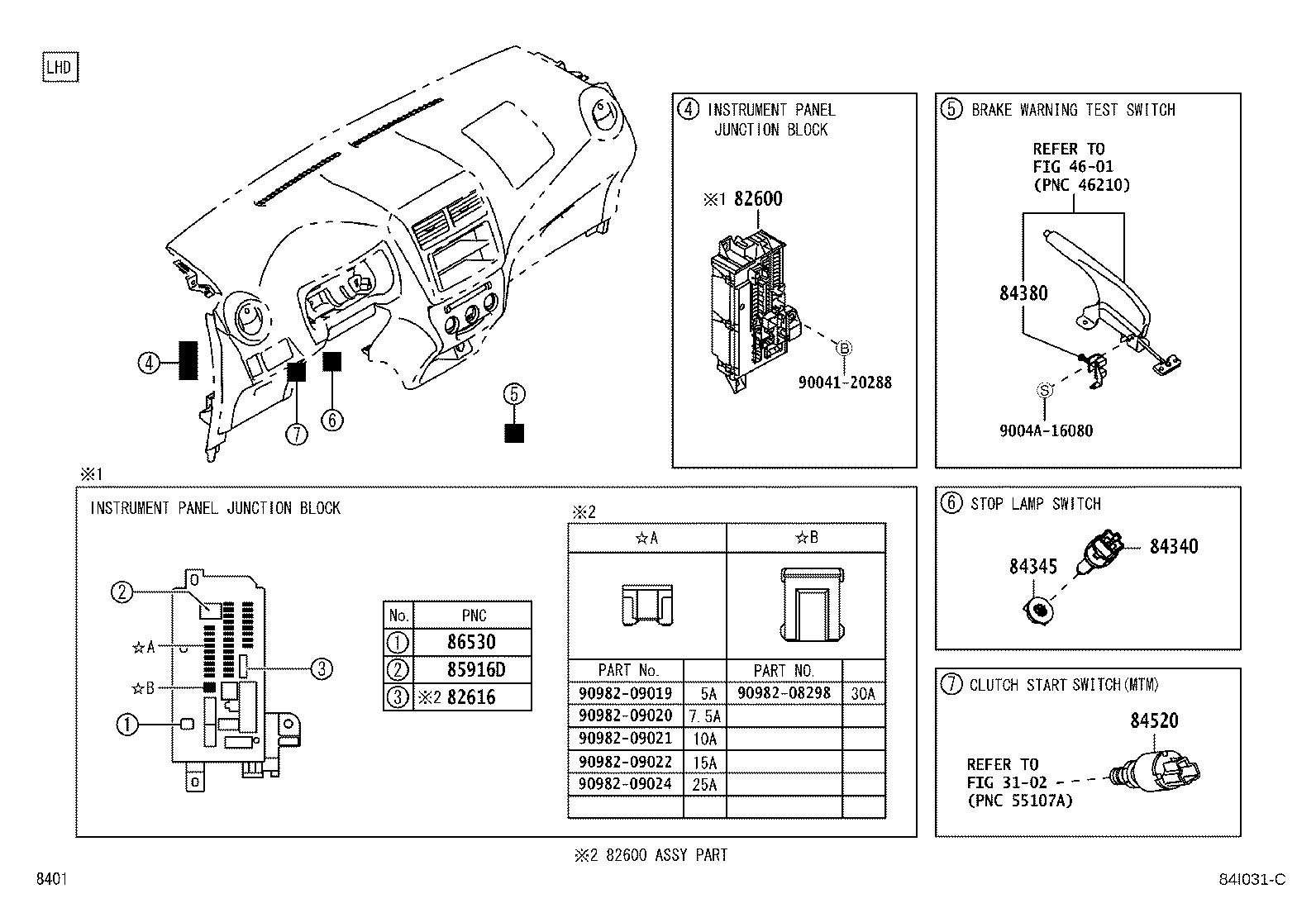

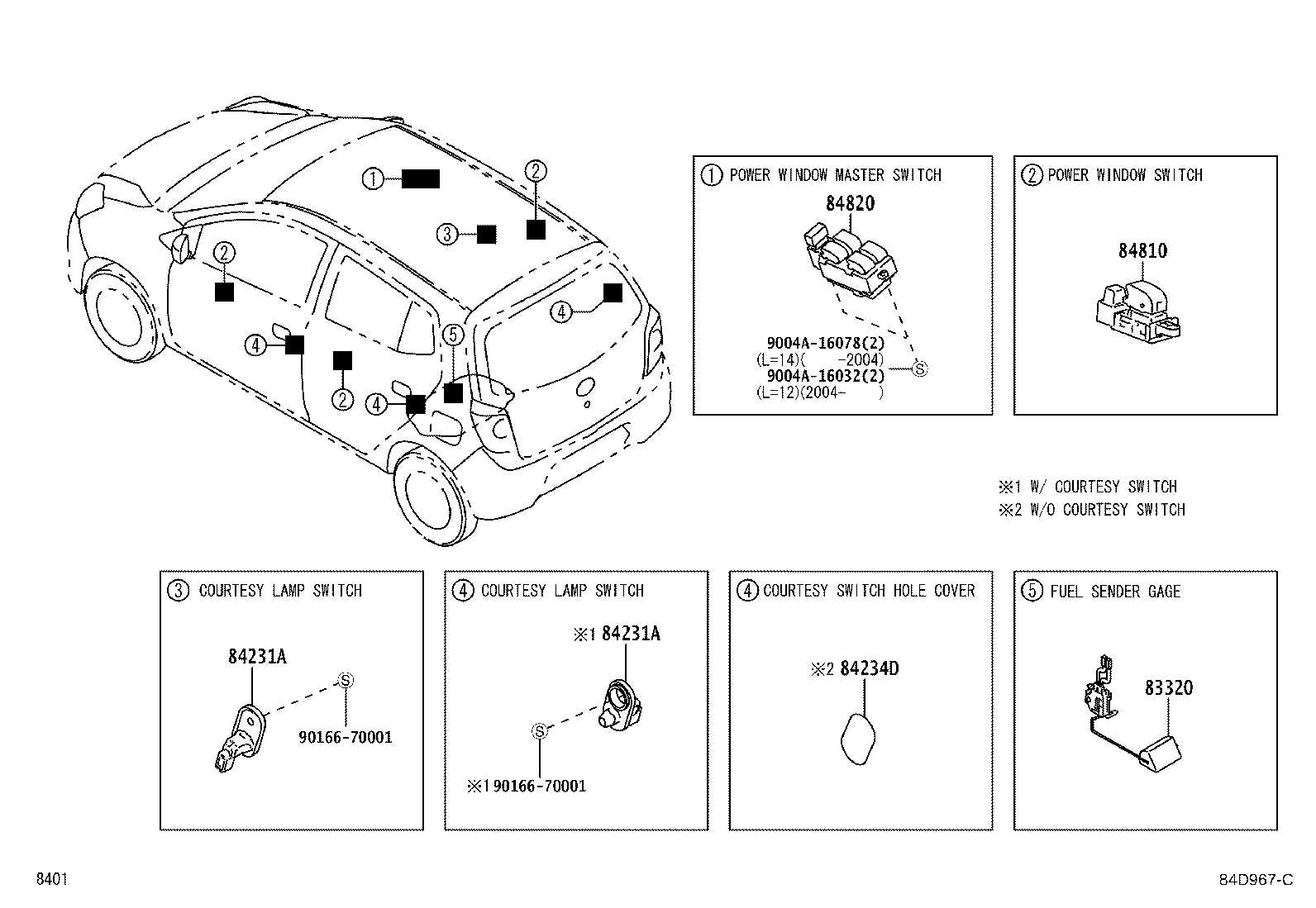

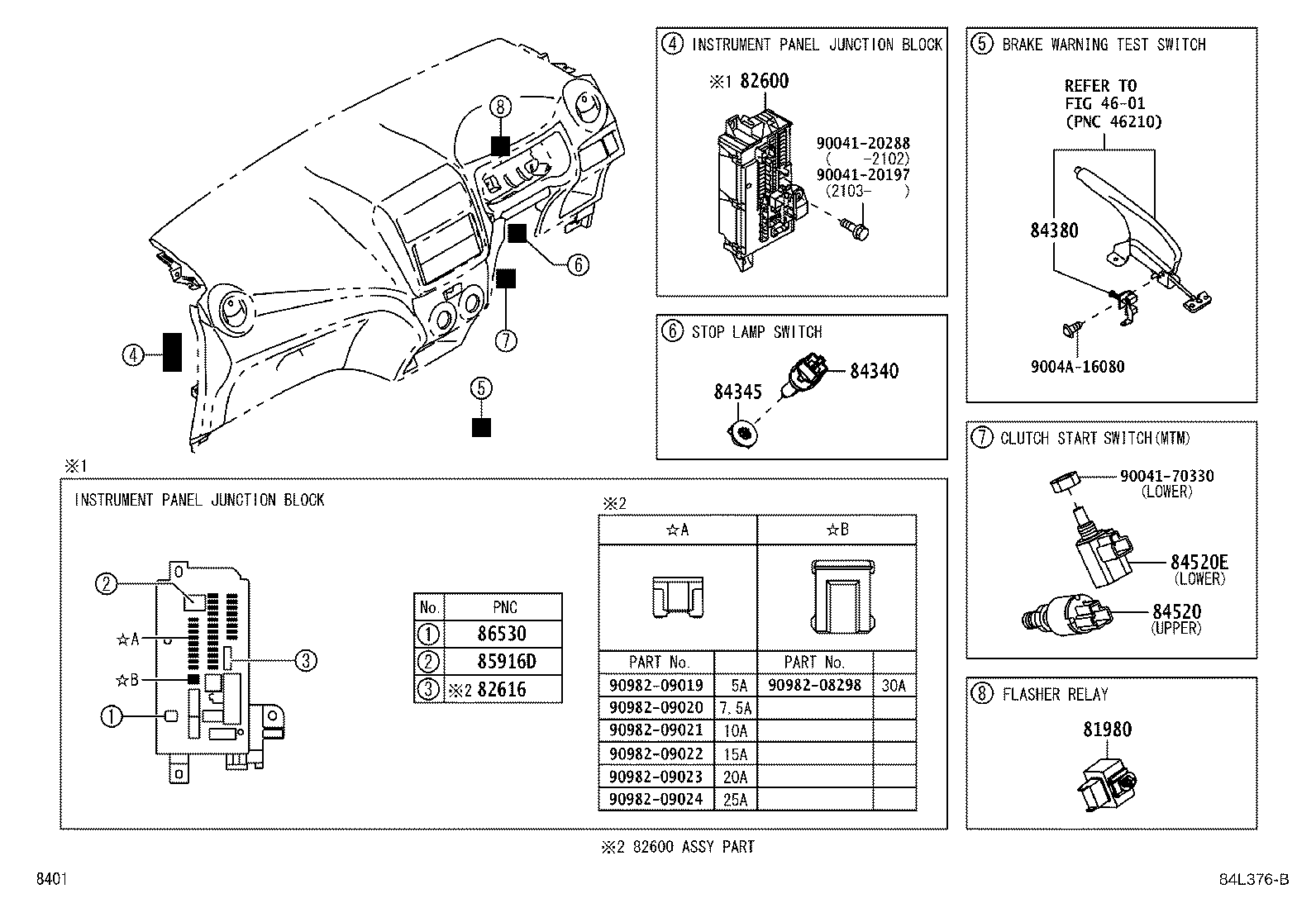

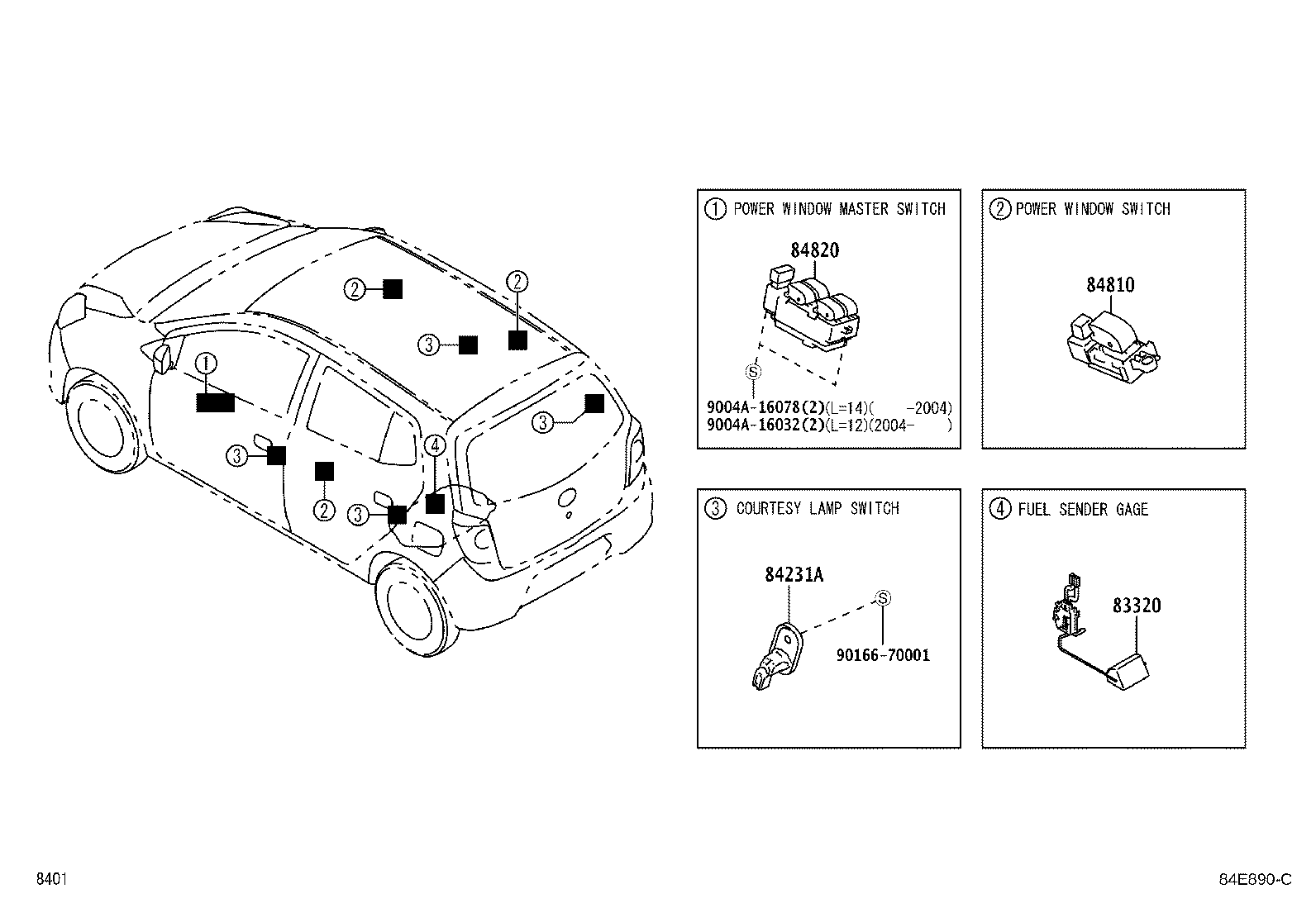

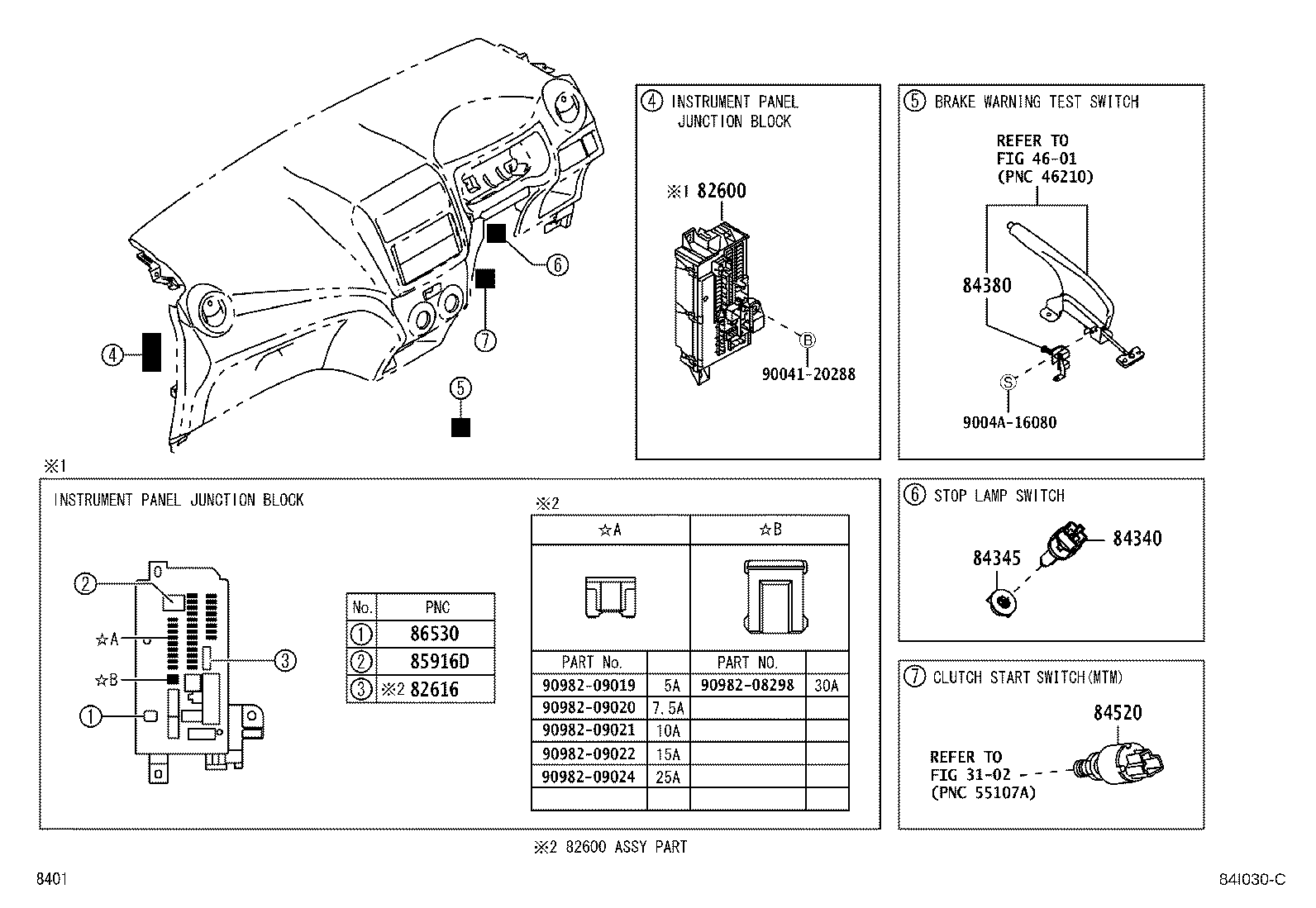

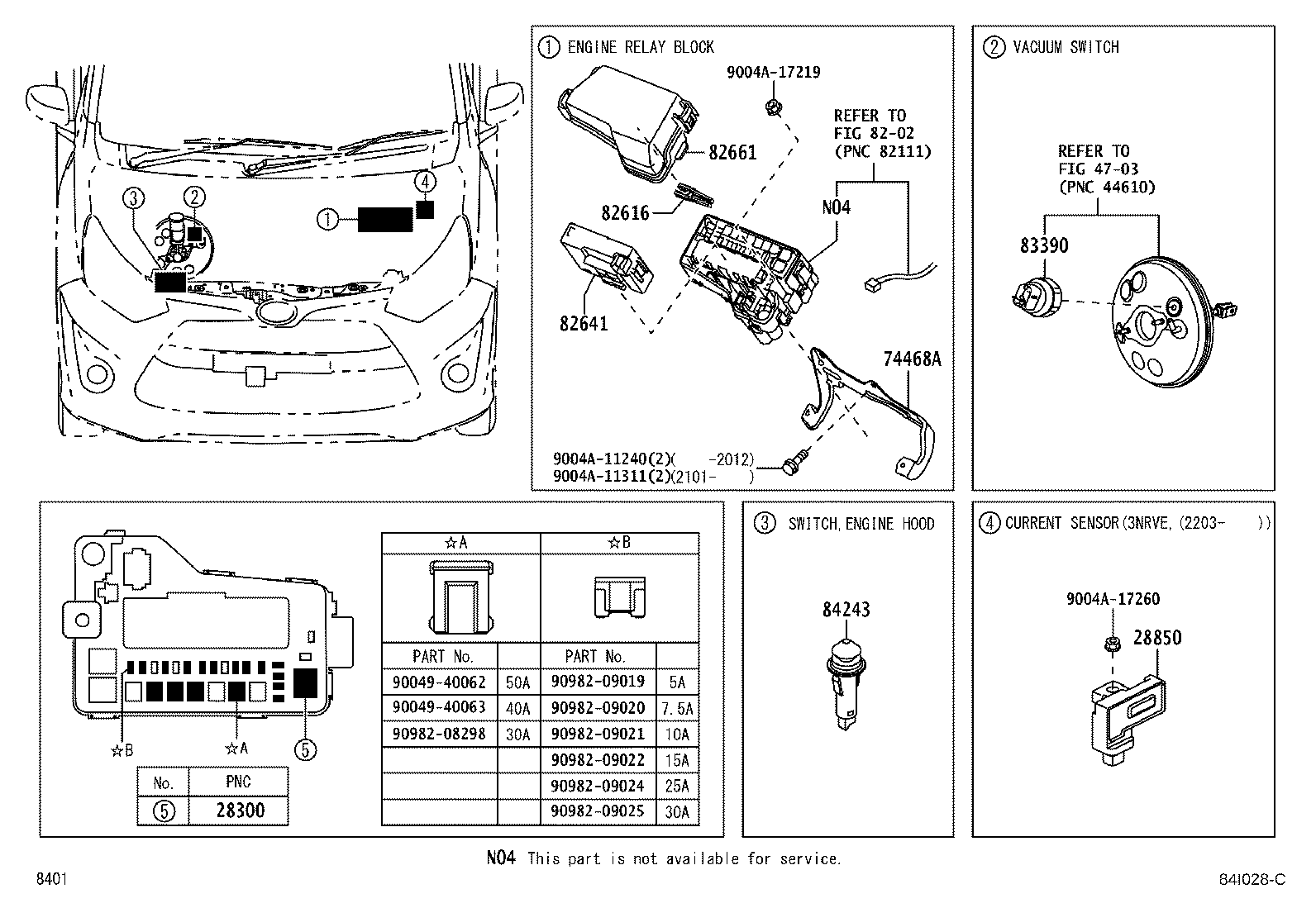

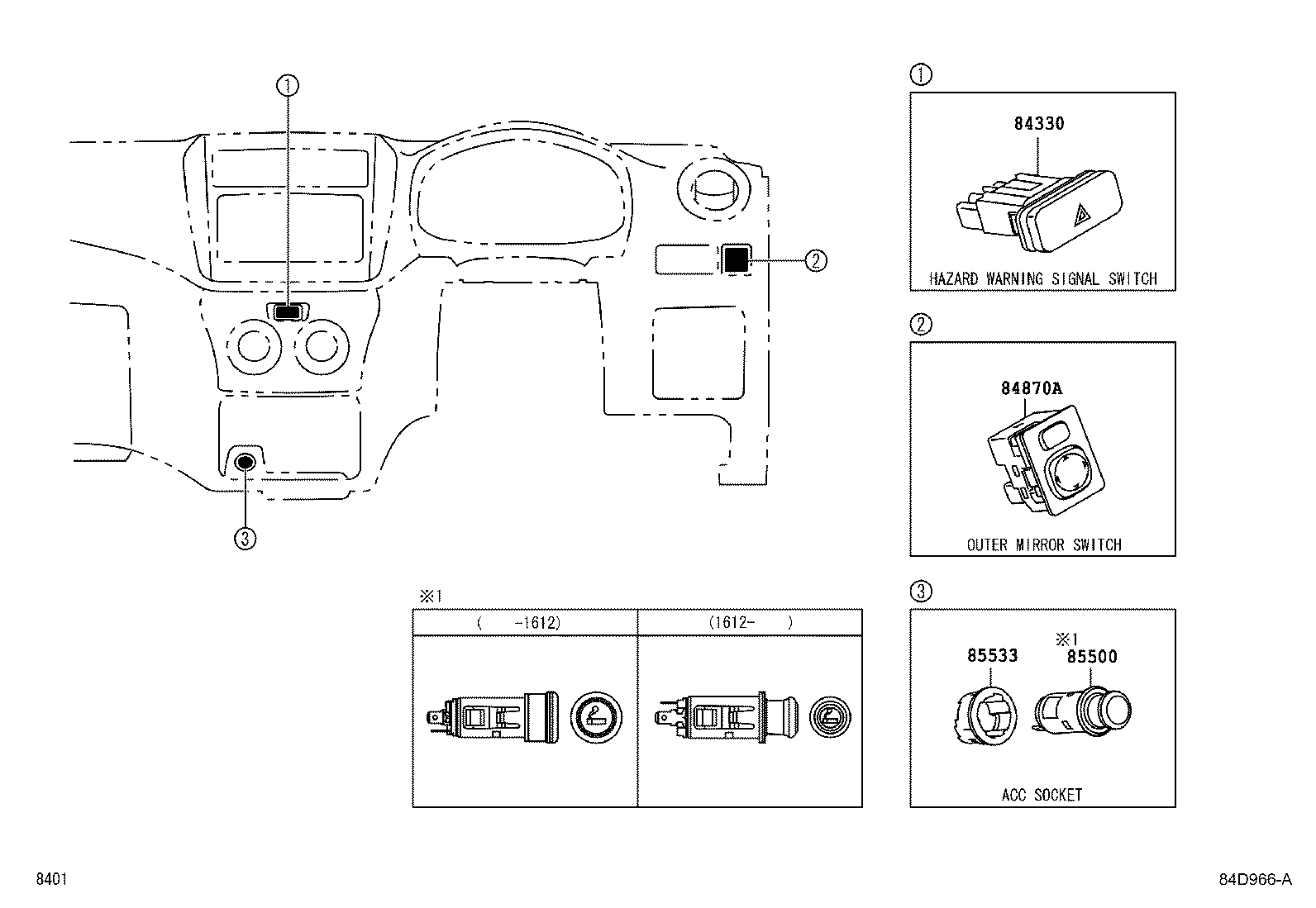

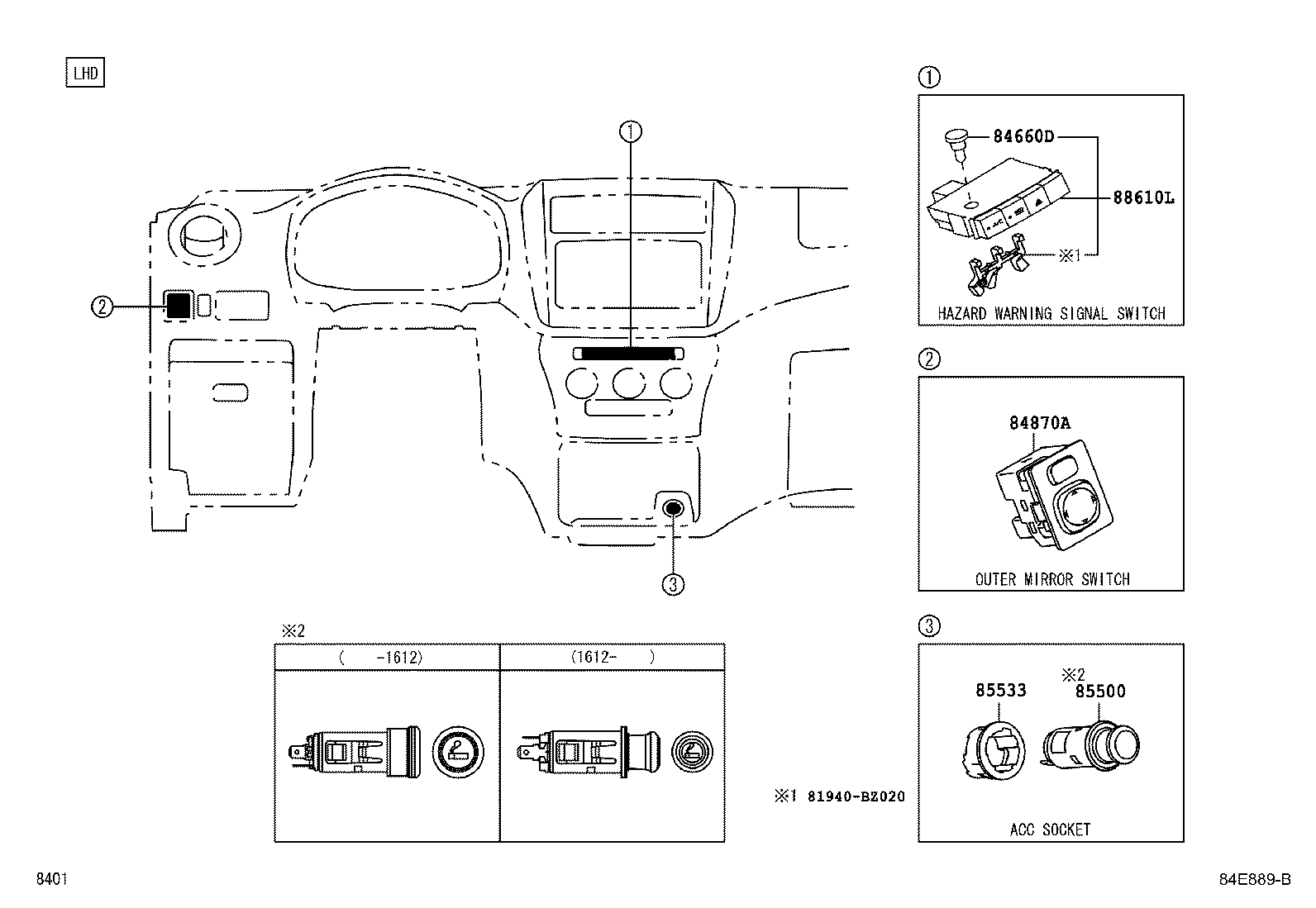

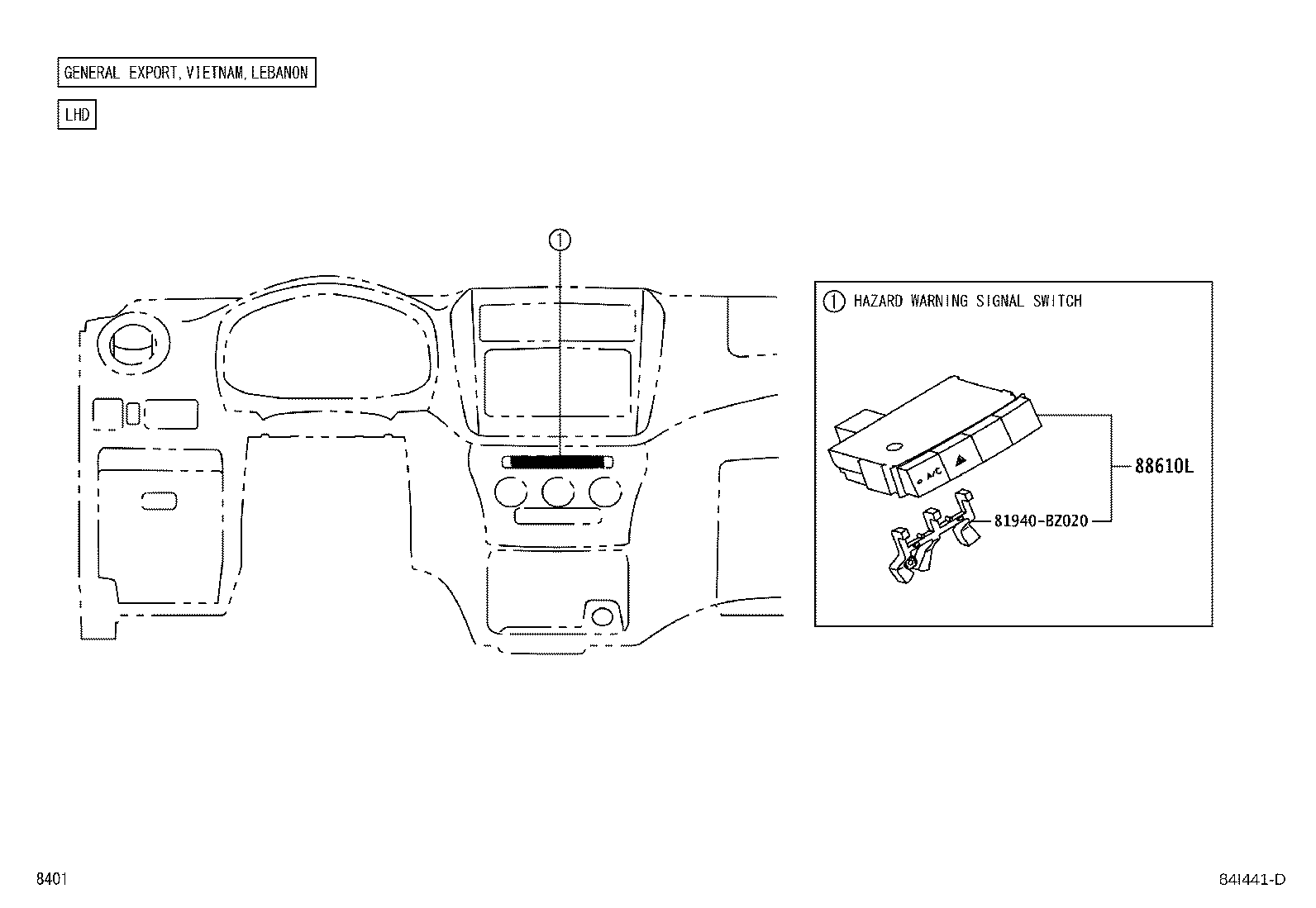

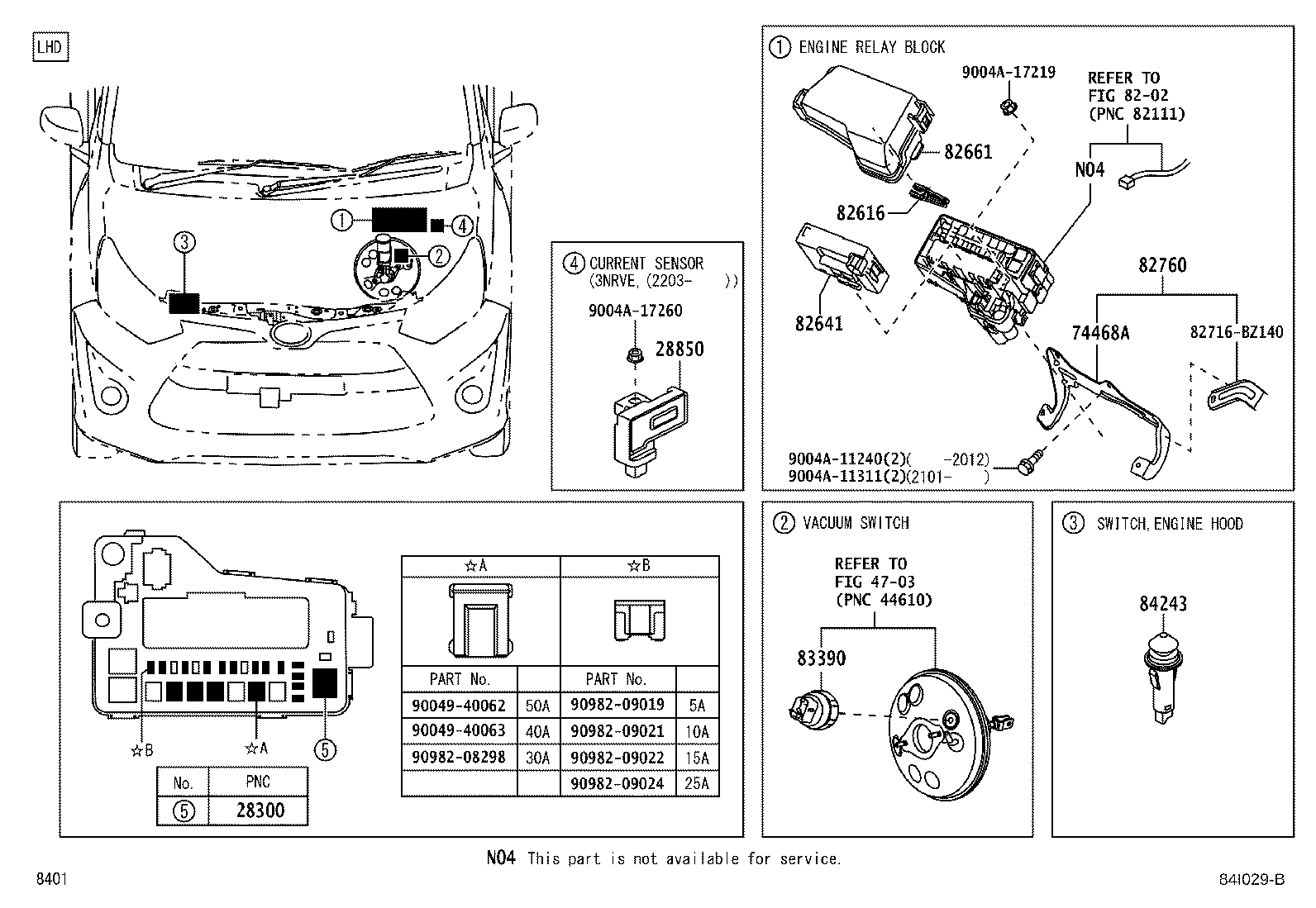

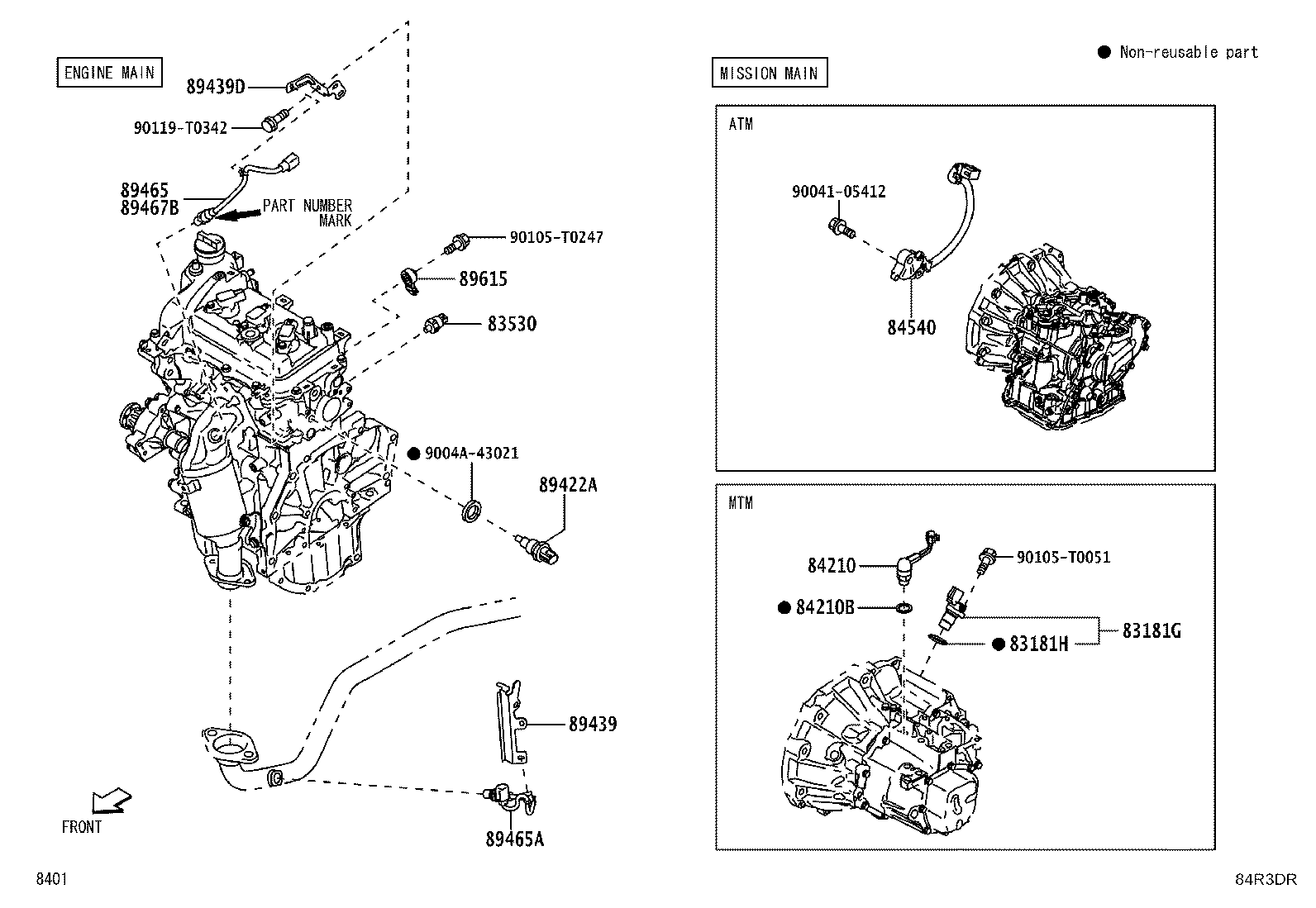

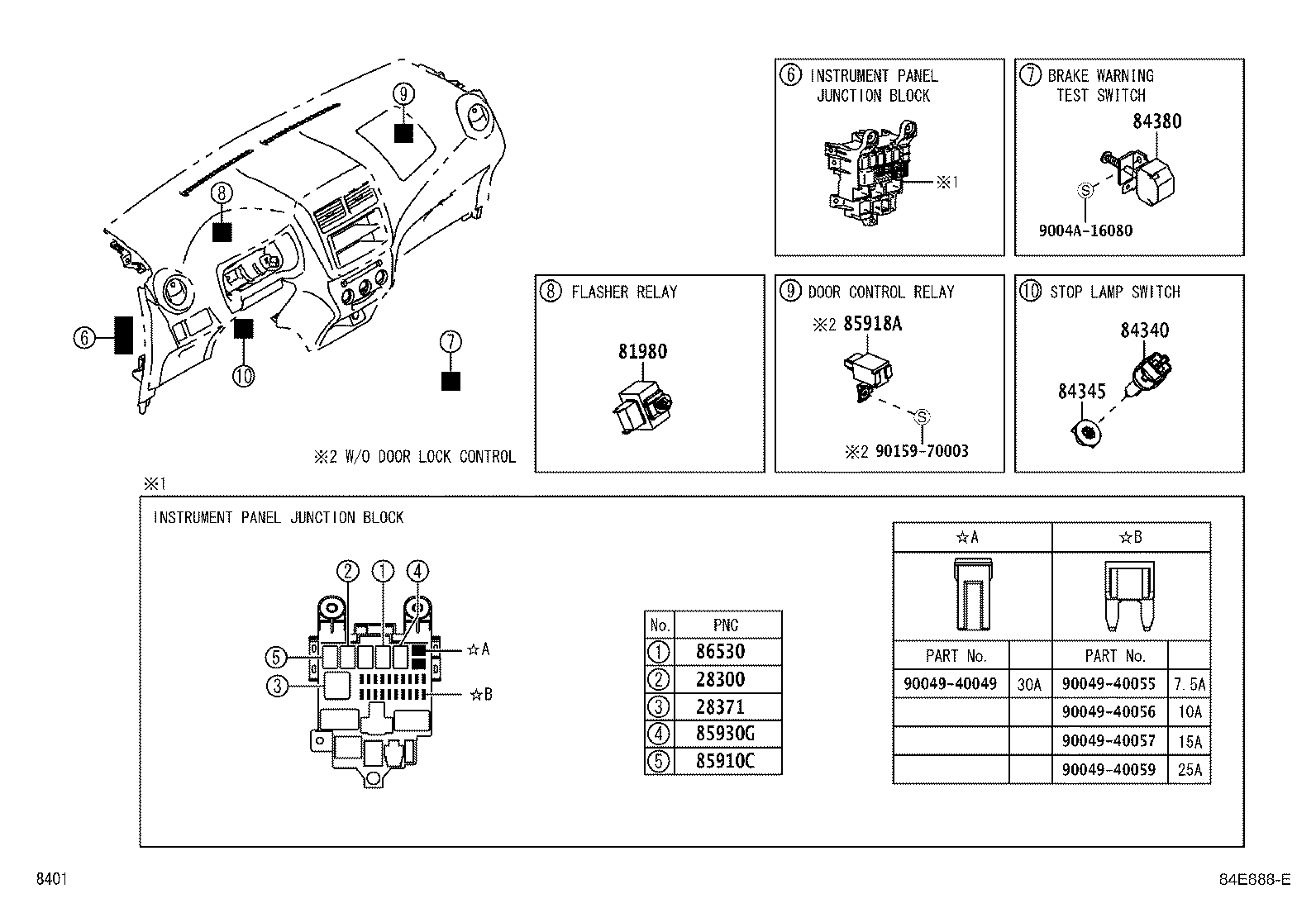

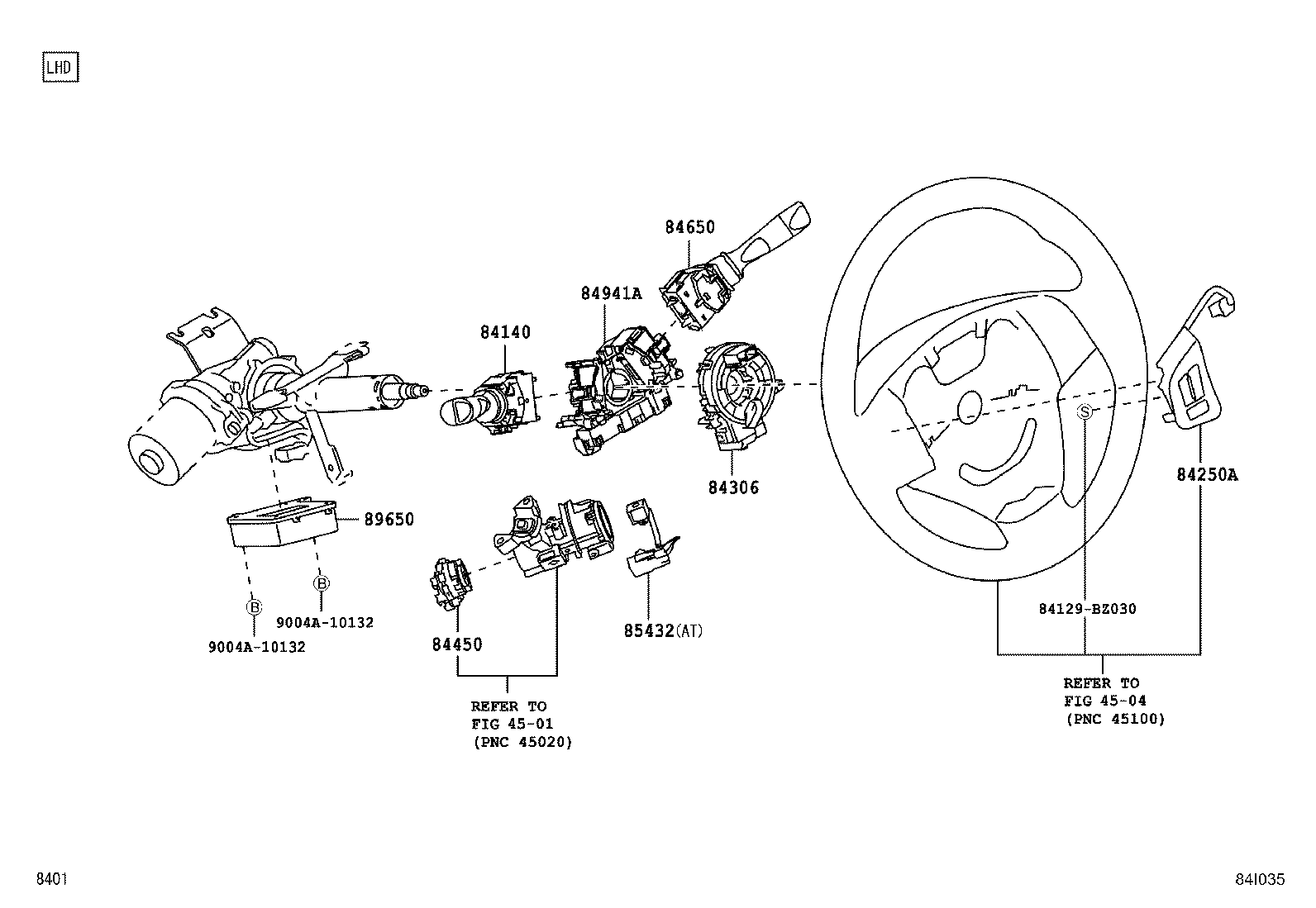

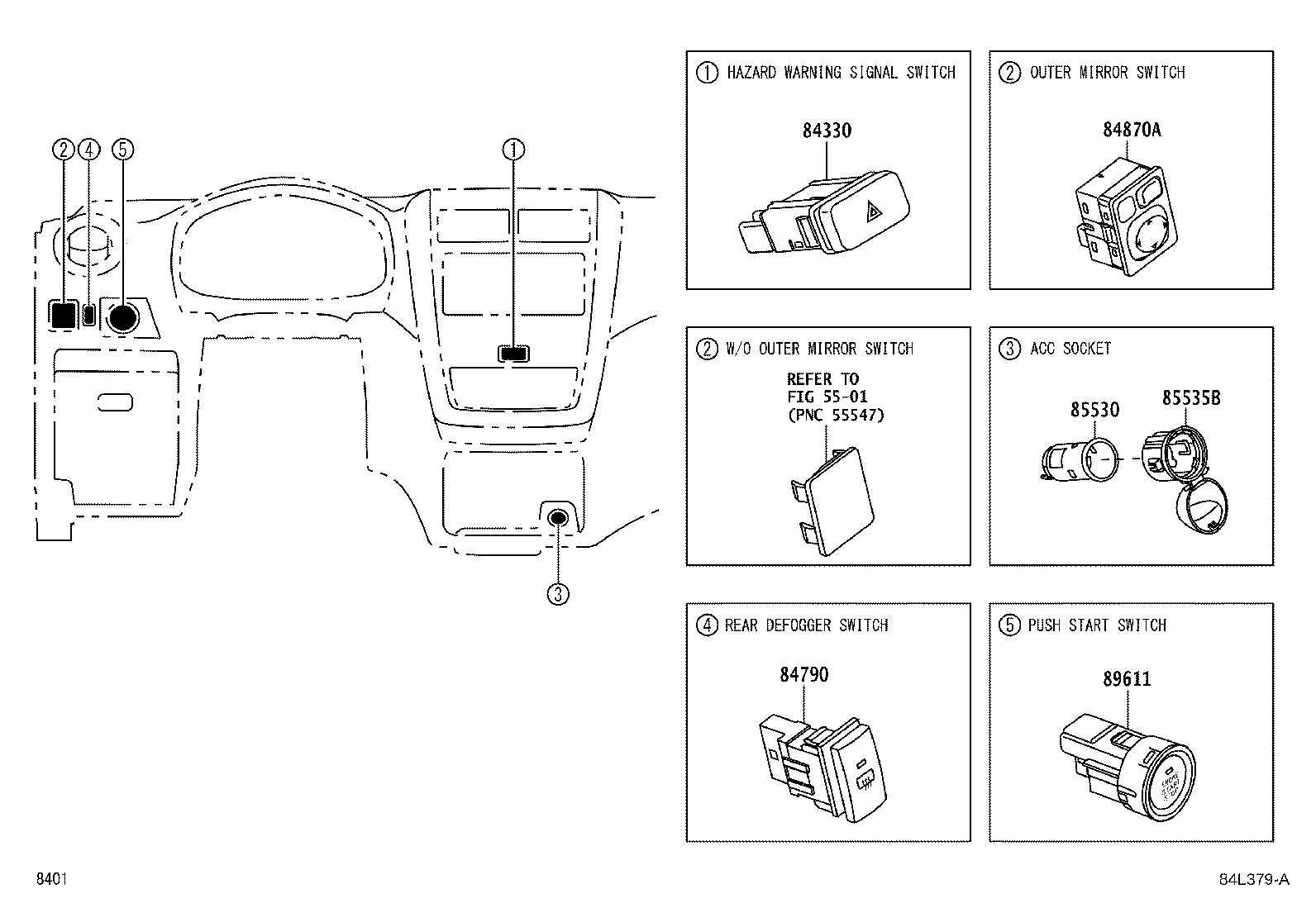

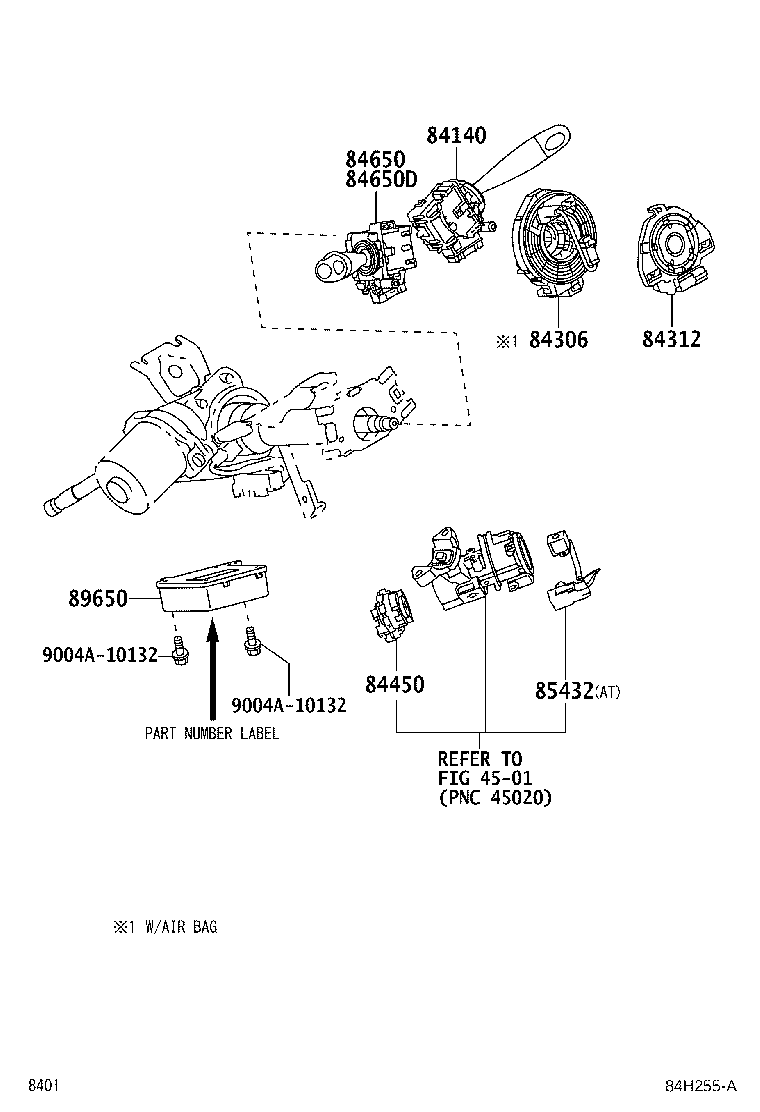

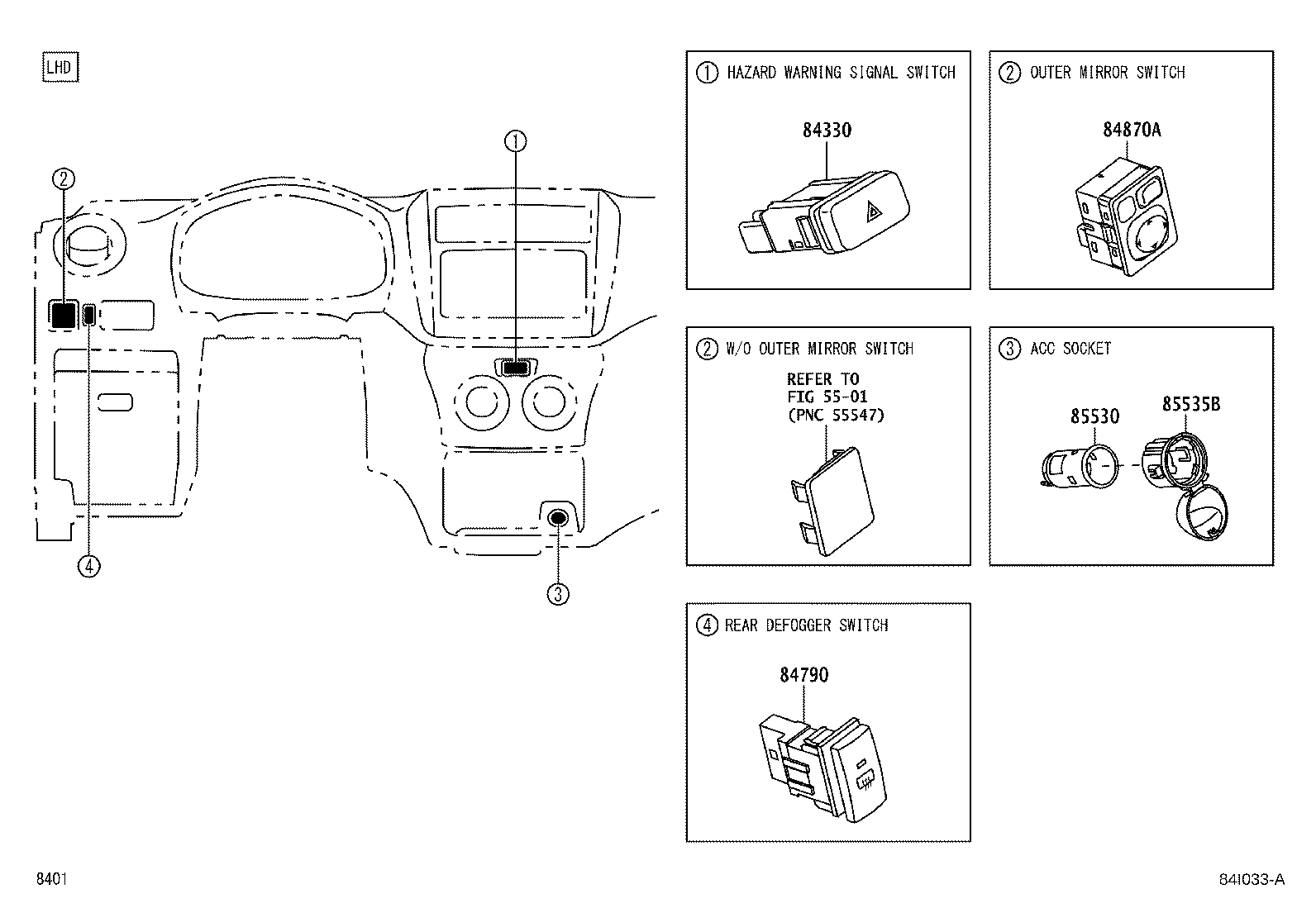

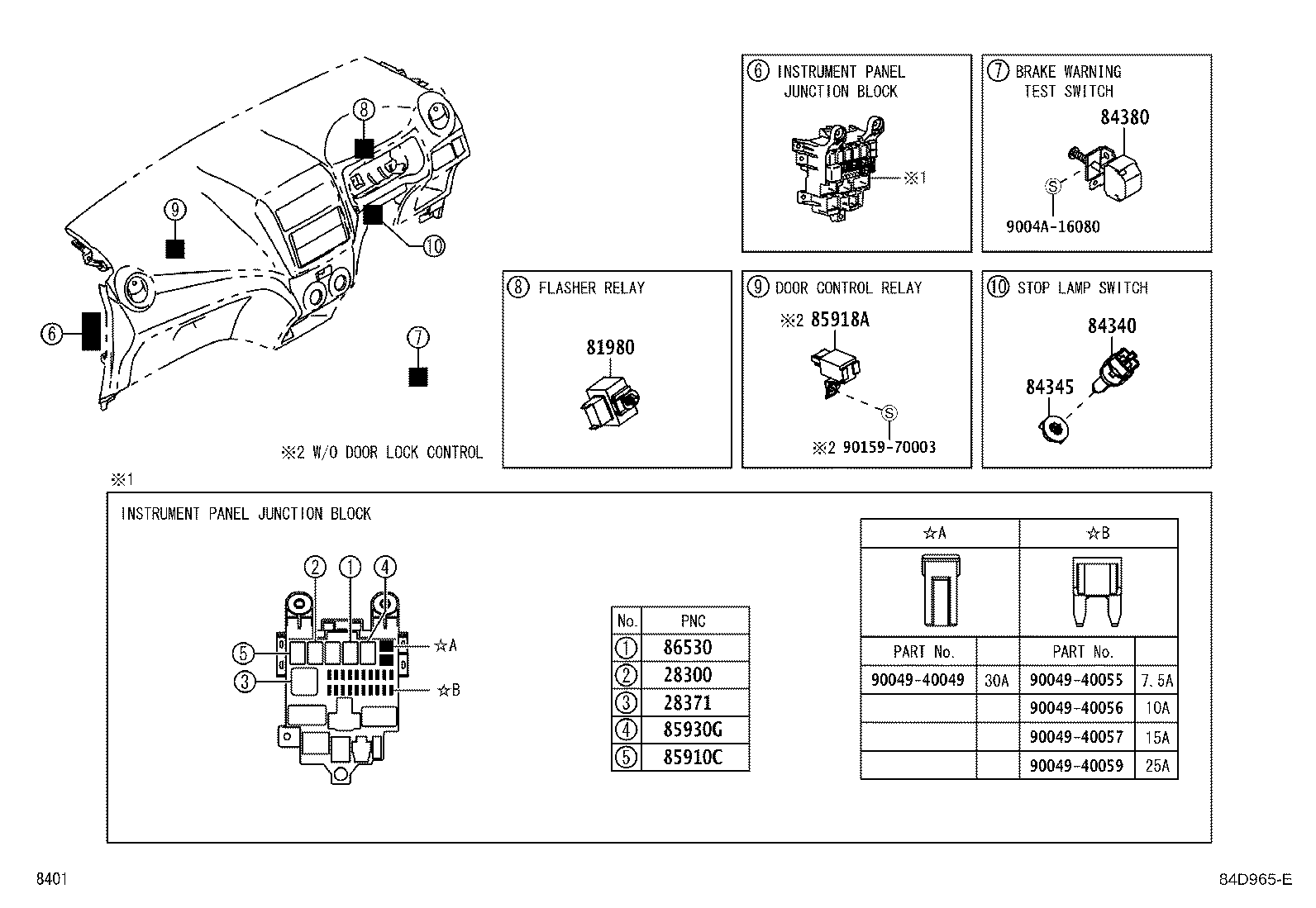

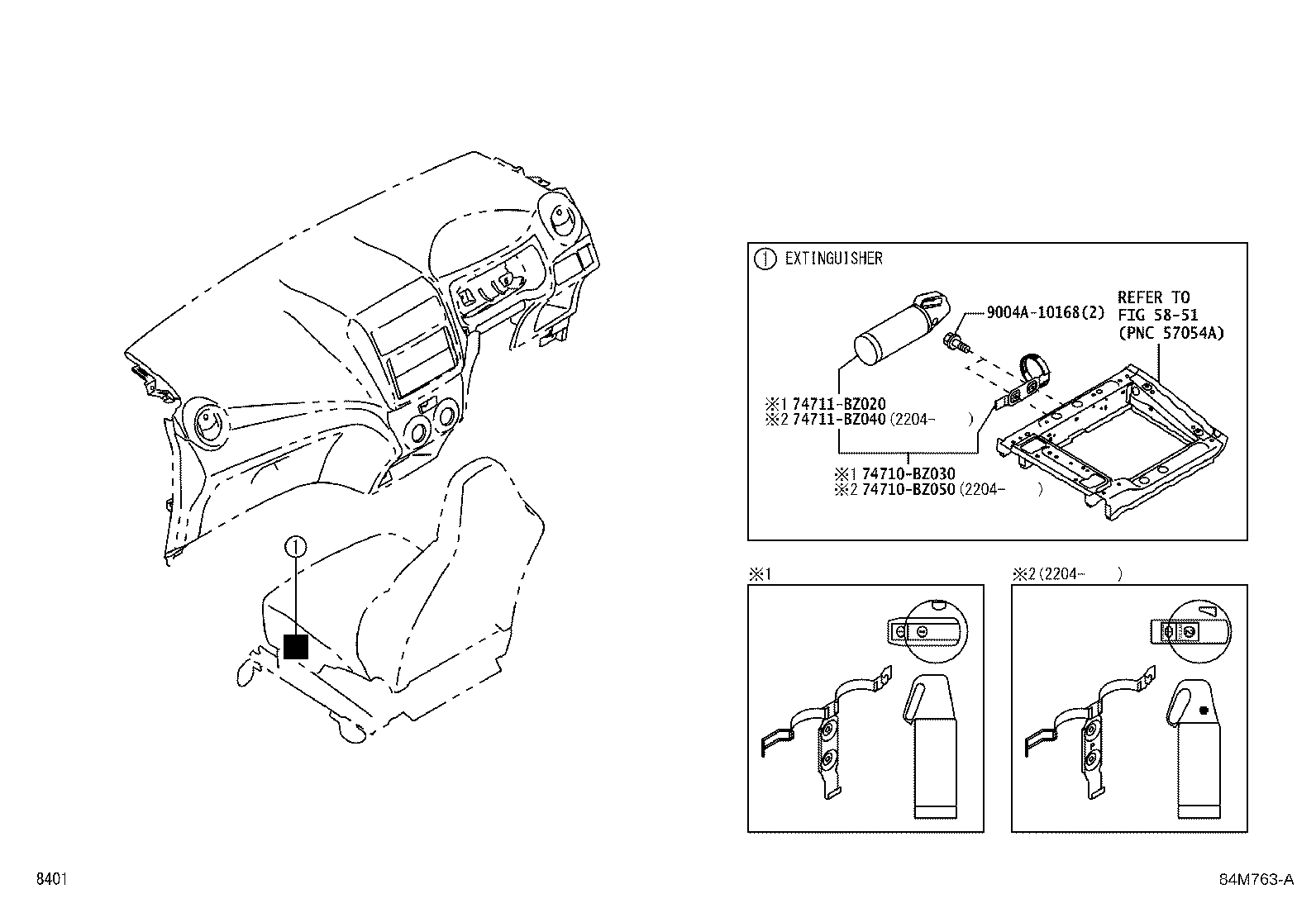

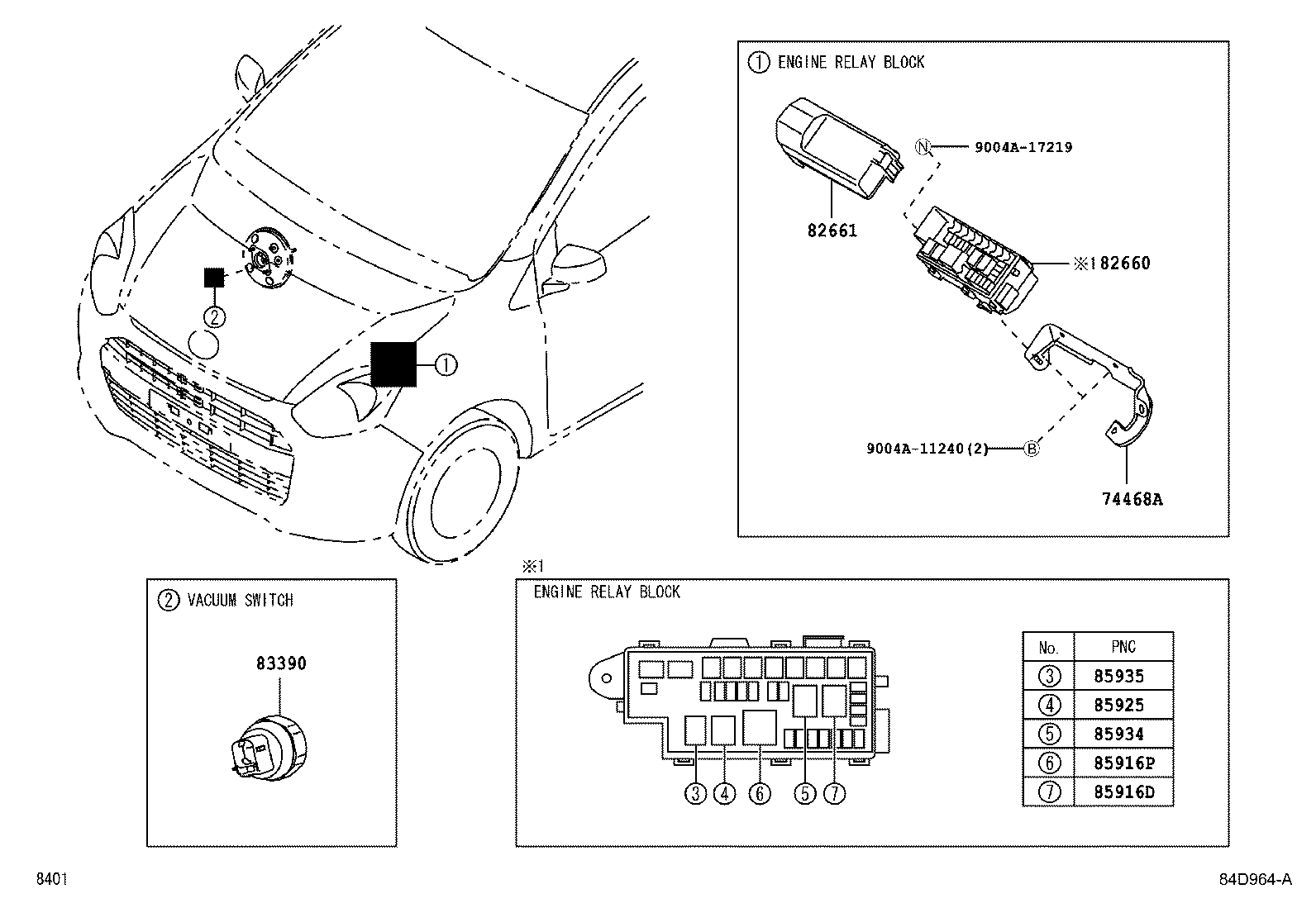

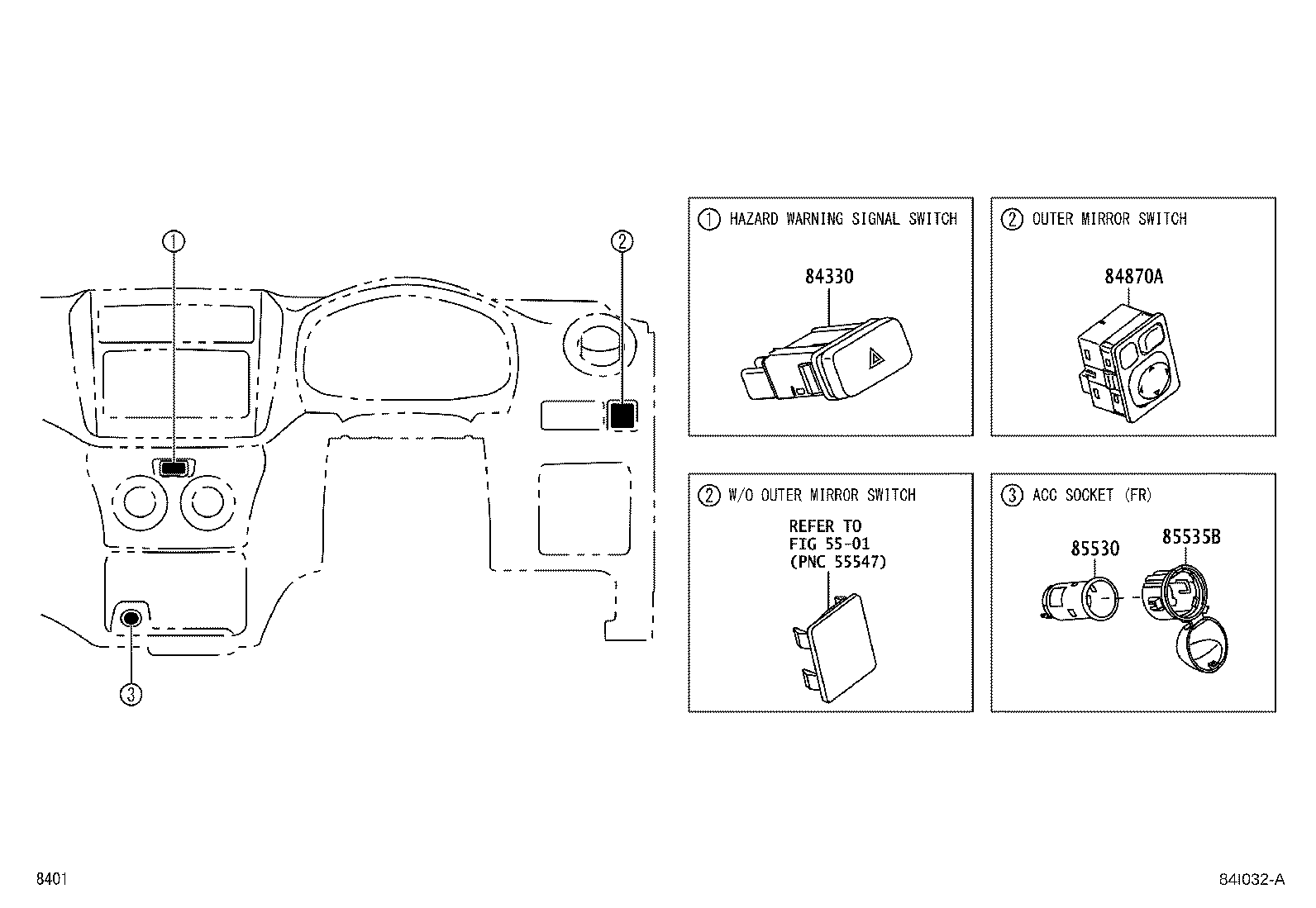

Figure 84R3DQ 84R3DQ 2012-12 → — Figure 84R3DR 84R3DR 2017-04 → — Figure 84D964A 84D964A 2012-12 → 2017-04 Figure 84I028C 84I028C 2017-04 → — Figure 84I029B 84I029B 2017-04 → — Figure 84D965E 84D965E 2012-12 → 2017-04 Figure 84E888E 84E888E 2014-01 → 2017-04 Figure 84I030C 84I030C 2017-04 → 2020-03 Figure 84I031C 84I031C 2017-04 → 2020-03 Figure 84L376B 84L376B 2020-03 → — Figure 84L377B 84L377B 2020-03 → — Figure 84D966A 84D966A 2012-12 → 2017-04 Figure 84E889B 84E889B 2014-01 → 2017-04 Figure 84I032A 84I032A 2017-04 → 2020-03 Figure 84I033A 84I033A 2017-04 → 2020-03 Figure 84L378A 84L378A 2020-03 → — Figure 84L379A 84L379A 2020-03 → — Figure 84I441D 84I441D 2017-11 → — Figure 84D967C 84D967C 2012-12 → — Figure 84E890C 84E890C 2014-01 → — Figure 84H255A 84H255A 2012-12 → 2017-04 Figure 84E891E 84E891E 2014-01 → 2017-04 Figure 84I034 84I034 2017-04 → — Figure 84I035 84I035 2017-04 → — Figure 84M763A 84M763A 2020-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
81980 Flasher Assy, Turn Signal
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82660 Block Assy, Relay, Engine Room
82661 Cover, Relay Block, NO.1
82760 Bracket Assy, Relay Block
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84210B Gasket, Back-up Lamp Switch
84231A Switch, Courtesy Lamp
84234D Cushion, Courtesy Switch
84243 Switch, Engine Hood
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660D Bulb(FOR COOLER SWITCH)
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85530 Socket Assy, Power Outlet, NO.1
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85918A Relay, Door Control
85925 Relay, Radiator Fan
85930G Relay, Acc
85934 Relay, Magnet-clutch
85935 Relay, Fuel Pump
86530 Relay Assy, Horn
88610L Switch Assy,Control
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
