Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

4 part groups · 3 illustrations

Illustrations

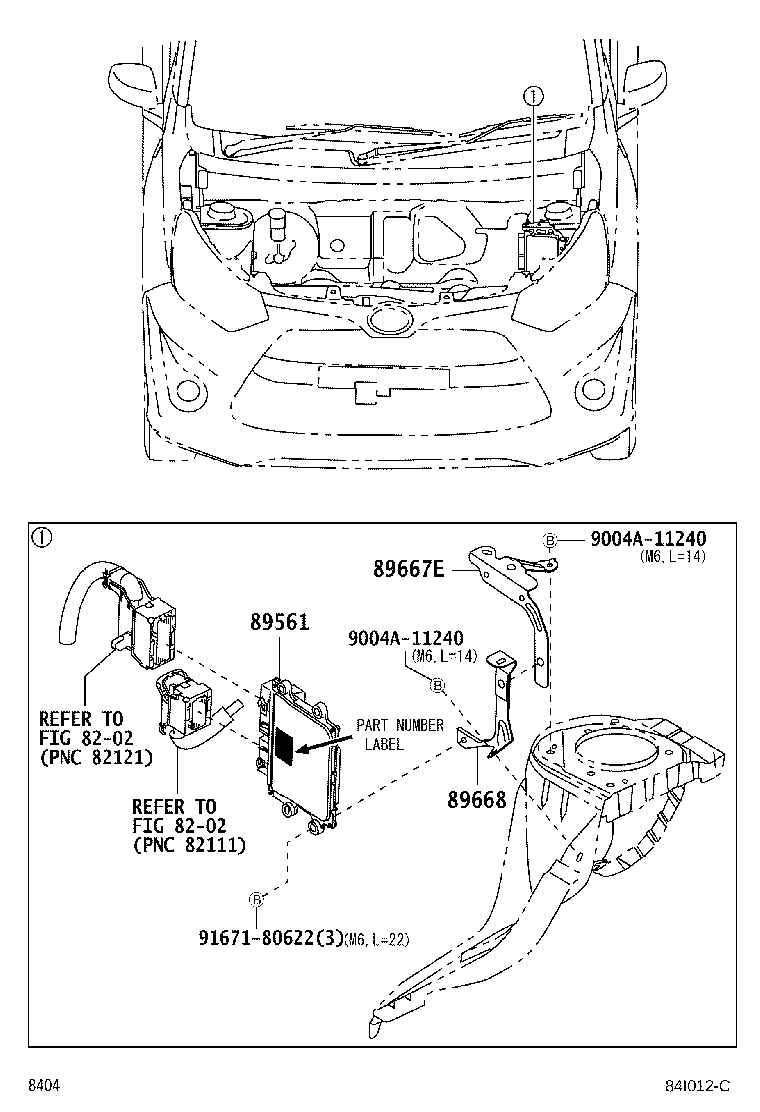

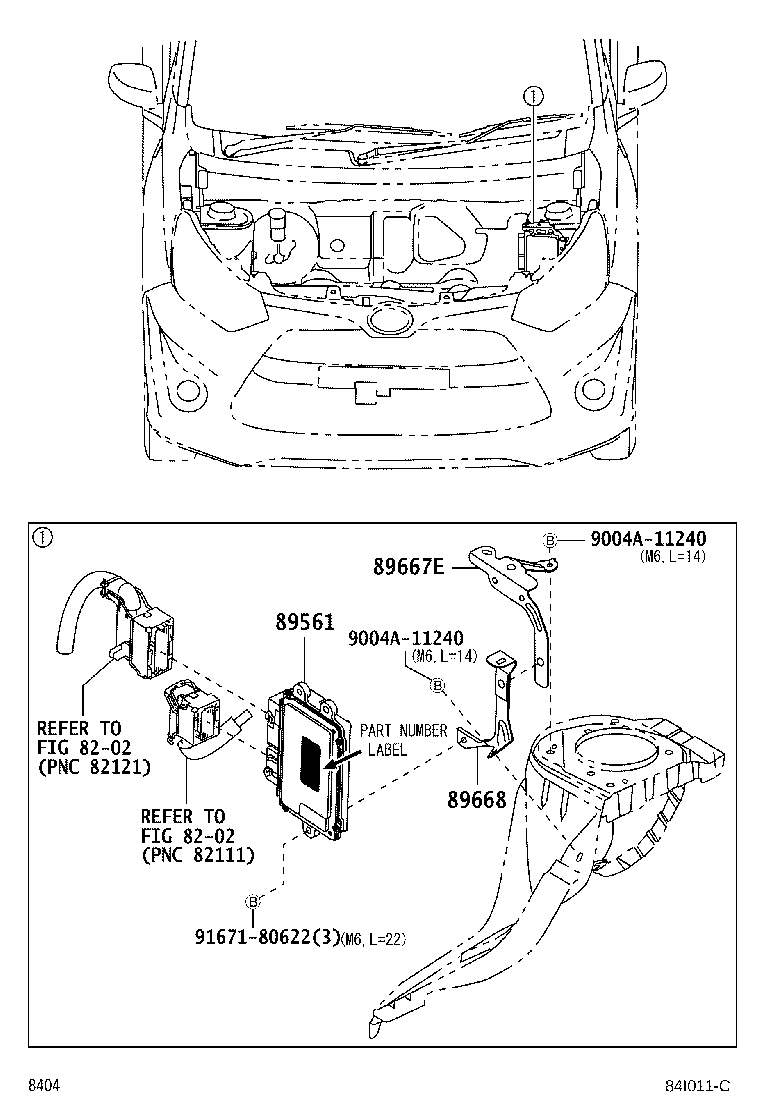

Figure 84D969F 84D969F 2012-12 → 2017-04 Figure 84I011C 84I011C 2017-04 → — Figure 84I012C 84I012C 2017-04 → —

Part groups

PNCDescription
89539D Bracket, Computer
89561 Computer, Fuel Injection
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
