Toyota Agya/Wigo
2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General
Discontinued model
Data version 2020-02

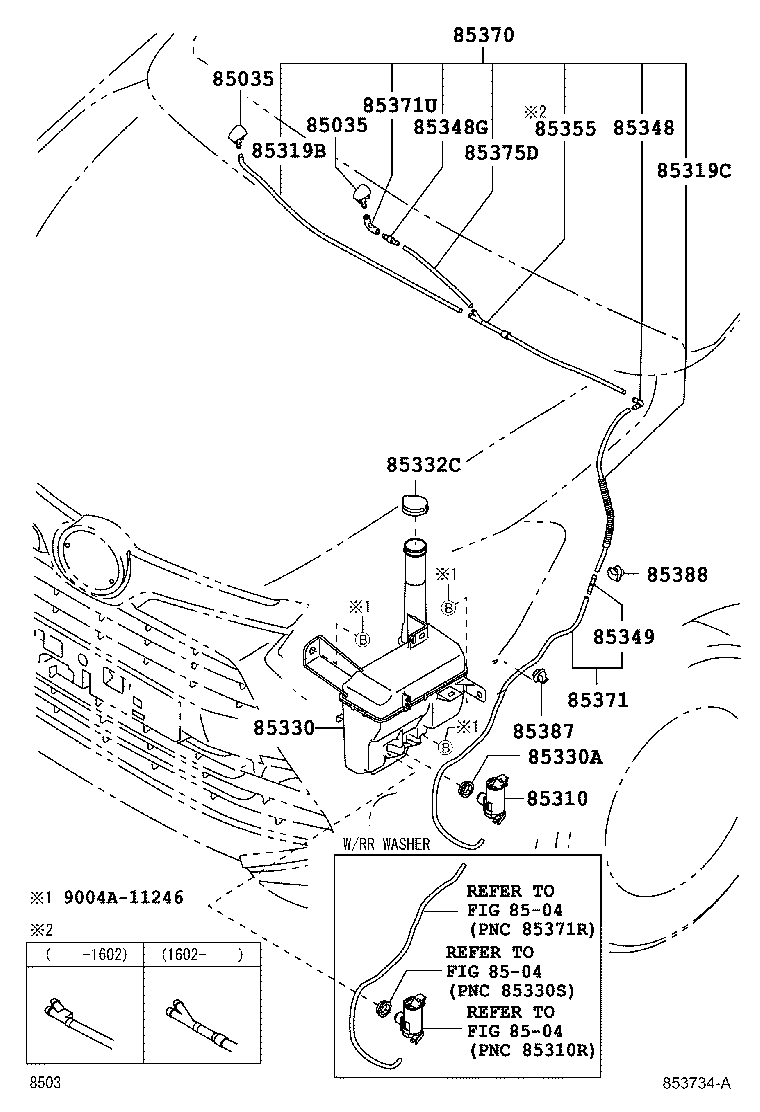

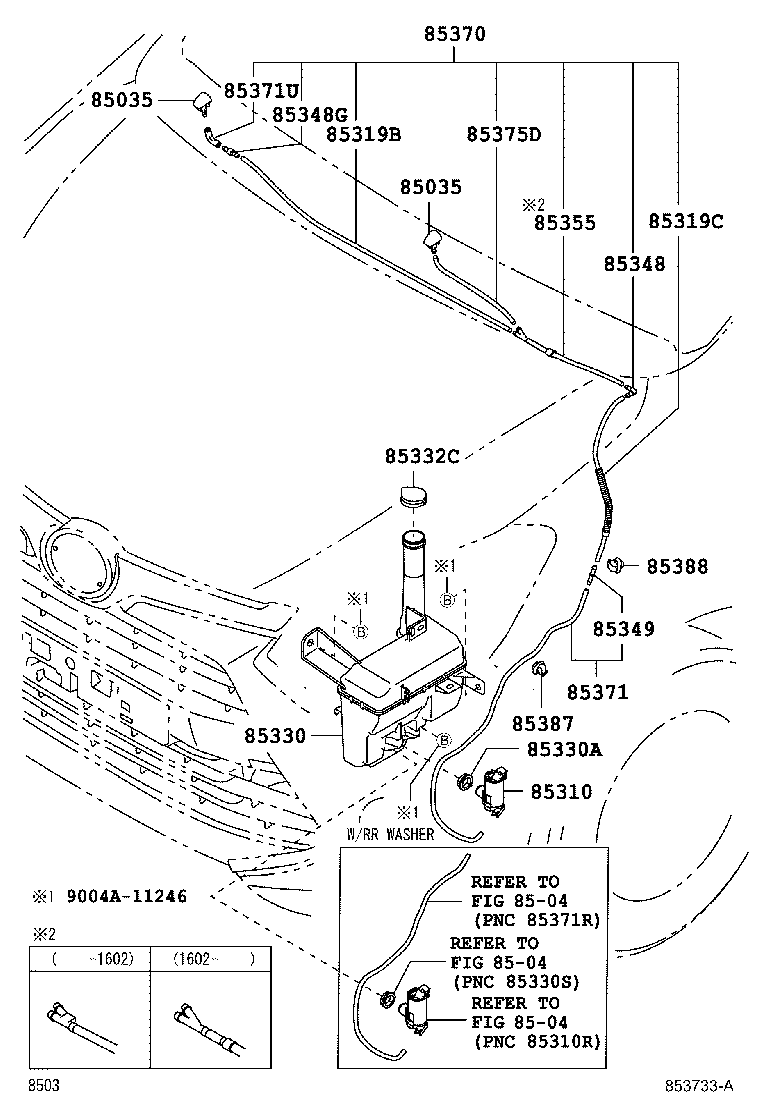

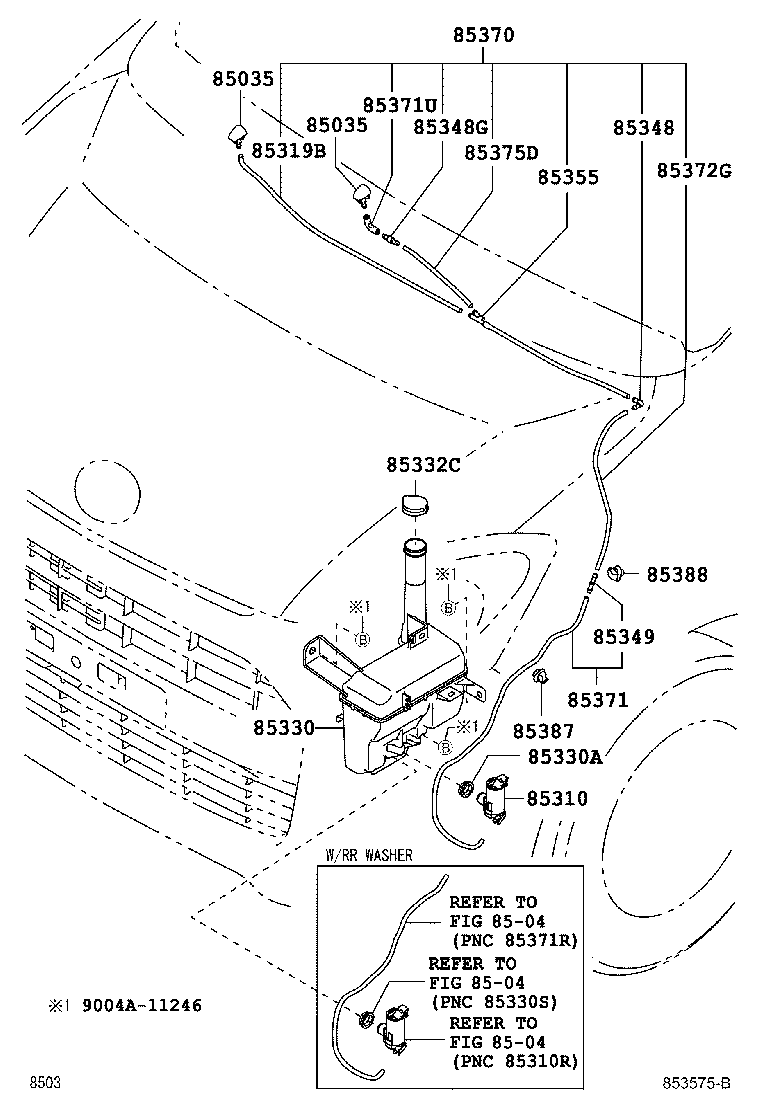

Windshield Washer
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035 | Nozzle Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85319B | Hose, Window Washer |
| 85319C | Hose, Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332C | Cap, Front Washer Tank |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85349 | Joint, Windshield Washer Hose, NO.1 |
| 85355 | Valve, Windshield Washer Hose |
| 85370 | Hose Assy, Windshield Washer |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371U | Tube, Rubber |
| 85372G | Tube, Rubber |
| 85375D | Tube,Rubber |
| 85387 | Clamp NO.1 (FOR WINDSEIELD WASHER) |
| 85388 | Clamp NO.2 (FOR WINDSEIELD WASHER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
