Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

14 part groups · 2 illustrations

Illustrations

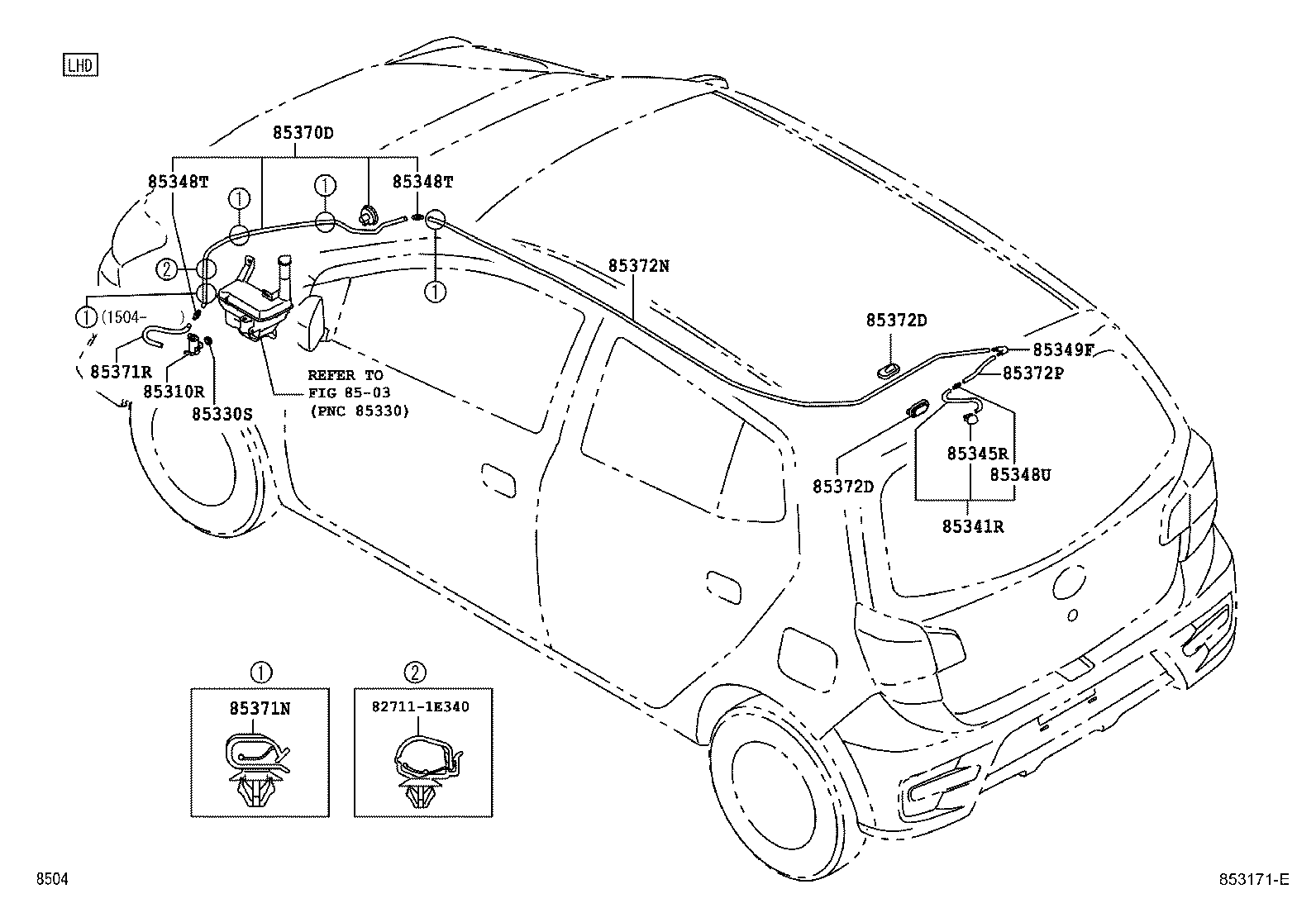

Figure 853576A 853576A 2014-10 → — Figure 853171E 853171E 2014-01 → —

Part groups

PNCDescription
85310R Motor Assy, Rear Washer
85330S Bush, Rear Washer Jar
85341R Nozzle Assy, Washer
85345R Nozzle, Rear Washer
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85349F Joint, Rear Washer Hose, NO.1
85370D Hose Assy, Rear Washer, NO.1
85371N Clamp, Rear Washer Hose
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85379C Grommet, Rear Washer Hose NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
