Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 8 illustrations

Illustrations

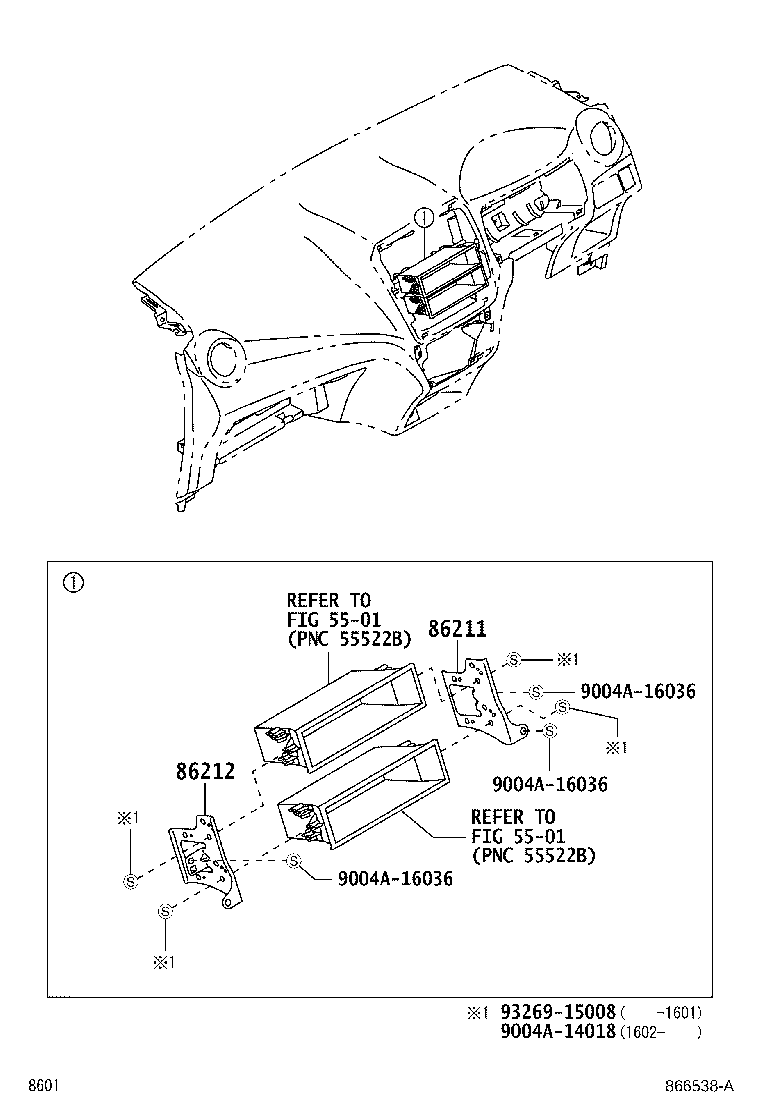

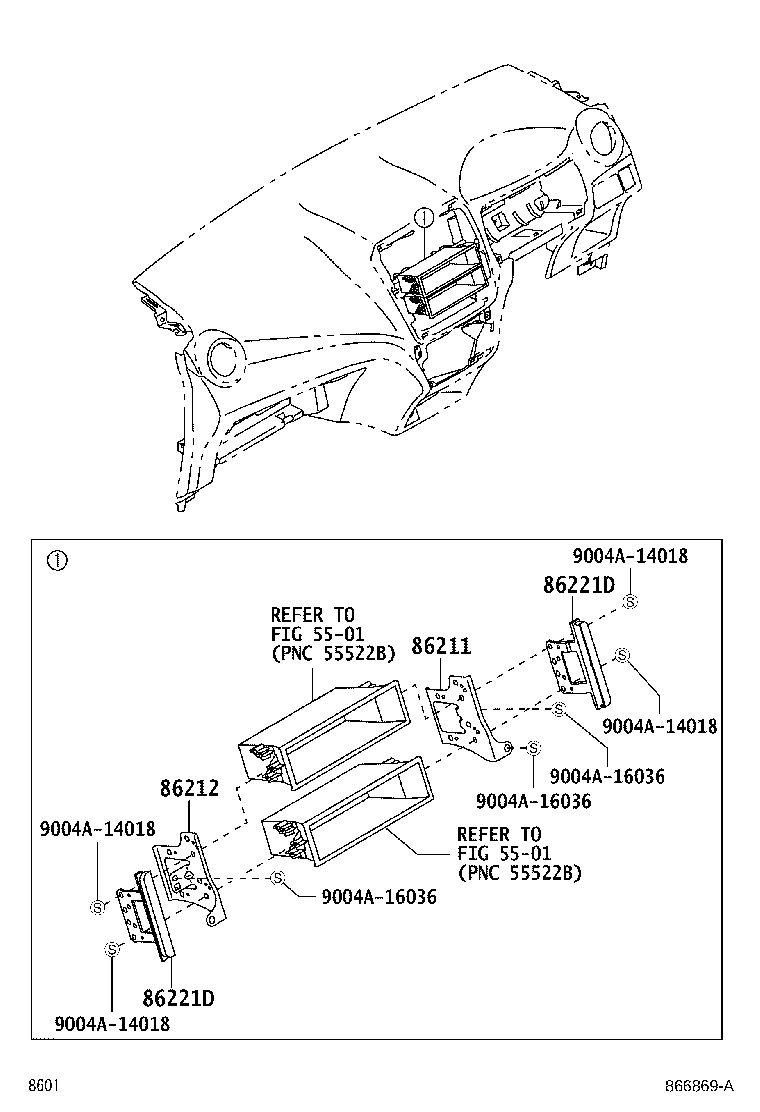

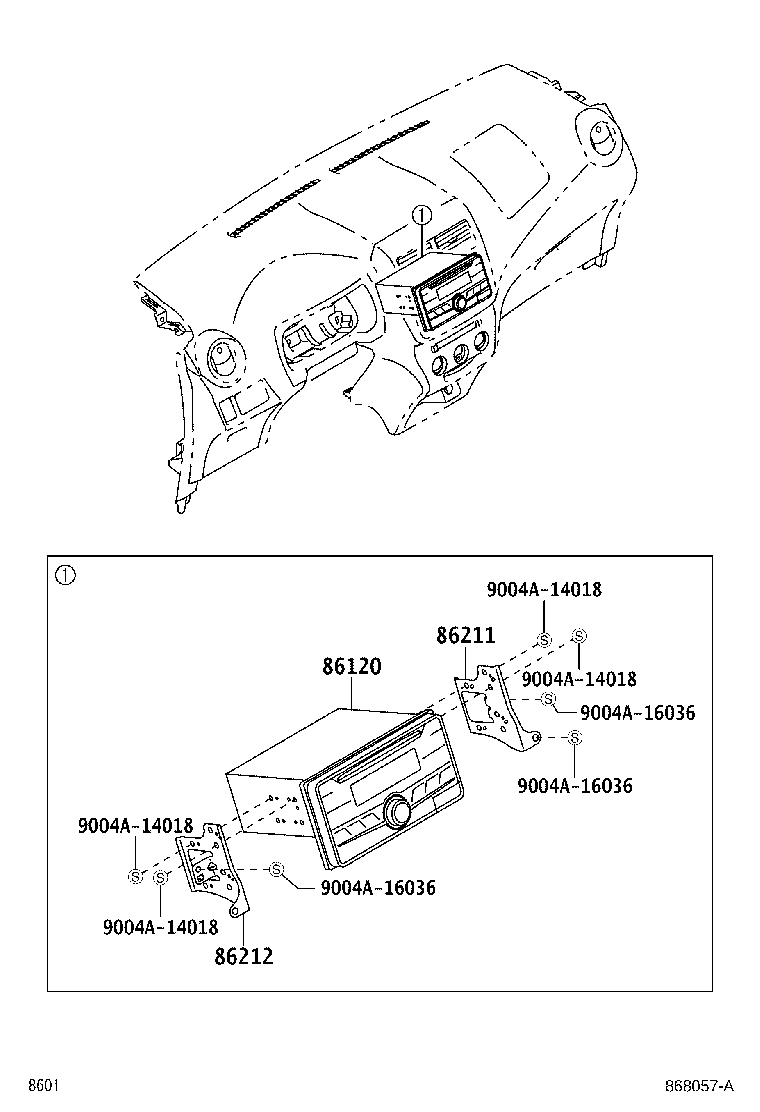

Figure 865310E 865310E 2012-12 → 2017-04 Figure 866538A 866538A 2012-12 → 2017-04 Figure 866538A 866538A 2017-04 → 2020-03 Figure 868046 868046 2017-09 → — Figure 868046 868046 2020-05 → — Figure 866869A 866869A 2017-04 → — Figure 866869A 866869A 2020-03 → — Figure 868057A 868057A 2020-03 → —

Part groups

PNCDescription
86120 Receiver Assy, Radio
86180 Tuner Assy, Stereo Component
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
