Heating & Air Conditioning - Cooler Unit

20 part groups · 13 illustrations

Illustrations

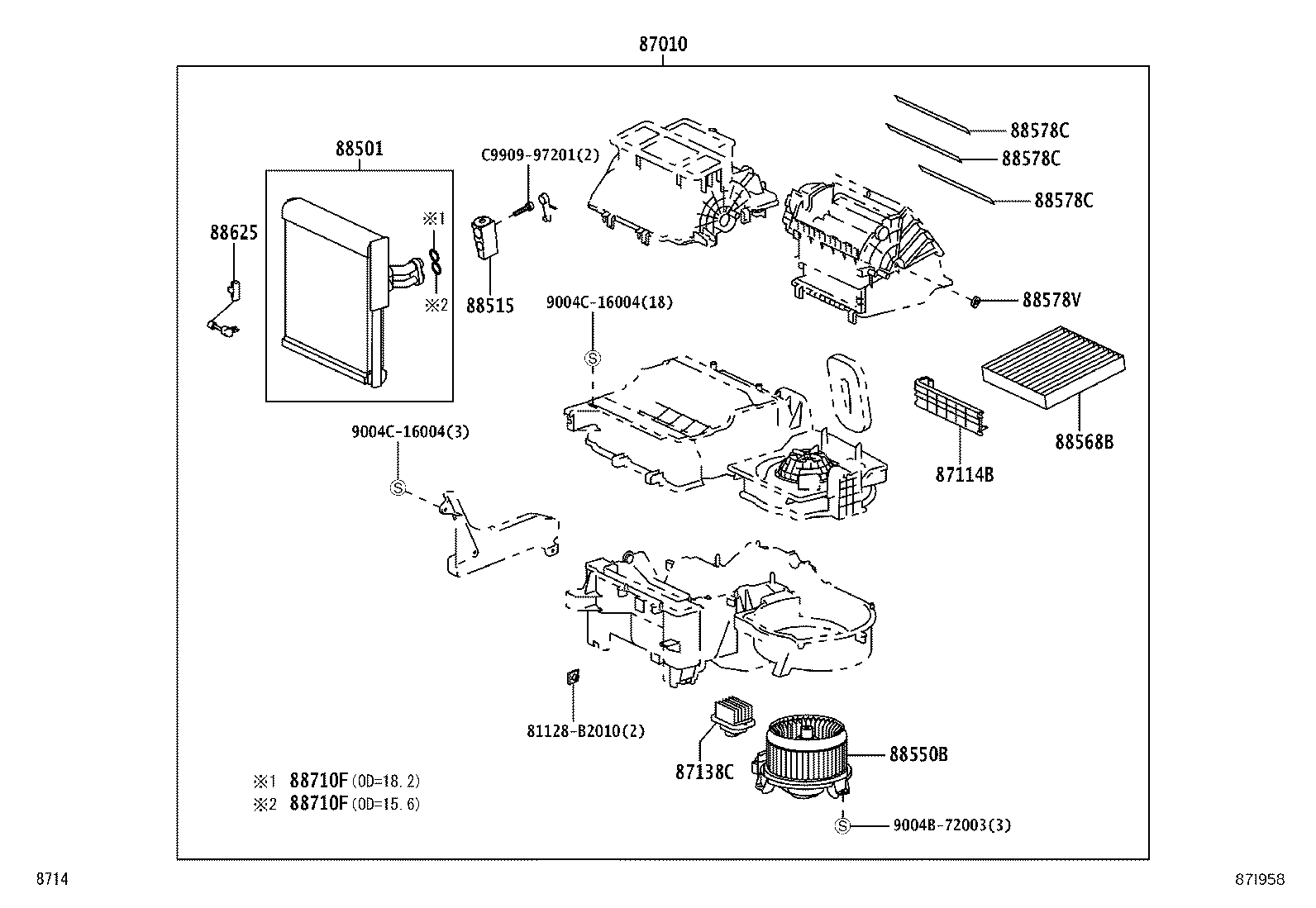

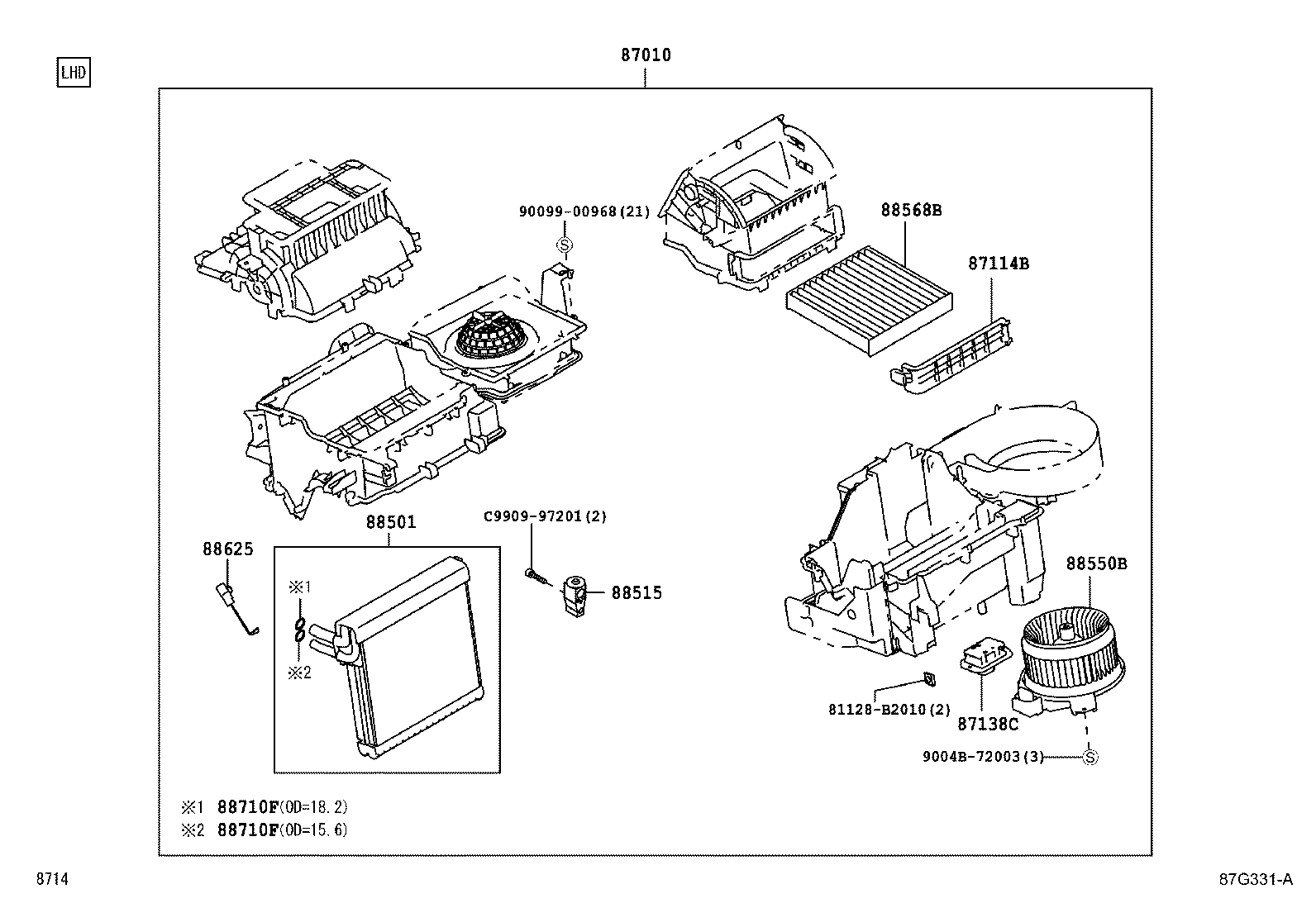

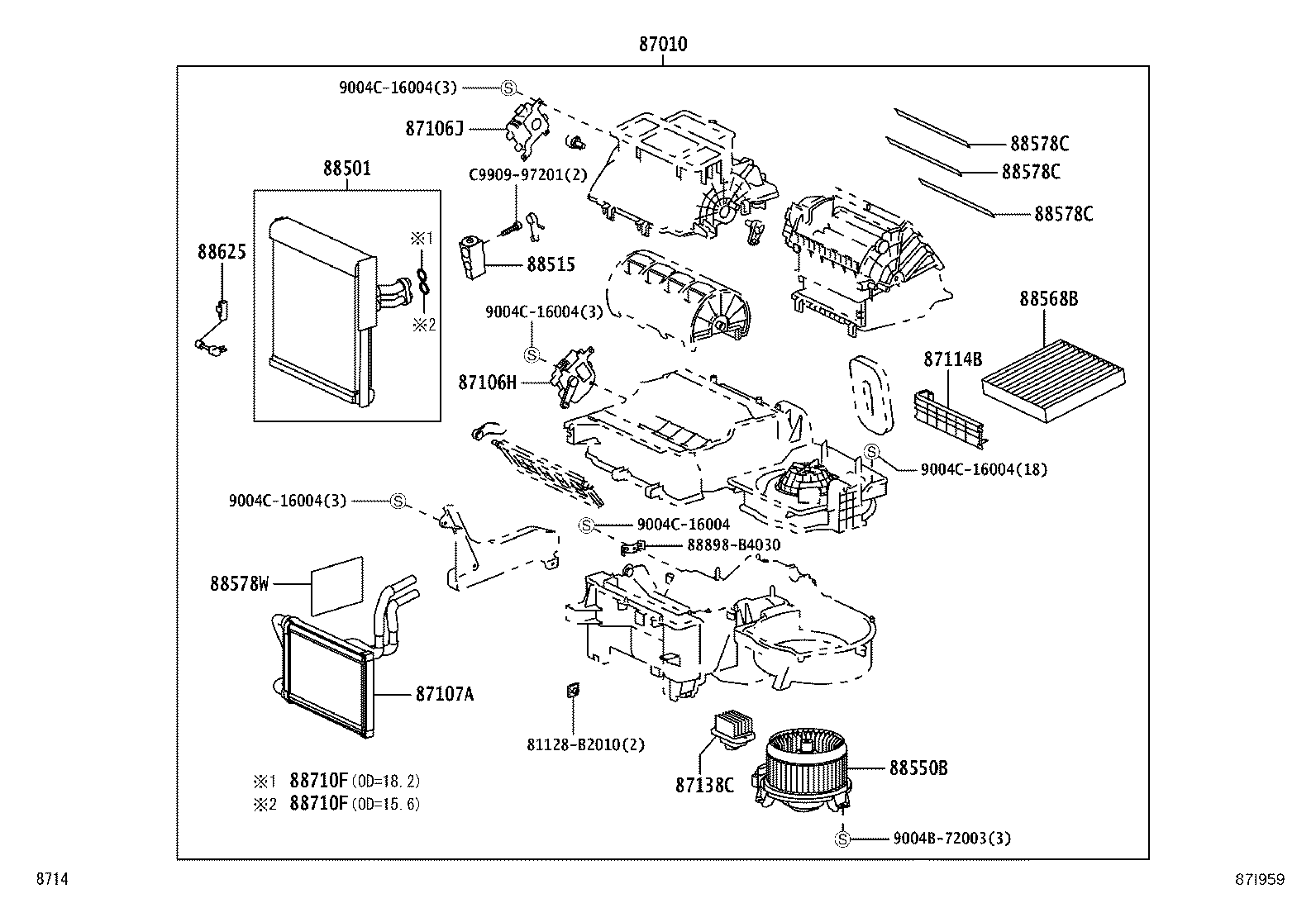

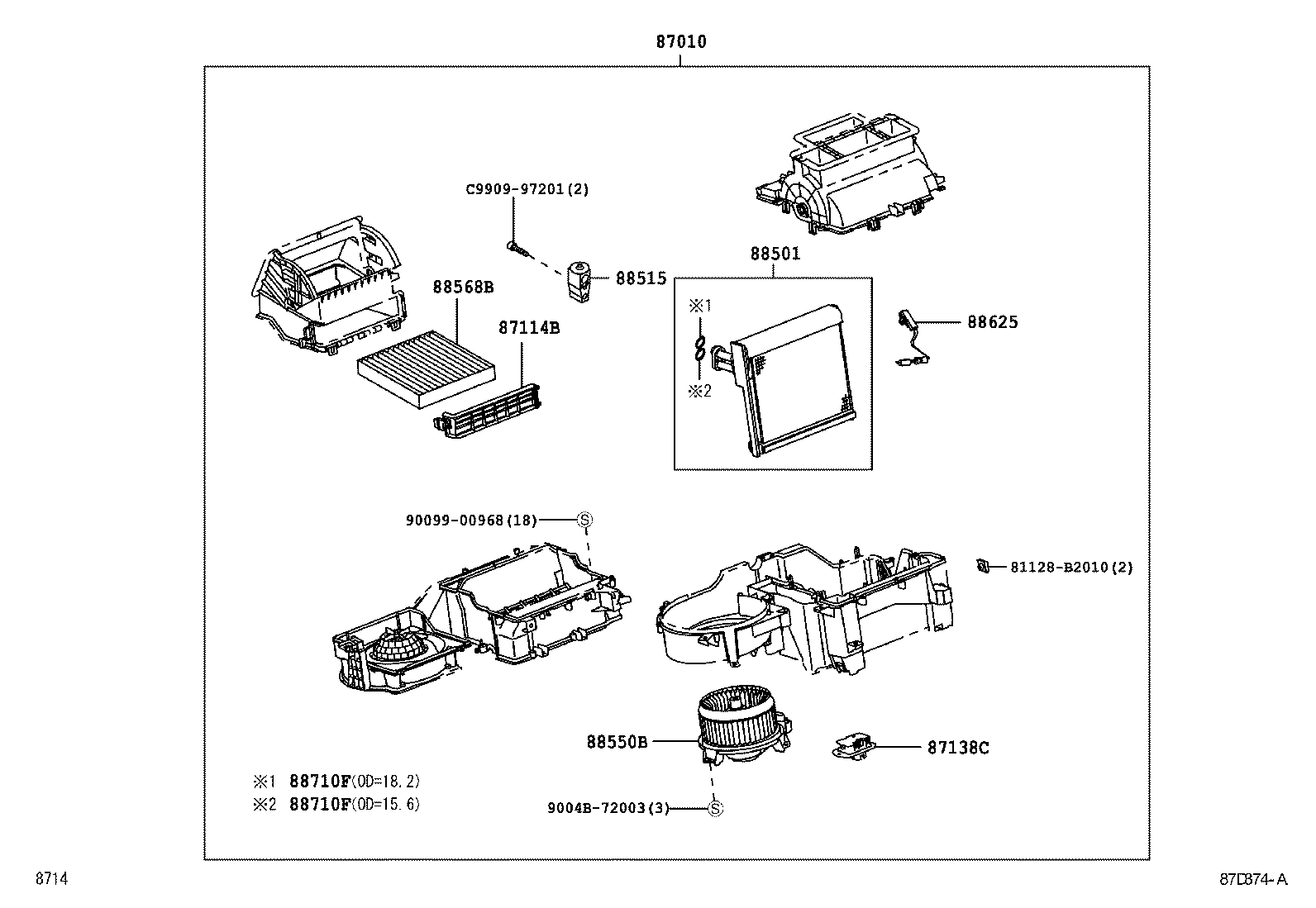

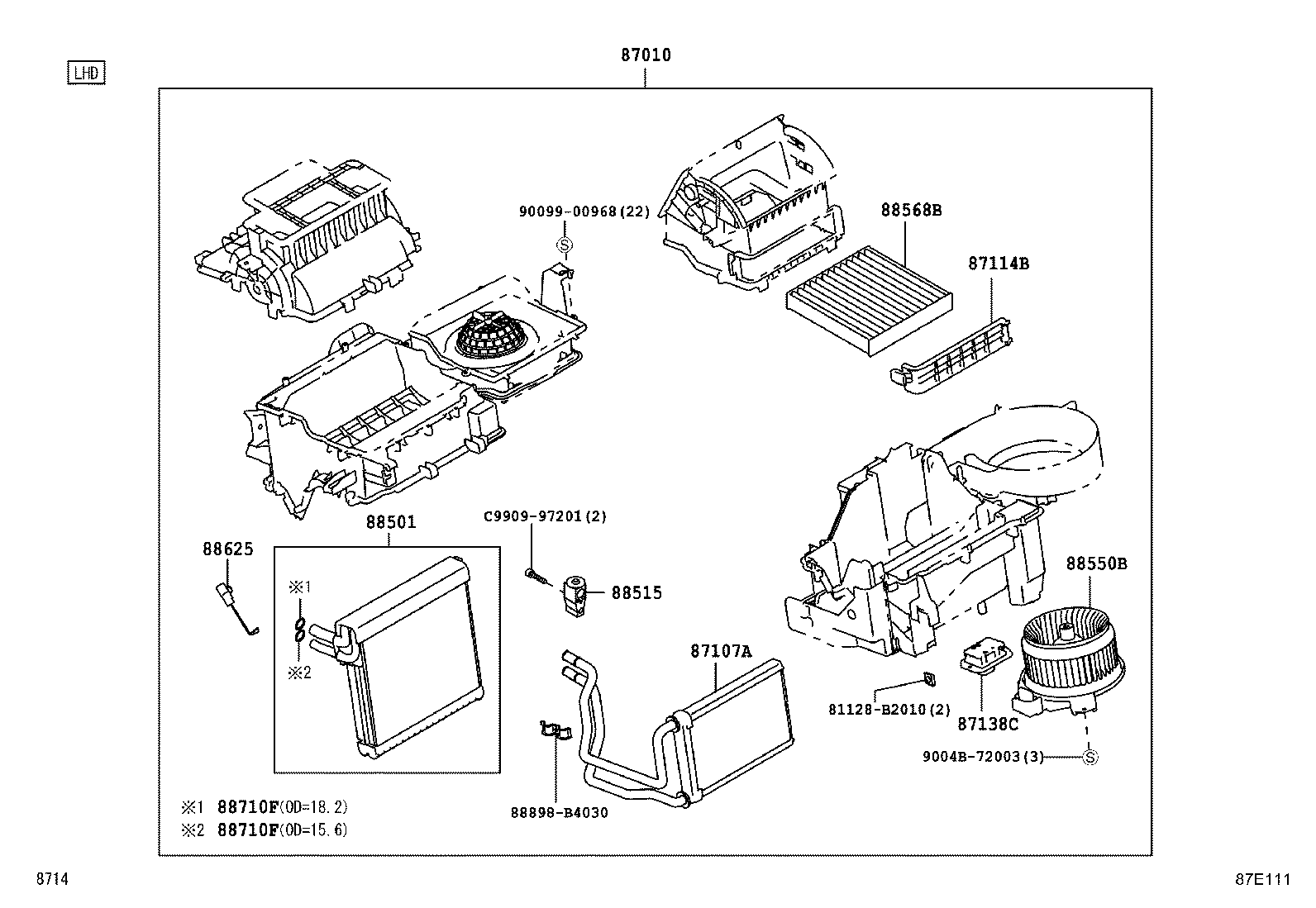

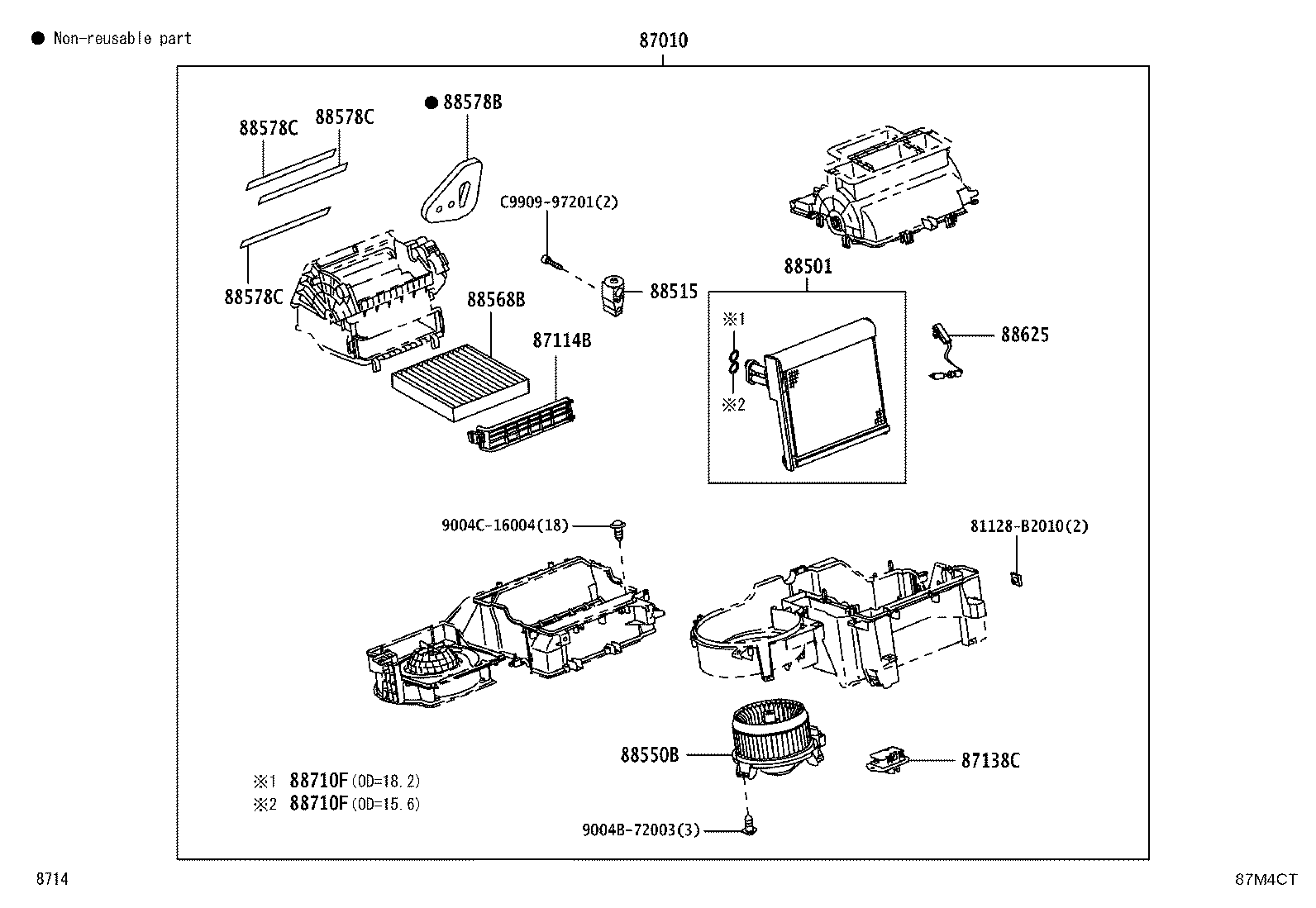

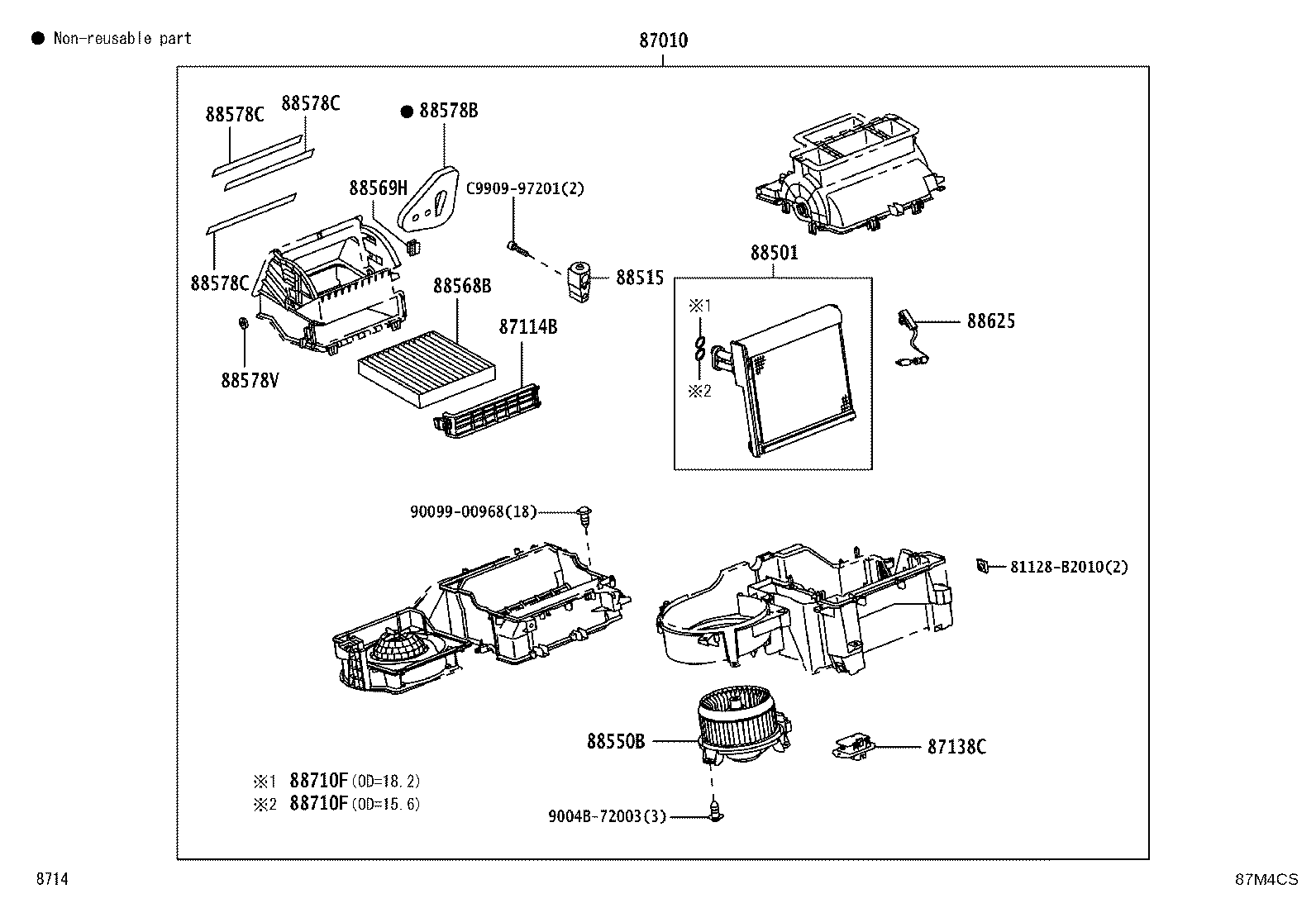

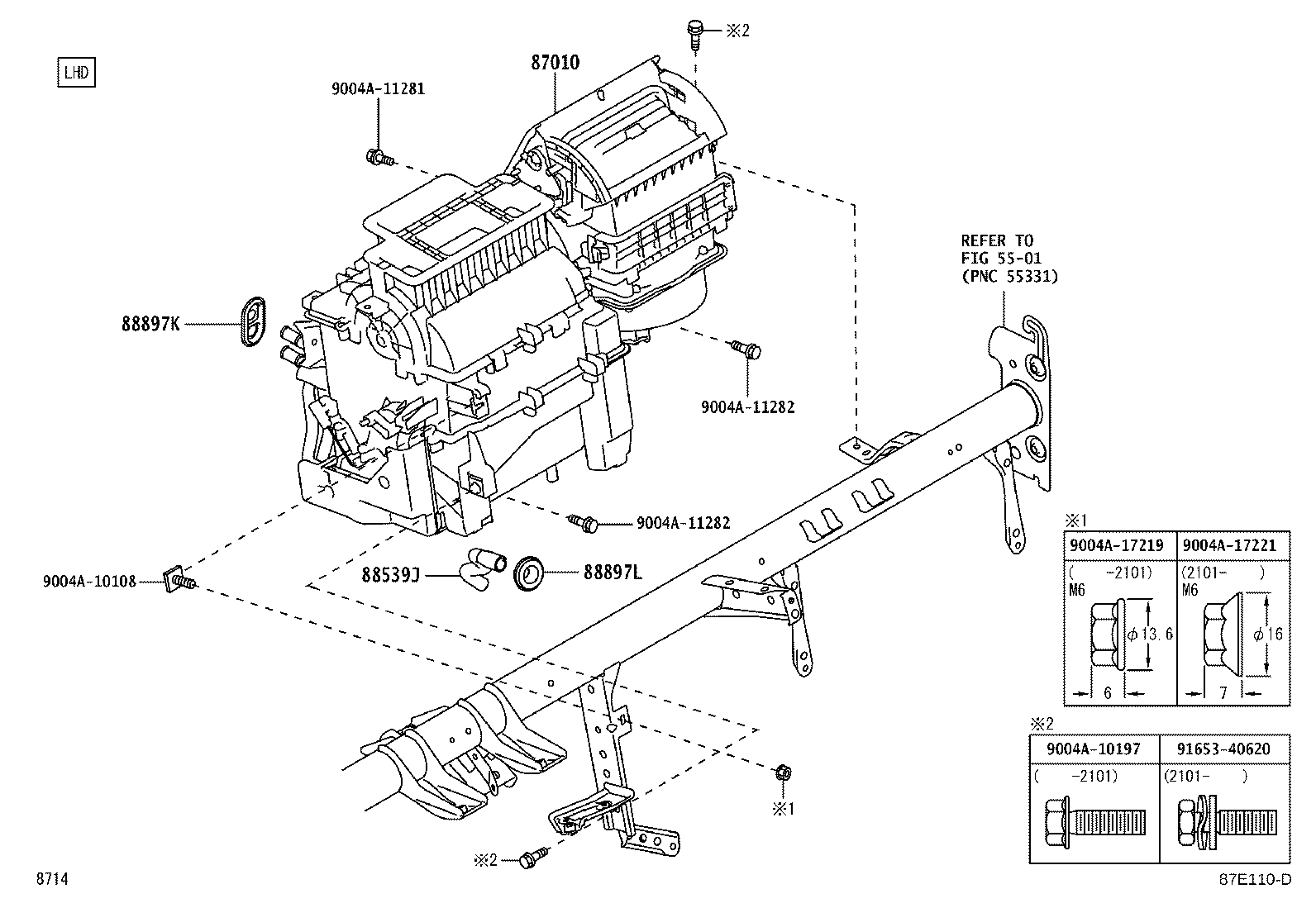

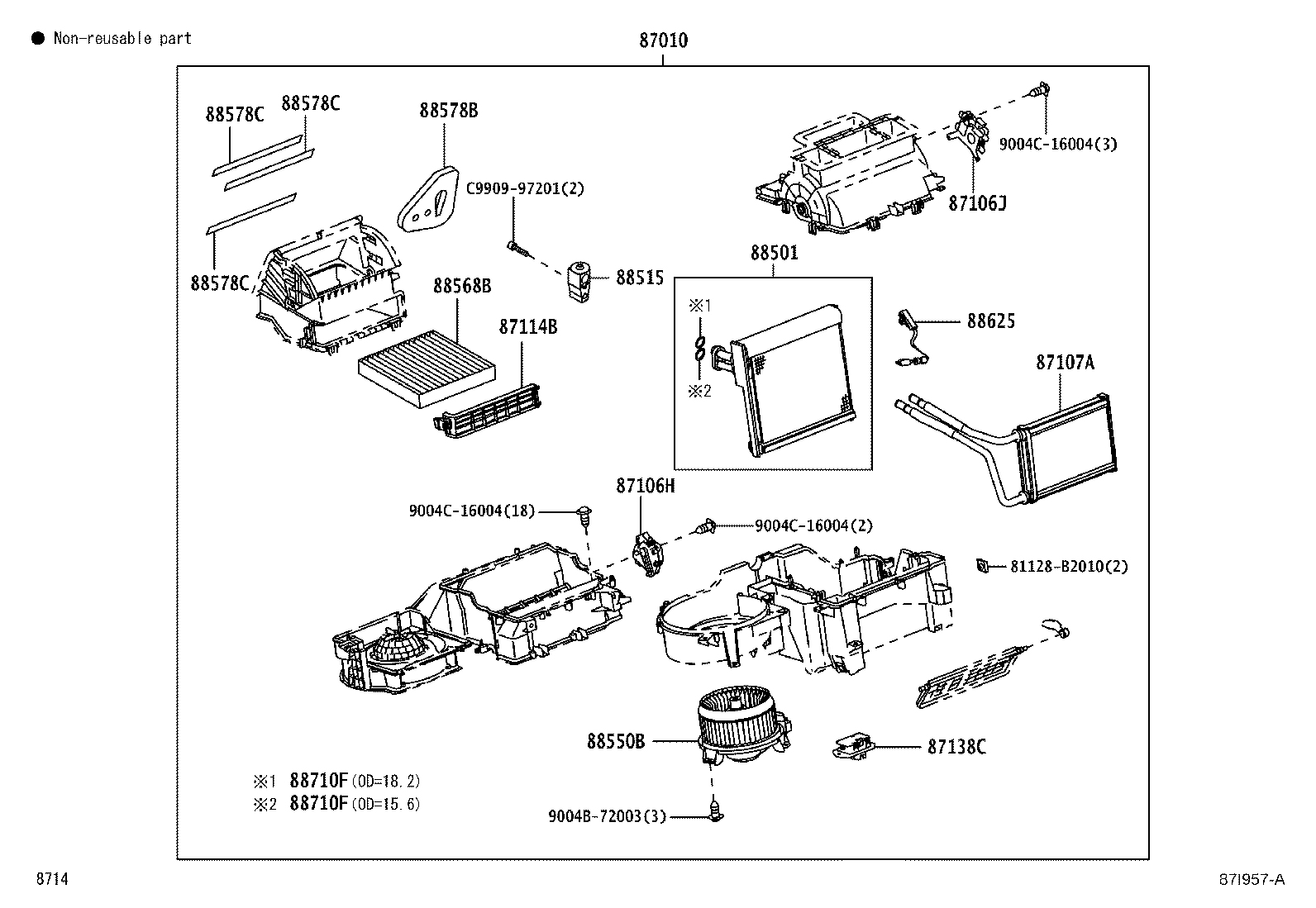

Figure 87D360E 87D360E 2012-12 → — Figure 87E110D 87E110D 2014-01 → — Figure 87D374A 87D374A 2012-12 → 2015-04 Figure 87M4CS 87M4CS 2015-04 → 2020-03 Figure 87M4CS 87M4CS 2020-03 → — Figure 87M4CT 87M4CT 2020-03 → — Figure 87I957A 87I957A 2020-03 → — Figure 87G331A 87G331A 2017-04 → 2020-03 Figure 87G331A 87G331A 2020-03 → — Figure 87E111 87E111 2014-01 → 2020-03 Figure 87E111 87E111 2020-03 → — Figure 87I958 87I958 2020-03 → — Figure 87I959 87I959 2020-03 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88550B Motor Assy, Blower
88568B Filter, Air
88569H Clamp
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88625 Thermistor, Cooler, NO.1
88710F Ring, O
88897K Grommet, (FOR COOLER PIPE)
88897L Grommet (FOR DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
