Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 11 illustrations

Illustrations

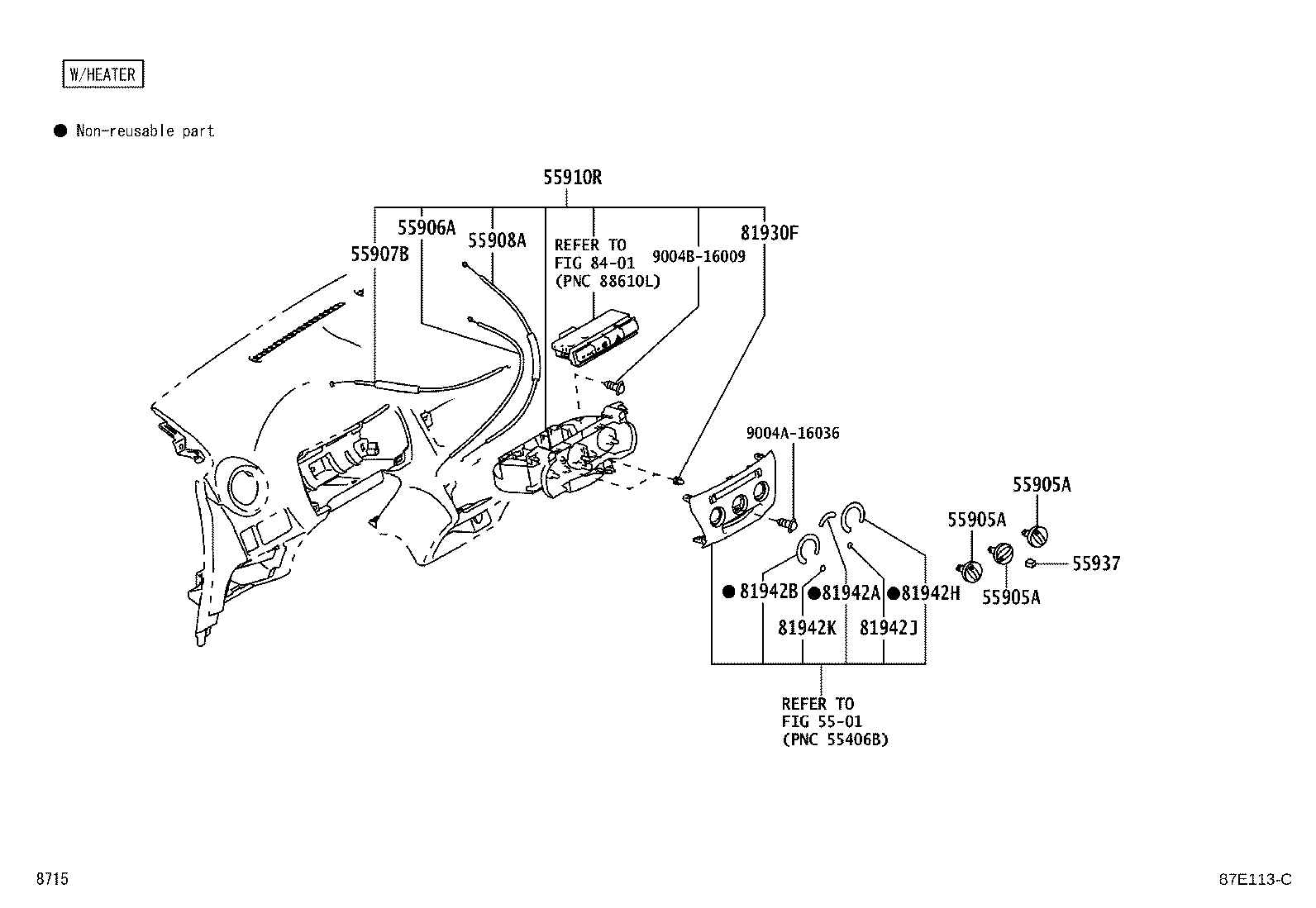

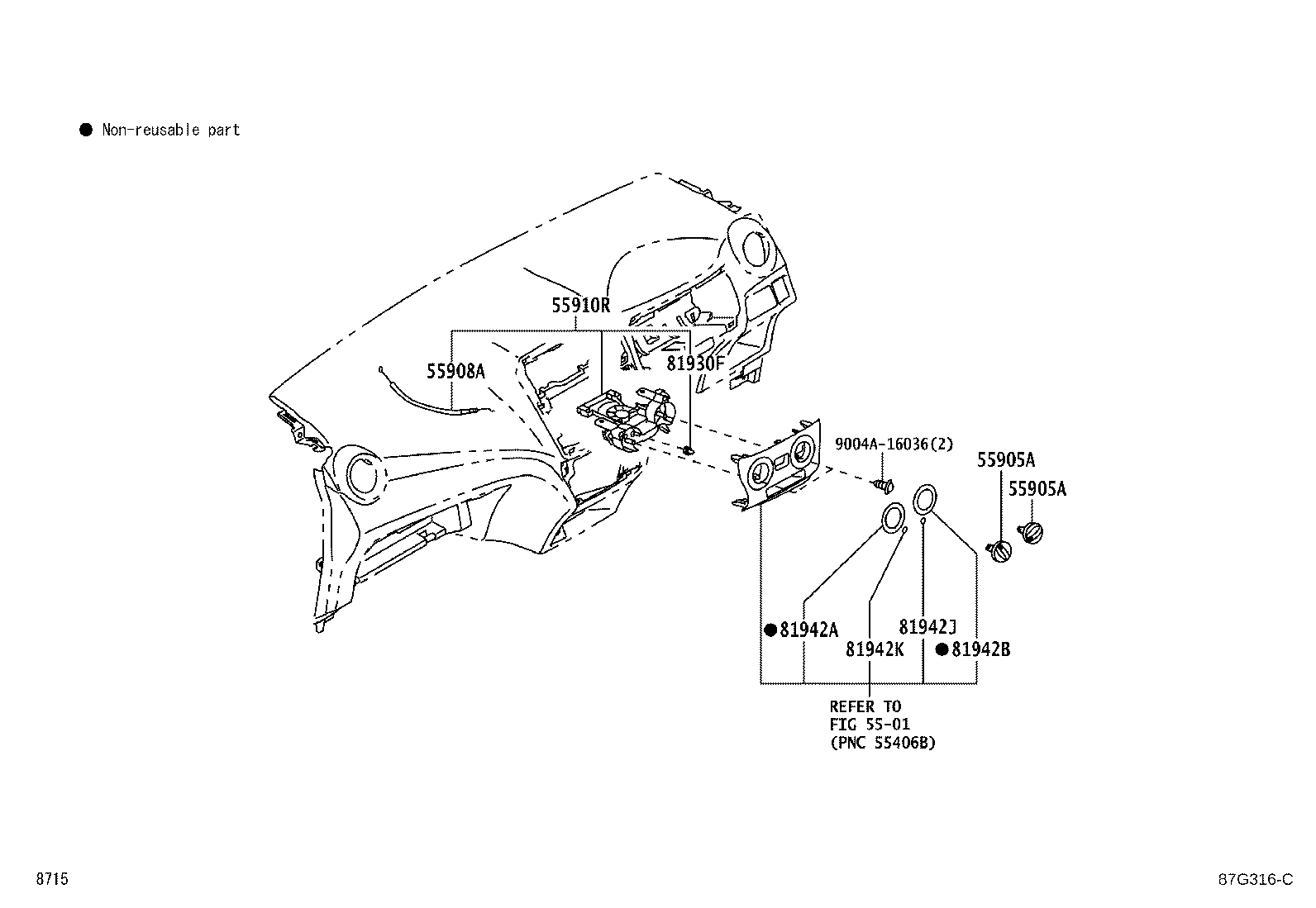

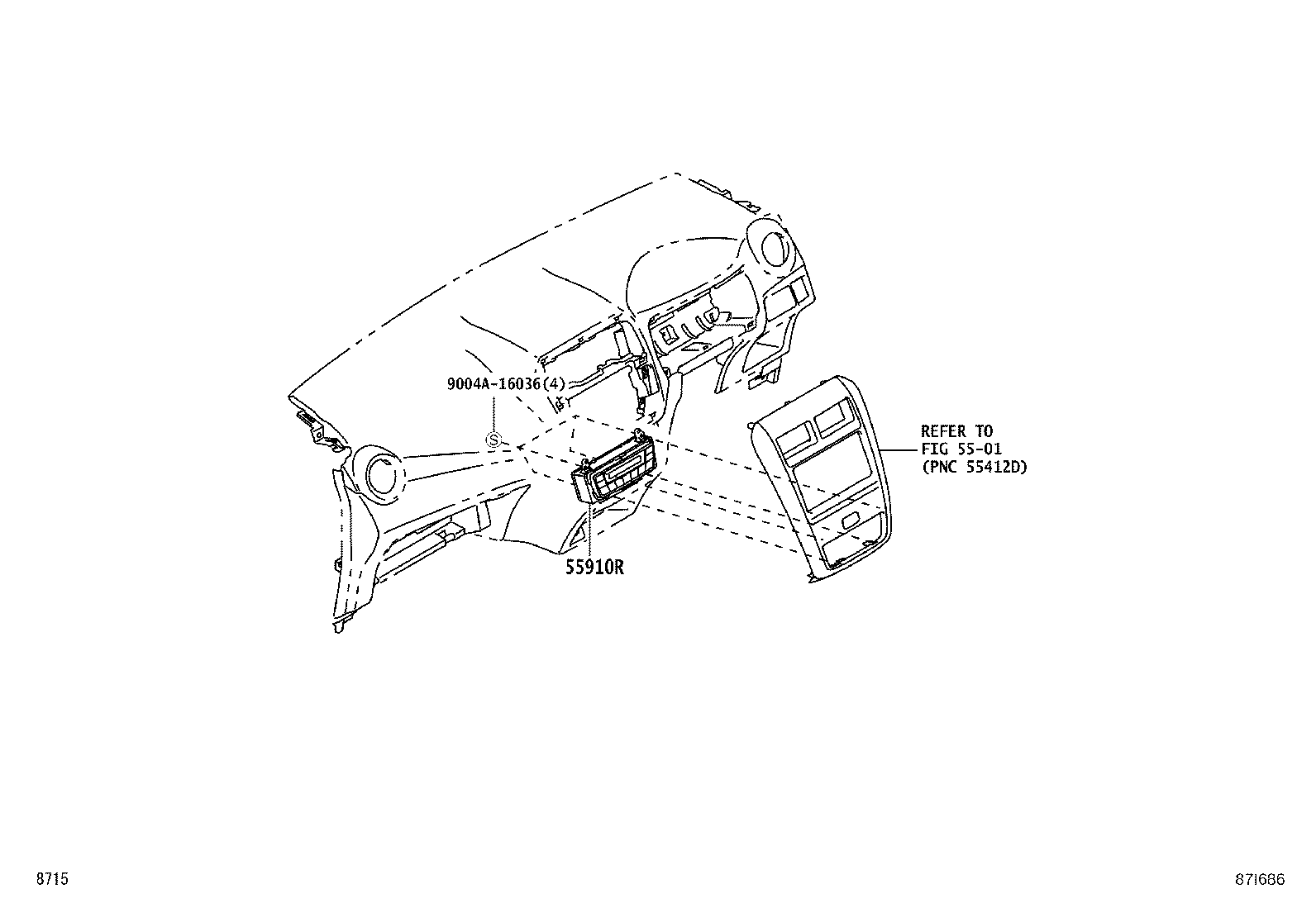

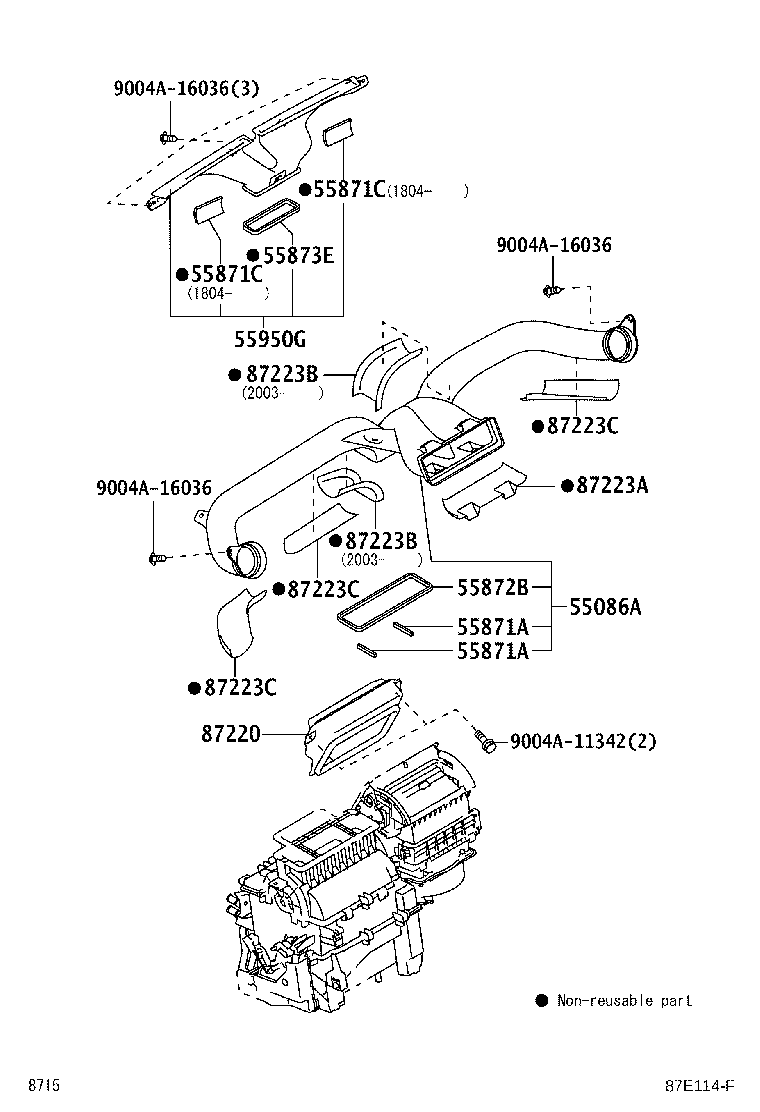

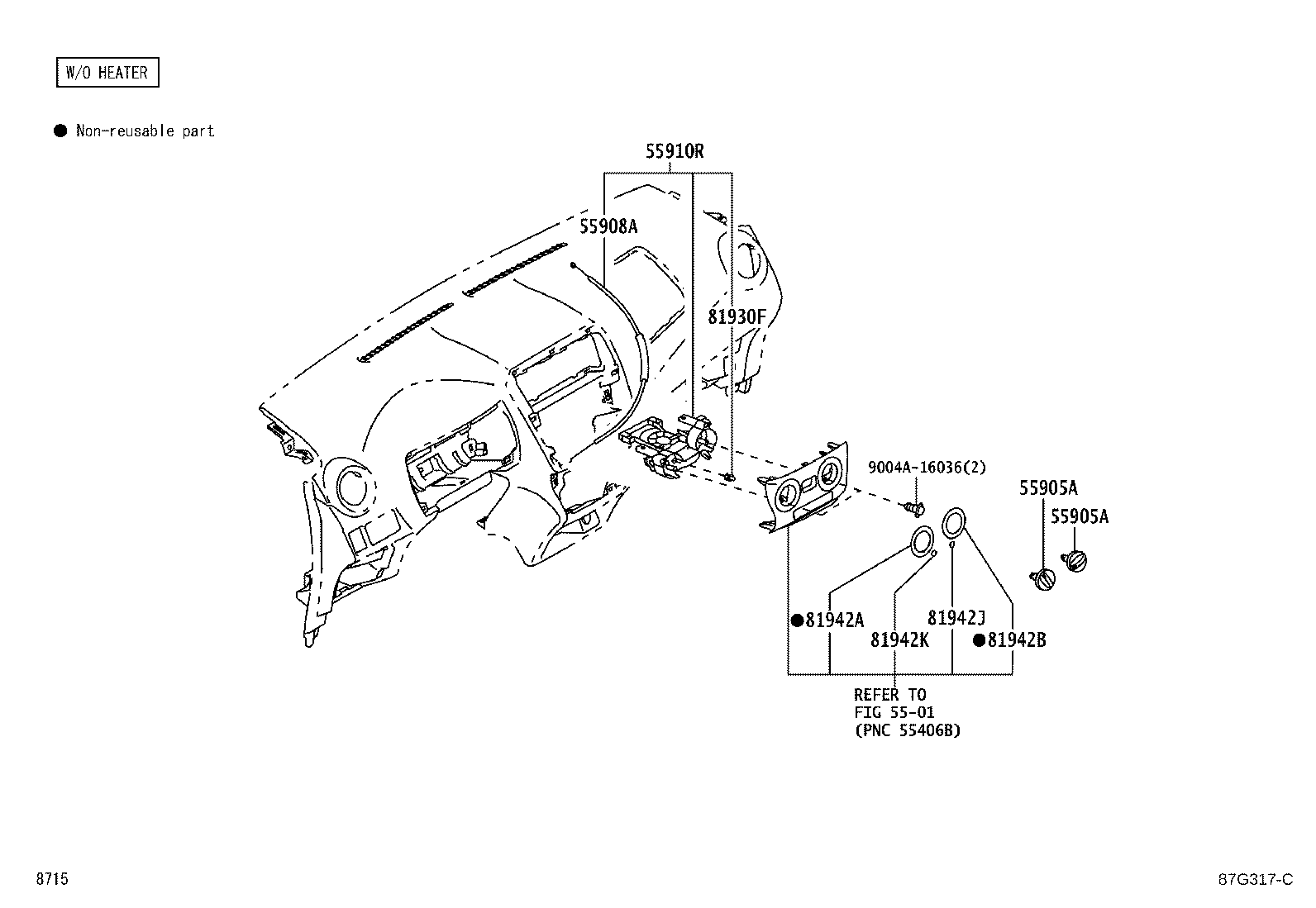

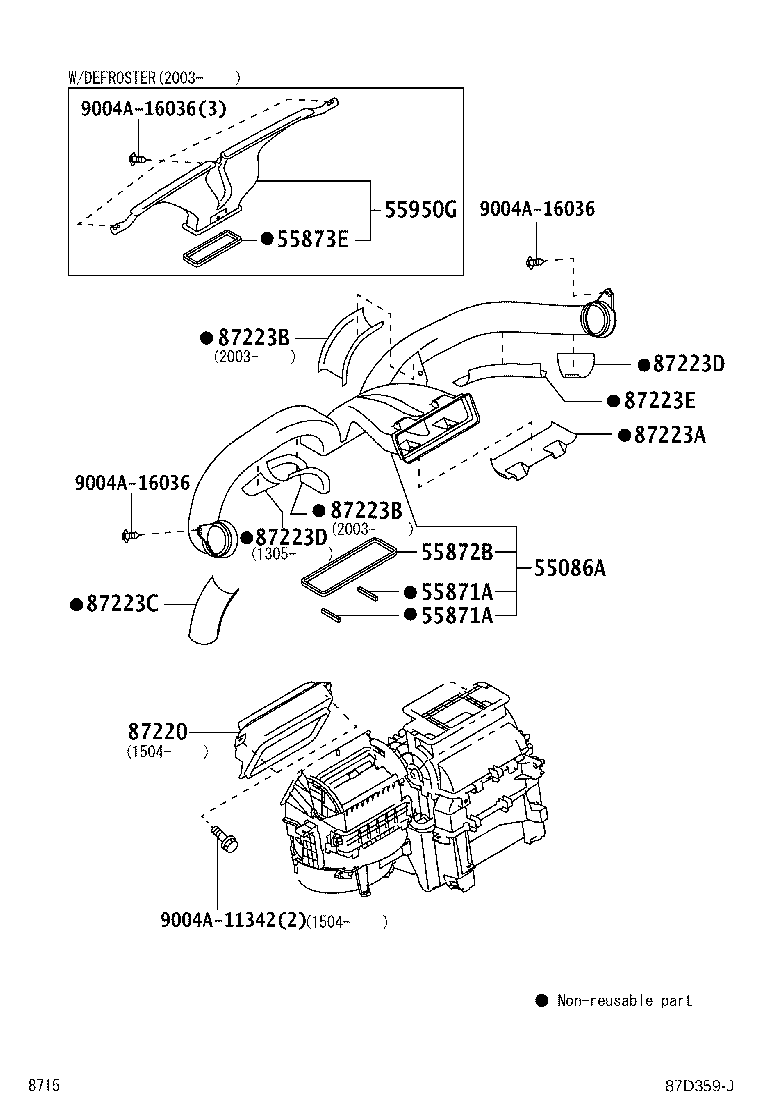

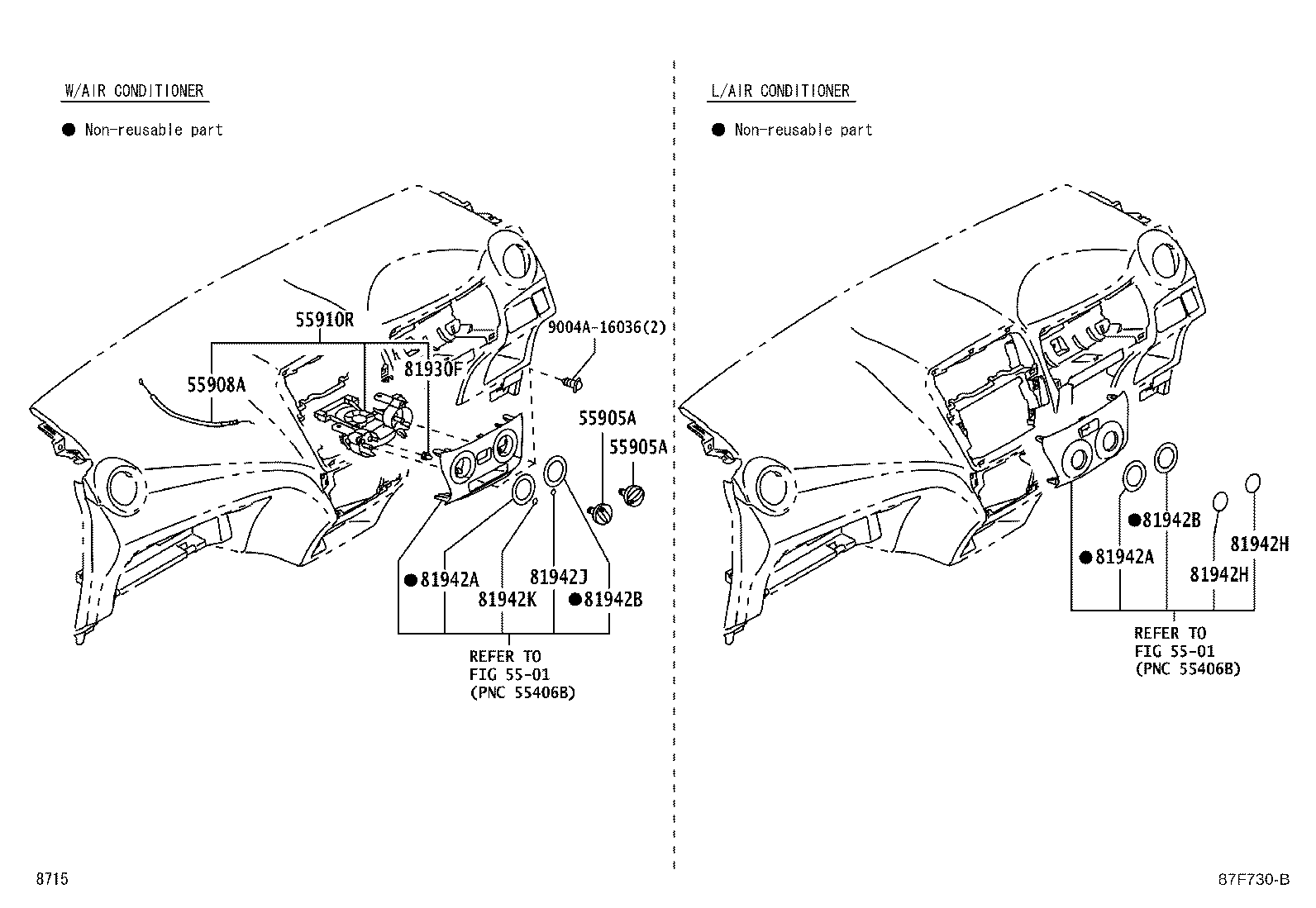

Figure 87F729A 87F729A 2012-12 → 2015-04 Figure 87F730B 87F730B 2015-04 → 2017-04 Figure 87G316C 87G316C 2017-04 → 2020-03 Figure 87G316C 87G316C 2017-04 → — Figure 87G317C 87G317C 2017-04 → 2020-03 Figure 87G317C 87G317C 2017-04 → — Figure 87E113C 87E113C 2014-01 → 2020-03 Figure 87E113C 87E113C 2017-04 → — Figure 87I686 87I686 2020-03 → — Figure 87D359J 87D359J 2012-12 → — Figure 87E114F 87E114F 2014-01 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55871A Seal, Air Duct, NO.1
55871C Seal, Air Duct
55872B Seal, Air Duct,NO.2
55873E Seal, Air Duct
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910R Control Assy, Heater
55937 Knob, Heater Control Lever
55950G Nozzle Assy, Defroster
81930F Bulb, Heater Control Indicator Lamp
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
87220 Duct Assy, Air
87223A Pad, Air Duct
87223B Pad, Air Duct, NO.2
87223C Pad, Air Duct, NO.3
87223D Pad, Air Duct, NO.4
87223E Pad, Air Duct, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
