Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 10 illustrations

Illustrations

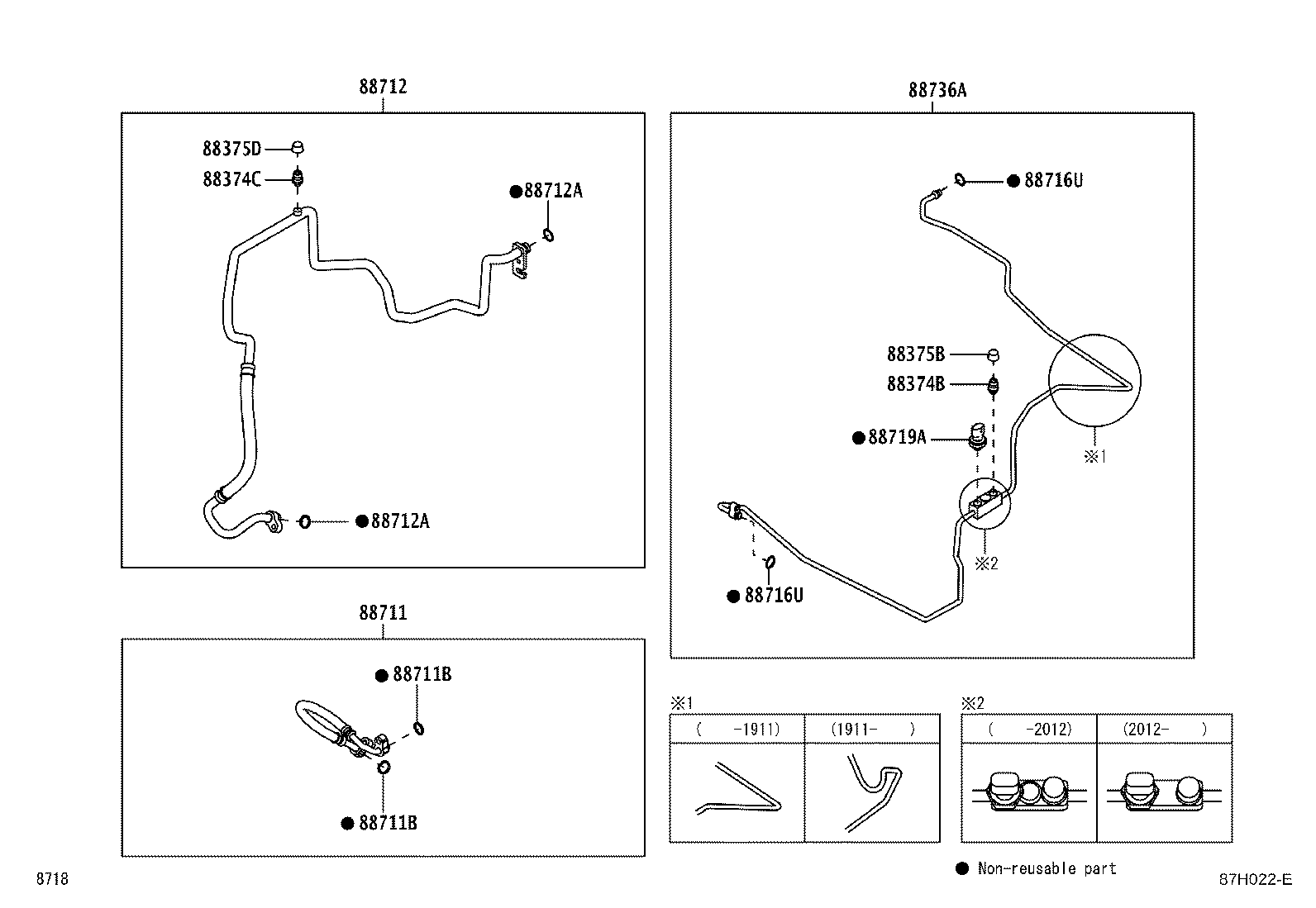

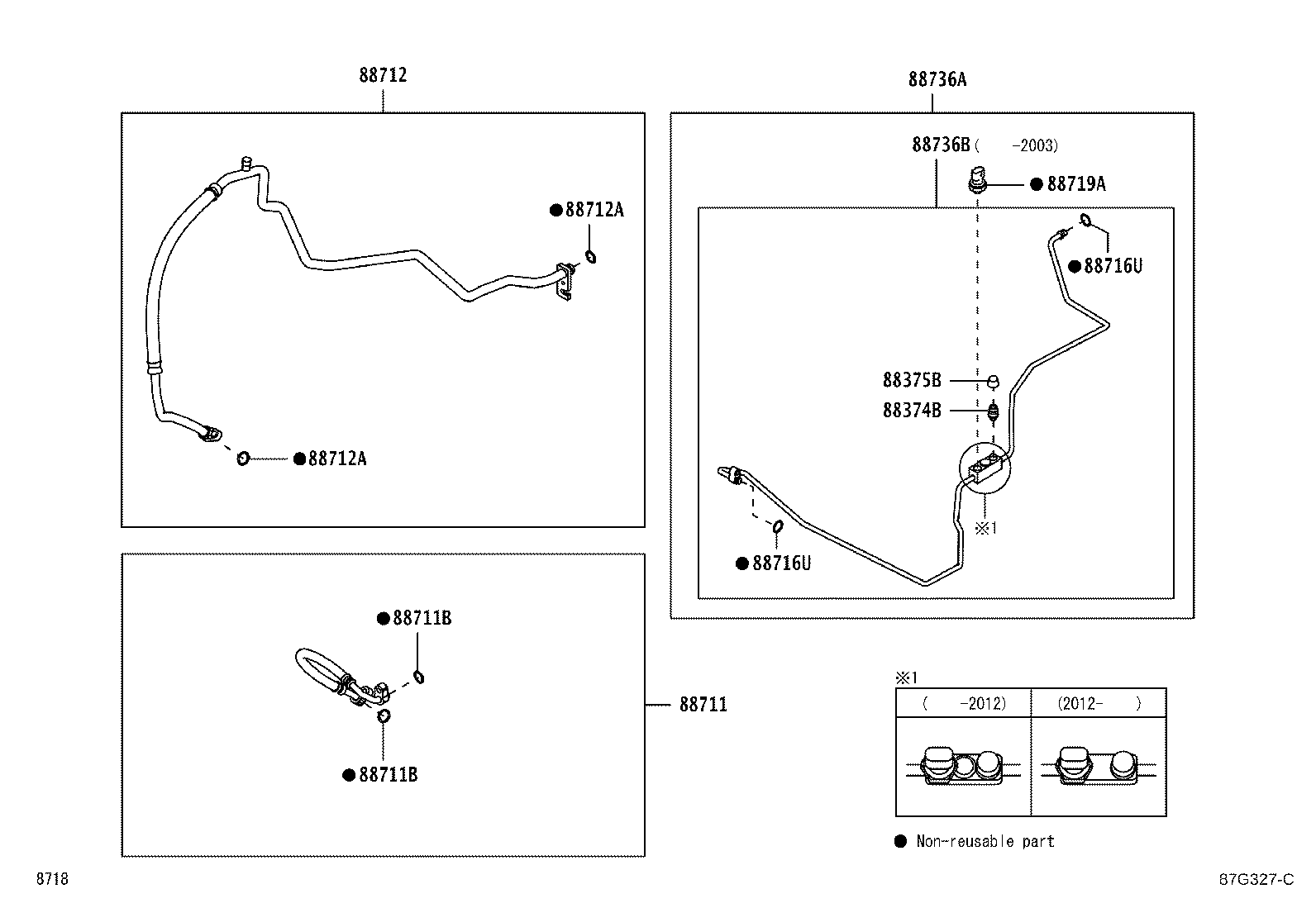

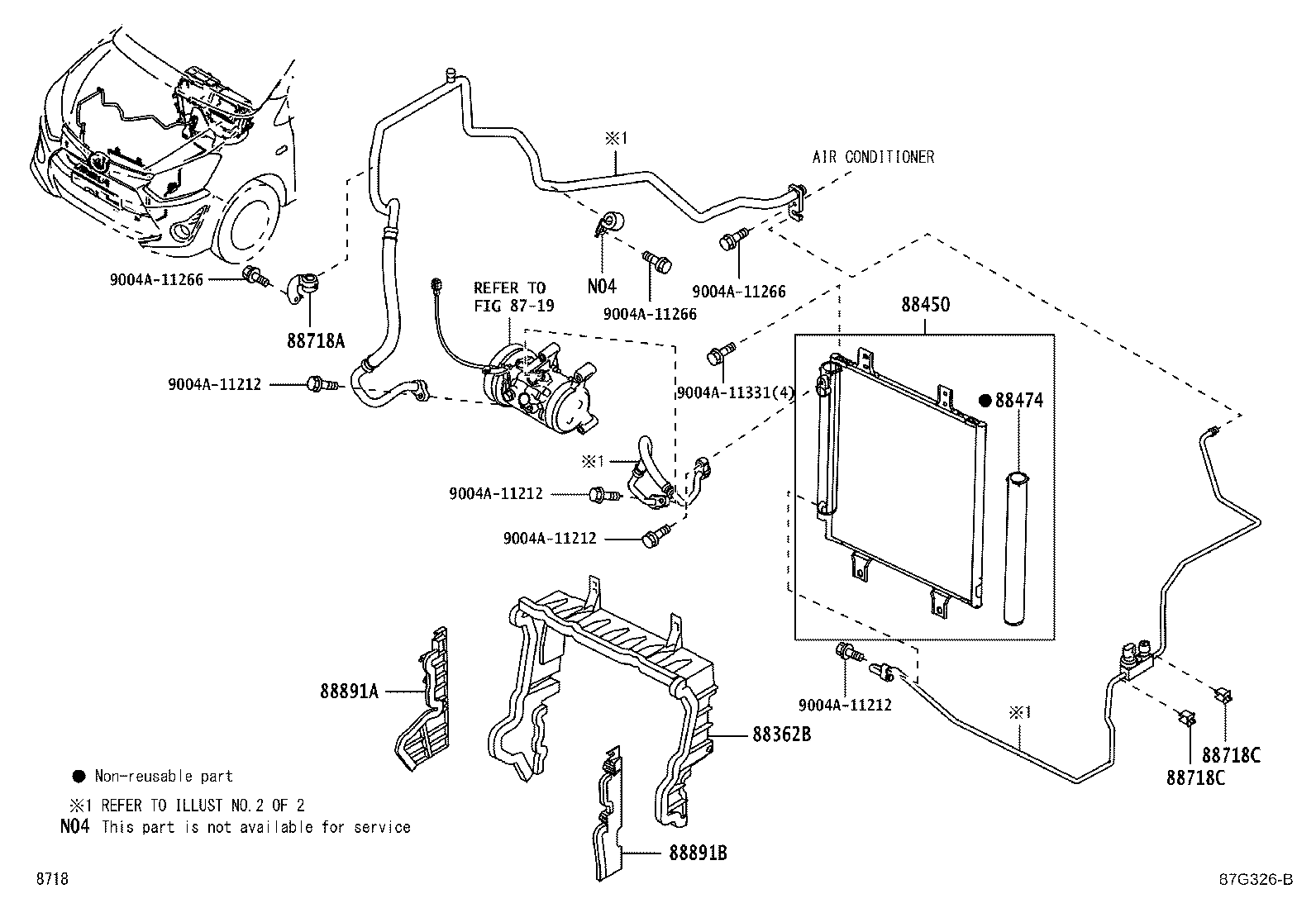

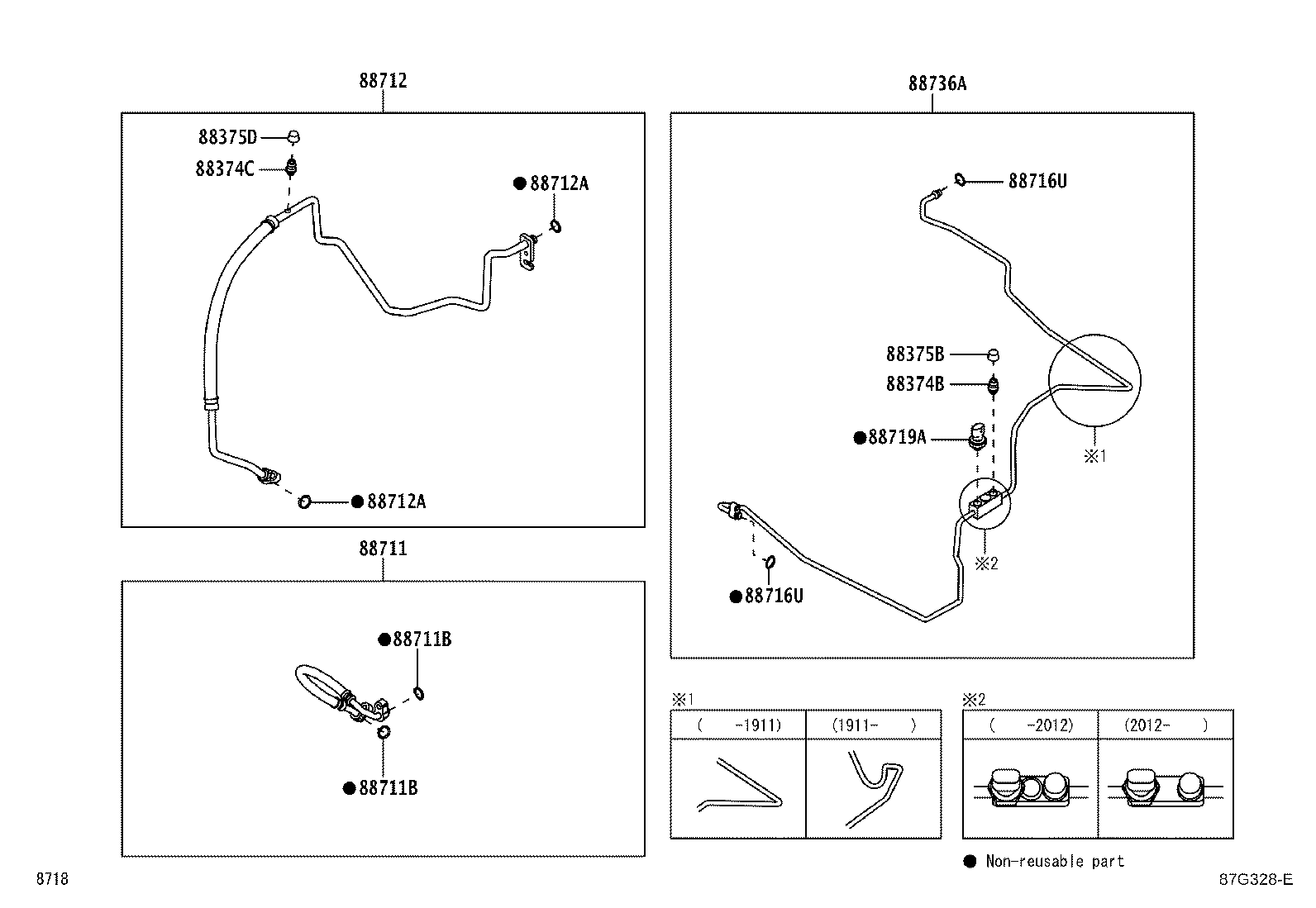

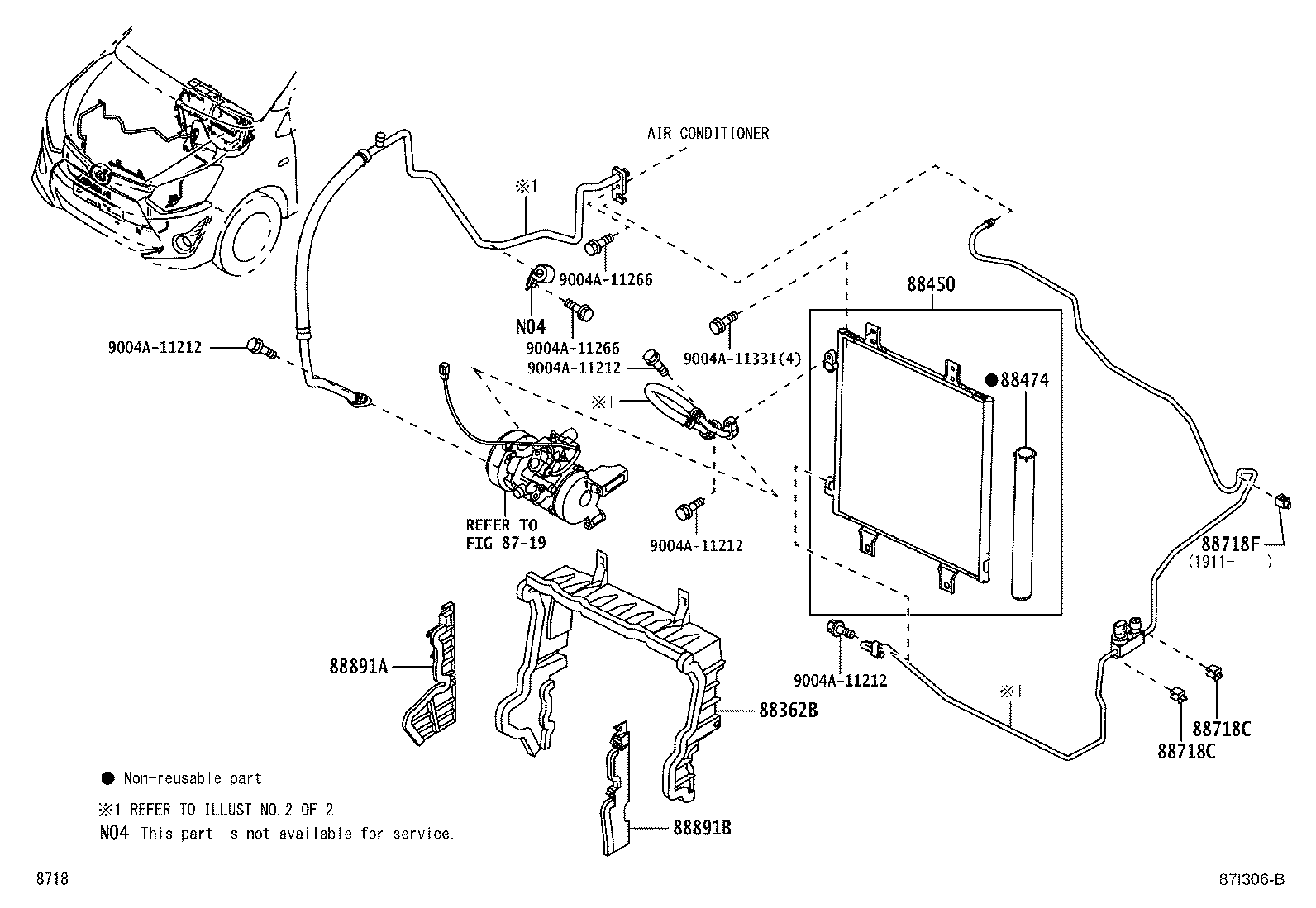

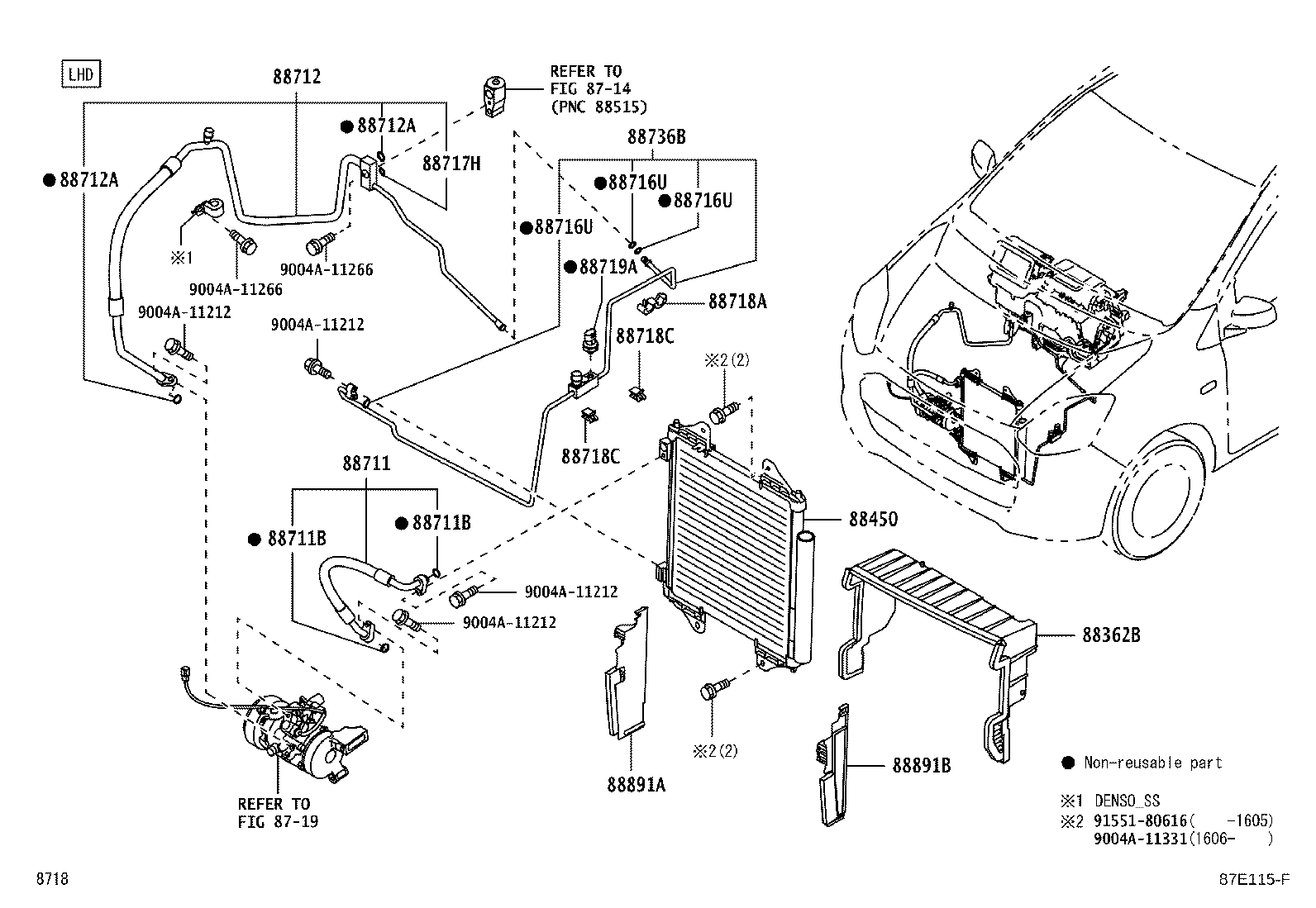

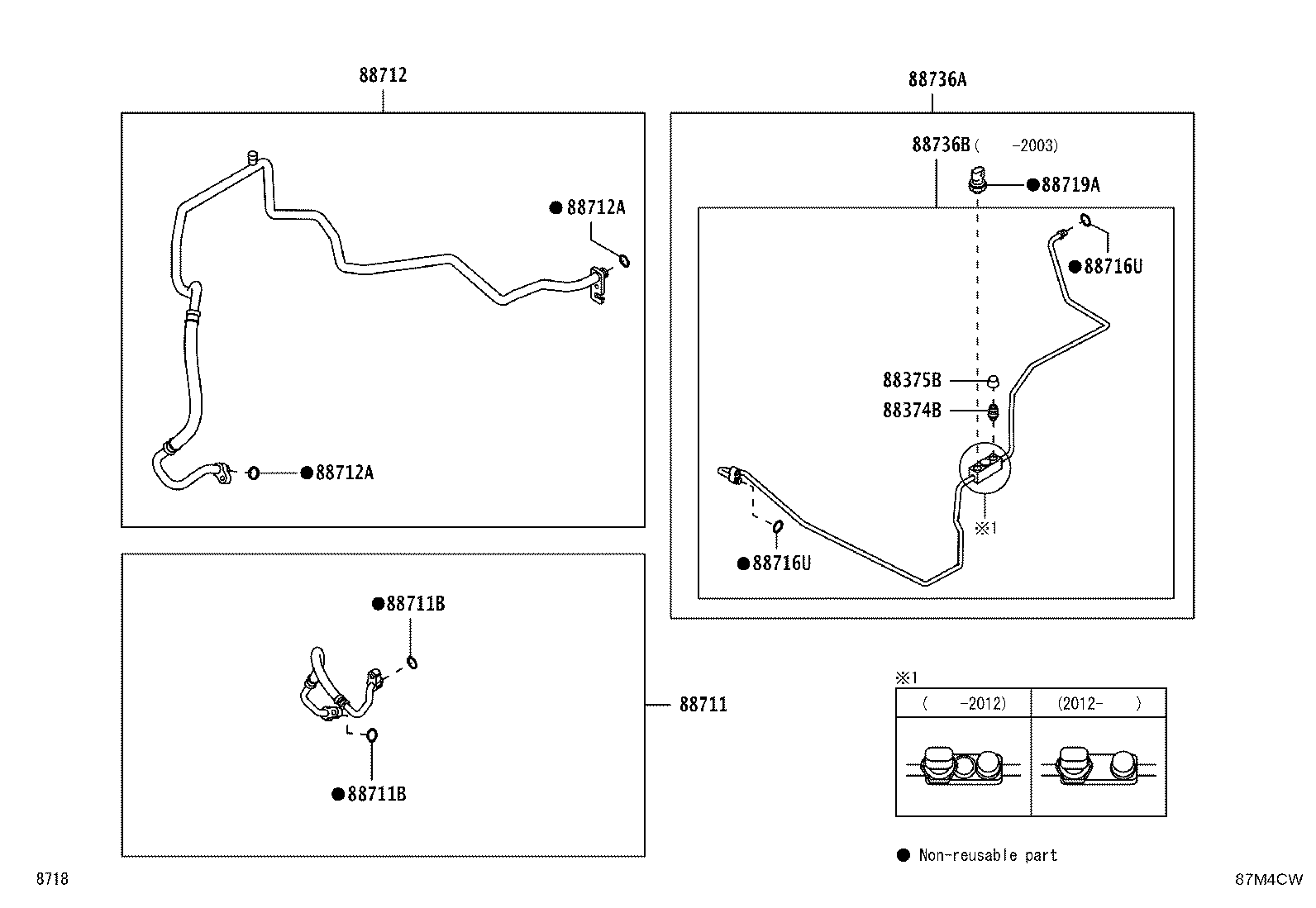

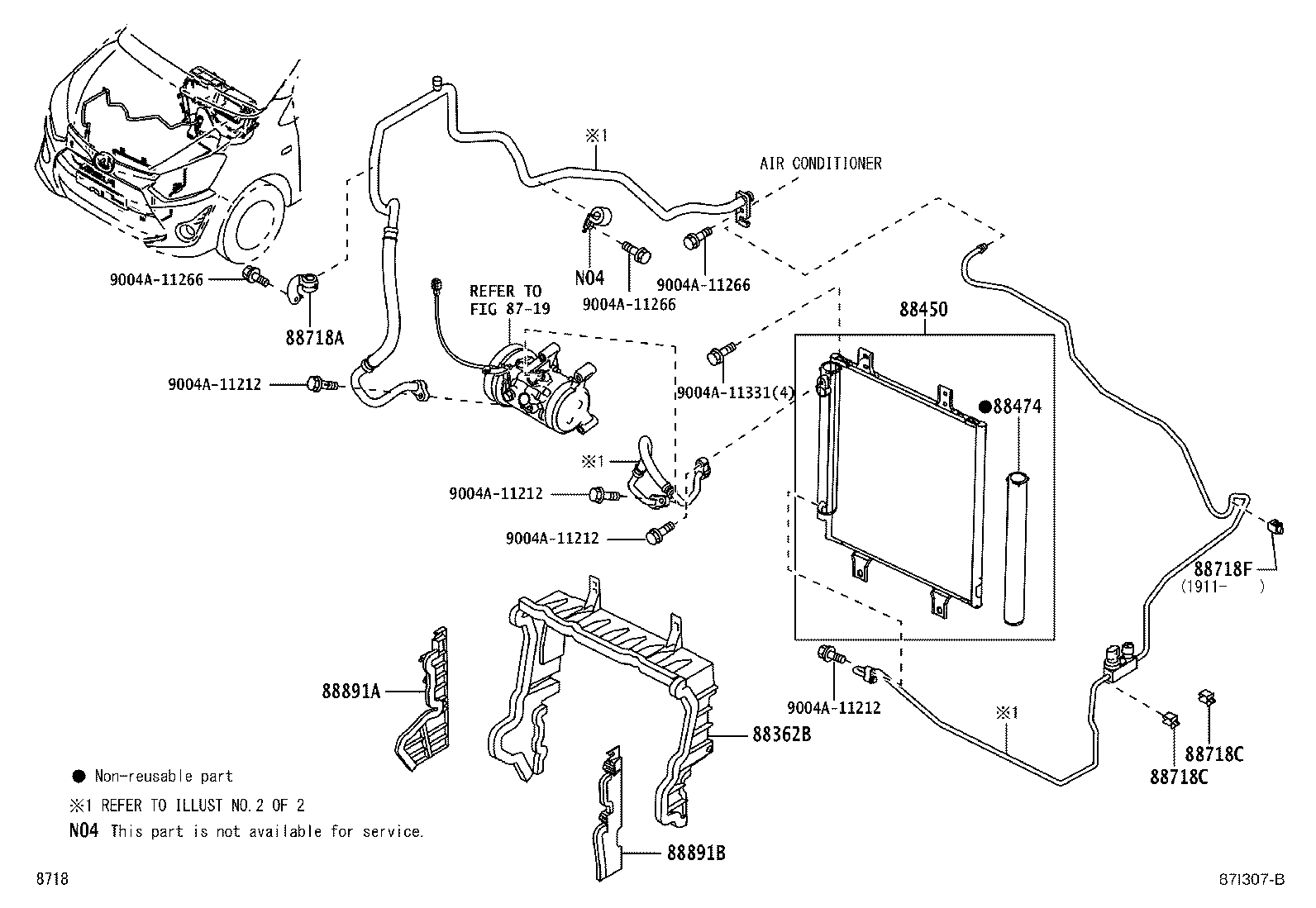

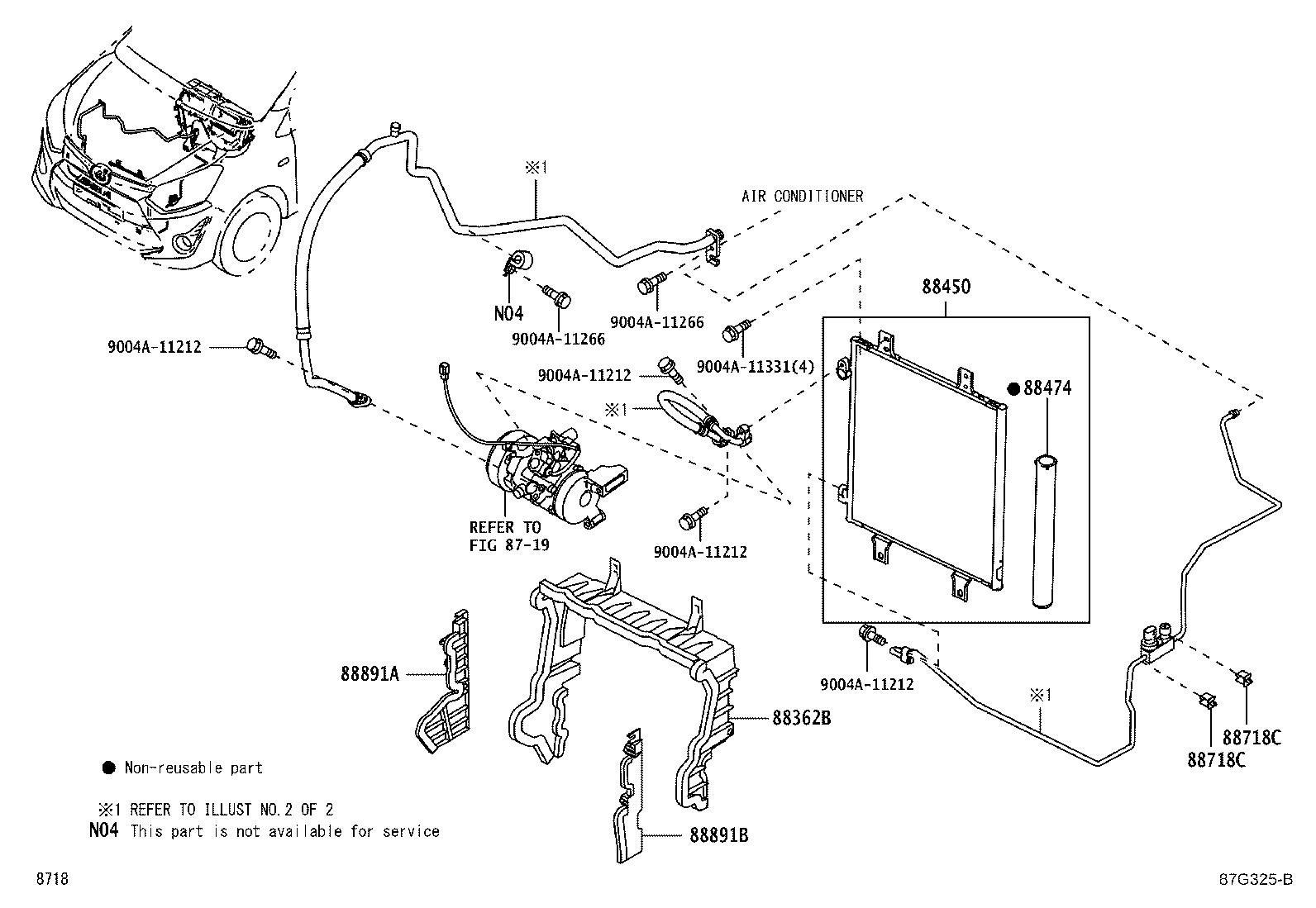

Figure 87F731B 87F731B 2012-12 → 2017-04 Figure 87E115F 87E115F 2014-01 → 2017-04 Figure 87G325B 87G325B 2017-04 → — Figure 87G327C 87G327C 2017-04 → — Figure 87I306B 87I306B 2017-04 → — Figure 87G328E 87G328E 2017-04 → — Figure 87G326B 87G326B 2017-04 → — Figure 87M4CW 87M4CW 2017-04 → — Figure 87I307B 87I307B 2017-04 → — Figure 87H022E 87H022E 2017-12 → —

Part groups

PNCDescription
88362B Plate, Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88474 Dryer, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
88736A Tube, Liquid, A(FOR COOL BOX)
88736B Tube, Liquid, B(FOR COOL BOX)
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
