Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 6 illustrations

Illustrations

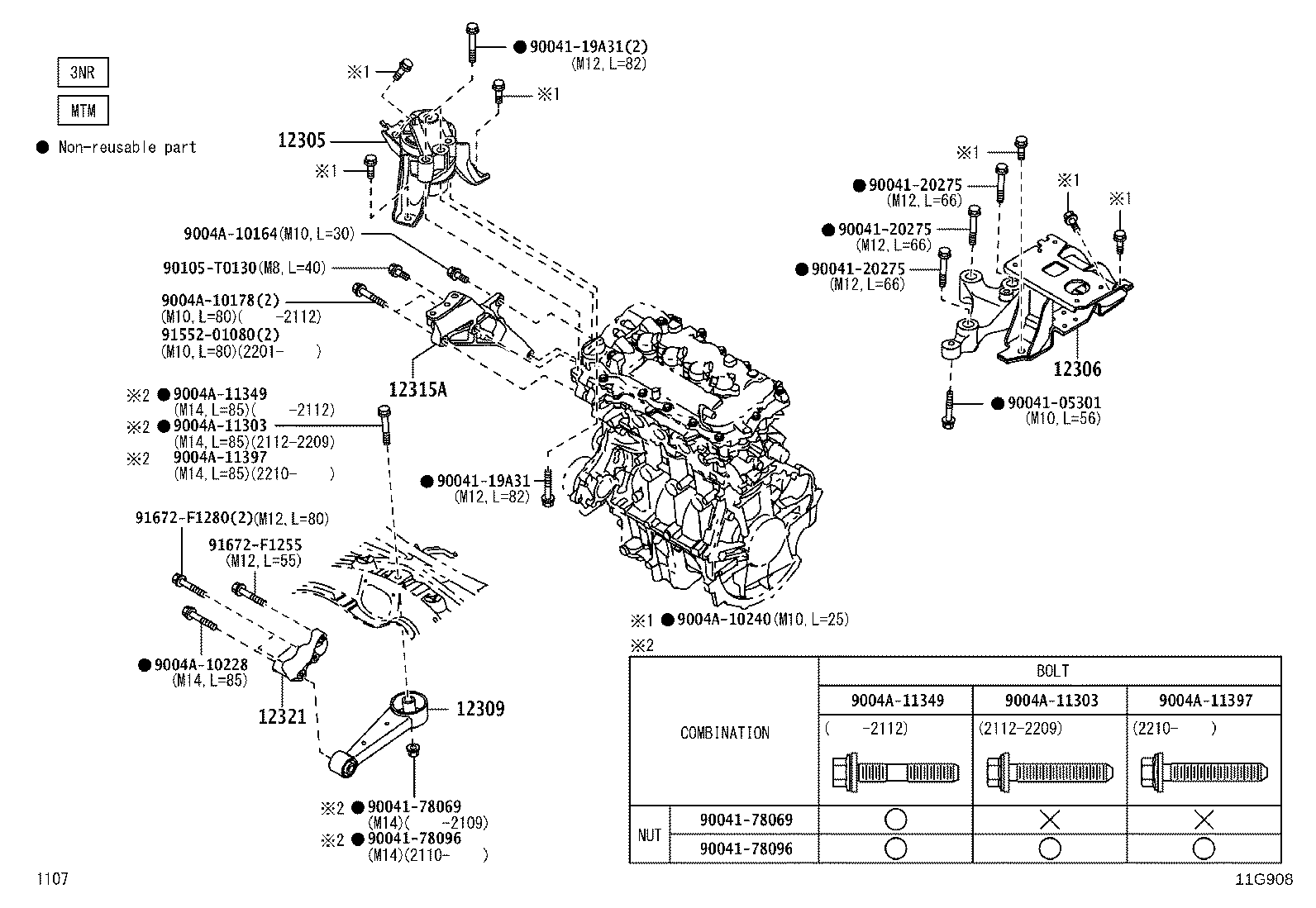

Figure 11G907 11G907 2016-06 → 2019-09 Figure 11G907 11G907 2019-09 → 2022-07 Figure 11G907 11G907 2022-07 → — Figure 11G908 11G908 2016-06 → 2019-09 Figure 11G908 11G908 2019-09 → 2022-07 Figure 11G908 11G908 2022-07 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12309 Rod Sub-assy, Engine Moving Control
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321 Bracket, Engine Mounting, Rear, NO.1
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
