Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

17 part groups · 7 illustrations

Illustrations

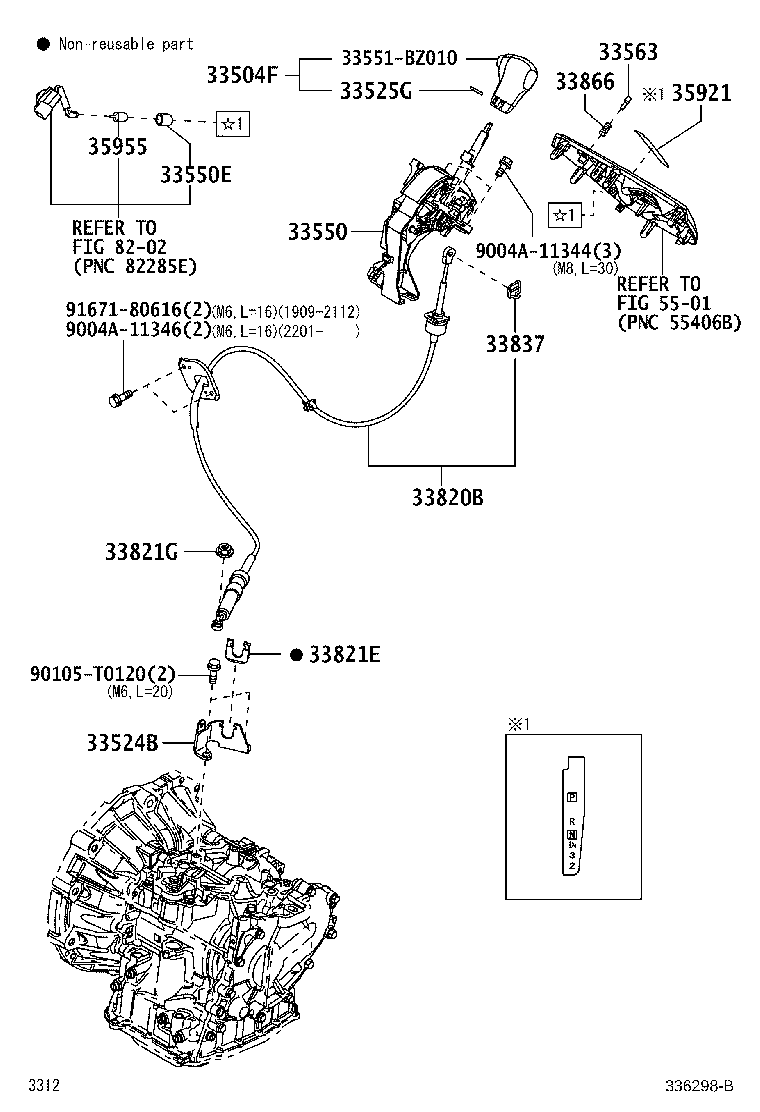

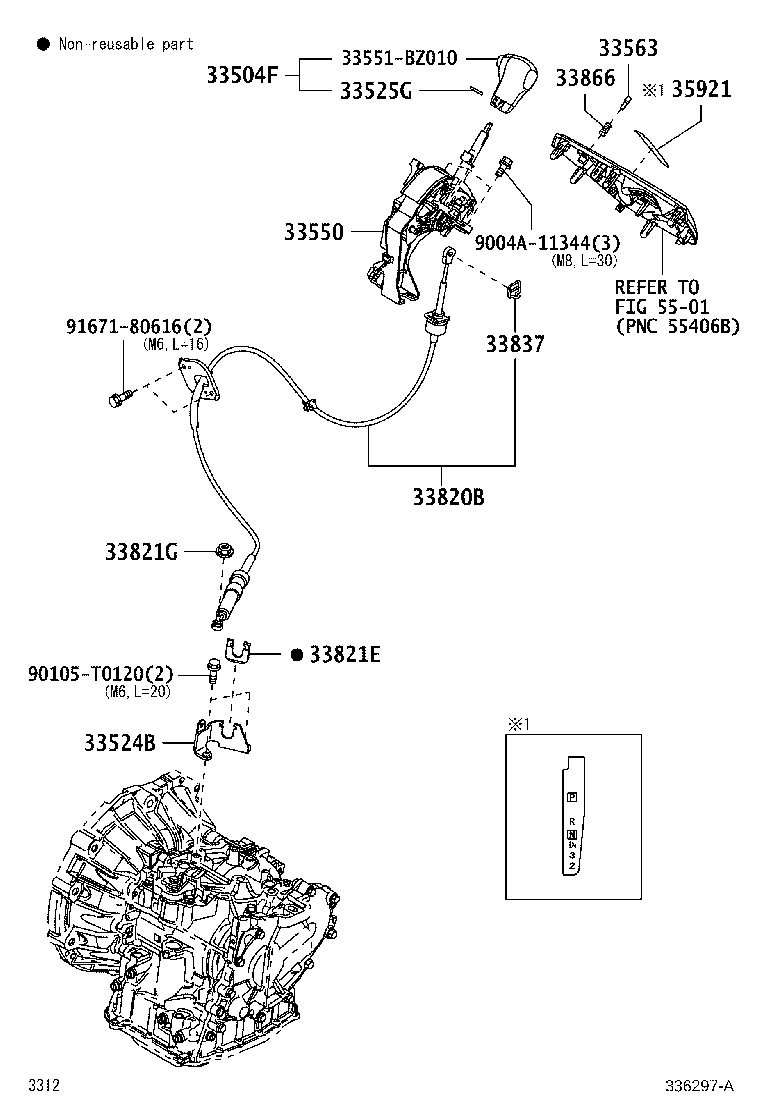

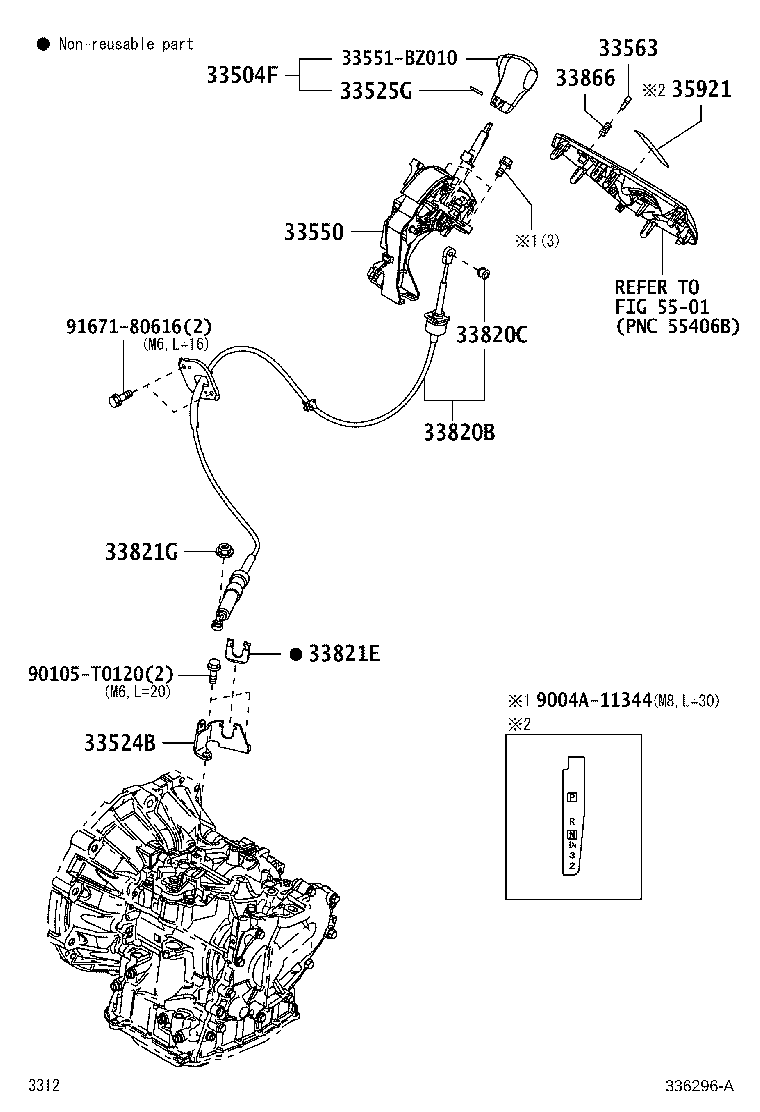

Figure 336475E 336475E 2016-06 → 2019-09 Figure 336475E 336475E 2019-09 → 2022-07 Figure 336475E 336475E 2022-07 → — Figure 336296A 336296A 2016-06 → 2019-05 Figure 336297A 336297A 2019-05 → 2019-09 Figure 336298B 336298B 2019-09 → 2022-07 Figure 336298B 336298B 2022-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33525G Ring, Shift Lever
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33550E Cap, Position Indicator Lamp
33563 Button, Shift Lock Release
33820B Cable Assy, Transmission Control
33820C Bush (FOR TRANSMISSION CONTROL CABLE)
33820J Clip(FOR TRANSMISSION CONTROL CABLE)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33837 Clip, Transmission Control Cable Adjust
33866 Spring, Shift Lock Release
35921 Plate, Control Position Indicator
35955 Bulb, Position Indicator Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
