Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

30 part groups · 9 illustrations

Illustrations

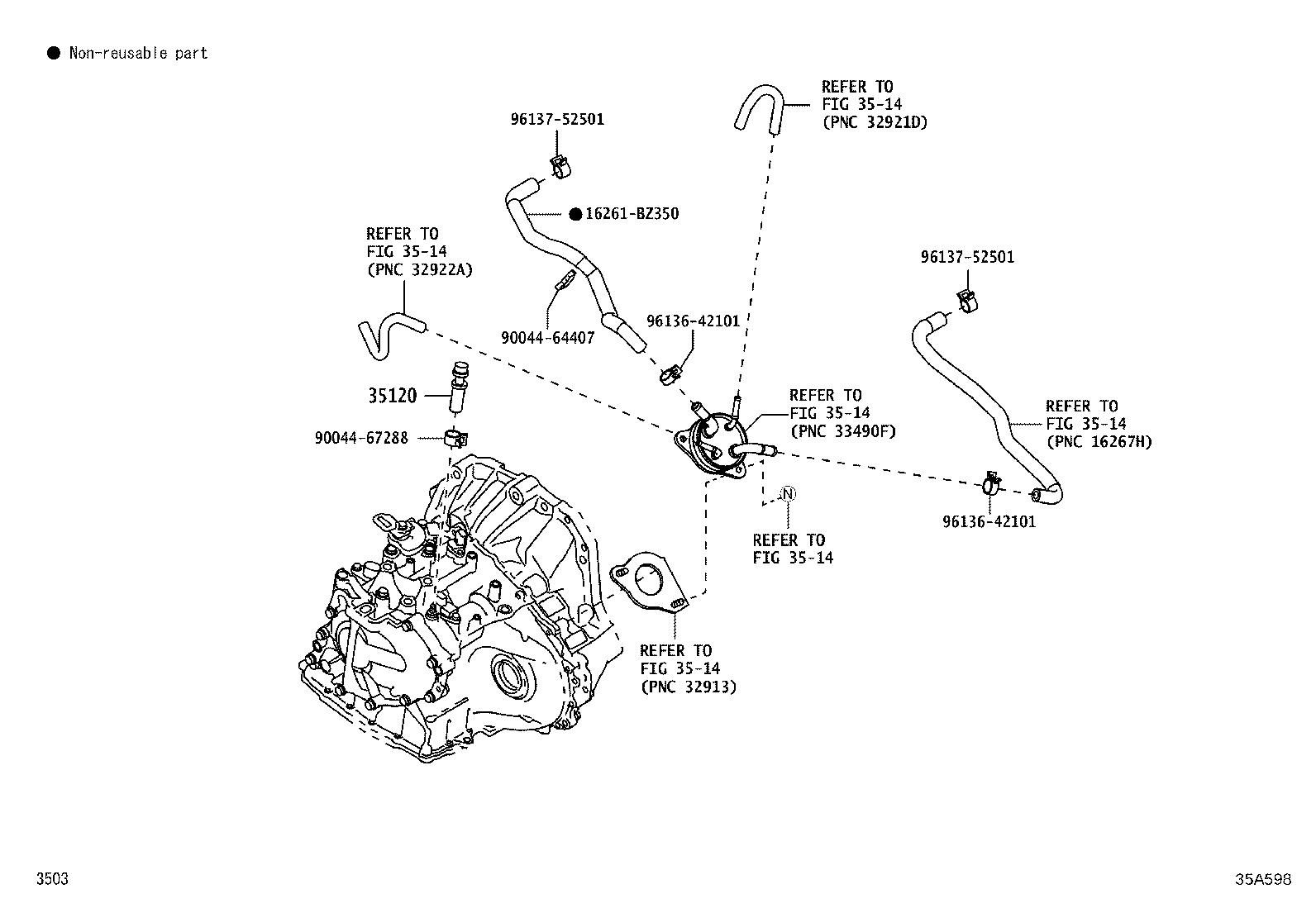

Figure 35A597 35A597 2016-06 → 2019-09 Figure 35A597 35A597 2019-09 → 2022-07 Figure 35A597 35A597 2022-07 → — Figure 359648D 359648D 2016-06 → 2019-09 Figure 359648D 359648D 2019-09 → 2022-07 Figure 359648D 359648D 2022-07 → — Figure 35A598 35A598 2016-06 → 2019-09 Figure 35A598 35A598 2019-09 → 2022-07 Figure 35A598 35A598 2022-07 → —

Part groups

PNCDescription
12282C Hanger, Engine, NO.2
31105J Seal, Oil, NO.2(FOR TRANSAXLE CASE)
33449E Magnet, Transaxle
35013 Tube Sub-assy, Transmission Oil Filler
35101E Pin, Straight (FOR AUTOMATIC TRANSMISSION CASE)
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104B Plug, Breather, NO.1 (ATM)
35104F Seal, Oil (FOR TRANSAXLE CASE)
35104K Compression Spring, Transaxle Case
35104U Bolt (FOR TRANSAXLE CASE)
35104Z Gasket (FOR TRANSAXLE CASE)
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106D Pan Sub-assy, Automatic Transaxle Oil
35111N Transaxle Housing (ATM)
35120 Breather Assy, Transmission
35143 Cover, Transmission Case, Rear
35165 Plate, Transmission Case, NO.1
35168A Gasket, Automatic Transaxle Oil Pan
35257 Plate, Oil Guide
35303B Strainer Sub-assy,Oil
35303C Ring,O(FOR OIL STRAINER)
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35824 Seal, Brake Cylinder
35882C Tube, Differential Gear Lube Apply
89413G Sensor, Transmission Revolution
89413H Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
G1406 Connector Sub-assy, Trans Solenoid
G1406A Ring, O(FOR TRANS SOLENOID CONNECTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
