Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

5 part groups · 6 illustrations

Illustrations

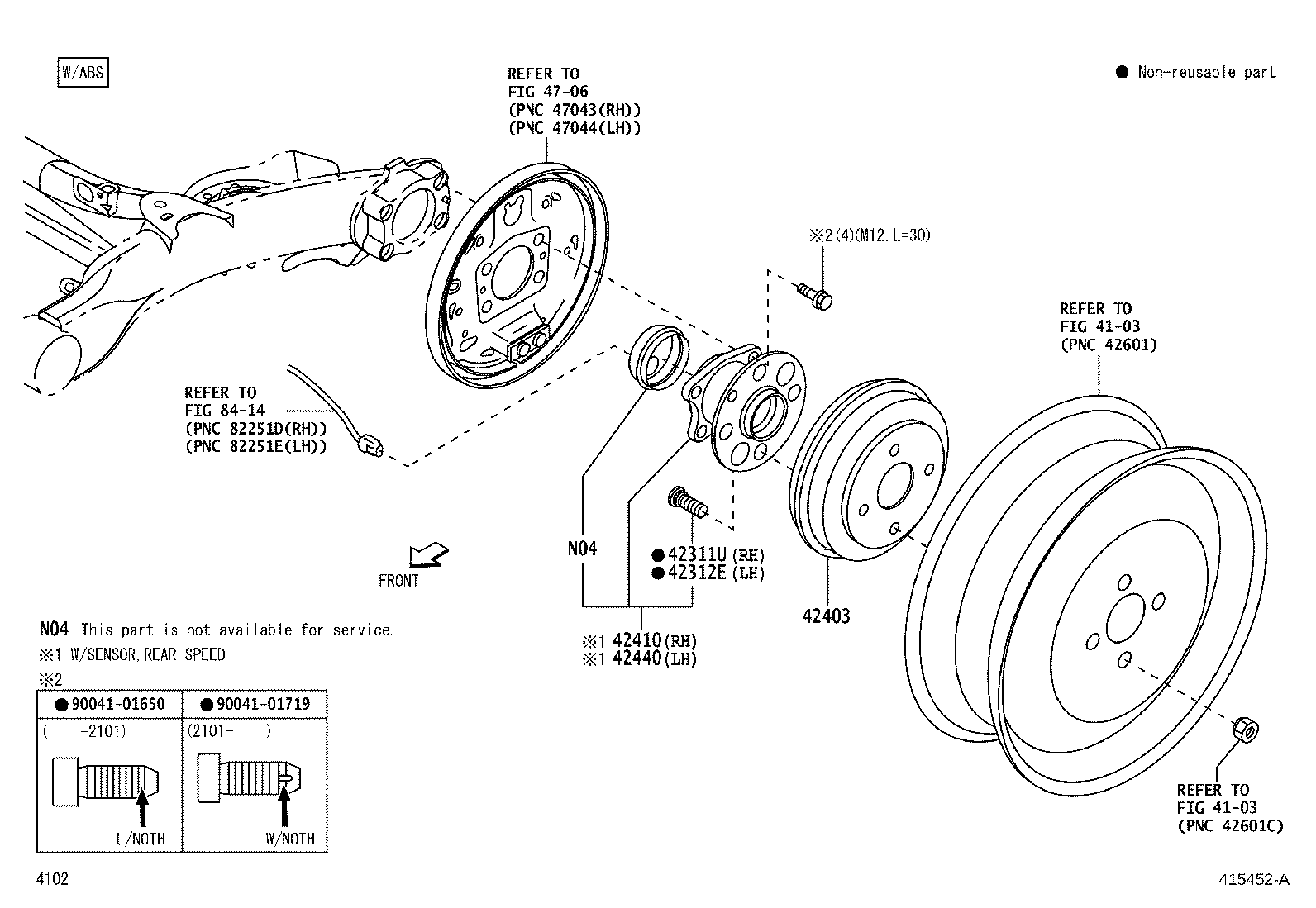

Figure 415451A 415451A 2016-06 → 2019-09 Figure 415451A 415451A 2019-09 → 2022-07 Figure 415451A 415451A 2022-07 → — Figure 415452A 415452A 2016-06 → 2019-09 Figure 415452A 415452A 2019-09 → 2022-07 Figure 415452A 415452A 2022-07 → —

Part groups

PNCDescription
42311U Bolt, Hub(FOR REAR AXLE RH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42403 Drum Sub-assy, Rear Brake
42410 Hub & Bearing Assy, Rear Axle, RH
42440 Hub & Bearing Assy, Rear Axle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
