Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

6 part groups · 6 illustrations

Illustrations

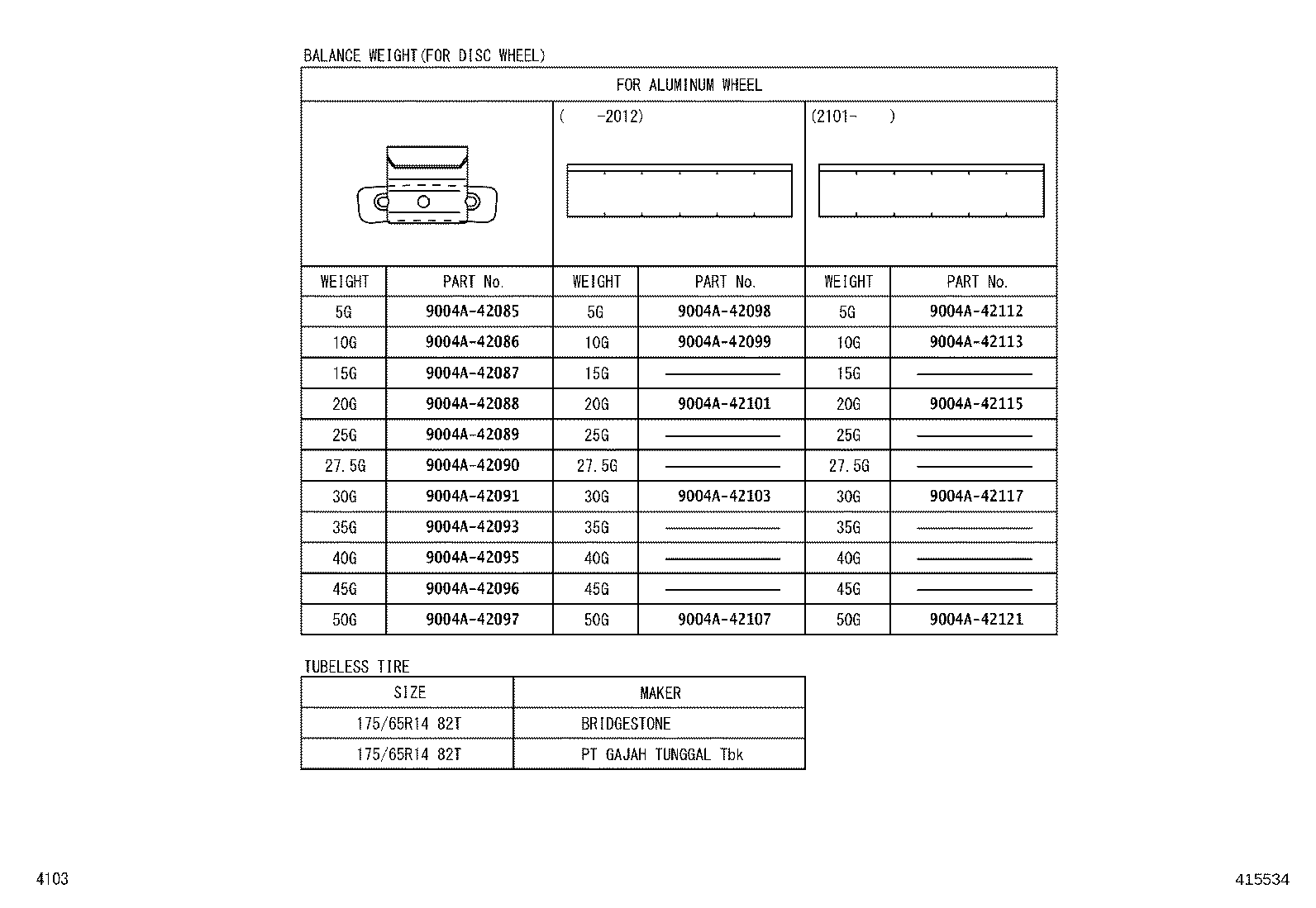

Figure 414524C 414524C 2016-06 → 2019-09 Figure 414524C 414524C 2019-09 → 2022-07 Figure 414524C 414524C 2022-07 → — Figure 414525A 414525A 2016-06 → 2019-09 Figure 415534 415534 2019-09 → 2022-07 Figure 415534 415534 2022-07 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
