Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

14 part groups · 6 illustrations

Illustrations

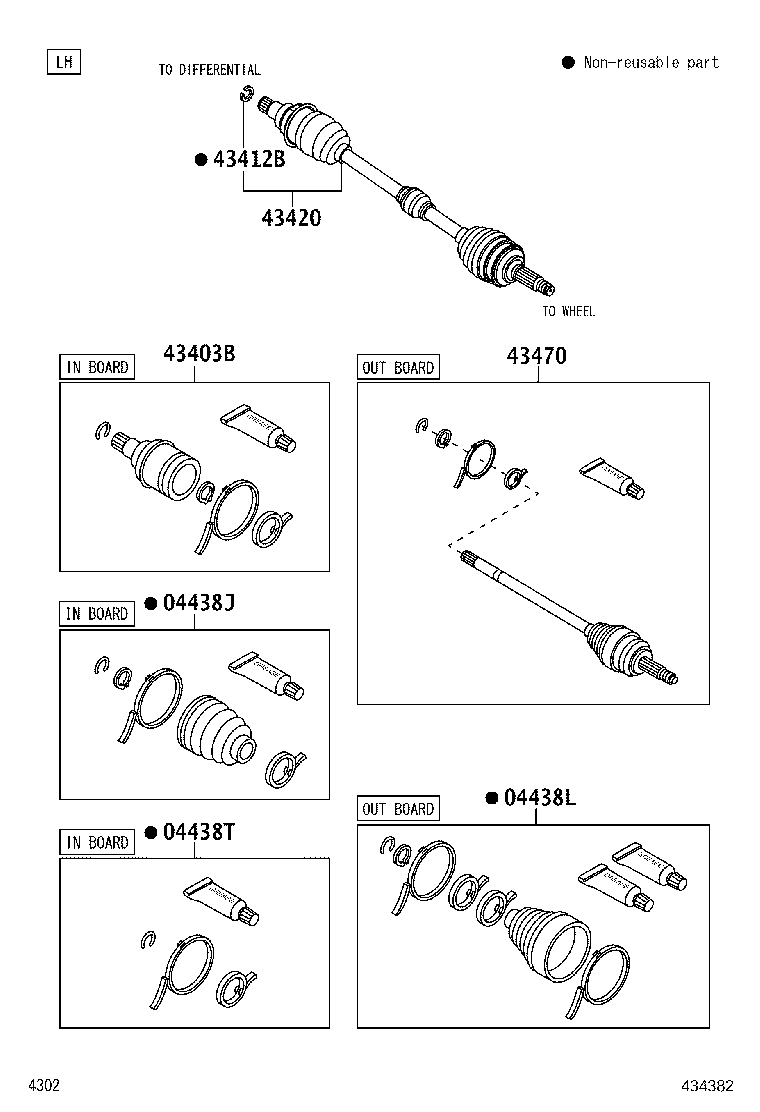

Figure 434381 434381 2016-06 → 2019-09 Figure 434381 434381 2019-09 → 2022-07 Figure 434381 434381 2022-07 → — Figure 434543 434543 2016-06 → 2020-10 Figure 434382 434382 2020-10 → 2022-07 Figure 434382 434382 2022-07 → —

Part groups

PNCDescription
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
04438K Boot Kit, Front Drive Shaft Outboard Joint, RH
04438L Boot Kit, Front Drive Shaft Outboard Joint, LH
04438S Clamp Kit, Front Drive Shaft, RH
04438T Clamp Kit, Front Drive Shaft, LH
43403 Joint Set, Front Axle Inboard, RH
43403B Joint Set, Front Axle Inboard, LH
43410 Shaft Assy, Front Drive, RH
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420 Shaft Assy, Front Drive, LH
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
