Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

4 part groups · 3 illustrations

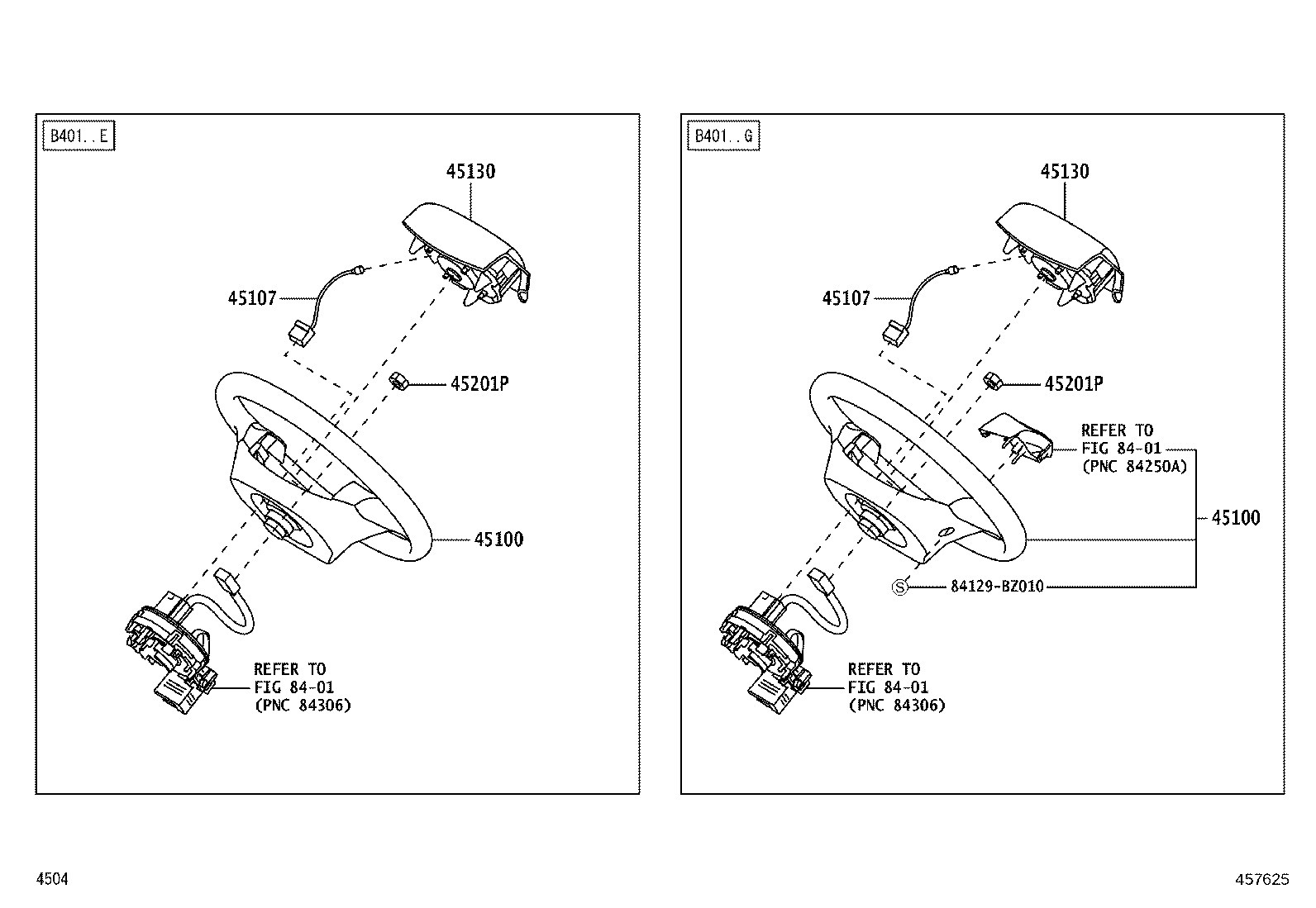

Illustrations

456997 2016-06 → 2019-09

457625 2019-09 → 2022-07

457625 2022-07 → —

Part groups

PNC	Description
45100	Wheel Assy, Steering
45107	Wire Sub-assy, Horn Button
45130	Button Assy, Horn
45201P	Nut, Steering Wheel Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
