Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 3 illustrations

Illustrations

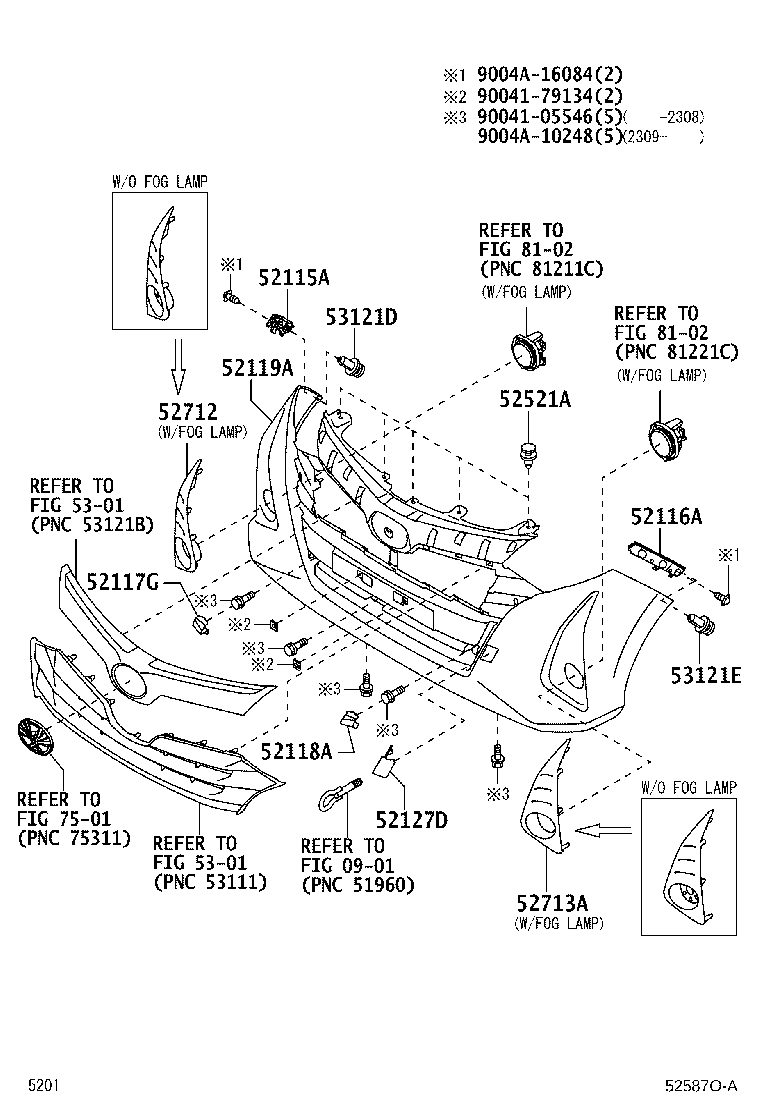

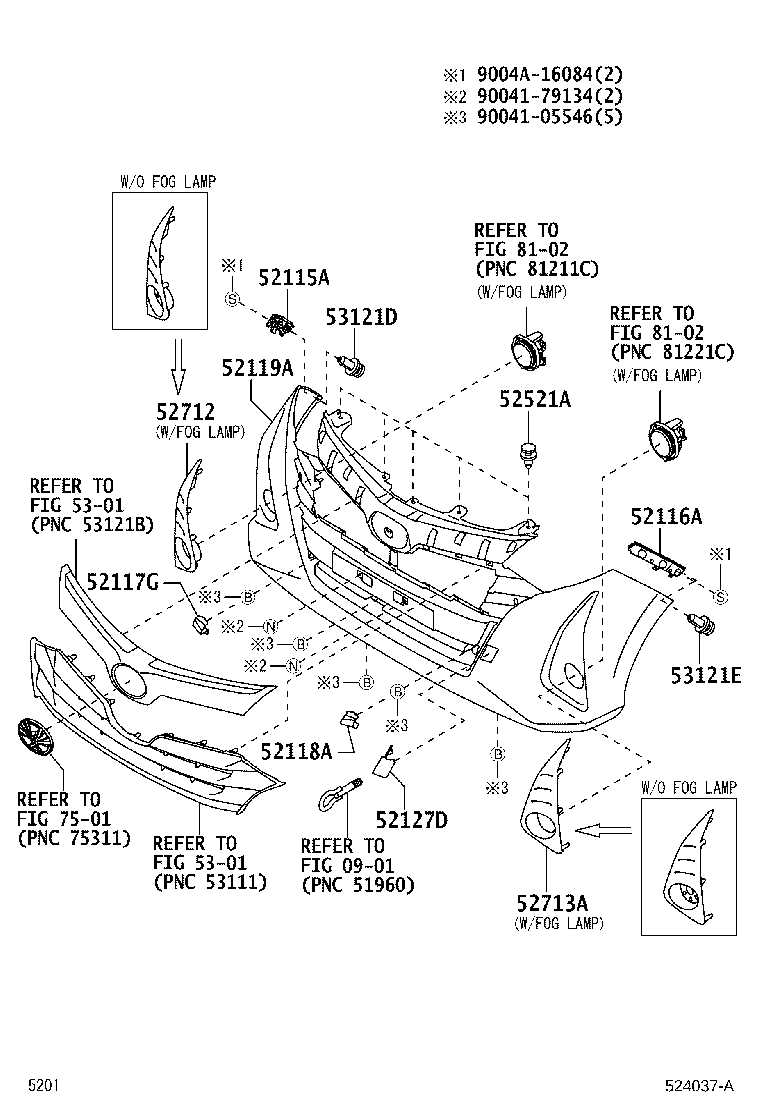

Figure 523341B 523341B 2016-06 → 2019-09 Figure 524037A 524037A 2019-09 → 2022-07 Figure 52587OA 52587OA 2022-07 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117G Insert, Front Bumper Extension, NO.2 RH
52118A Insert, Front Bumper Extension, NO.2 LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52521A Clip(FOR FRONT BUMPER RETAINER)
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
