Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 9 illustrations

Illustrations

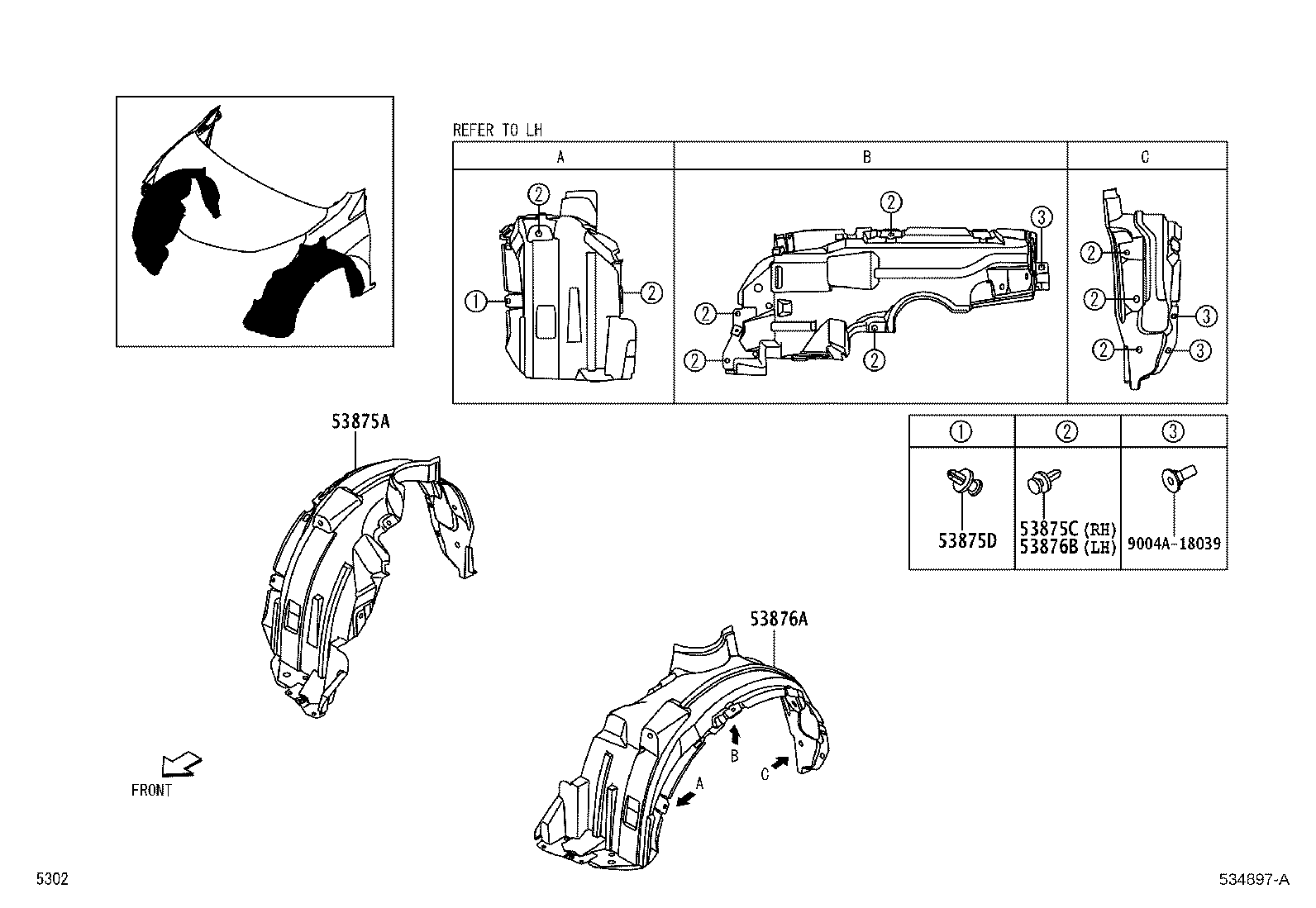

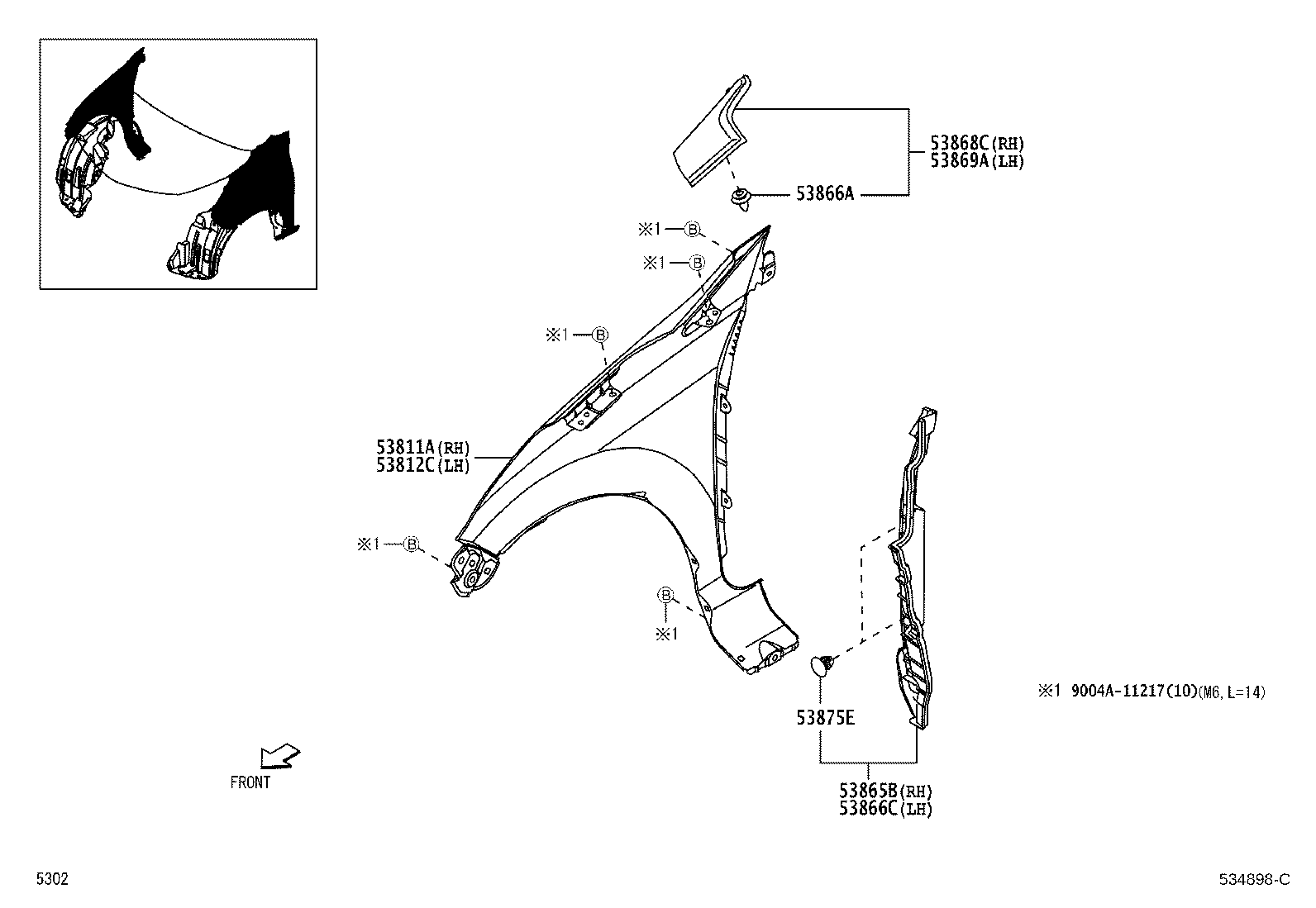

Figure 534896B 534896B 2016-06 → 2019-09 Figure 534896B 534896B 2019-09 → 2022-07 Figure 534896B 534896B 2022-07 → — Figure 534897A 534897A 2016-06 → 2019-09 Figure 534897A 534897A 2019-09 → 2022-07 Figure 534897A 534897A 2022-07 → — Figure 534898C 534898C 2016-06 → 2019-09 Figure 534898C 534898C 2019-09 → 2022-07 Figure 534898C 534898C 2022-07 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53378C Seal, Hood Air Intake Duct
53378D Clip(FOR HOOD AIR INTAKE DUCT SEAL)
53384B Cushion, Hood, Center
53393B Protector, Hood, Front
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53865B Plate, Front Fender Extension, RH
53866A Clip(FOR FRONT FENDER TO COWL SIDE SEAL)
53866C Plate, Front Fender Extension, LH
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875E Clip, Front Fender Liner, NO.3
53876A Liner, Front Fender, LH
53876B Clip, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
