Toyota Calya
2016-06 → present · chassis B401 · catalogue 136320 · General
Discontinued model
Data version 2022-06

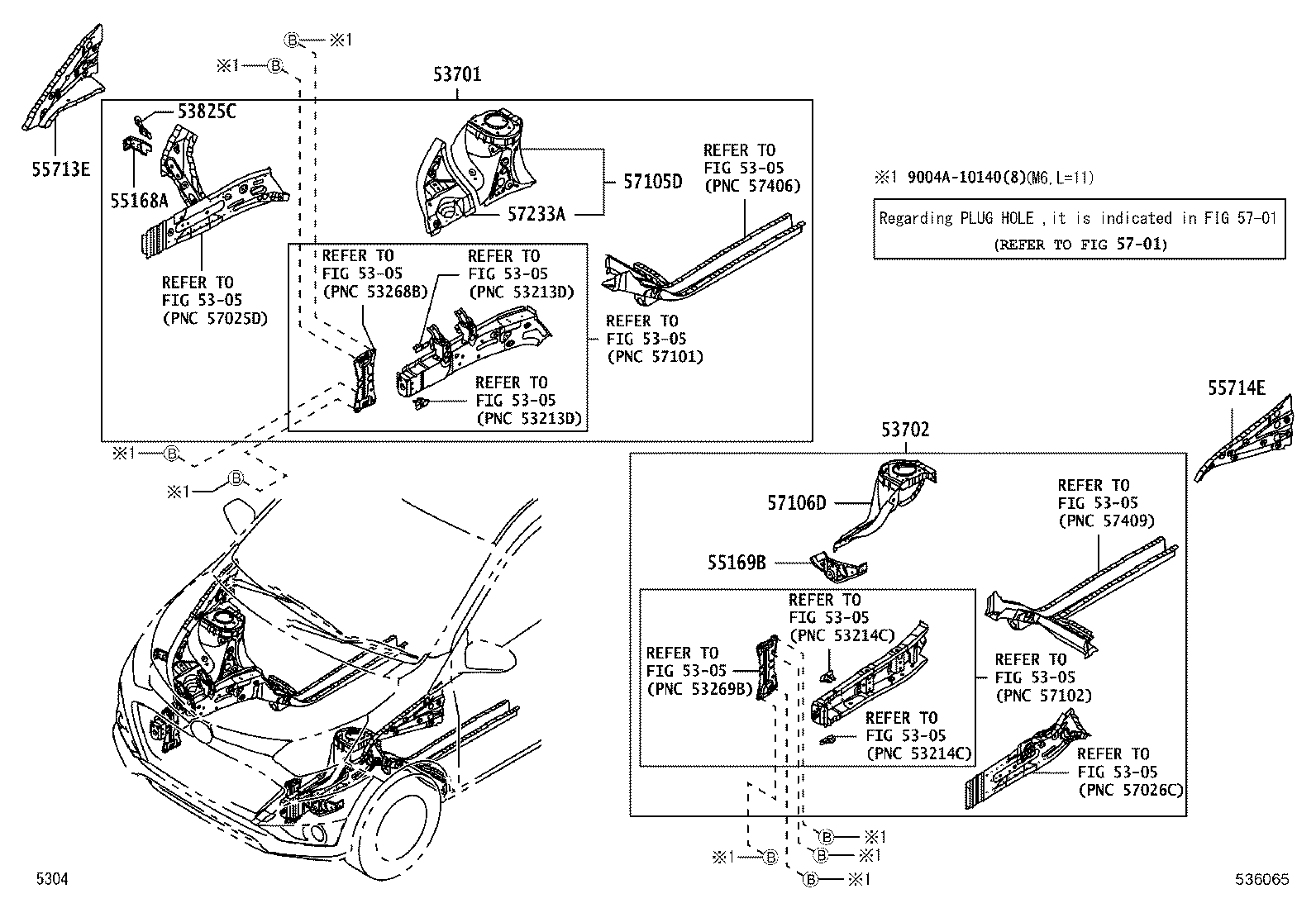

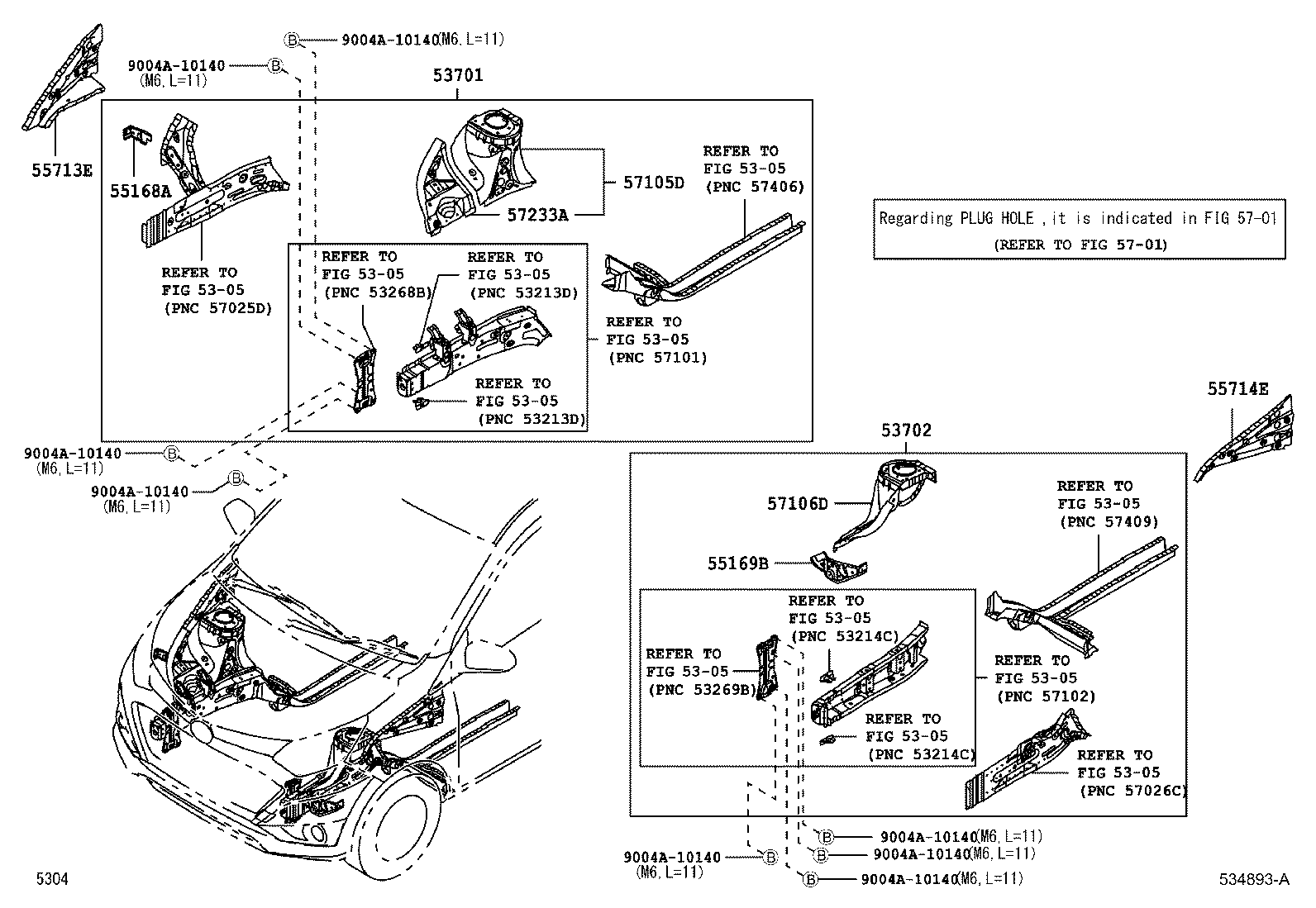

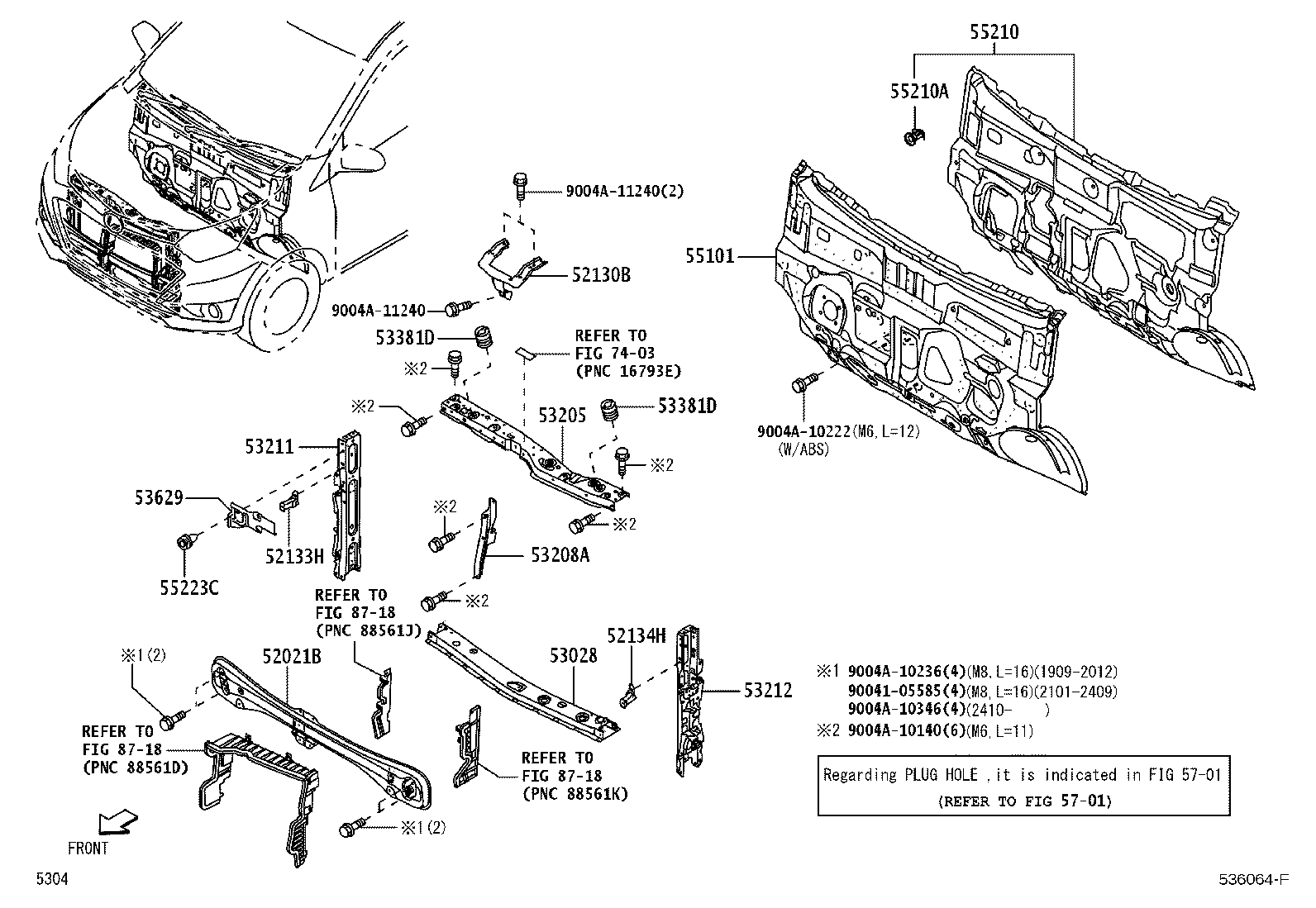

Front Fender Apron & Dash Panel
29 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021B | Reinforcement Sub-assy, Front Bumper |
| 52130B | Bracket Assy, Front Bumper Side Mounting, RH |
| 52133H | Bracket, Front Bumper, RH |
| 52134H | Bracket, Front Bumper, LH |
| 53028 | Support Sub-assy, Radiator, Lower |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53211 | Support, Radiator, RH |
| 53212 | Support, Radiator, LH |
| 53215B | Support, Hood Lock |
| 53285B | Seal, Radiator Side Air, NO.1 |
| 53286B | Seal, Radiator Side Air, NO.2 |
| 53291J | Seal, Radiator Support |
| 53381D | Bumper, Hood TO Front Shroud |
| 53629 | Cover, Hood Lock Control Cable |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53825C | Patch, Front Fender, Front RH |
| 55101 | Panel Sub-assy, Dash |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223C | Clip |
| 55713E | Panel, Cowl Top Side, RH |
| 55714E | Panel, Cowl Top Side, LH |
| 57105D | Plate Sub-assy, Front Side Member, RH |
| 57106D | Plate Sub-assy, Front Side Member, LH |
| 57233A | Retainer, Engine Front Support, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
