Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

21 part groups · 6 illustrations

Illustrations

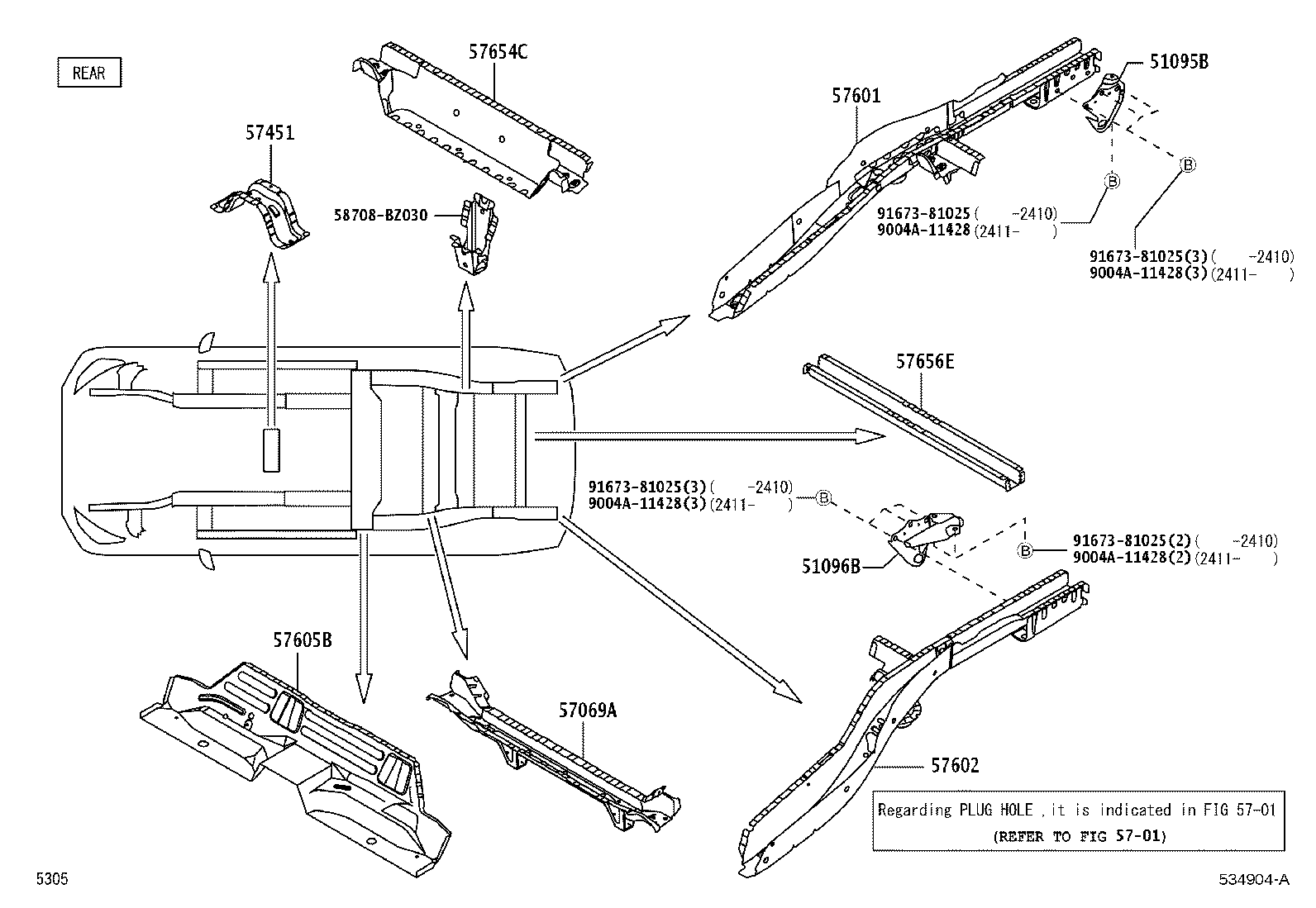

Figure 534903 534903 2016-06 → 2019-09 Figure 534903 534903 2019-09 → 2022-07 Figure 534903 534903 2022-07 → — Figure 534904A 534904A 2016-06 → 2019-09 Figure 534904A 534904A 2019-09 → 2022-07 Figure 534904A 534904A 2022-07 → —

Part groups

PNCDescription
51095B Hook Sub-assy, Transport, Rear RH
51096B Hook Sub-assy, Transport, Rear LH
53213D Support, Radiator, Upper RH
53214C Support, Radiator, Upper LH
53268B Reinforcement, Radiator Mounting, RH
53269B Reinforcement, Radiator Mounting, LH
57025D Member Sub-assy, Front Side, Outer RH
57026C Member Sub-assy, Front Side, Outer LH
57069A Member, Rear Floor, Center
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57406 Member Sub-assy, Main Floor Side, RH
57409 Member Sub-assy, Main Floor Side, LH
57451 Member, Front Floor Cross
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57654C Member, Rear Floor Cross, NO.3
57656E Member, Rear Floor Cross, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
