Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

29 part groups · 9 illustrations

Illustrations

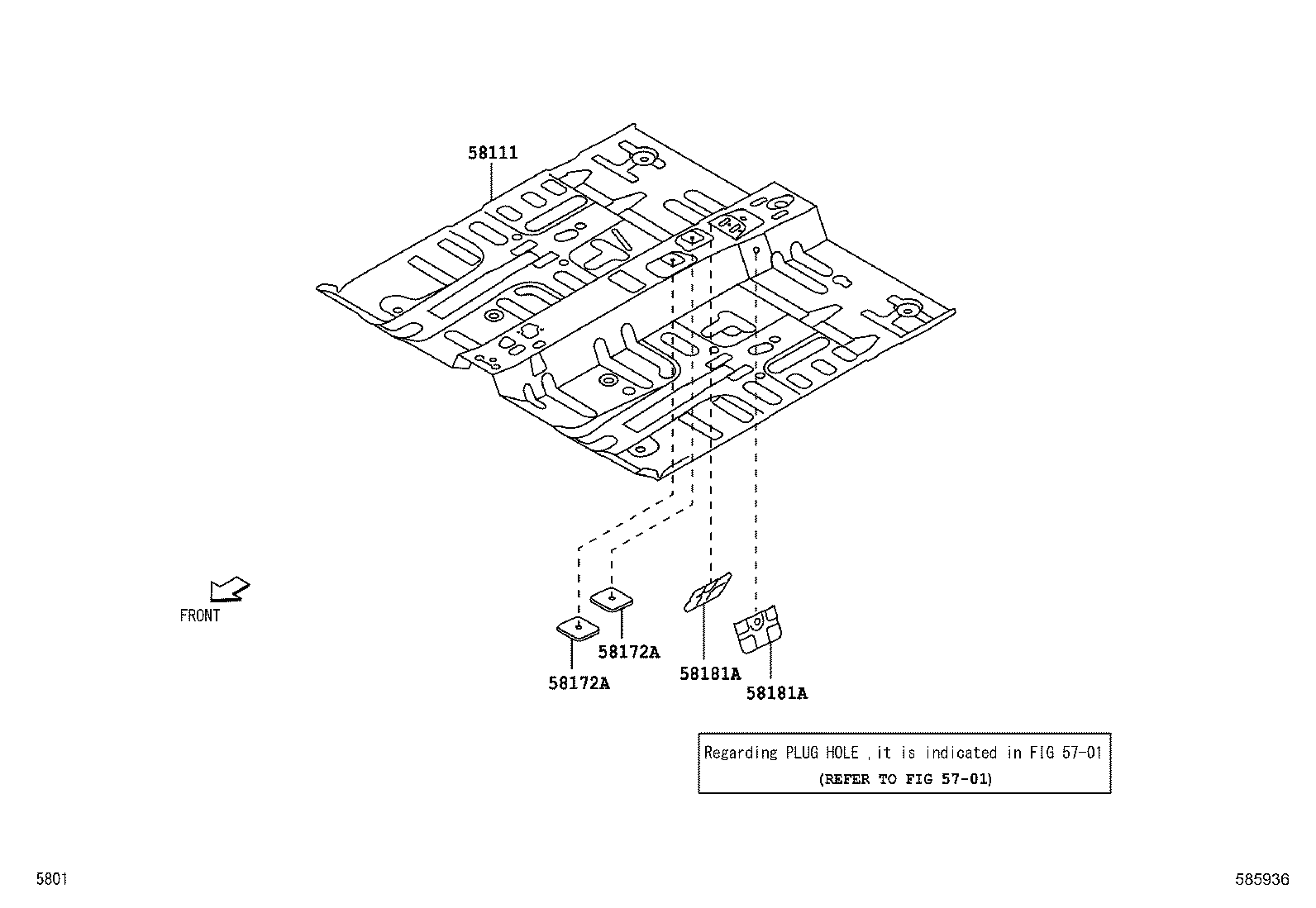

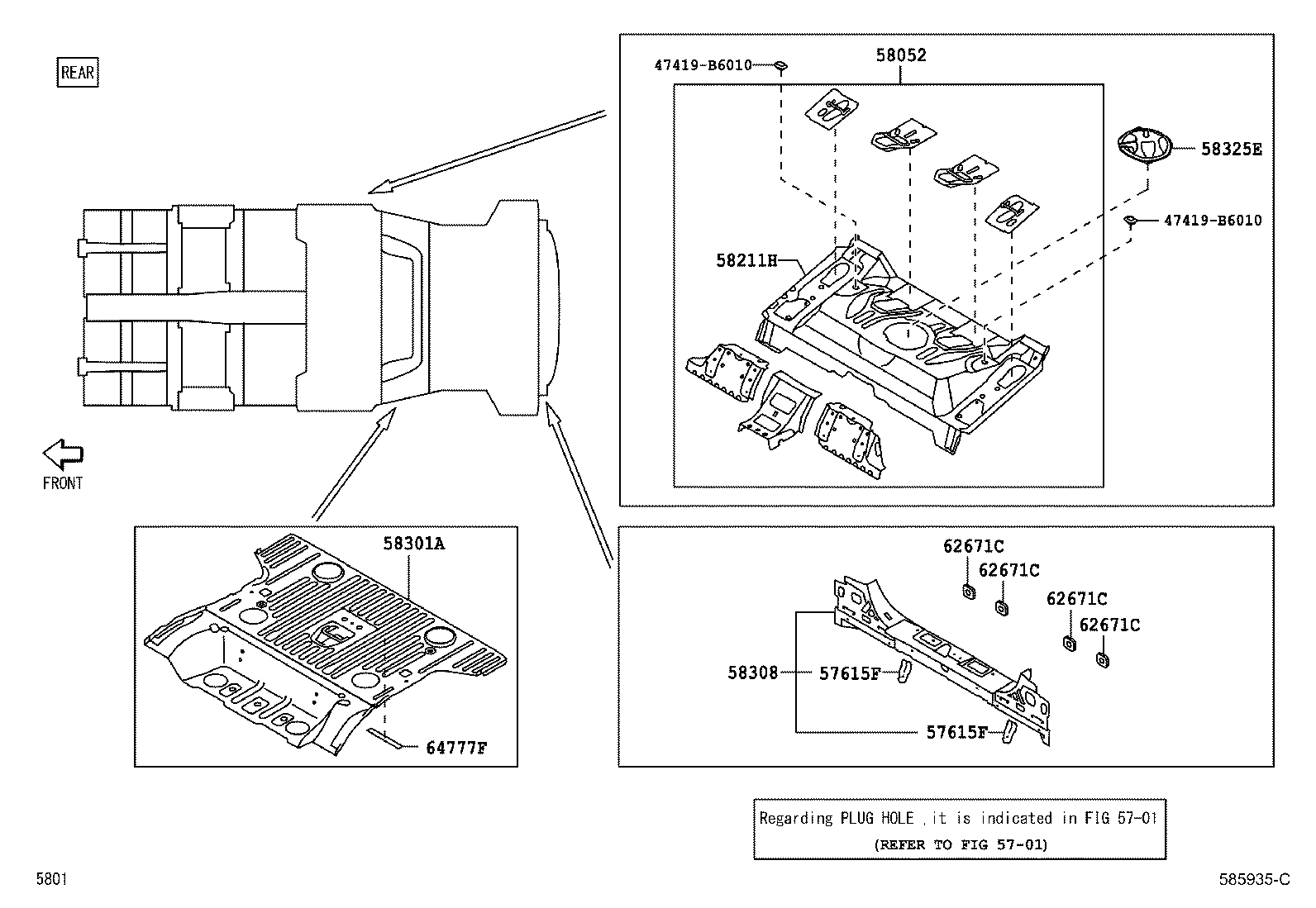

Figure 585934F 585934F 2016-06 → 2019-09 Figure 585934F 585934F 2019-09 → 2022-07 Figure 585934F 585934F 2022-07 → — Figure 585935C 585935C 2016-06 → 2019-09 Figure 585935C 585935C 2019-09 → 2022-07 Figure 585935C 585935C 2022-07 → — Figure 585936 585936 2016-06 → 2019-09 Figure 585936 585936 2019-09 → 2022-07 Figure 585936 585936 2022-07 → —

Part groups

PNCDescription
53605E Brace Sub-assy, Rear Suspension, Upper
55214B Pad, Dash Panel Insulator, NO.2
55215B Pad, Dash Panel Insulator, NO.3
55216A Pad, Dash Panel Insulator, NO.4
57053 Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A Reinforcement Sub-assy, Front Floor Crossmember, LH
57417F Reinforcement, Front Floor Under, RH
57418B Reinforcement, Front Floor Under, LH
57535 Brace, Front Floor, RH
57536 Brace, Front Floor, LH
57615F Bracket, Rear Bumper Mounting
58011 Panel Sub-assy, Front Floor Side, RH
58012 Panel Sub-assy, Front Floor Side, LH
58052 Pan Sub-assy, Center Floor
58111 Pan, Front Floor
58172A Plate, Parking Brake Mounting
58181A Retainer, Seat Rail, Front
58198 Clip, Footrest
58203A Reinforcement Sub-assy, Center Floor Panel, RH
58211H Pan, Center Floor
58213D Reinforcement, Center Floor Panel
58252 Brace, Floor Panel, Rear
58293D Pad, Front Floor
58301A Panel Sub-assy, Rear Floor
58308 Panel Sub-assy, Body Lower Back, Inner
58325E Cover, Rear Floor Service Hole
58791B Carrier, Jack
62671C Cover, Lower Back Panel
64777F Cushion, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
