Side Member

55 part groups · 15 illustrations

Illustrations

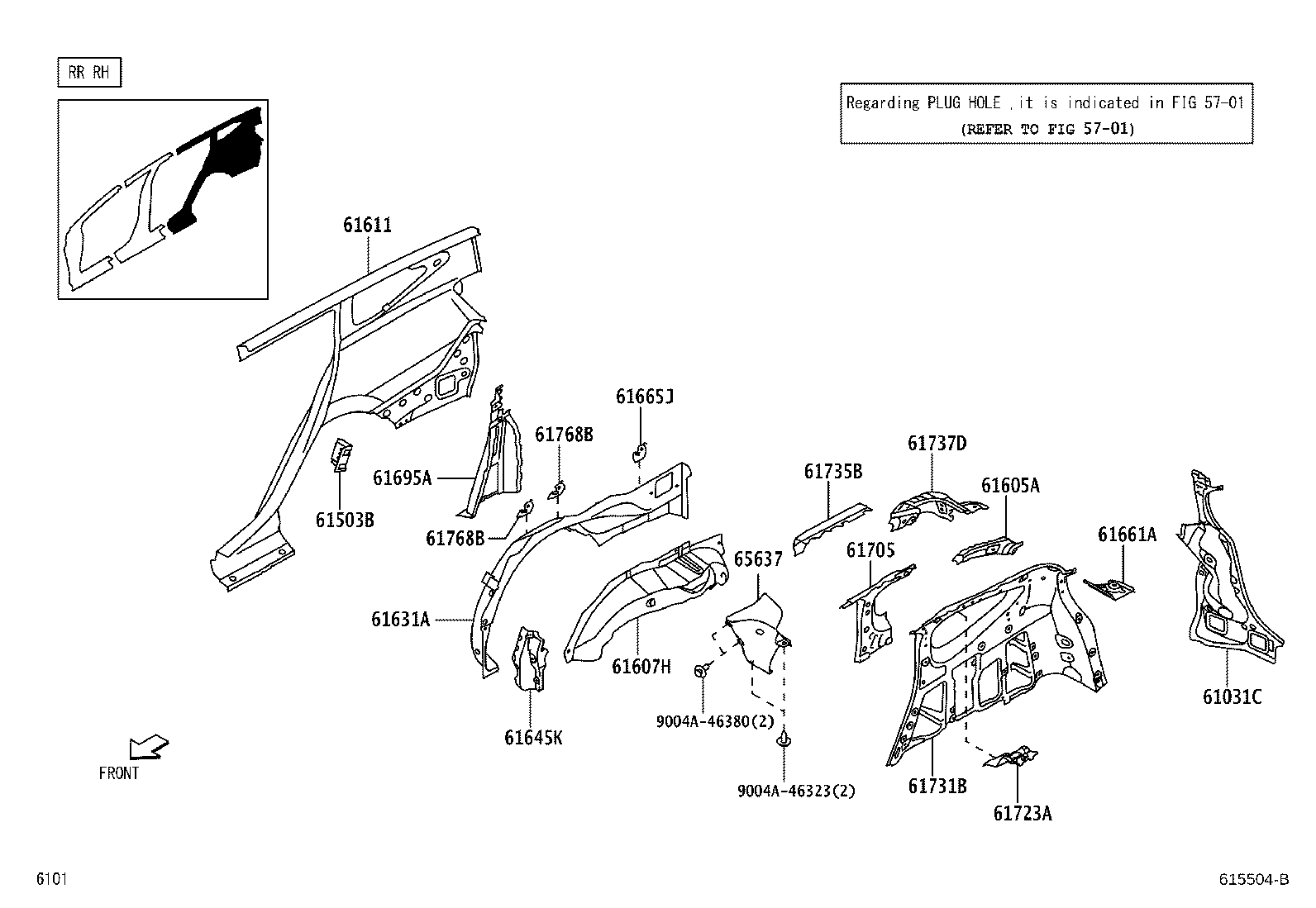

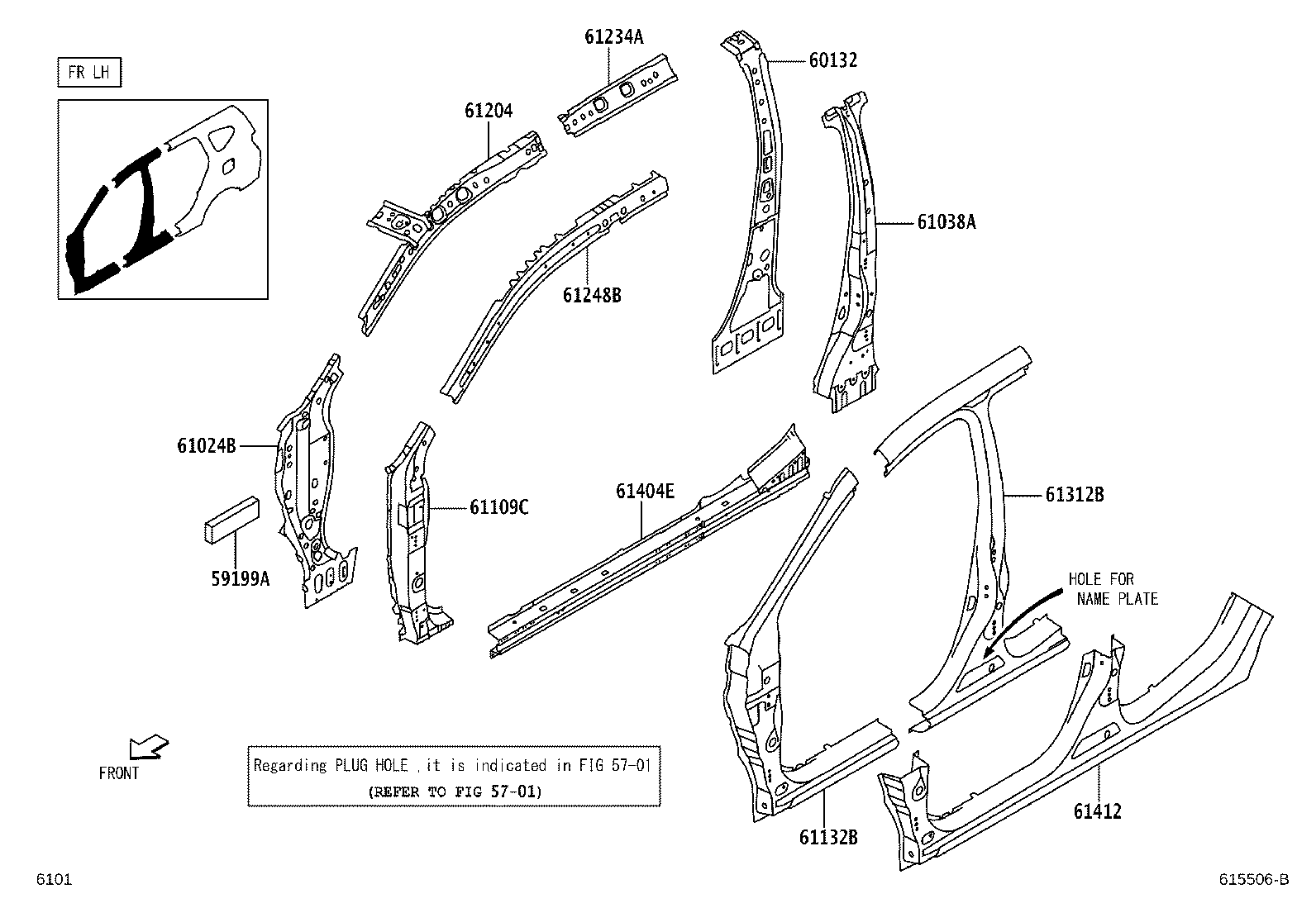

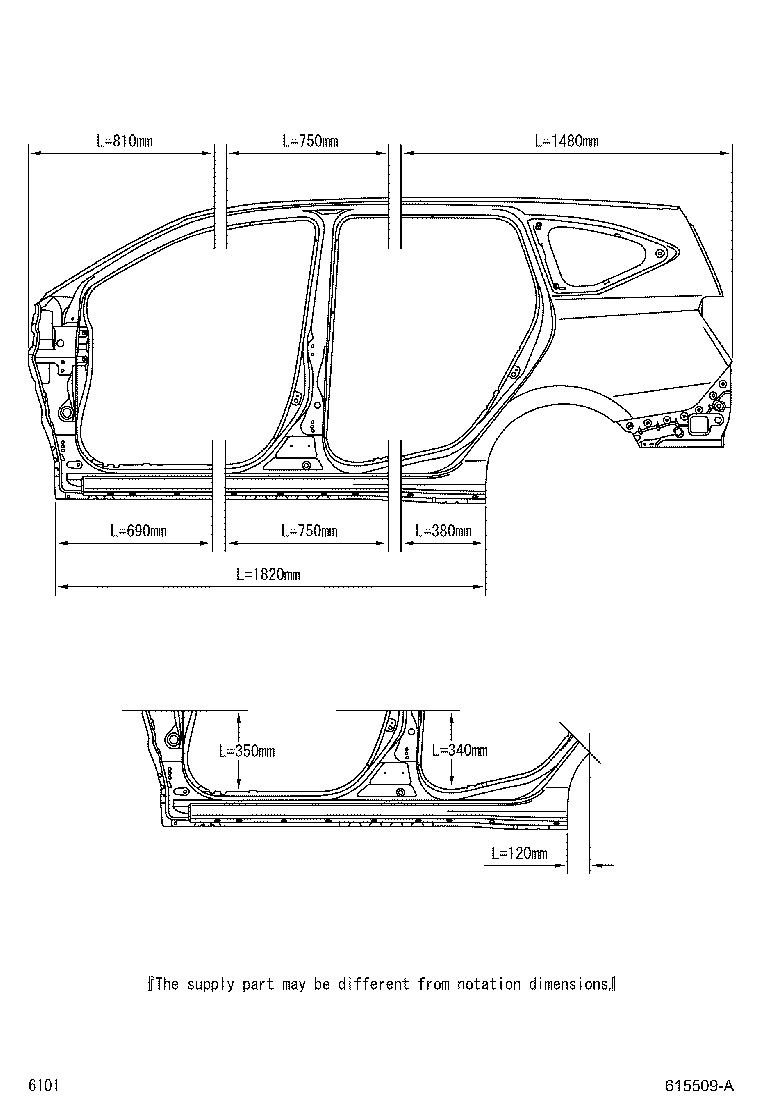

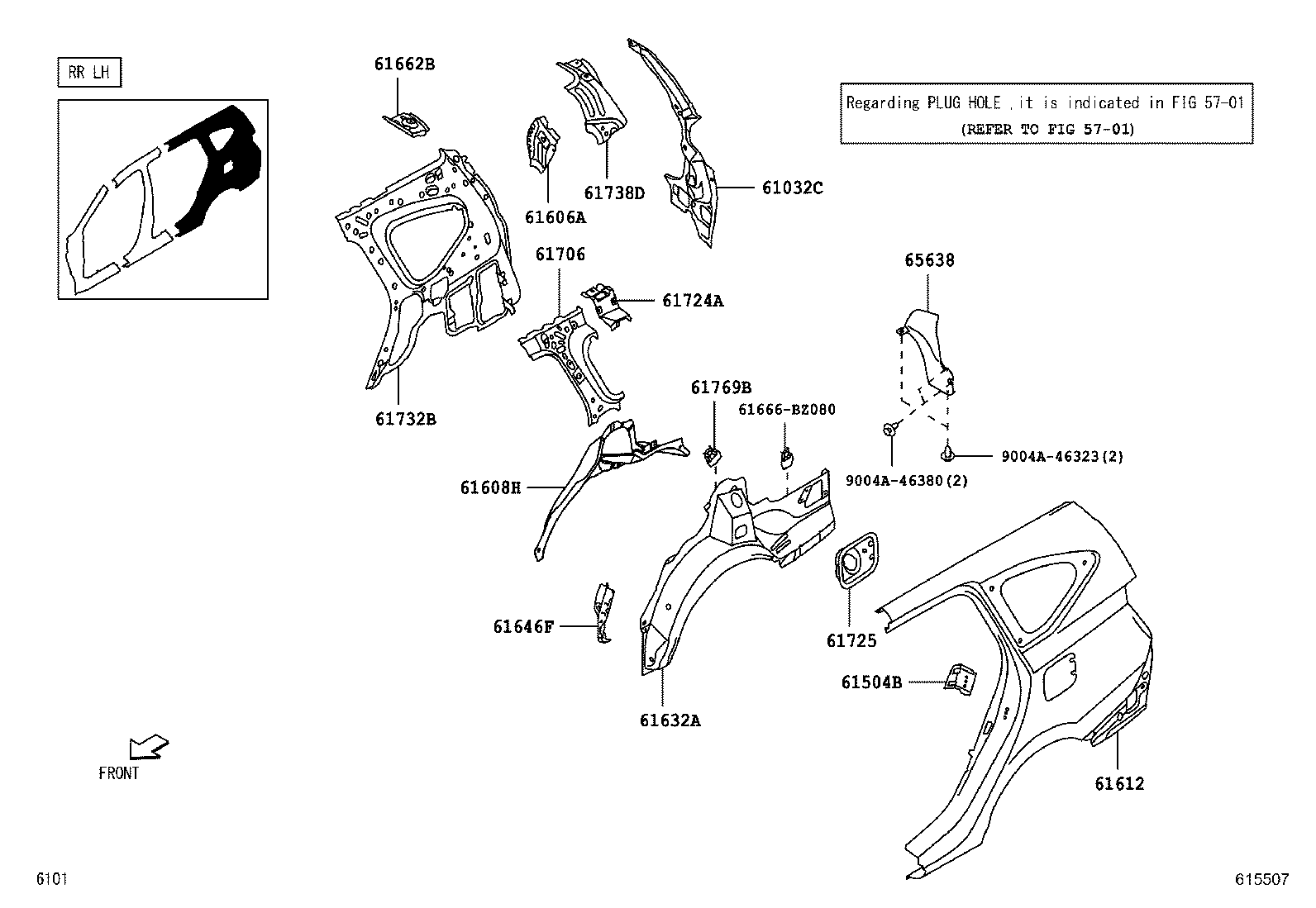

Figure 615503B 615503B 2016-06 → 2019-09 Figure 615503B 615503B 2019-09 → 2022-07 Figure 615503B 615503B 2022-07 → — Figure 615504B 615504B 2016-06 → 2019-09 Figure 615504B 615504B 2019-09 → 2022-07 Figure 615504B 615504B 2022-07 → — Figure 615506B 615506B 2016-06 → 2019-09 Figure 615506B 615506B 2019-09 → 2022-07 Figure 615506B 615506B 2022-07 → — Figure 615507 615507 2016-06 → 2019-09 Figure 615507 615507 2019-09 → 2022-07 Figure 615507 615507 2022-07 → — Figure 615509A 615509A 2016-06 → 2019-09 Figure 615509A 615509A 2019-09 → 2022-07 Figure 615509A 615509A 2022-07 → —

Part groups

PNCDescription
59199A Seal, Noise Shutter, NO.2
60131 Pillar Sub-assy, Center Body, NO.2 RH
60132 Pillar Sub-assy, Center Body, NO.2 LH
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61031C Extension Sub-assy, Quarter Panel, Rear RH
61032C Extension Sub-assy, Quarter Panel, Rear LH
61037A Reinforcement Sub-assy, Center Body Pillar, RH
61038A Reinforcement Sub-assy, Center Body Pillar, LH
61108D Reinforcement Sub-assy, Front Pillar, Lower RH
61109C Reinforcement Sub-assy, Front Pillar, Lower LH
61131C Pillar, Front Body, Outer RH
61132B Pillar, Front Body, Outer LH
61203 Rail Sub-assy, Roof Side, Inner RH
61204 Rail Sub-assy, Roof Side, Inner LH
61233A Rail, Roof Side, Inner NO.2 RH
61234A Rail, Roof Side, Inner NO.2 LH
61247B Reinforcement, Roof Side Rail, Inner RH
61248B Reinforcement, Roof Side Rail, Inner LH
61311B Pillar, Center Body, Outer RH
61312B Pillar, Center Body, Outer LH
61403C Reinforce Sub-assy, Rocker, Outer RH
61404E Reinforce Sub-assy, Rocker, Outer LH
61411 Panel, Rocker, Outer RH
61412 Panel, Rocker, Outer LH
61503B Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B Reinforcement Sub-assy, Quarter Lock Pillar, LH
61605A Reinforcement Sub-assy, Quarter Panel, RH
61606A Reinforcement Sub-assy, Quarter Panel, LH
61607H Panel Sub-assy, Quarter Wheel House, Inner RH
61608H Panel Sub-assy, Quarter Wheel House, Inner LH
61611 Panel, Quarter, RH
61612 Panel, Quarter, LH
61631A Panel, Quarter Wheel House, Outer RH
61632A Panel, Quarter Wheel House, Outer LH
61645K Gusset, Quarter Wheel House Inner, RH
61646F Gusset, Quarter Wheel House Inner, LH
61661A Extension, Quarter Panel TO Upper Back, RH
61662B Extension, Quarter Panel TO Upper Back, LH
61665J Plate, Seat Belt Anchorage, RH
61695A Brace, Quarter Panel, RH
61705 Panel Sub-assy, Roof Side, Inner RH
61706 Panel Sub-assy, Roof Side, Inner LH
61723A Reinforcement, Quarter Window Opening, RH NO.1
61724A Reinforcement, Quarter Window Opening, LH NO.1
61725 Box, Fuel Inlet
61731B Panel, Roof Side, Inner RH
61732B Panel, Roof Side, Inner LH
61735B Extension, Quarter Panel, Inner RH
61737D Reinforcement, Roof Side, Inner RH
61738D Reinforcement, Roof Side, Inner LH
61768B Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61769B Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
65637 Liner, Rear Wheel House, RH
65638 Liner, Rear Wheel House, LH
