Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

44 part groups · 6 illustrations

Illustrations

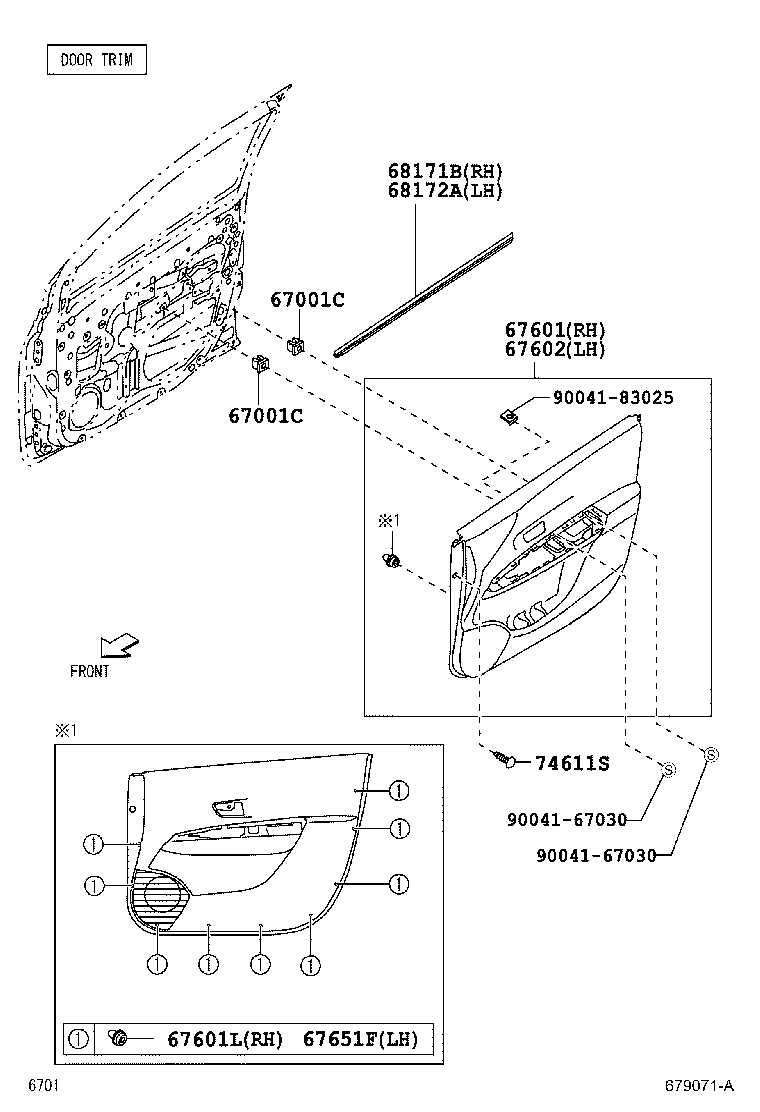

Figure 67A970D 67A970D 2016-06 → 2019-09 Figure 67A970D 67A970D 2019-09 → 2022-07 Figure 67A970D 67A970D 2022-07 → — Figure 679071A 679071A 2016-06 → 2019-09 Figure 679071A 679071A 2019-09 → 2022-07 Figure 679071A 679071A 2022-07 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67001C Grommet(FOR FRONT DOOR PANEL)
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601L Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67651F Clip(FOR FRONT DOOR TRIM BOARD)
67771E Retainer(FOR FRONT DOOR FRAME BRACKET)
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67837D Seal, Front Door Vent, RH
67838A Seal, Front Door Vent, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
67869E Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68141E Run, Front Door Glass, RH
68147E Stop, Front Door Glass, Upper
68147F Stop, Front Door Glass, Upper
68151C Run, Front Door Glass, LH
68151D Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
74611S Clip
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
75923B Tape, Black Out, NO.2 RH
75924B Tape, Black Out, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
