Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 6 illustrations

Illustrations

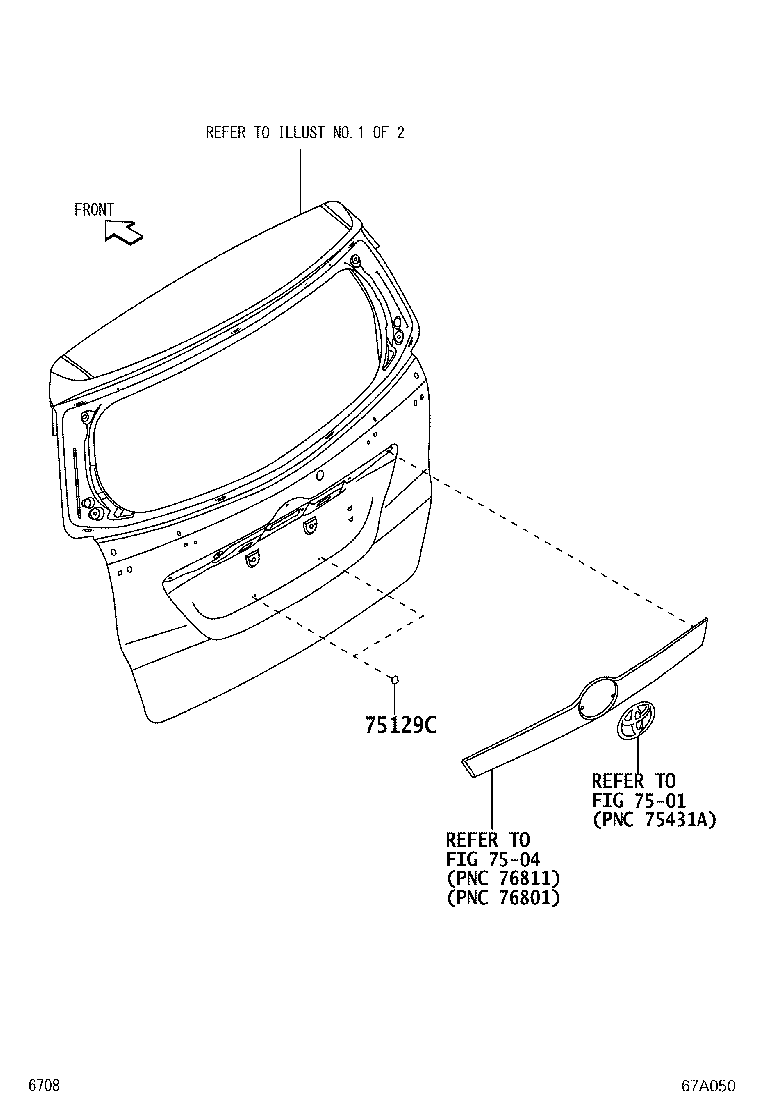

Figure 67A972 67A972 2016-06 → 2019-09 Figure 67A972 67A972 2019-09 → 2022-07 Figure 67A972 67A972 2022-07 → — Figure 67A050 67A050 2016-06 → 2019-09 Figure 67A050 67A050 2019-09 → 2022-07 Figure 67A050 67A050 2022-07 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64780D Retainer(FOR BACK DOOR TRIM BOARD)
64790D Cap, Back Door Trim Panel
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67818B Spacer, Back Window Glass
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
