Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 3 illustrations

Illustrations

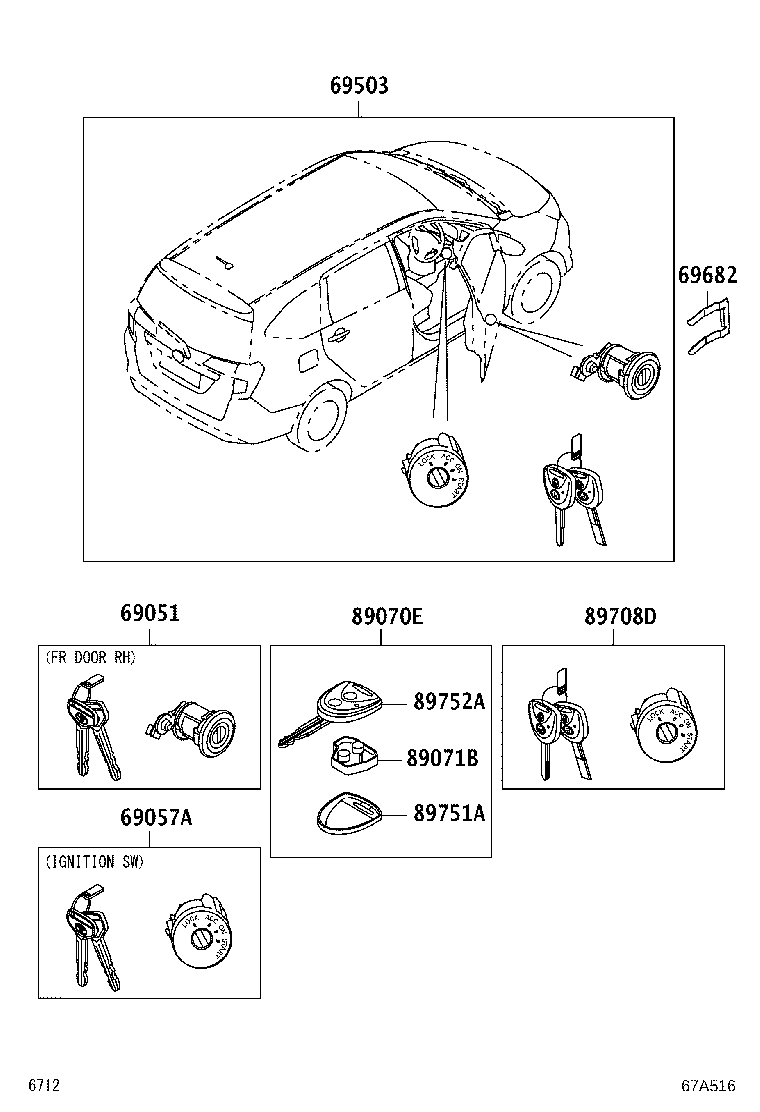

Figure 679081 679081 2016-06 → 2019-09 Figure 67A516 67A516 2019-09 → 2022-07 Figure 67A516 67A516 2022-07 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503C Key, Sub
69682 Retainer, Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708D Cylinder Set, Lock W/Transponder Key Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
