Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

39 part groups · 6 illustrations

Illustrations

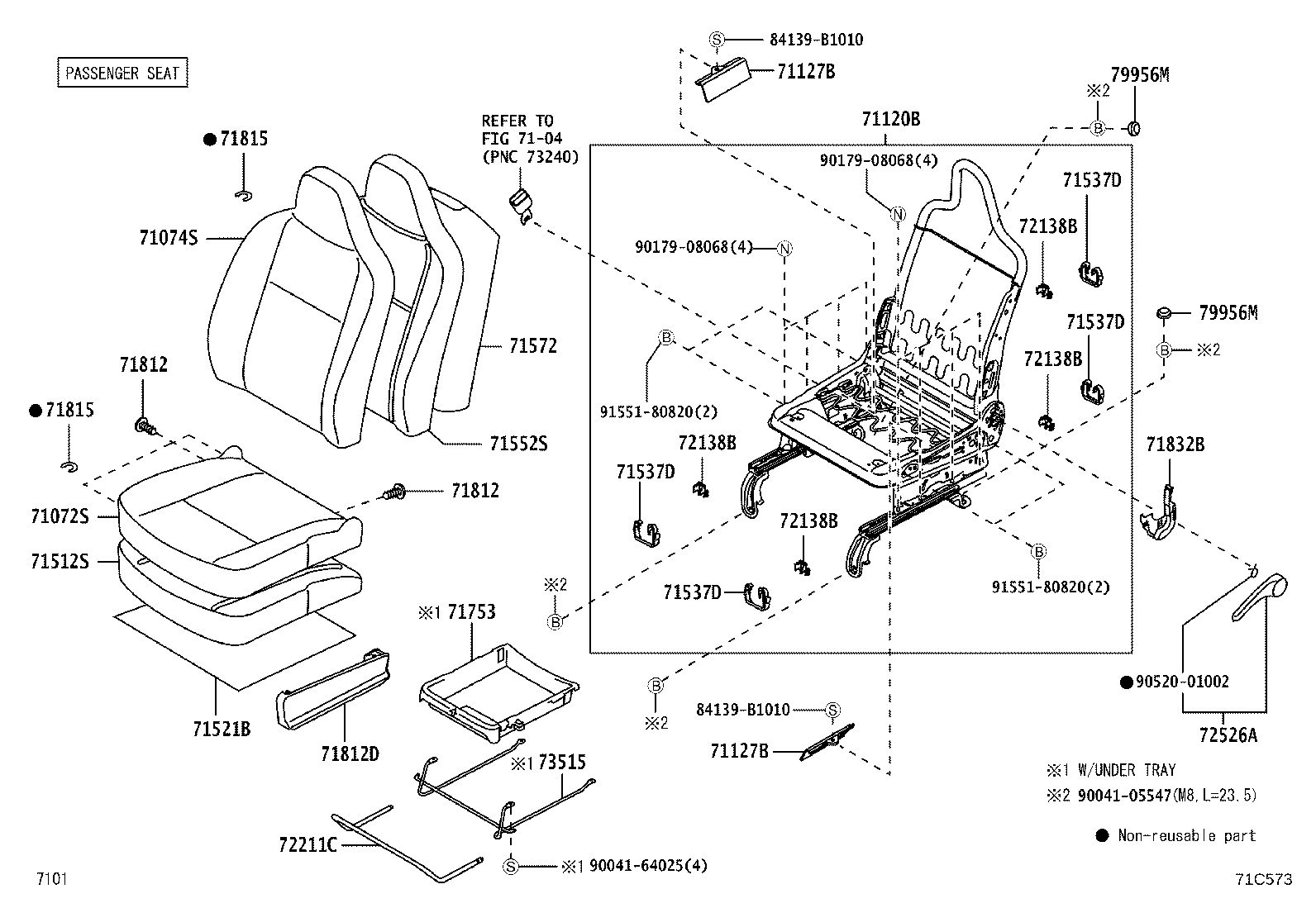

Figure 71A260B 71A260B 2016-06 → 2019-09 Figure 71A260B 71A260B 2019-09 → 2022-07 Figure 71A260B 71A260B 2022-07 → — Figure 71C573 71C573 2016-06 → 2019-09 Figure 71C573 71C573 2019-09 → 2022-07 Figure 71C573 71C573 2022-07 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71127B Plate, FR Seat Cushion Protector Set
71410C Clip(FOR FRONT SEAT CUSHION)
71430C Clip
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521A Pad,Front Seat Cushion Silencer
71521B Pad,Front Seat Cushion Silencer
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571 Pad, Front Seatback Silencer, A
71572 Pad, Front Seatback Silencer, B
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812D Shield, Front Seat Cushion, LH
71815 Clip (FOR FRONT SEAT CUSHION COVER SET)
71825C Plate
71831B Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72810C Armrest Assy, Front Seat, Center
72848B Cap, Seat Armrest, NO.1
73515 Rail, Front Seat Under Tray, NO.1
73949 Cap
79956M Cap(FOR FRONT SEAT LEG SIDE COVER)
82711F Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
