Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

82 part groups · 9 illustrations

Illustrations

71A264C 2016-06 → 2019-09

71A264C 2019-09 → 2022-07

71A264C 2022-07 → —

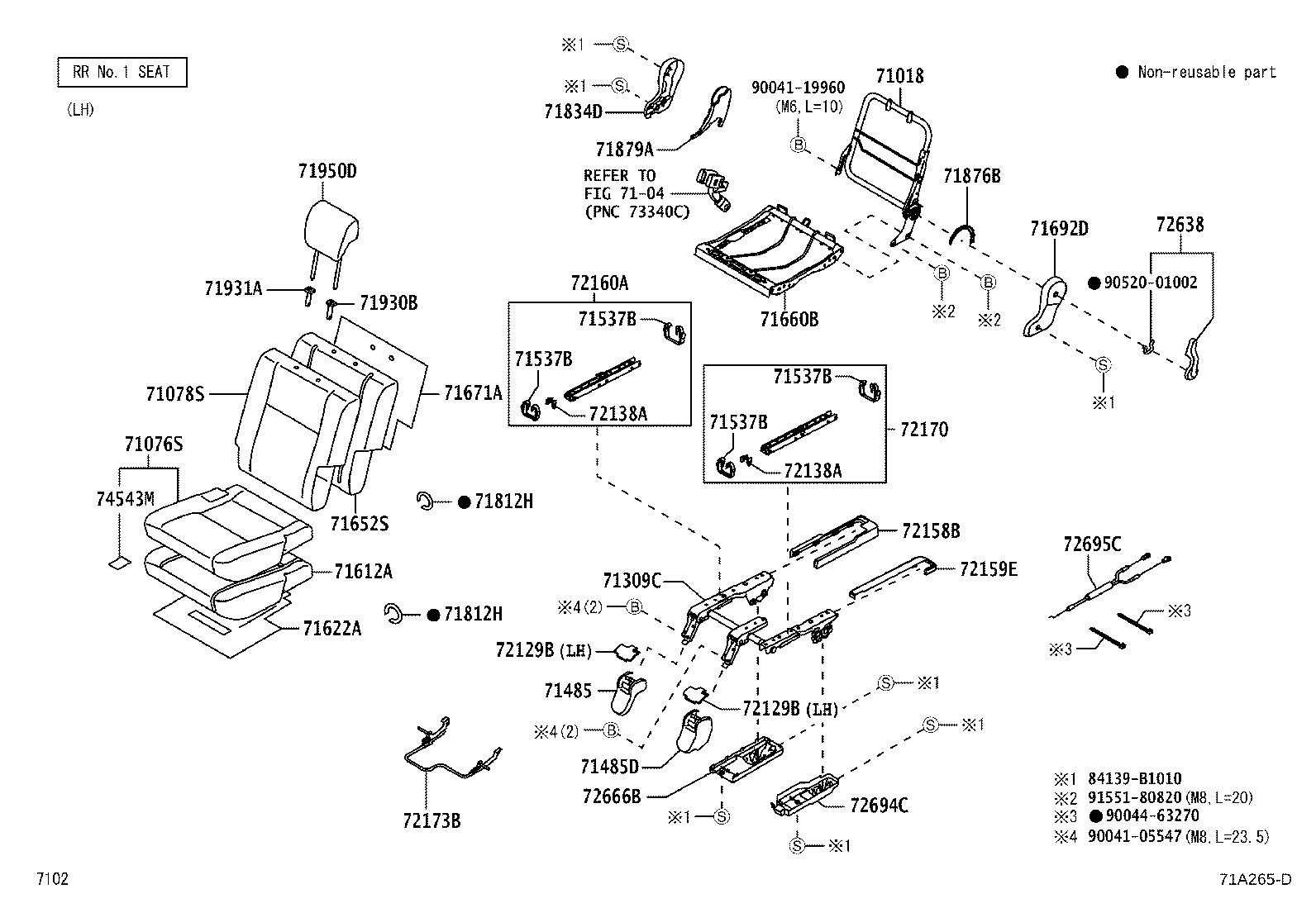

71A265D 2016-06 → 2019-09

71A265D 2019-09 → 2022-07

71A265D 2022-07 → —

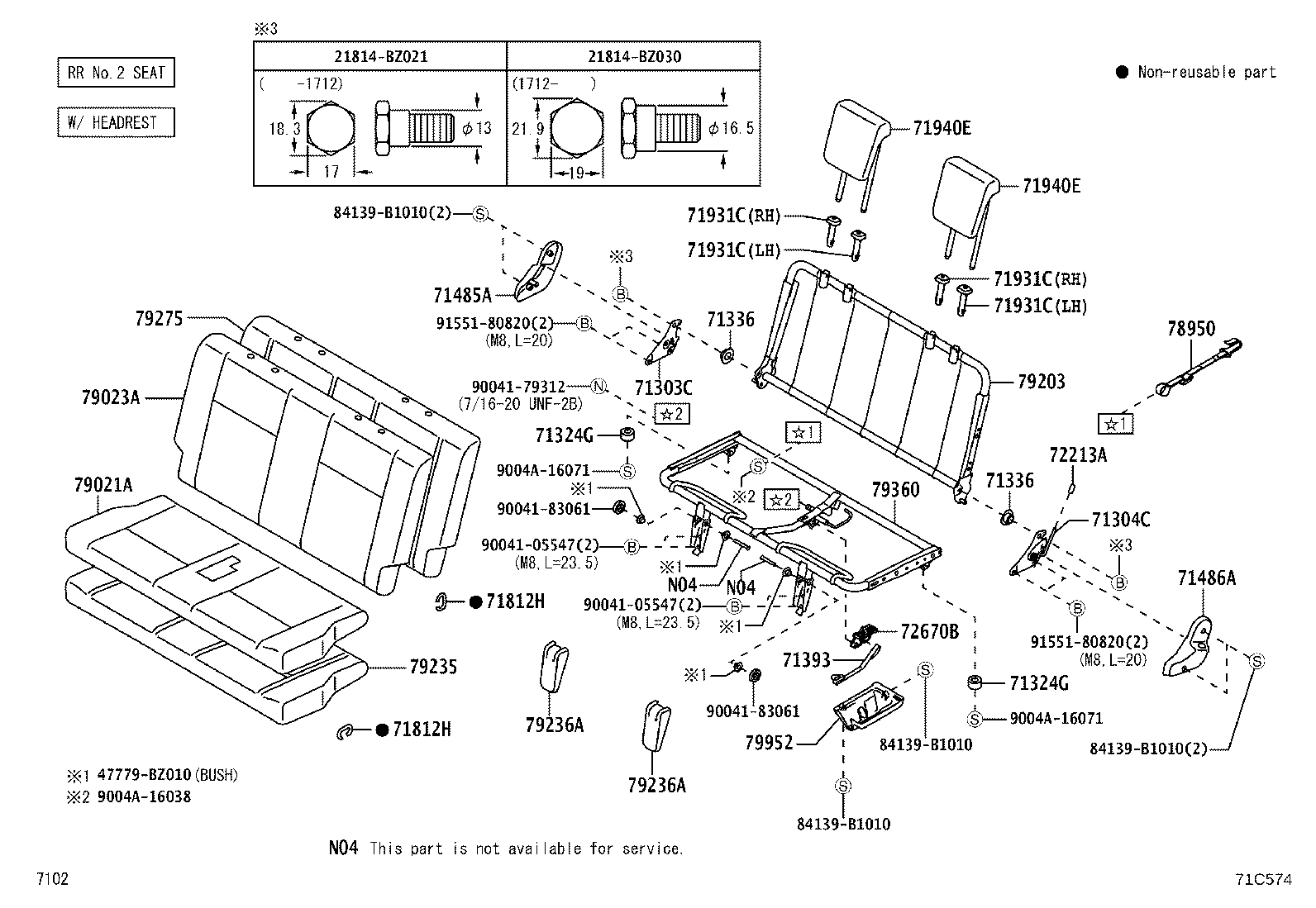

71C574 2016-06 → 2019-09

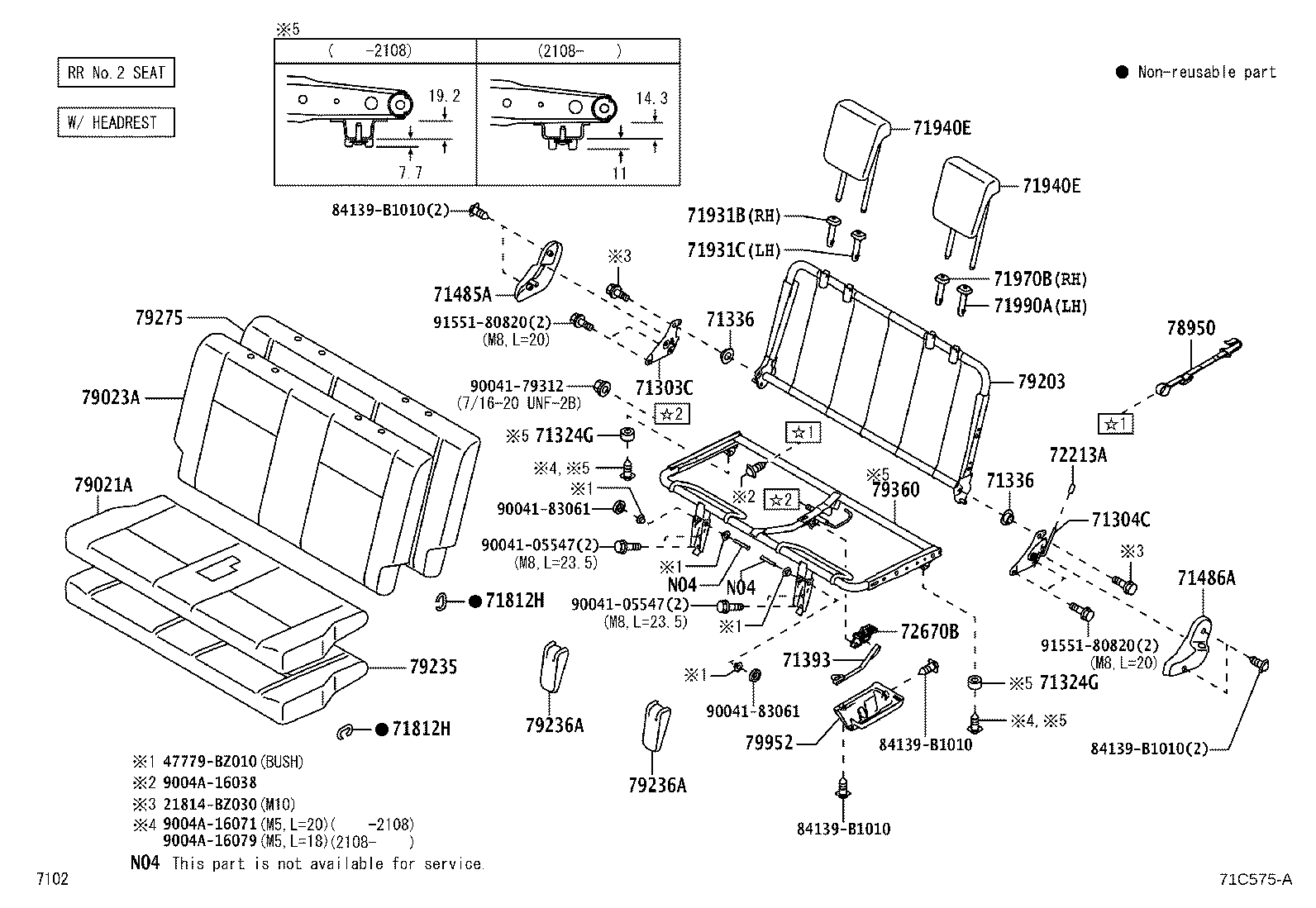

71C575A 2019-09 → 2022-07

71C575A 2022-07 → —

Part groups

PNC	Description
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71308E	Leg Sub-assy, Rear Seat, RH
71309C	Leg Sub-assy, Rear Seat, Rear LH
71324G	Cushion, Rear NO.2 Seat
71336	Bush OR Spacer, Rear Seatback Hinge
71393	Band, Rear Seat Cushion
71485	Cover, Rear Seat Hinge
71485A	Cover, Rear Seat Hinge, NO.2 RH
71485C	Cover, Rear Seat Hinge, RH
71485D	Cover, Rear Seat Hinge, LH
71486A	Cover, Rear Seat Hinge, NO.2 LH
71537B	Protector, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71621A	Pad, Rear Seat Cushion Silencer, A
71622A	Pad, Rear Seat Cushion Silencer, B
71650B	Spring Assy, Rear Seat Cushion, RH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B	Spring Assy, Rear Seat Cushion, LH
71671	Pad, Rear Seatback Silencer, A
71671A	Pad, Rear Seatback Silencer, A
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71812H	Ring, Hog, Small (FOR REAR SEAT)
71833D	Cover Rear Seat Reclining, RH
71834D	Cover, Rear Seat Reclining, LH
71875C	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71930B	Support Assy, Rear Seat Headrest
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940B	Headrest Assy, Rear Seat, RH
71940E	Headrest Assy, NO.2 Seat
71950D	Headrest Assy, Rear Seat, LH
71960B	Headrest Assy, Rear Seat, Center
71970B	Support Assy, Rear Seat Headrest, RH
71990A	Support Assy, Rear Seat Headrest, LH
72129B	Protector, Seat Track Lower Rail
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158B	Cover, Seat Track Bracket, Inner LH
72159D	Cover, Rear Seat Track Bracket, Outer RH
72159E	Cover, Rear Seat Track Bracket, Outer LH
72160	Track Assy, Rear Seat, Outer RH
72160A	Track Assy, Rear Seat, LH
72170	Track Assy, Rear Seat, Outer LH
72170C	Track Assy, Rear NO.1 Seat, Inner RH
72173A	Handle, Rear Seat Track Adjusting, RH
72173B	Handle, Rear Seat Track Adjusting, LH
72213A	Knob, Seat Track Adjusting Handle
72637E	Handle, Rear Seat Lock, RH
72638	Handle, Rear Seat Lock, LH
72665C	Cover, Rear Seat Lock, RH
72666B	Cover, Rear Seat Lock, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72694B	Cover, Rear Seat Cushion Lock, RH
72694C	Cover, Rear Seat Cushion Lock, LH
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
74543L	Label, Rear Seat Caution, NO.1
74543M	Label, Rear Seat Caution, NO.2
78950	Band Assy, Fold Seat Stopper, NO.1
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79203	Frame Sub-assy, NO.2 Seatback
79235	Pad, NO.2 Seat Cushion
79236A	Cover, NO.2 Seat Leg
79275	Pad, NO.2 Seatback
79360	Spring Assy, NO.3 Seat Cushion
79952	Cover, NO.2 Seat Cushion

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
