Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

16 part groups · 9 illustrations

Illustrations

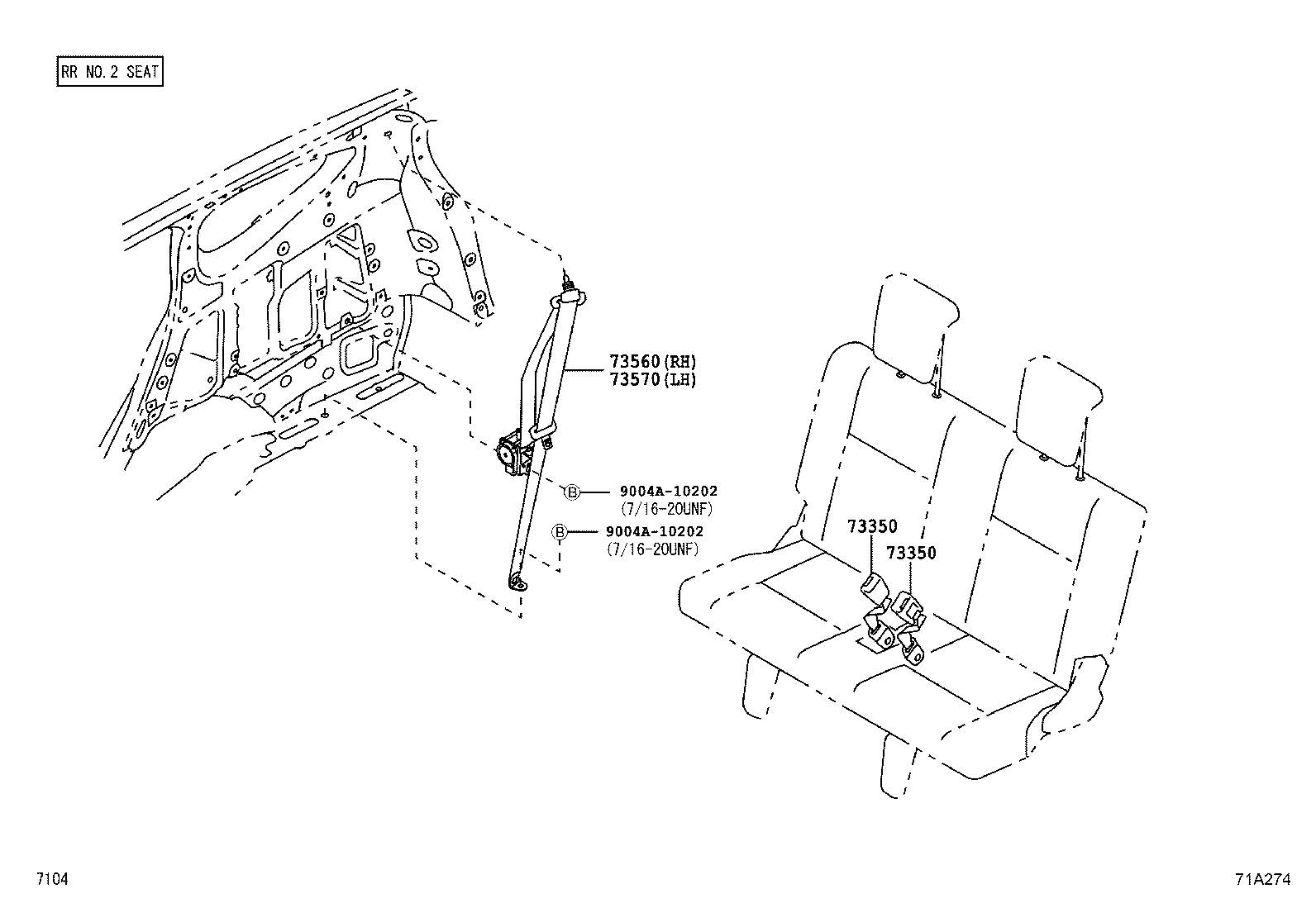

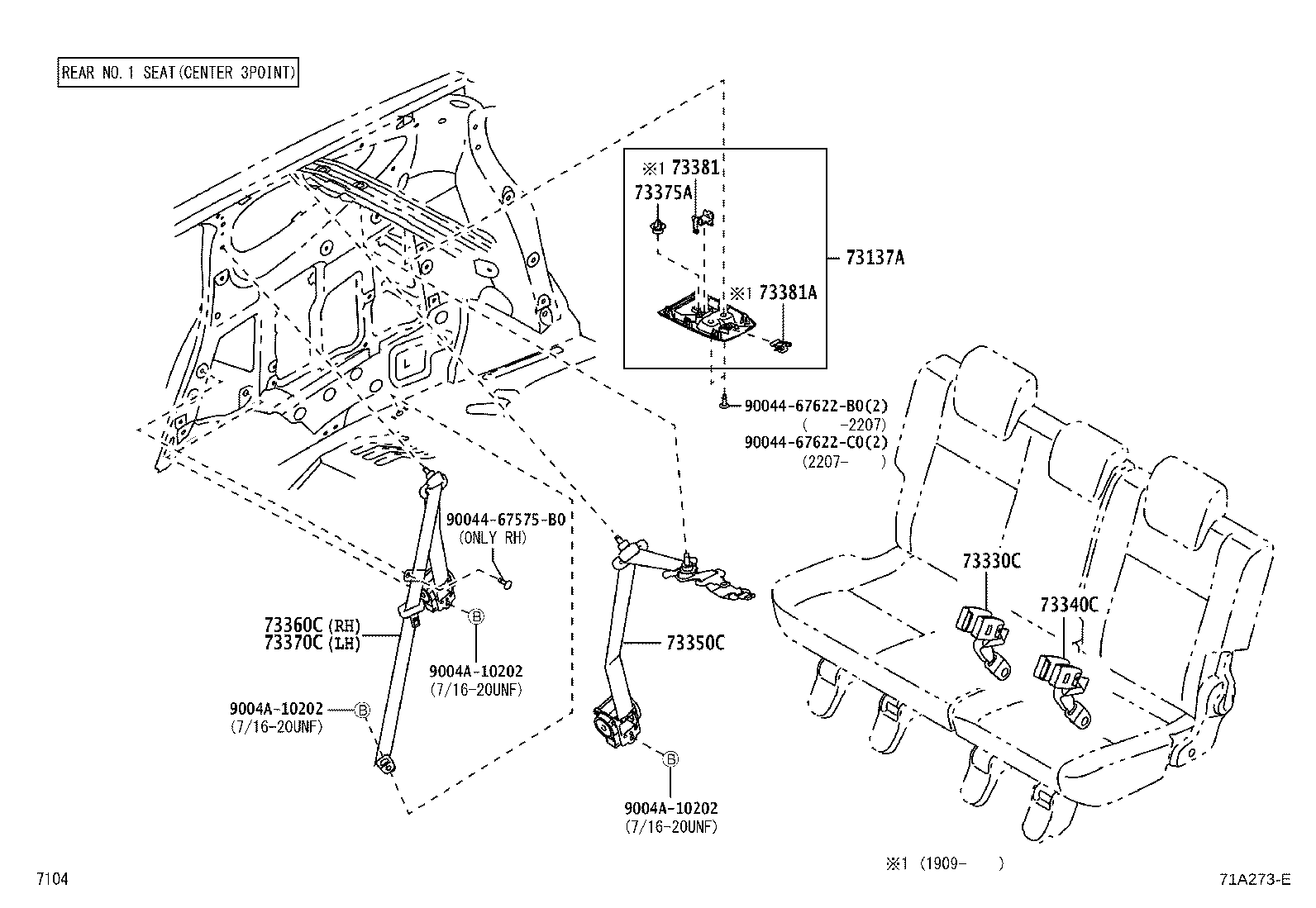

Figure 71A272 71A272 2016-06 → 2019-09 Figure 71A272 71A272 2019-09 → 2022-07 Figure 71A272 71A272 2022-07 → — Figure 71A273E 71A273E 2016-06 → 2019-09 Figure 71A273E 71A273E 2019-09 → 2022-07 Figure 71A273E 71A273E 2022-07 → — Figure 71A274 71A274 2016-06 → 2019-09 Figure 71A274 71A274 2019-09 → 2022-07 Figure 71A274 71A274 2022-07 → —

Part groups

PNCDescription
73137A Cover, Shoulder Belt Anchor, Upr
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73350 Belt Assy, Rear Seat Lap Type, Center
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
