Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

10 part groups · 8 illustrations

Illustrations

Figure 745143 745143 2016-06 → 2019-09 Figure 745143 745143 2019-09 → 2022-07 Figure 745143 745143 2022-07 → — Figure 744300B 744300B 2016-06 → 2019-09 Figure 744300B 744300B 2019-09 → 2022-07 Figure 744300B 744300B 2022-07 → — Figure 74688V 74688V 2020-12 → 2022-07 Figure 74688V 74688V 2022-07 → —

Part groups

PNCDescription

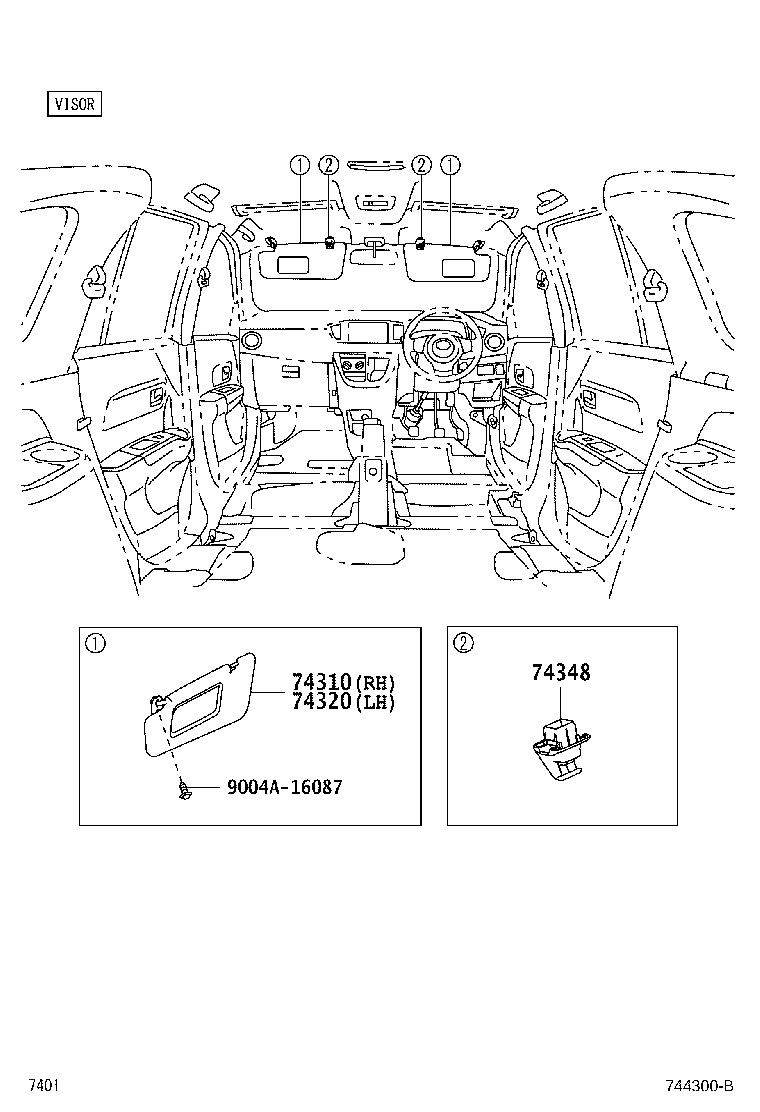

74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610S Grip Assy, Assist

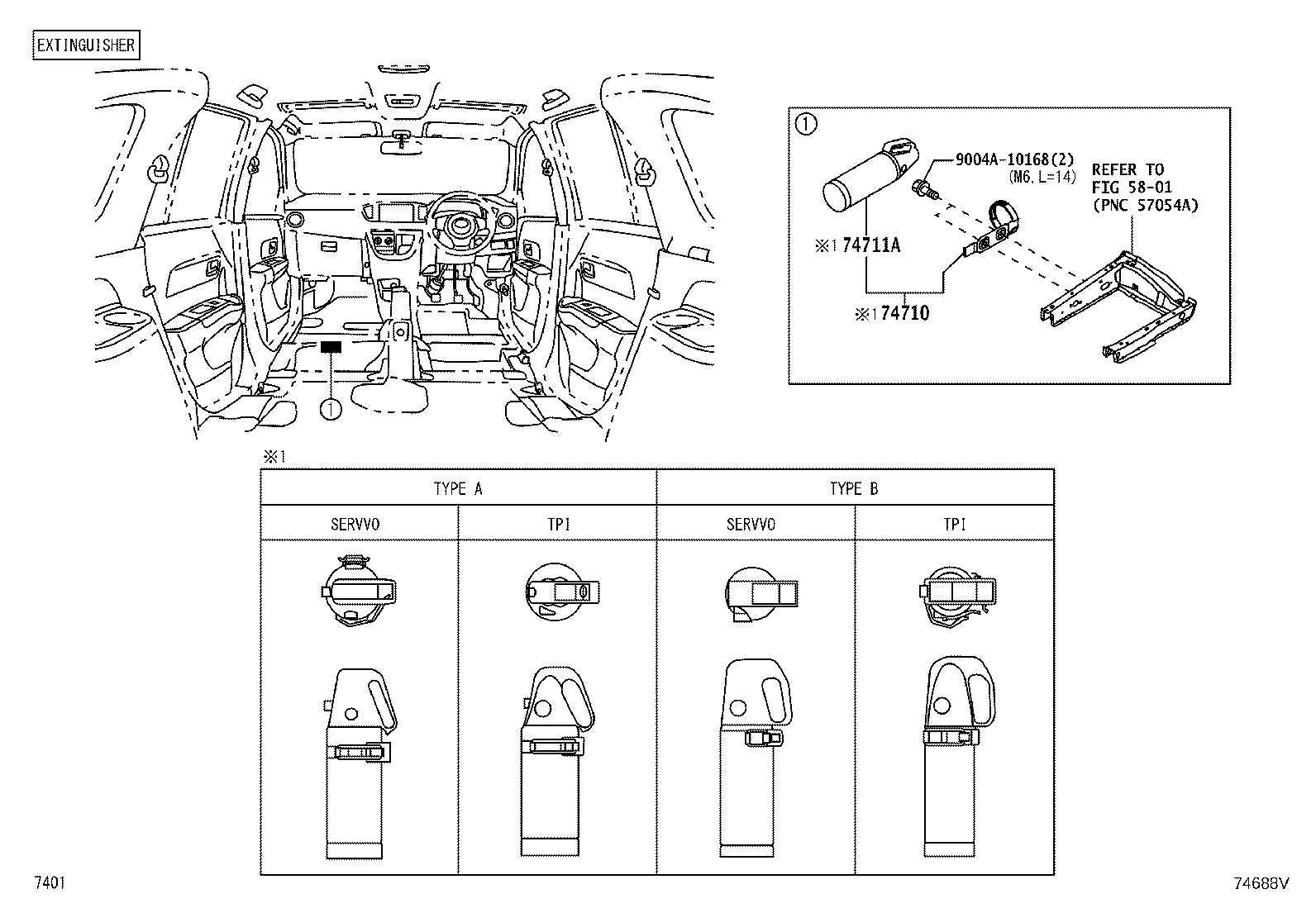

74710 Extinguisher Assy
74711A Extinguisher
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
74815B Handle, Rear Door Pull
74816G Handle, Rear Door Pull, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
