Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

13 part groups · 6 illustrations

Illustrations

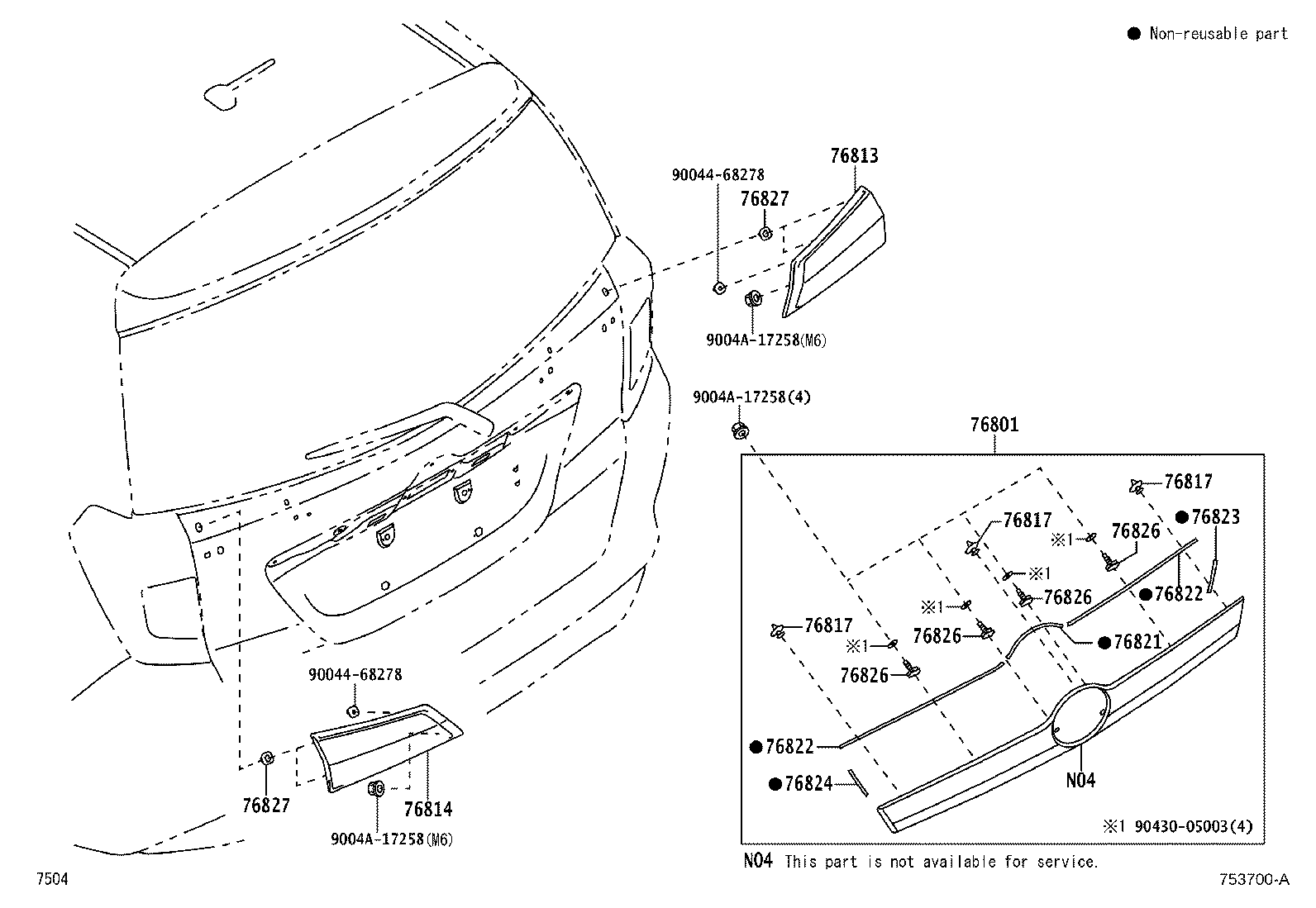

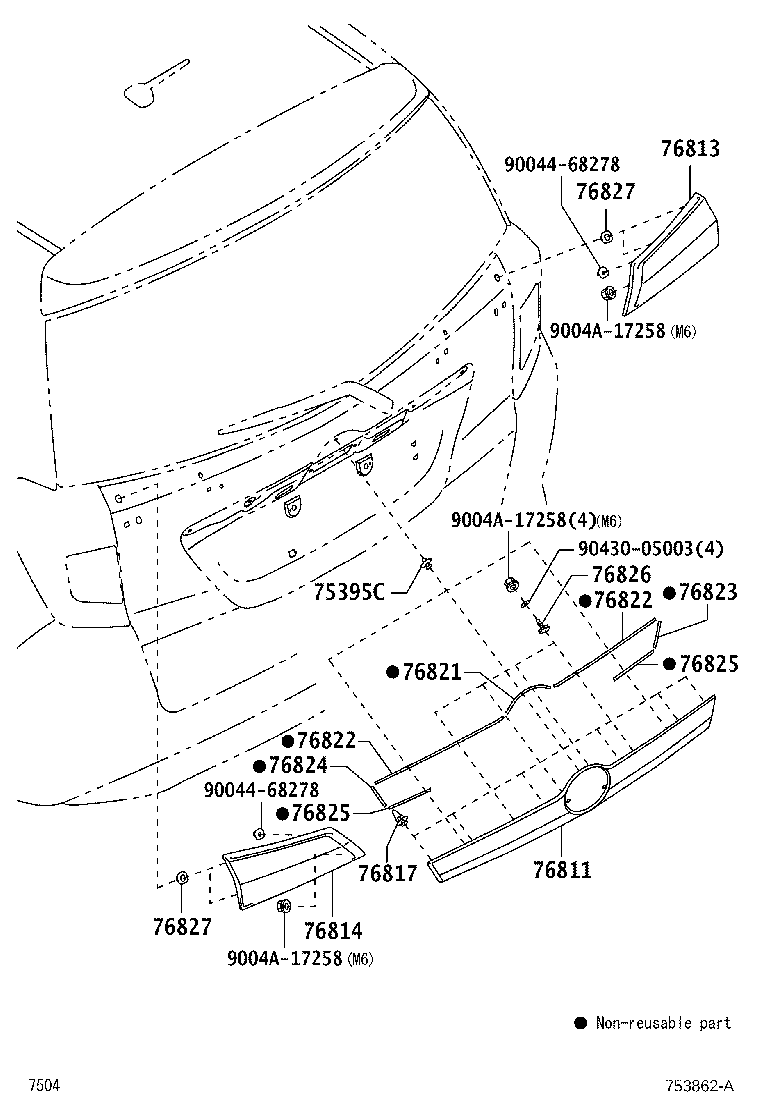

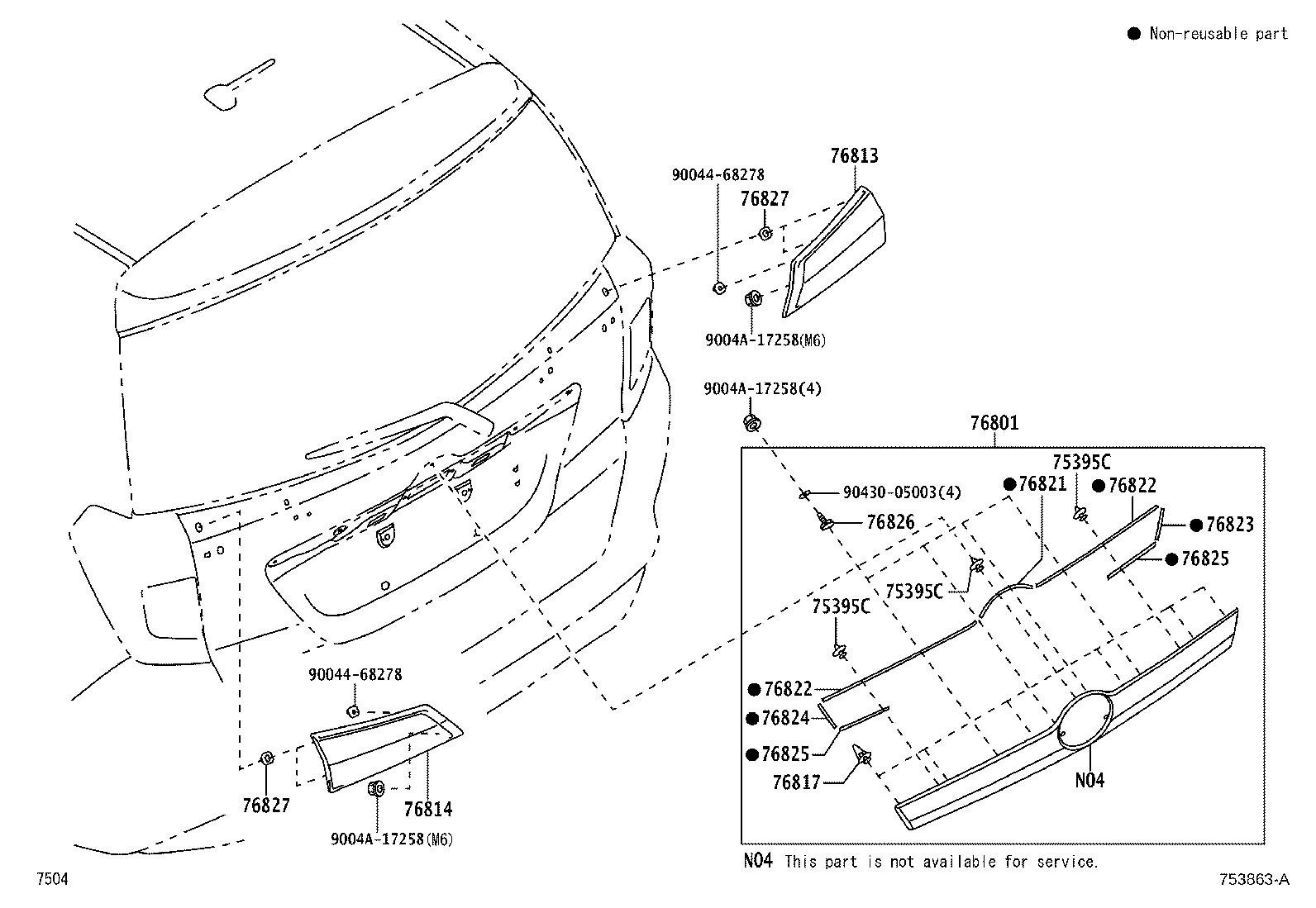

Figure 754011 754011 2016-06 → 2019-09 Figure 753862A 753862A 2019-09 → 2022-07 Figure 753862A 753862A 2022-07 → — Figure 753700A 753700A 2016-06 → 2019-09 Figure 753863A 753863A 2019-09 → 2022-07 Figure 753863A 753863A 2022-07 → —

Part groups

PNCDescription
75395C Clip, Outside Moulding, NO.1
76801 Garnish Sub-assy, Back Door, Outside
76811 Garnish, Back Door, Outside
76813 Garnish, Back Door Outside, Upper RH
76814 Garnish, Back Door Outside, Upper LH
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76822 Protector, Back Door Garnish Moulding, Lower
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
