Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

34 part groups · 9 illustrations

Illustrations

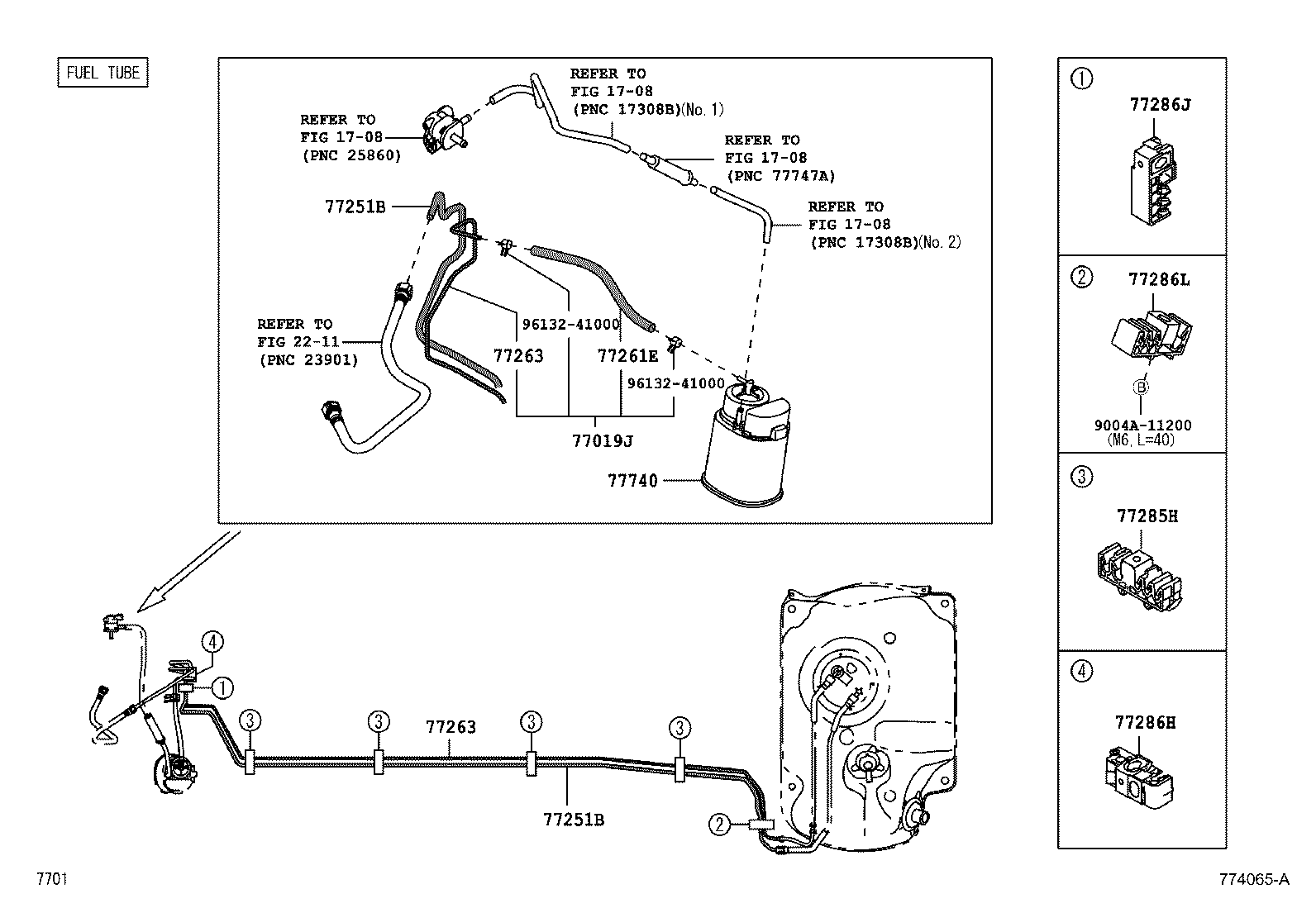

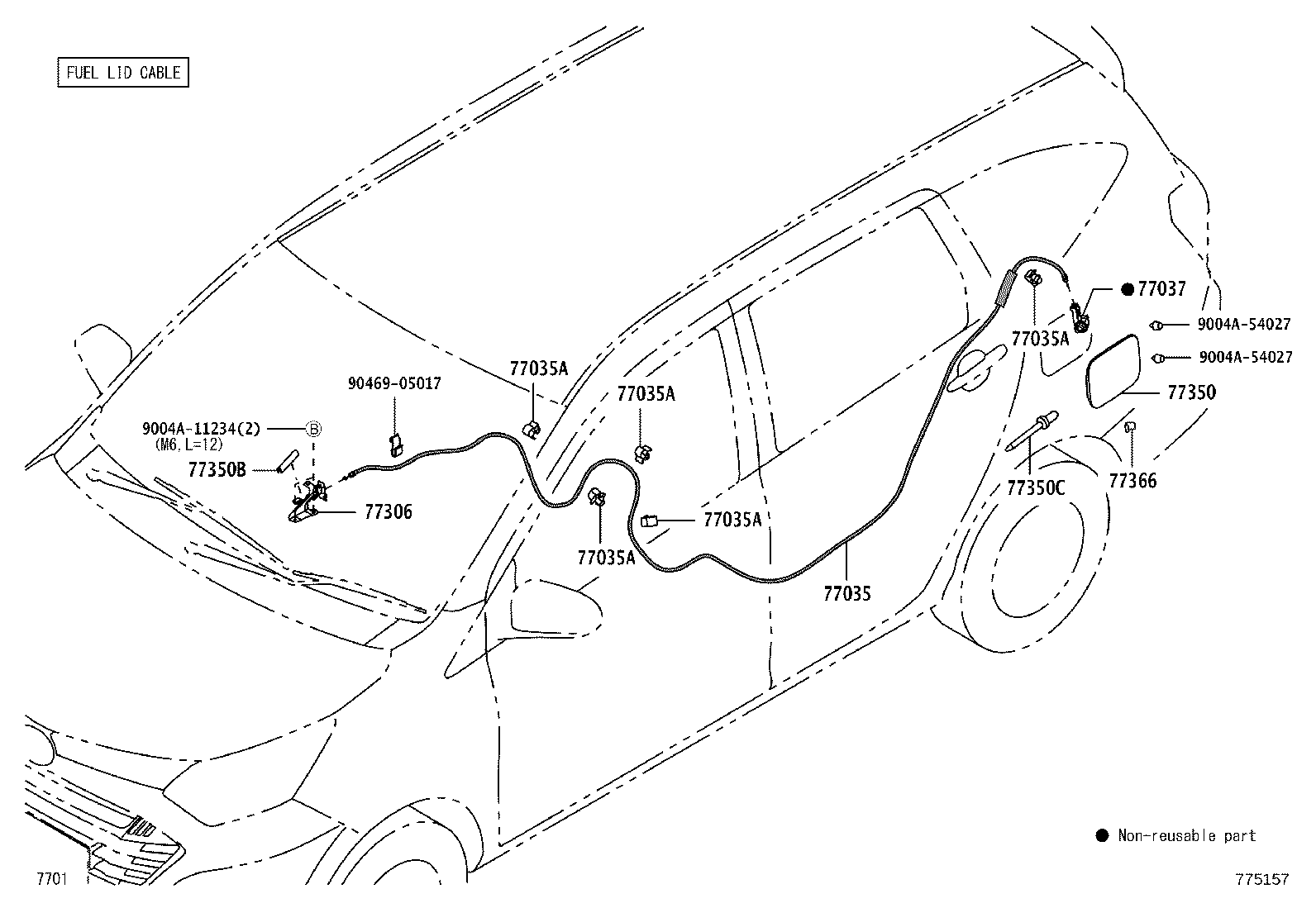

Figure 775156A 775156A 2016-06 → 2019-09 Figure 775156A 775156A 2019-09 → 2022-07 Figure 775156A 775156A 2022-07 → — Figure 774065A 774065A 2016-06 → 2019-09 Figure 774065A 774065A 2019-09 → 2022-07 Figure 774065A 774065A 2022-07 → — Figure 775157 775157 2016-06 → 2019-09 Figure 775157 775157 2019-09 → 2022-07 Figure 775157 775157 2022-07 → —

Part groups

PNCDescription
23210A Pump Assy, Fuel W/Motor & Bracket
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
77019J Tube Sub-assy, Fuel Tank TO Canister
77028D Tube Sub-assy, Fuel Emission, Rear
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77169A Gasket, Fuel Suction Tube Set
77201 Pipe Sub-assy, Fuel Tank Inlet
77203A Tube Sub-assy, Fuel Suction
77213B Hose, Fuel Tank TO Filler Pipe
77219 Cover, Fuel Tank Filler Pipe
77248A Holder, Fuel Tank Filler Pipe Cover
77251B Tube, Fuel Main
77259C Hose, Fuel
77259G Clip, Fuel Hose
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77263 Tube, Fuel Tank TO Canister, NO.3
77269A Hose, Fuel Tank Breather
77285H Clamp, Fuel Tube, NO.1
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286L Clamp, Fuel Tube, NO.5
77289B Clamp, Fuel Tube, NO.3
77291A Shield, Fuel Tank Filler Pipe
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77350 Lid Assy, Fuel Filler Opening
77350B Cushion(FOR FUEL FILLER OPENING LID)
77350C Rivet
77366 Spring, Fuel Filler Opening Lid Hinge
77740 Canister Assy, Charcoal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
