Toyota Calya
2016-06 → present · chassis B401 · catalogue 136320 · General
Discontinued model
Data version 2022-06

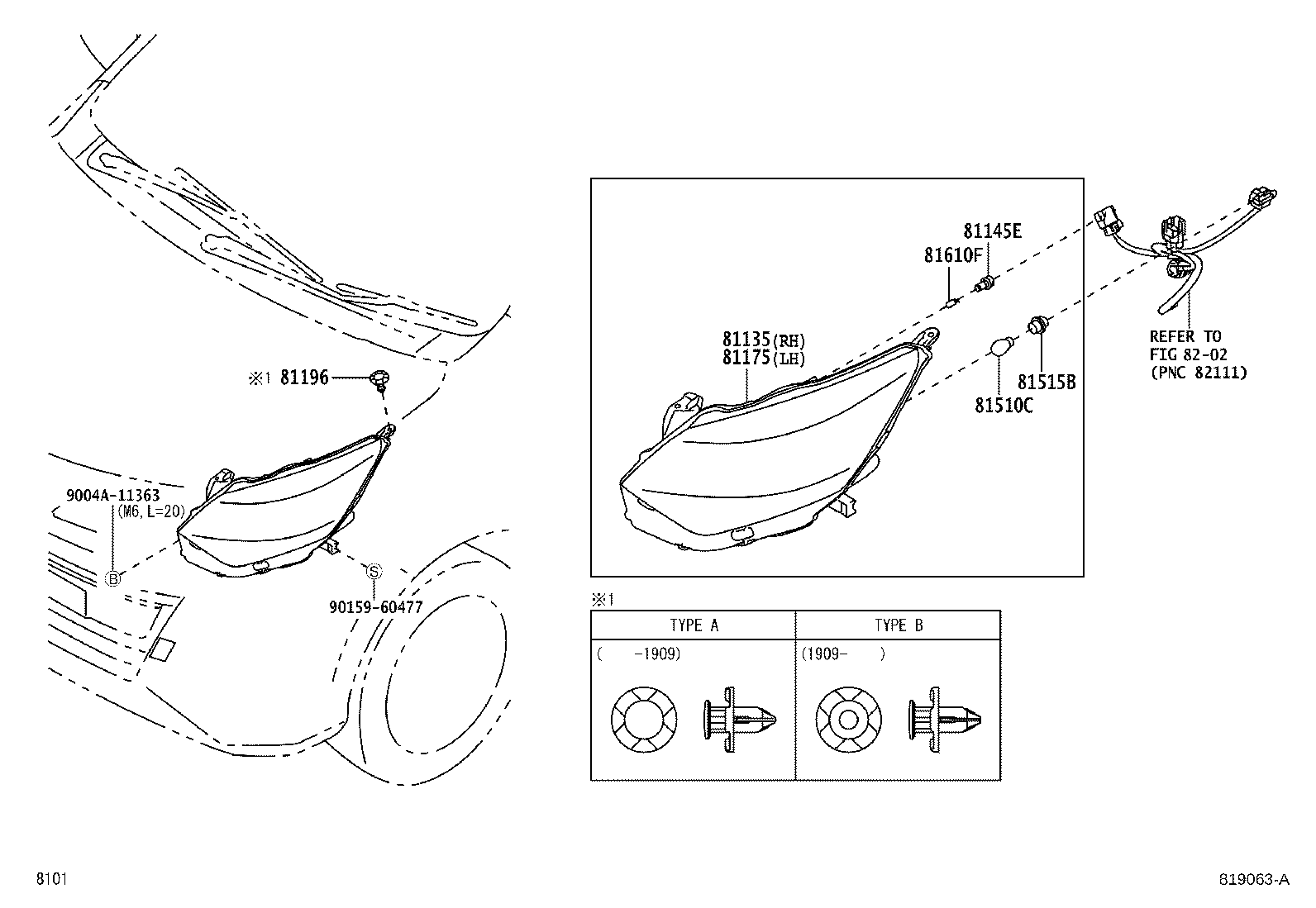

Headlamp
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81144C | Cover, Headlamp Socket |
| 81145E | Wedgebase Socket Assy |
| 81175 | Unit Assy, Headlamp, LH |
| 81196 | Retainer, Headlamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
