Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

13 part groups · 17 illustrations

Illustrations

Figure 82A708C 82A708C 2016-06 → 2019-09 Figure 82A708C 82A708C 2019-09 → 2022-07 Figure 82A708C 82A708C 2022-07 → — Figure 82A711H 82A711H 2016-06 → 2019-09 Figure 82A711H 82A711H 2019-09 → 2022-07 Figure 82A711H 82A711H 2022-07 → — Figure 82A714A 82A714A 2016-06 → 2019-09 Figure 82A714A 82A714A 2019-09 → 2022-07 Figure 82A714A 82A714A 2022-07 → — Figure 82C972A 82C972A 2019-09 → 2022-07 Figure 82C972A 82C972A 2022-07 → — Figure 82A716 82A716 2016-06 → 2019-09 Figure 82A716 82A716 2019-09 → 2022-07 Figure 82A716 82A716 2022-07 → — Figure 82A718A 82A718A 2016-06 → 2019-09 Figure 82A718A 82A718A 2019-09 → 2022-07 Figure 82A718A 82A718A 2022-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

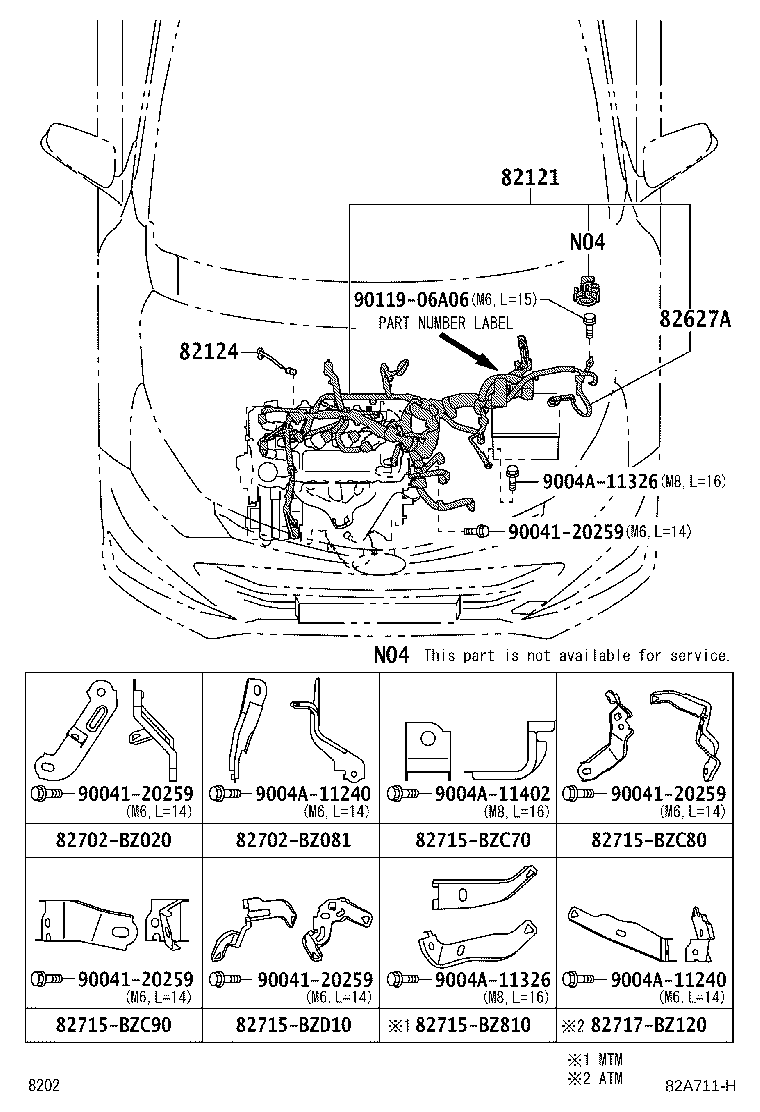

82121 Wire, Engine
82124 Wire, Engine, NO.4

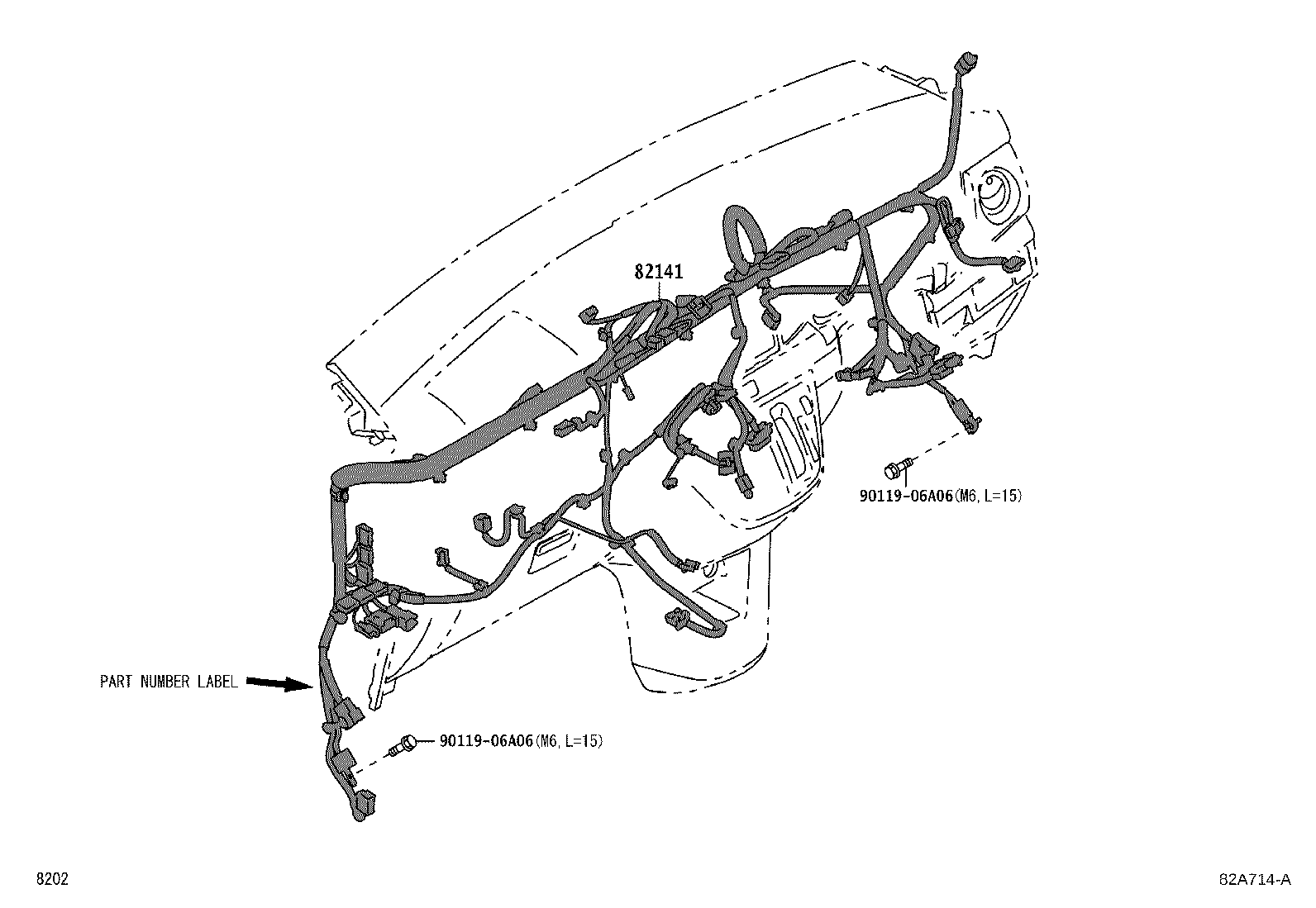

82141 Wire, Instrument Panel

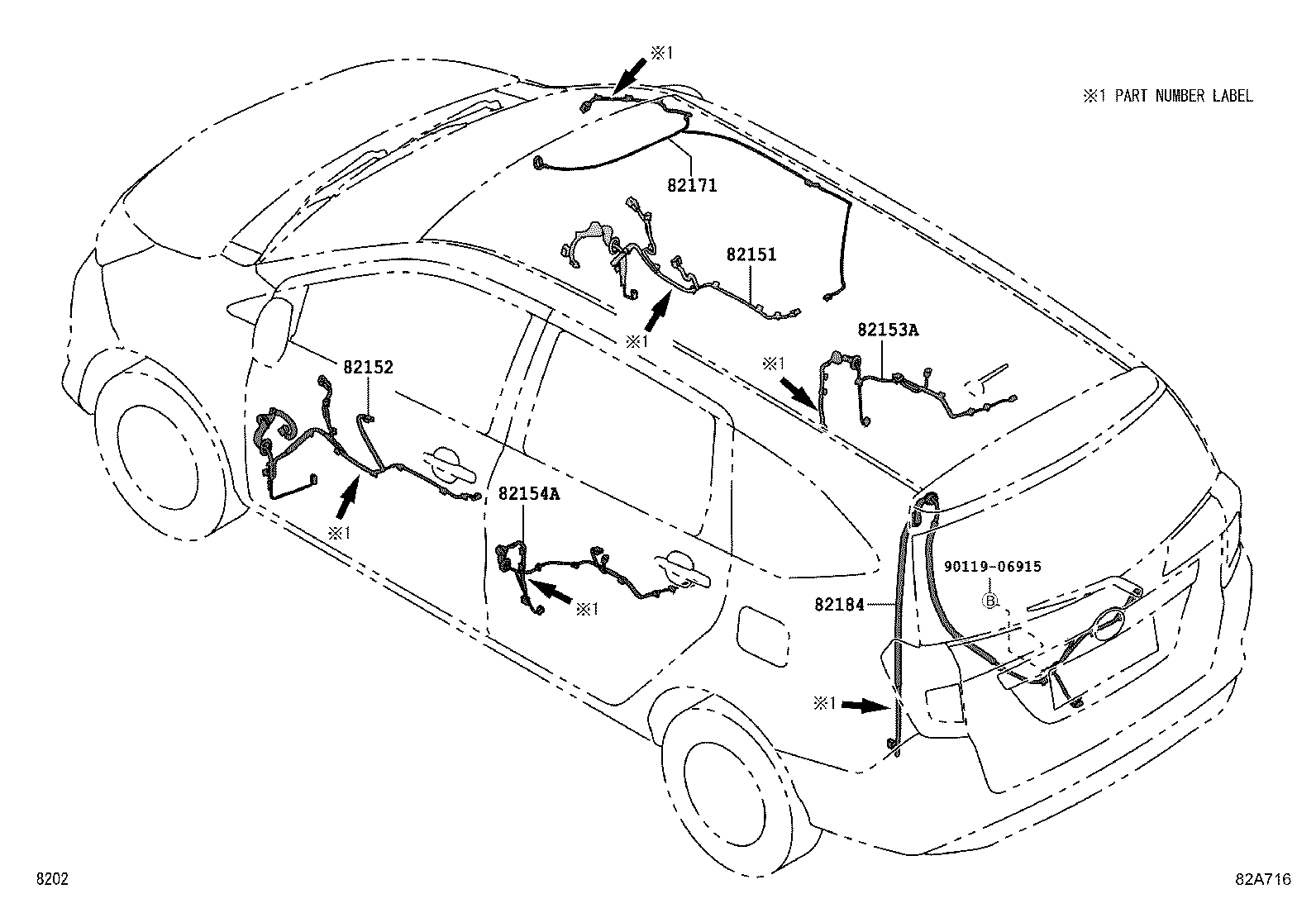

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

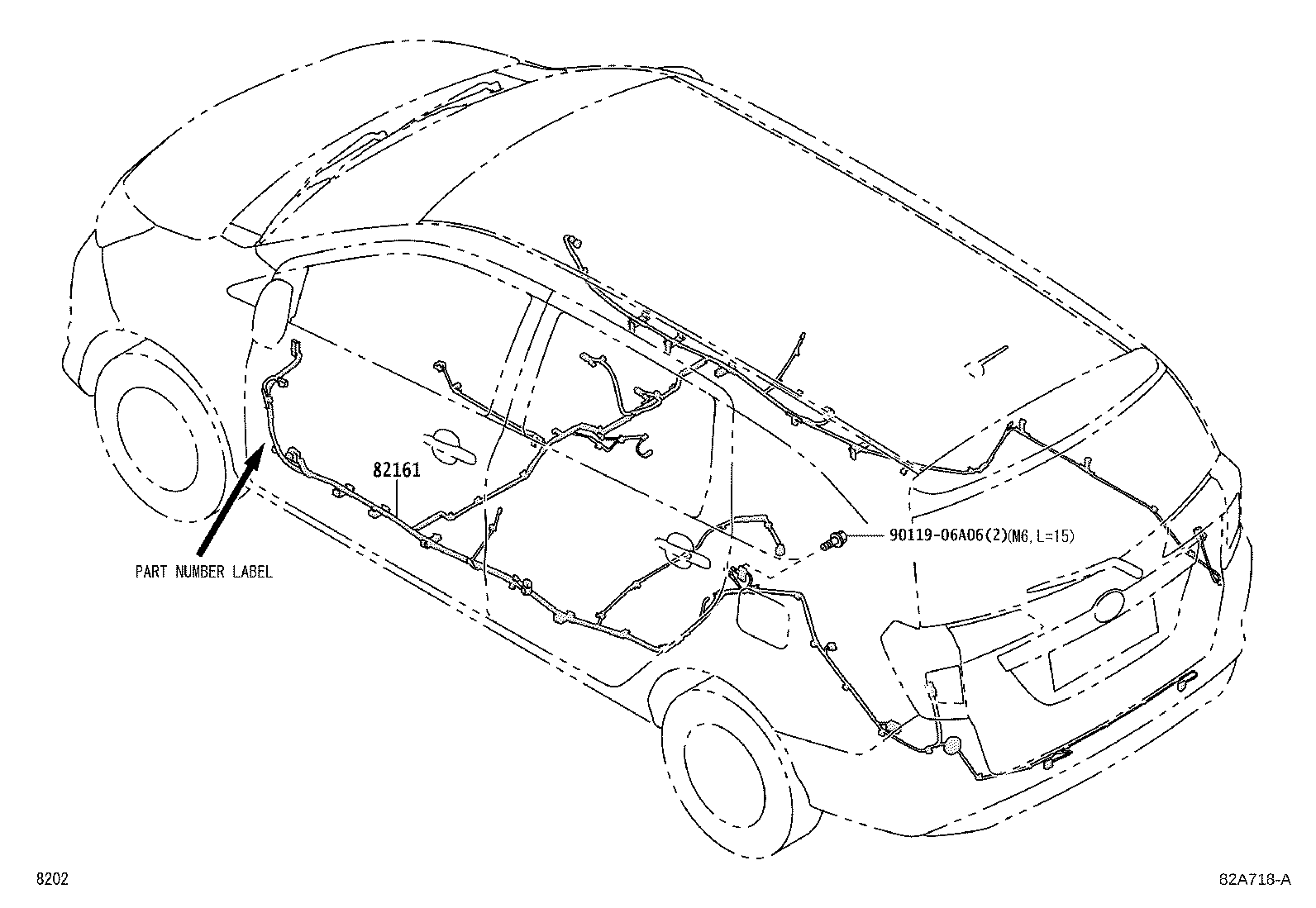

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1

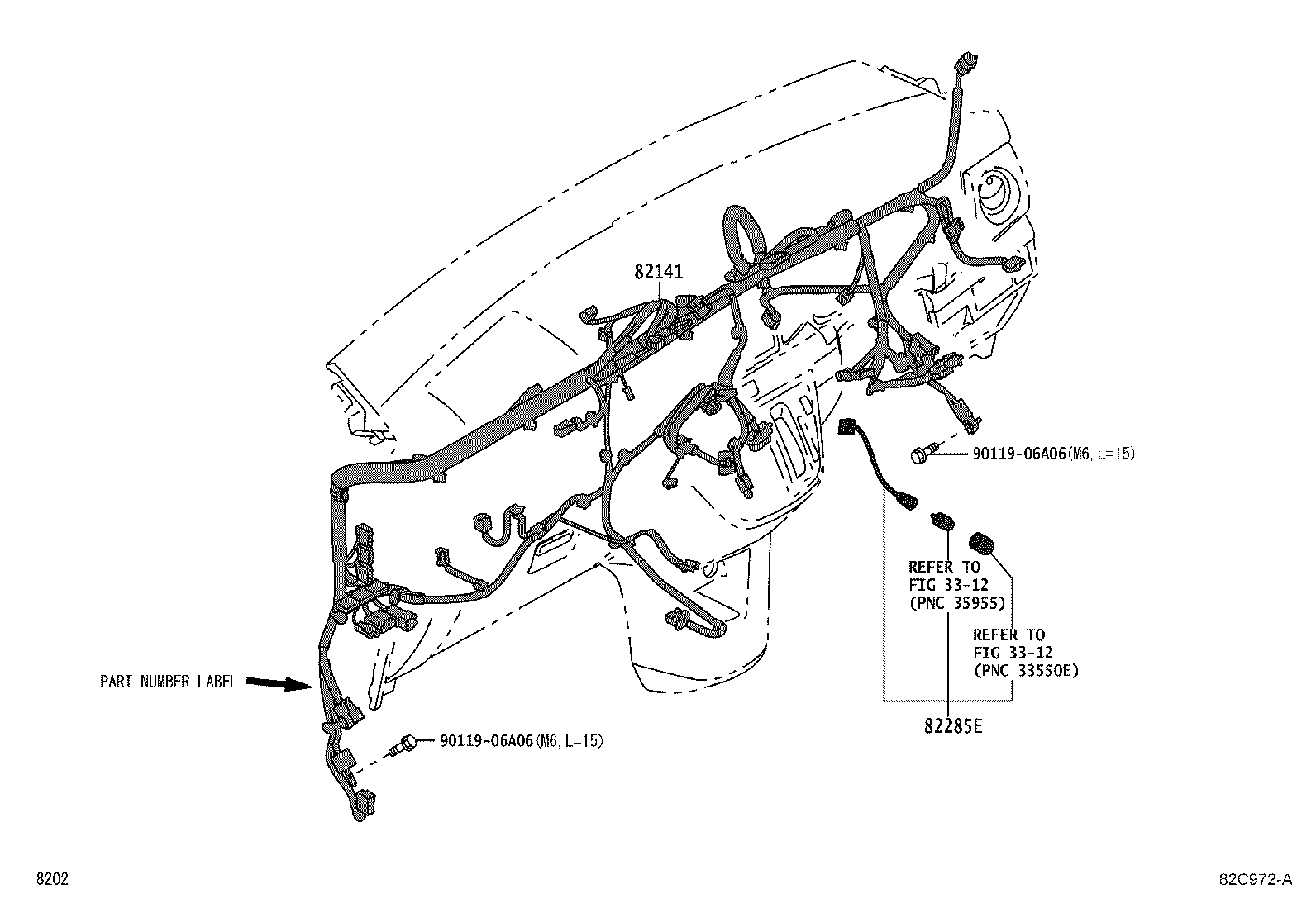

82285E Wire, Illumination
82627A Wire, Fusible Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
