Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

55 part groups · 19 illustrations

Illustrations

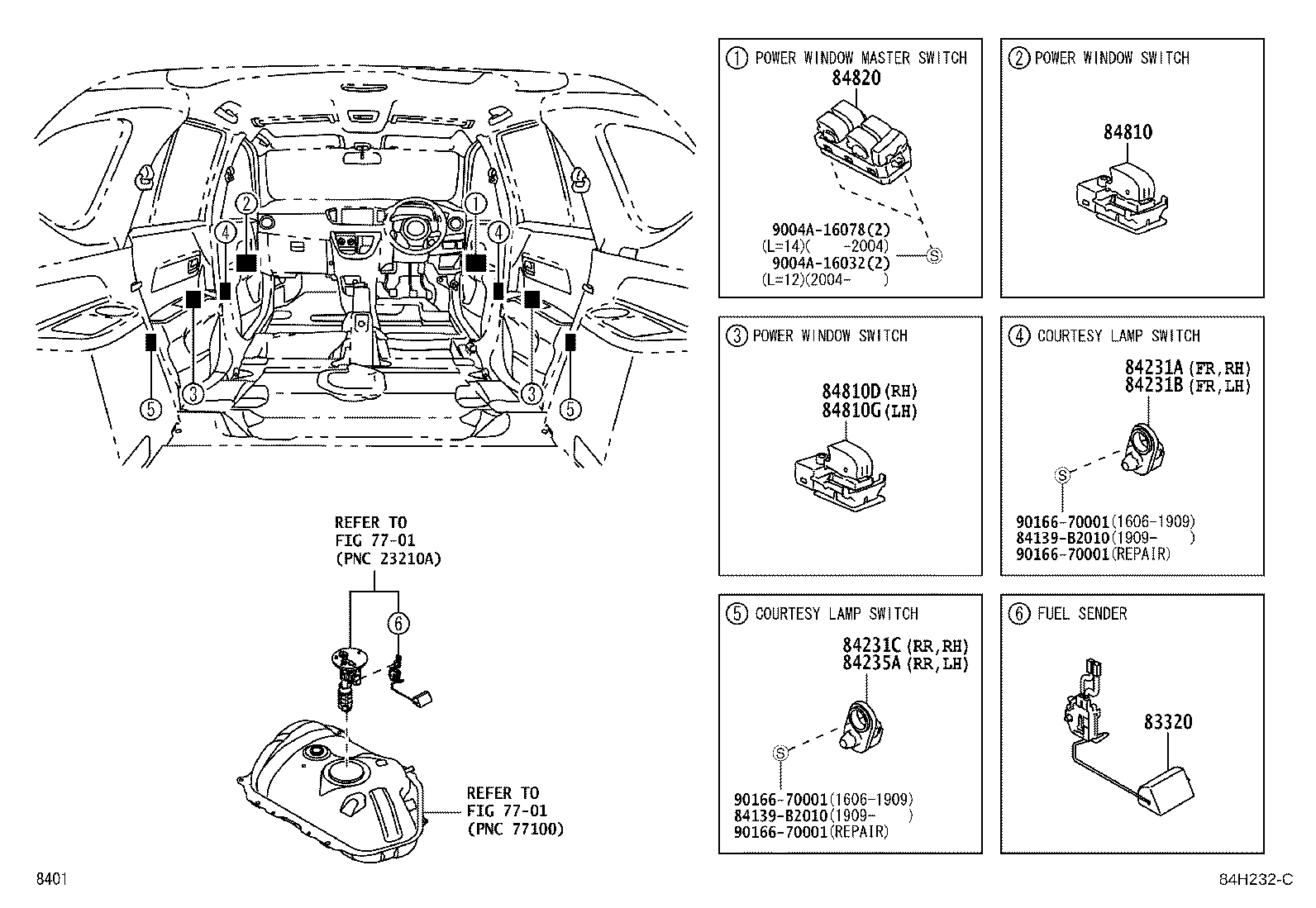

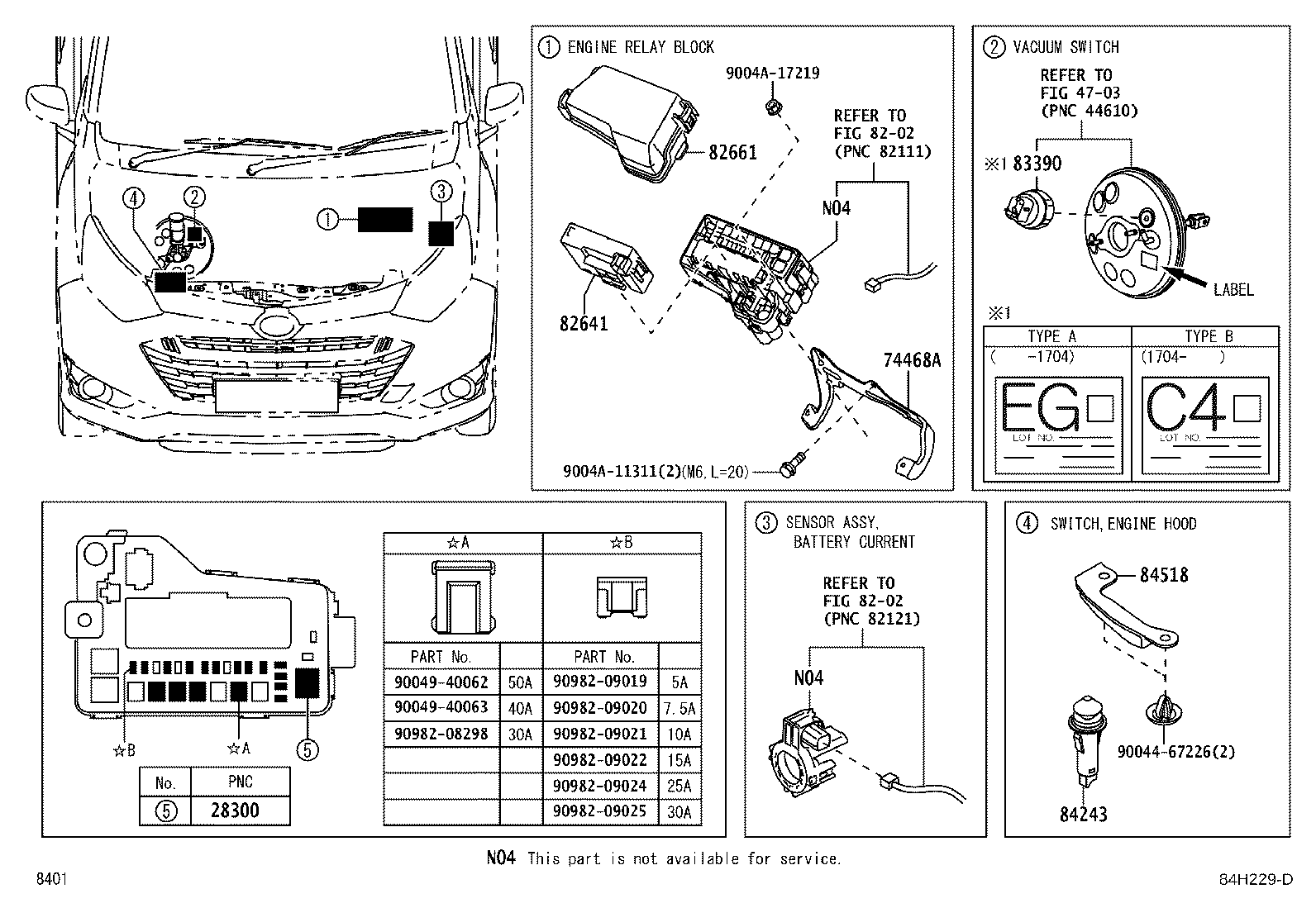

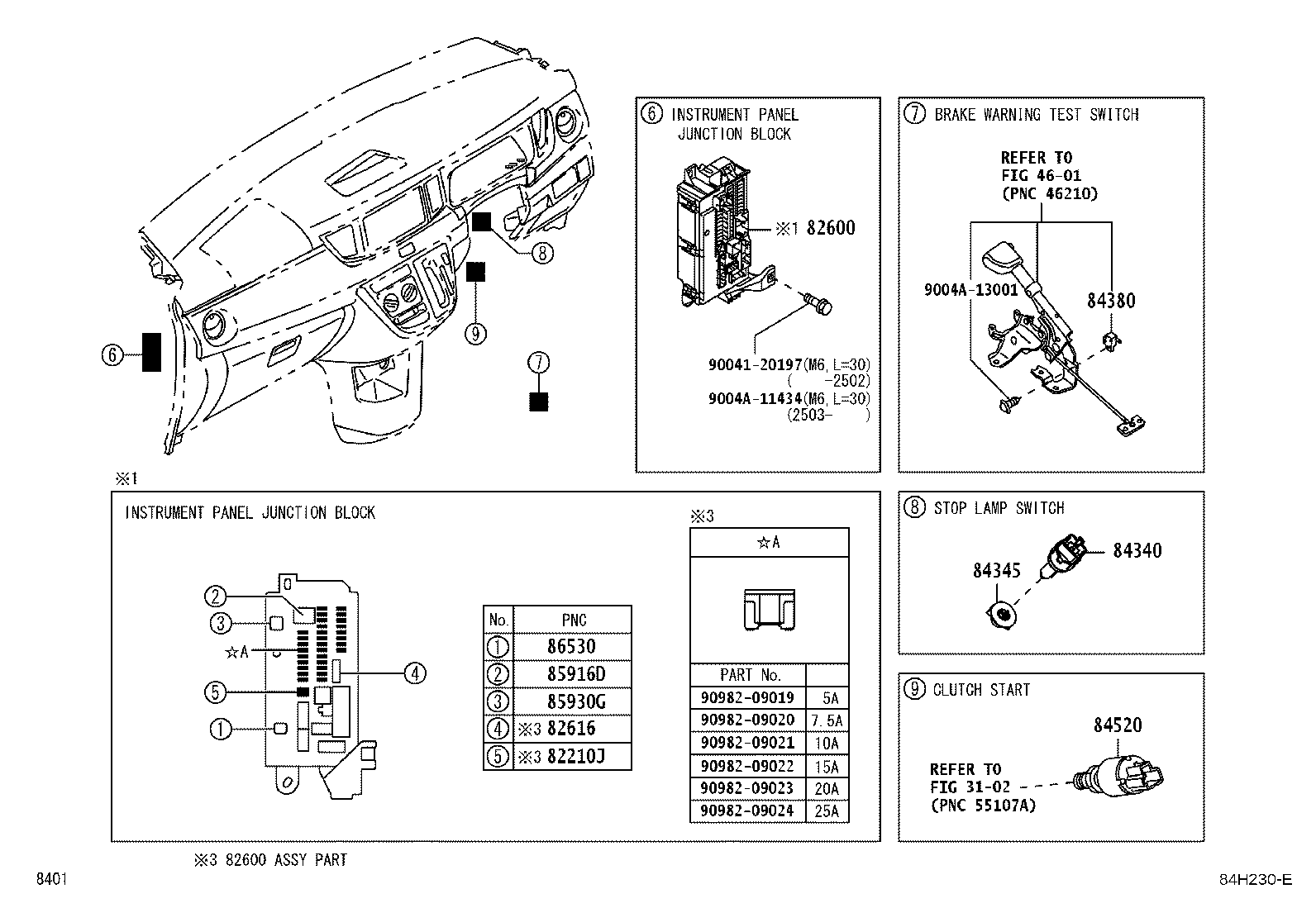

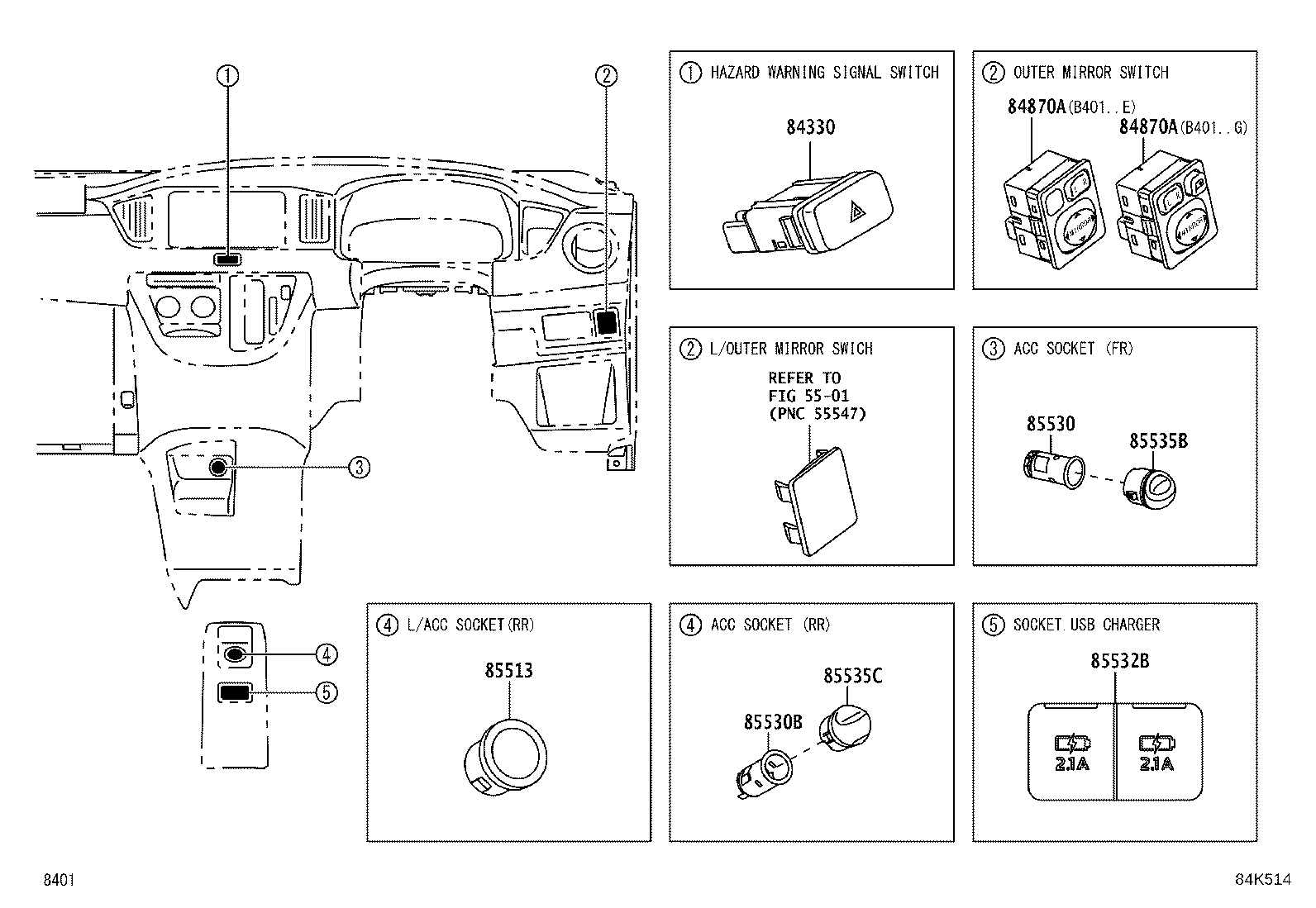

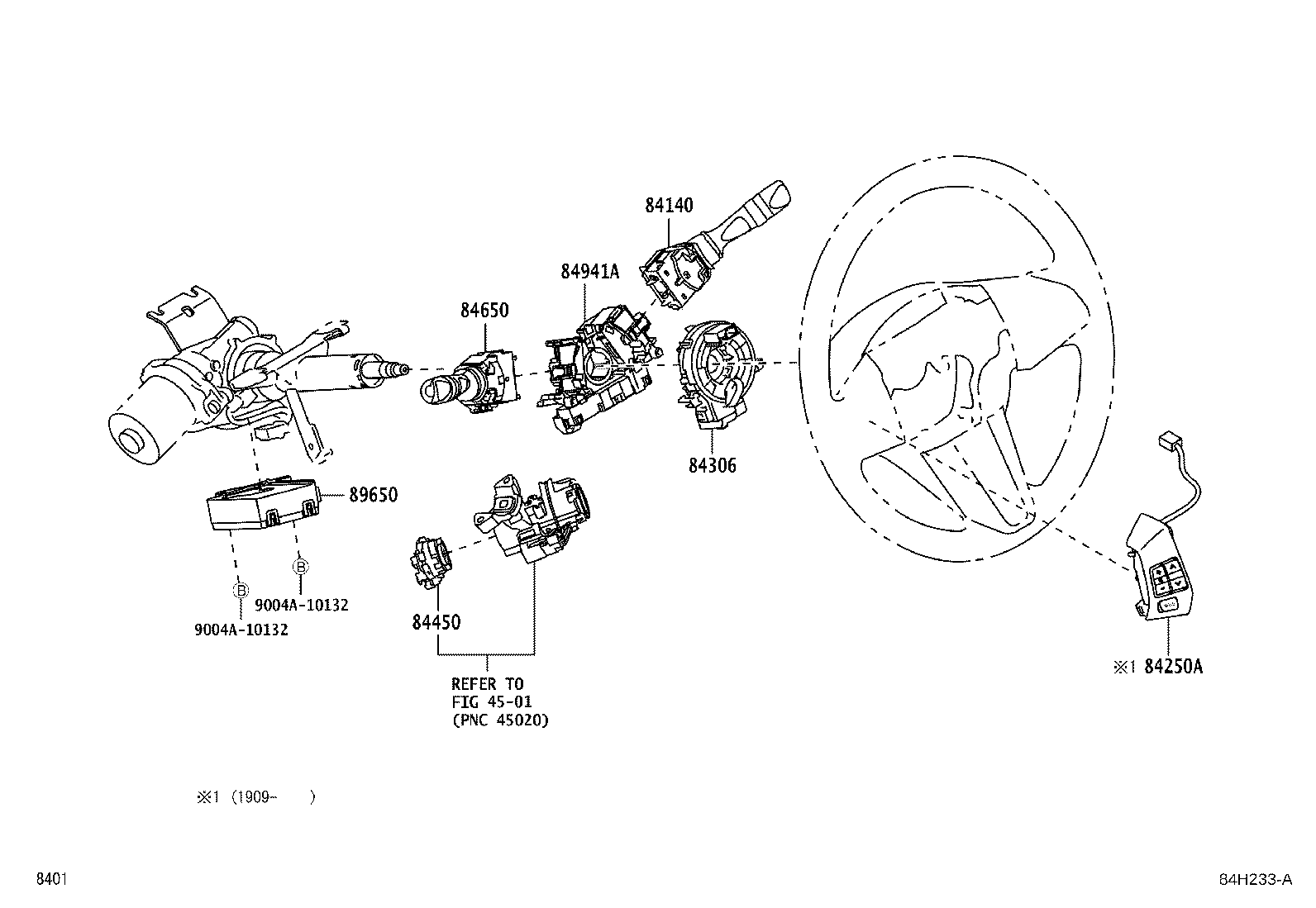

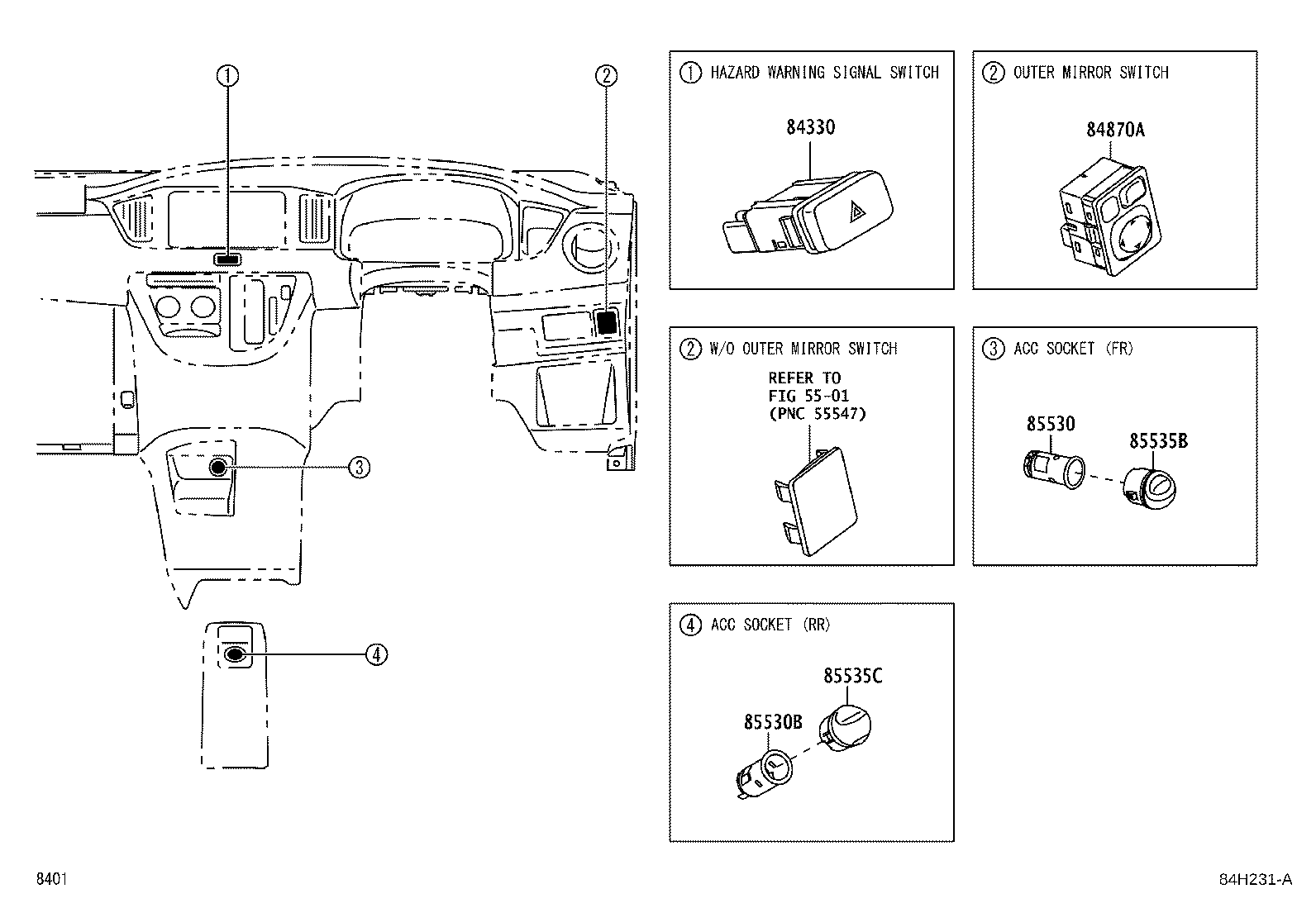

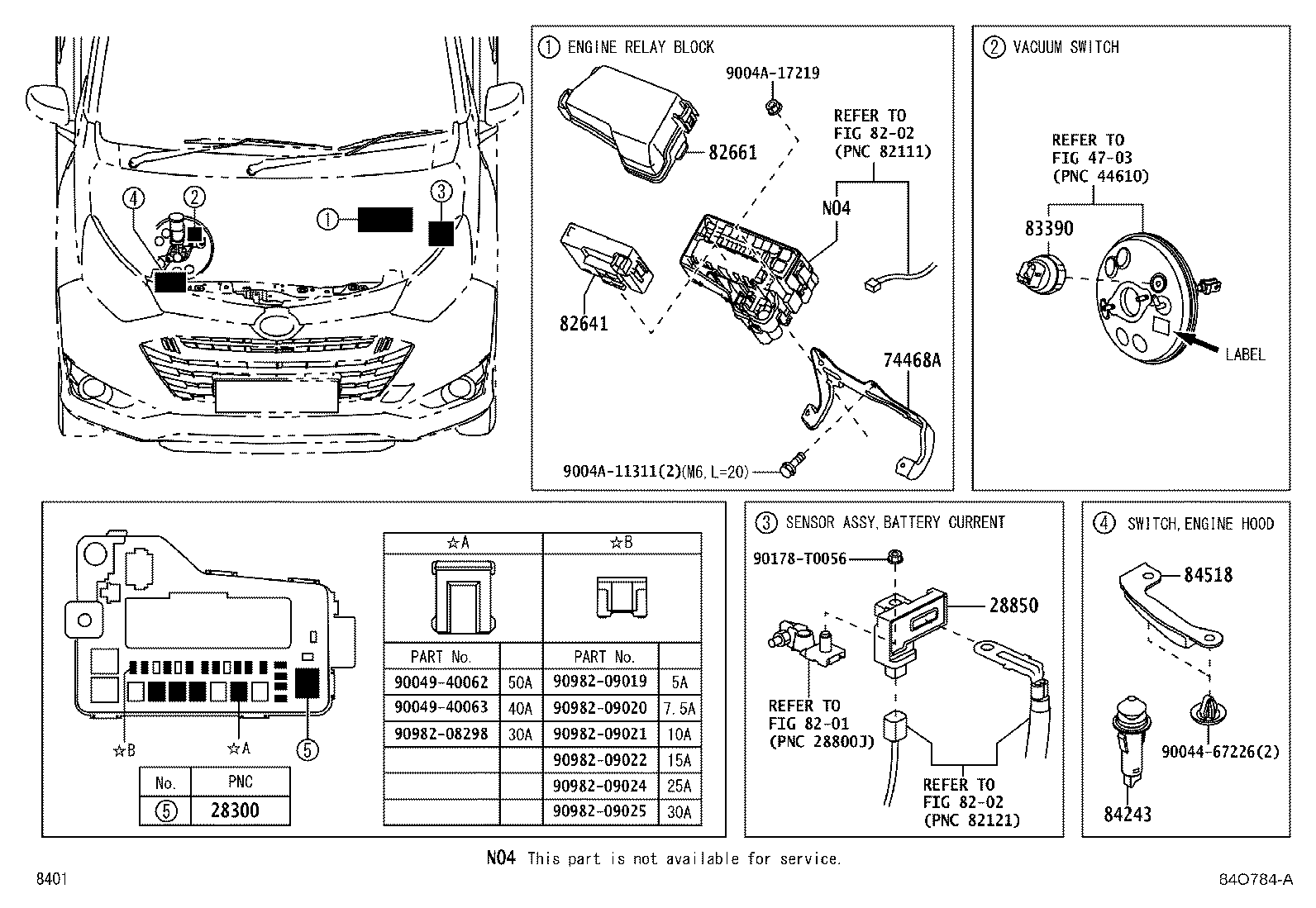

Figure 84L926A 84L926A 2016-06 → 2019-09 Figure 84L926A 84L926A 2019-09 → 2022-07 Figure 84L926A 84L926A 2022-07 → — Figure 84H229D 84H229D 2016-06 → 2019-09 Figure 84H229D 84H229D 2019-09 → 2022-03 Figure 84O784A 84O784A 2022-03 → 2022-07 Figure 84O784A 84O784A 2022-07 → — Figure 84H230E 84H230E 2016-06 → 2019-09 Figure 84H230E 84H230E 2019-09 → 2022-07 Figure 84H230E 84H230E 2022-07 → — Figure 84H231A 84H231A 2016-06 → 2019-09 Figure 84K514 84K514 2019-09 → 2022-07 Figure 84K514 84K514 2022-07 → — Figure 84H232C 84H232C 2016-06 → 2019-09 Figure 84H232C 84H232C 2019-09 → 2022-07 Figure 84H232C 84H232C 2022-07 → — Figure 84H233A 84H233A 2016-06 → 2019-09 Figure 84H233A 84H233A 2019-09 → 2022-07 Figure 84H233A 84H233A 2022-07 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
82210J Fusible Link
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84210B Gasket, Back-up Lamp Switch
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84231C Switch, Courtesy Lamp
84235A Switch, Courtesy Lamp
84243 Switch, Engine Hood
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84518 Holder, Switch Cover
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
85513 Cover, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85532B Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85916D Relay, Fog Lamp
85930G Relay, Acc
86530 Relay Assy, Horn
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
