Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 9 illustrations

Illustrations

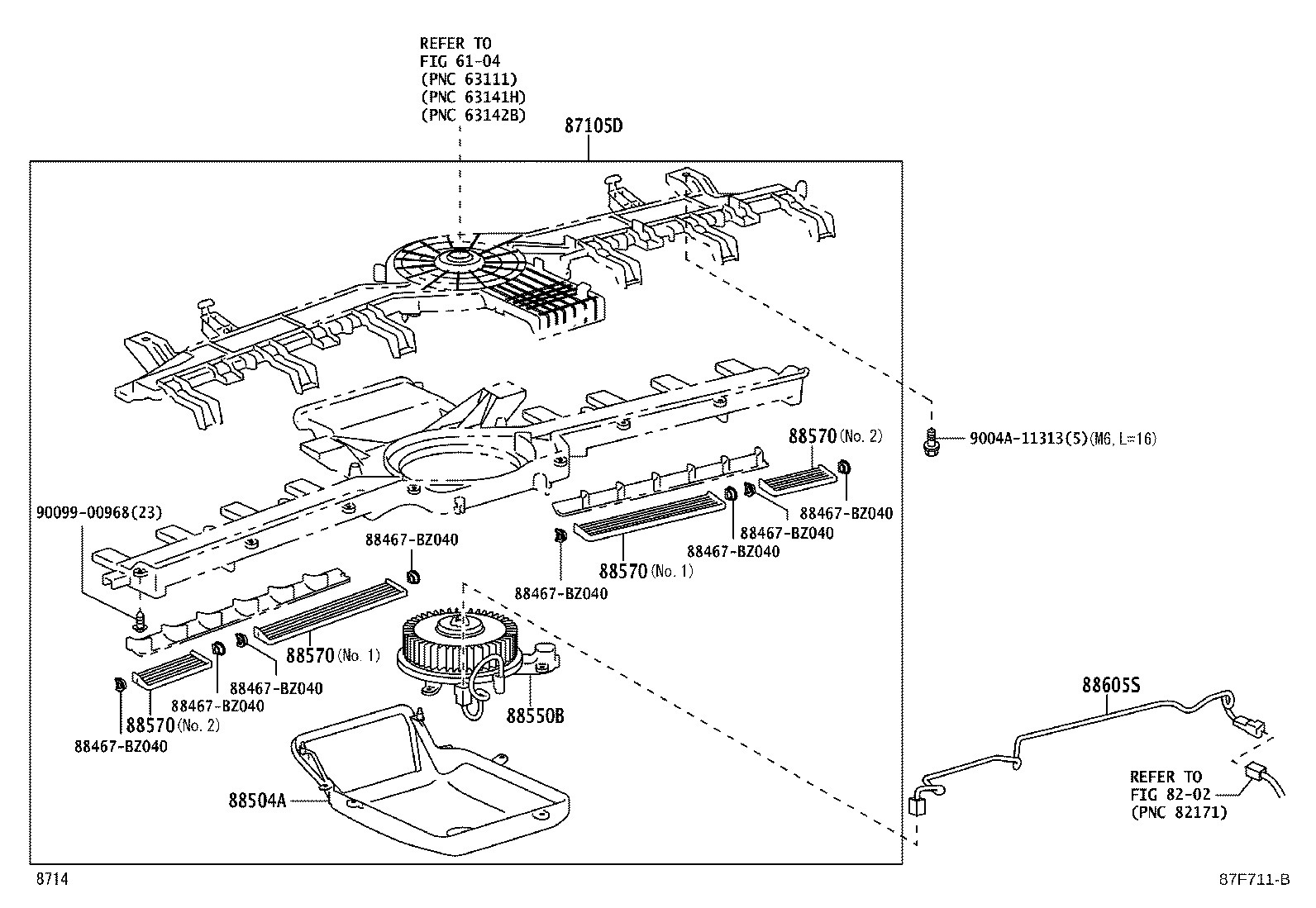

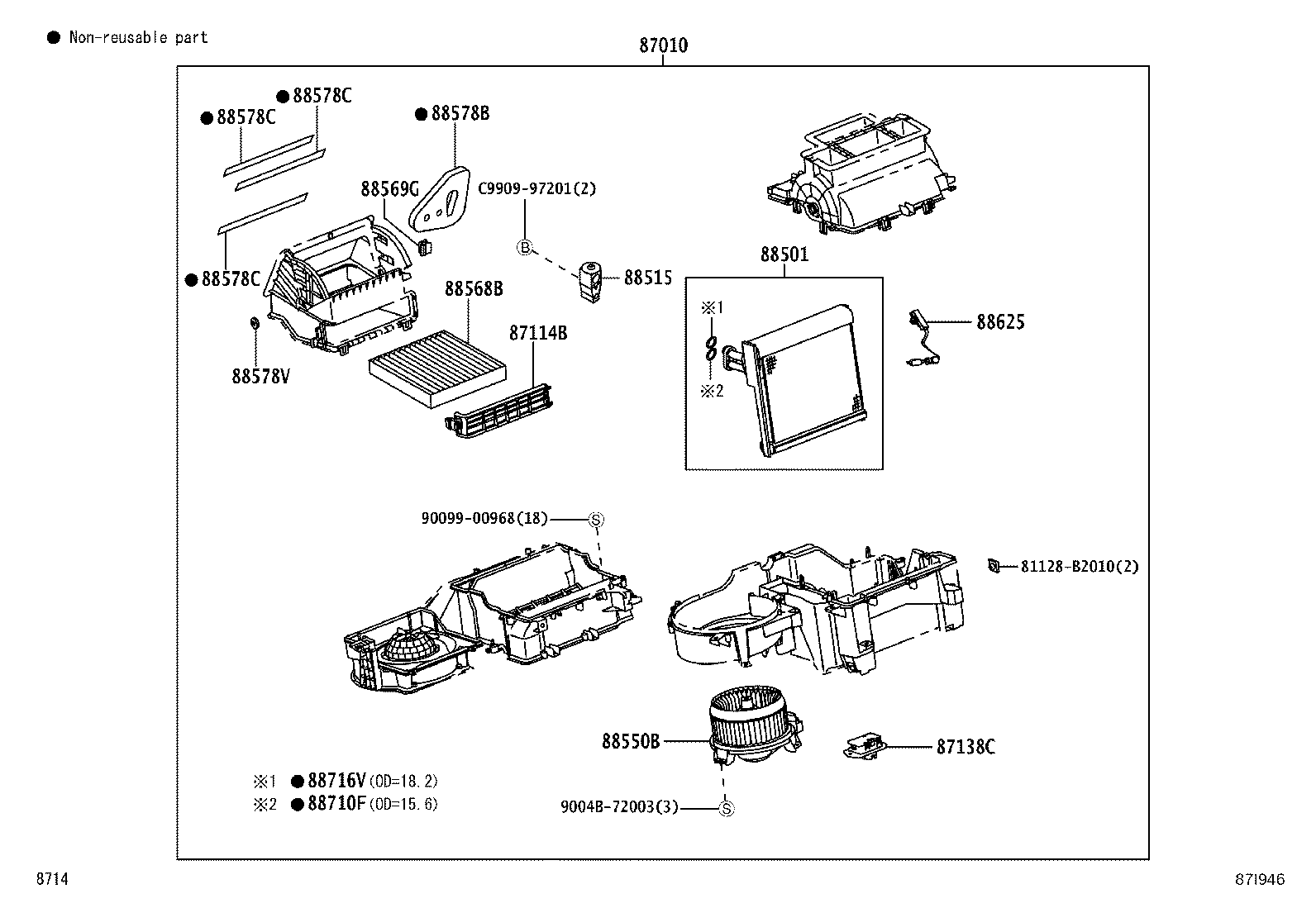

Figure 87F709B 87F709B 2016-06 → 2019-09 Figure 87F709B 87F709B 2019-09 → 2022-07 Figure 87F709B 87F709B 2022-07 → — Figure 87I946 87I946 2016-06 → 2019-09 Figure 87I946 87I946 2019-09 → 2022-07 Figure 87I946 87I946 2022-07 → — Figure 87F711B 87F711B 2016-06 → 2019-09 Figure 87F711B 87F711B 2019-09 → 2022-07 Figure 87F711B 87F711B 2022-07 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87105D Fan Sub-assy, Blower
87114B Cover, Heater
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88504A Case Sub-assy, Blower
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88550B Motor Assy, Blower
88568B Filter, Air
88569G Clamp
88570 Grille Sub-assy, Cooler Air Outlet
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88605S Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88710F Ring, O
88716V Ring, O(FOR COOLER UNIT)
88897L Grommet (FOR DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
