Toyota Calya

2016-06 → present · chassis B401 · catalogue 136320 · General

Discontinued model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

13 part groups · 9 illustrations

Illustrations

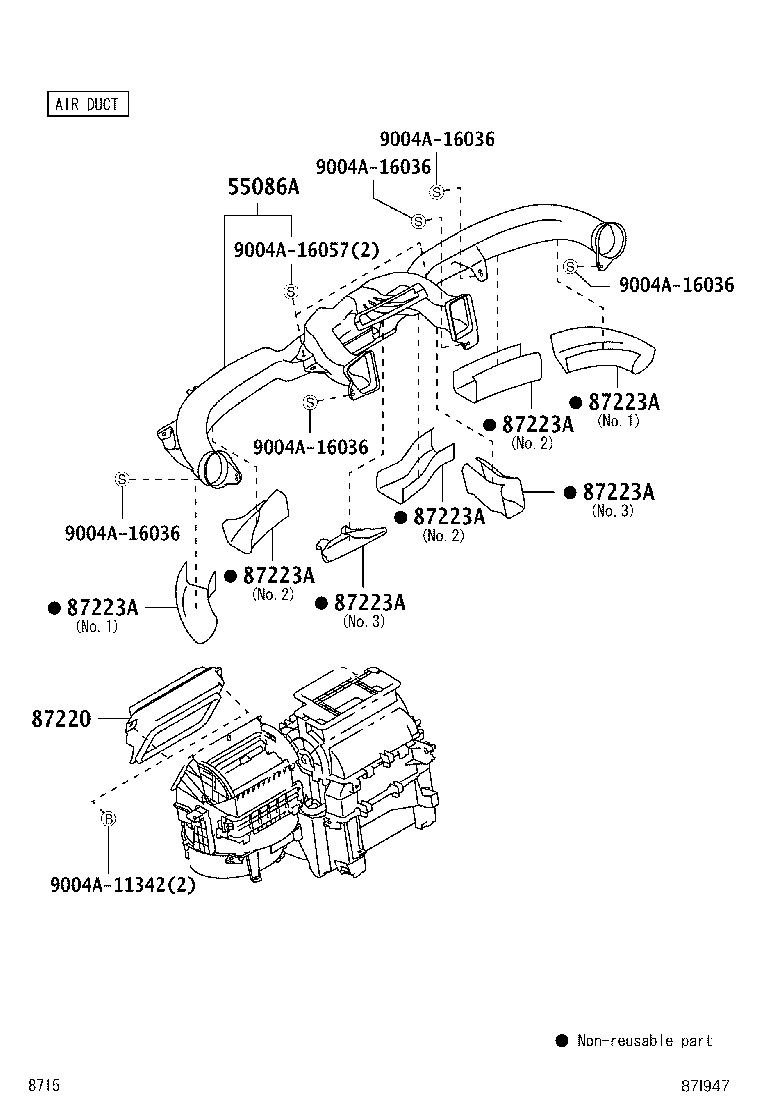

Figure 87F683A 87F683A 2016-06 → 2019-09 Figure 87F683A 87F683A 2019-09 → 2022-07 Figure 87F683A 87F683A 2022-07 → — Figure 87F684 87F684 2016-06 → 2019-09 Figure 87F684 87F684 2019-09 → 2022-07 Figure 87F684 87F684 2022-07 → — Figure 87I947 87I947 2016-06 → 2019-09 Figure 87I947 87I947 2019-09 → 2022-07 Figure 87I947 87I947 2022-07 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55908A Cable Sub-assy, Air Inlet Damper Control
55910R Control Assy, Heater
81930F Bulb, Heater Control Indicator Lamp
81942A Sheet, Heater Control Name, NO.1
84732H Switch, Heater Blower
87220 Duct Assy, Air
87223A Pad, Air Duct
88454 Grille, Air Grille Holder Base
88573A Base, Grille
88611D Knob, Cooler Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
