Heating & Air Conditioning - Cooler Piping

18 part groups · 6 illustrations

Illustrations

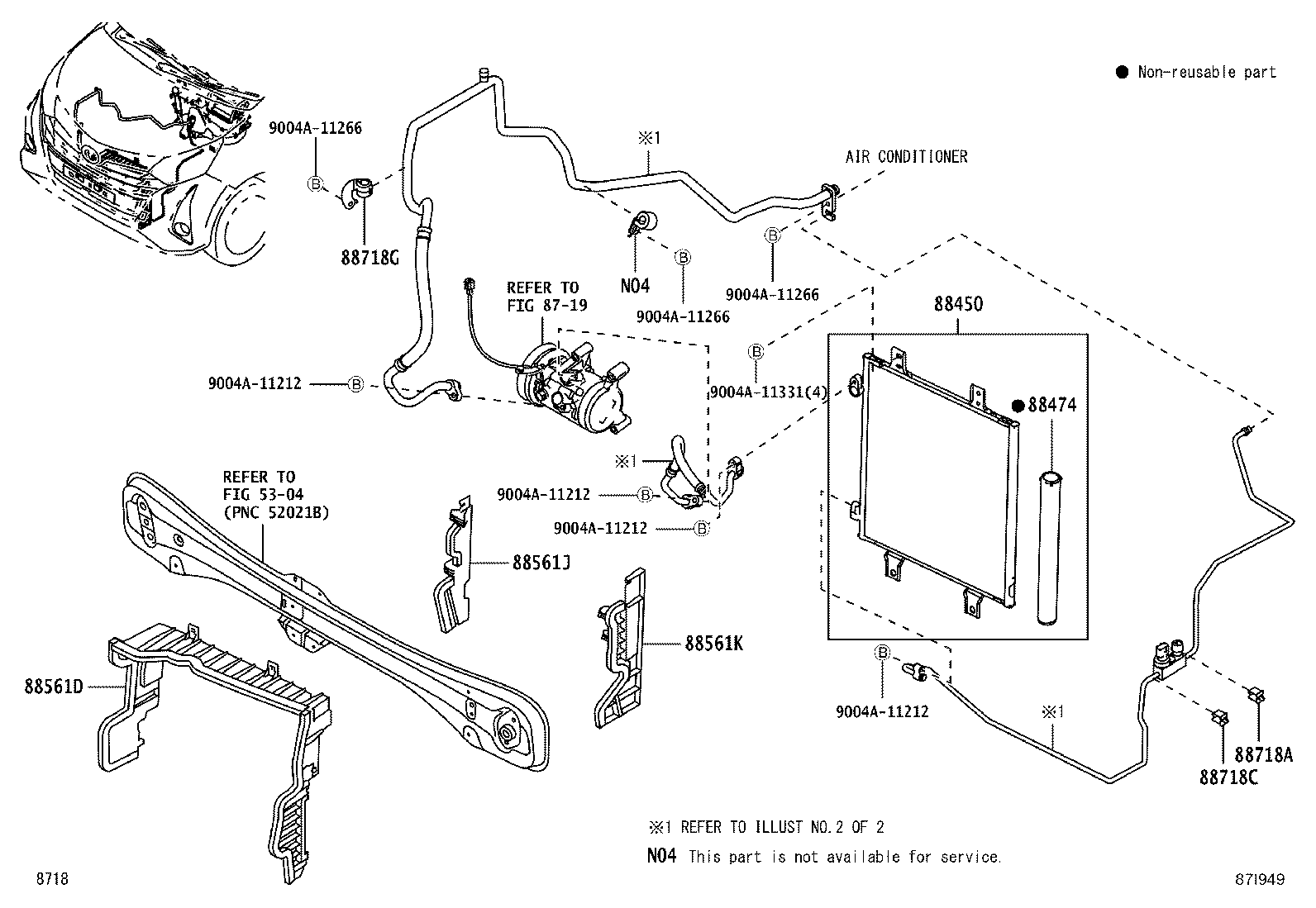

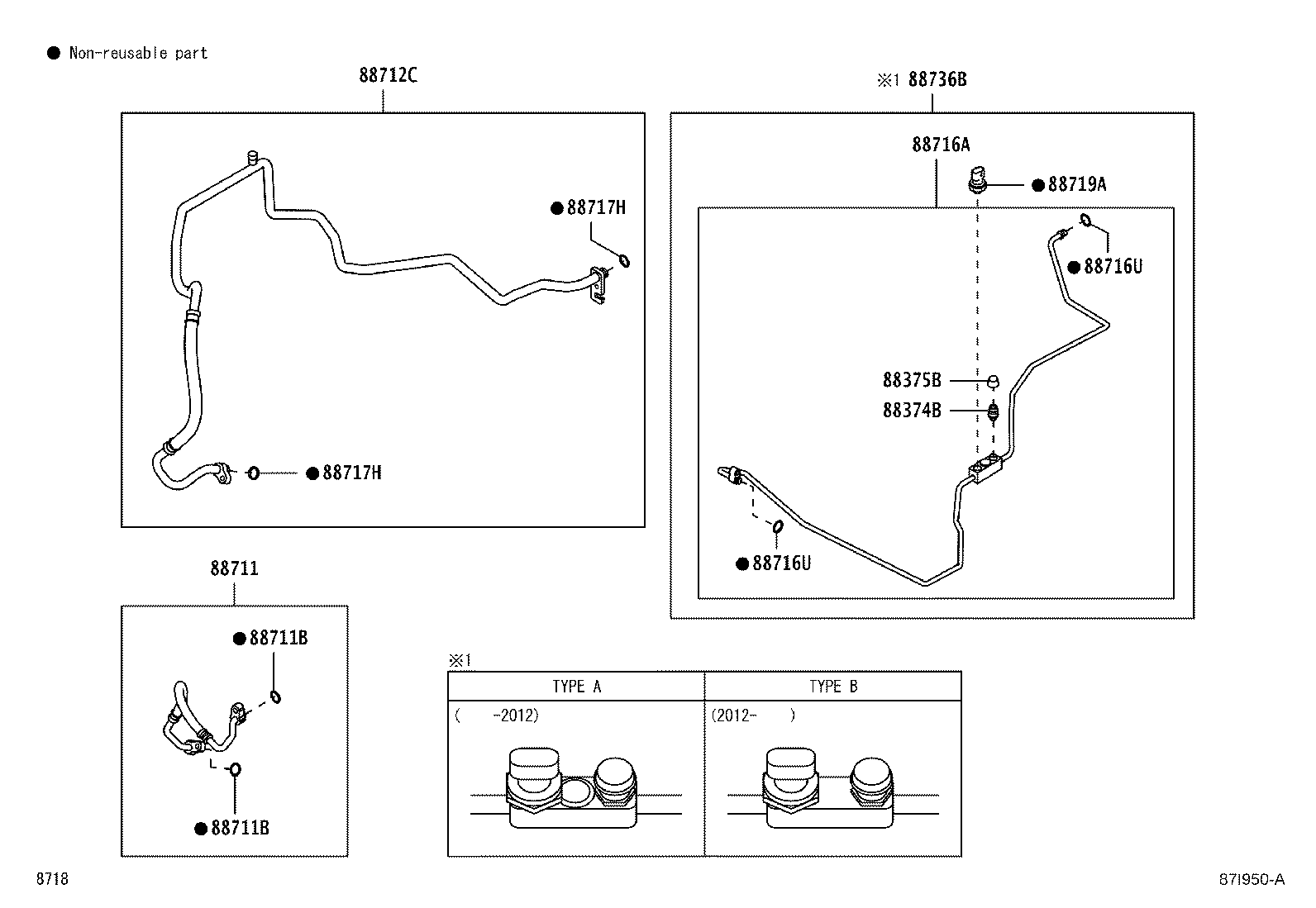

Figure 87I948 87I948 2016-06 → 2019-09 Figure 87I949 87I949 2019-09 → 2022-07 Figure 87I949 87I949 2022-07 → — Figure 87I950A 87I950A 2016-06 → 2019-09 Figure 87I950A 87I950A 2019-09 → 2022-07 Figure 87I950A 87I950A 2022-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88450 Condenser Assy, W/Receiver
88474 Dryer, Cooler
88561D Grille, Air Inlet NO.3
88561J Grille, Air Inlet NO.1
88561K Grille, Air Inlet NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
88736B Tube, Liquid, B(FOR COOL BOX)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
