Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

29 part groups · 3 illustrations

Illustrations

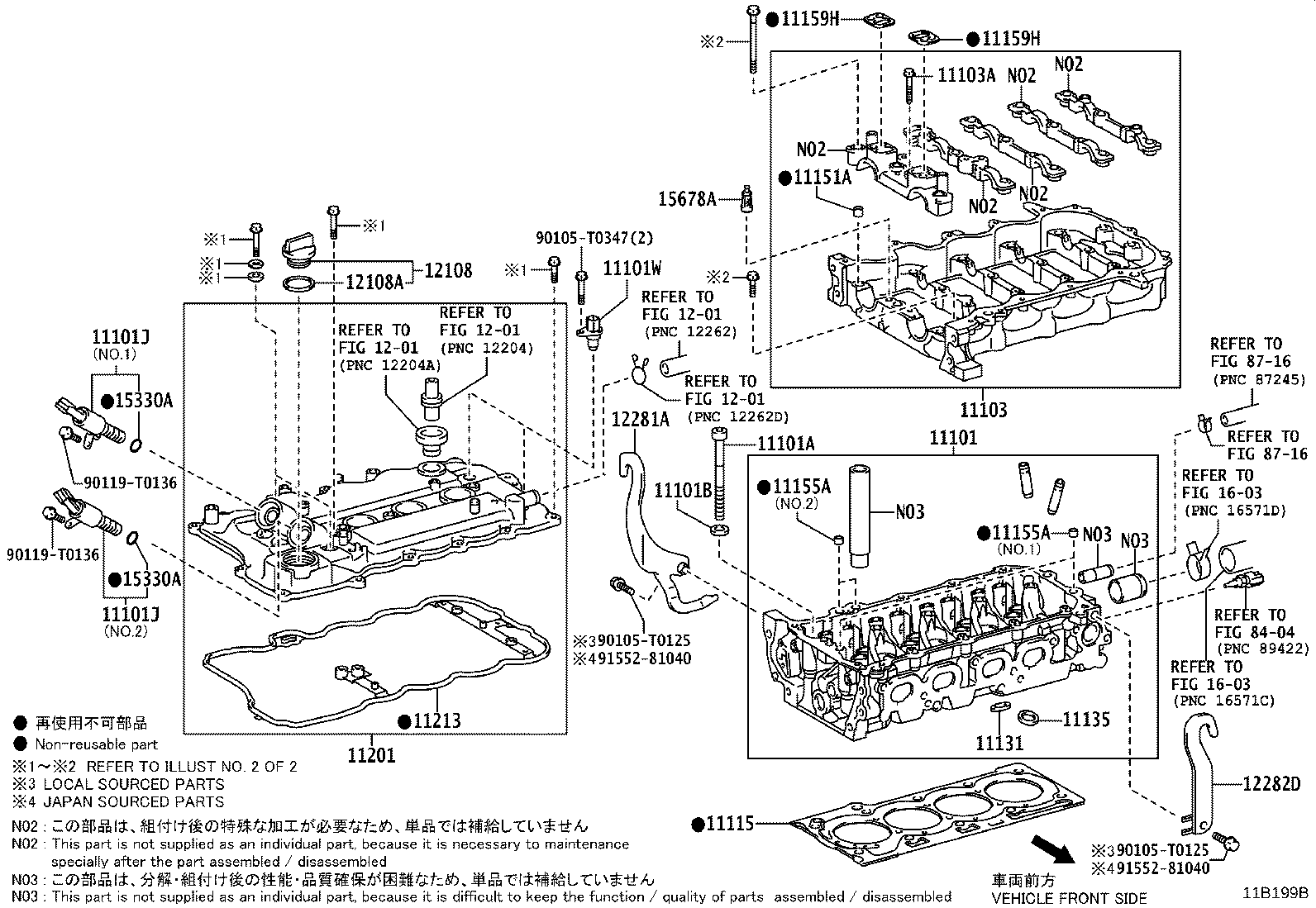

Figure 117623D 117623D 2012-09 → — Figure 11B199B 11B199B 2016-04 → — Figure 11B200B 11B200B 2016-04 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101J Valve Assy, Camshaft Timing Oil Control
11101W Sensor, Crank Position, NO.1
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103F Bolt(FOR CAMSHAFT HOUSING SET)
11115 Gasket, Cylinder Head
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159H Gasket, Camshaft Bearing Cap Oil Hole
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12611 Cover, Engine, NO.1
15301B Gage Sub-assy, Oil Level
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
