Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 2 illustrations

Illustrations

Figure 165059B

165059B 2012-09 → —

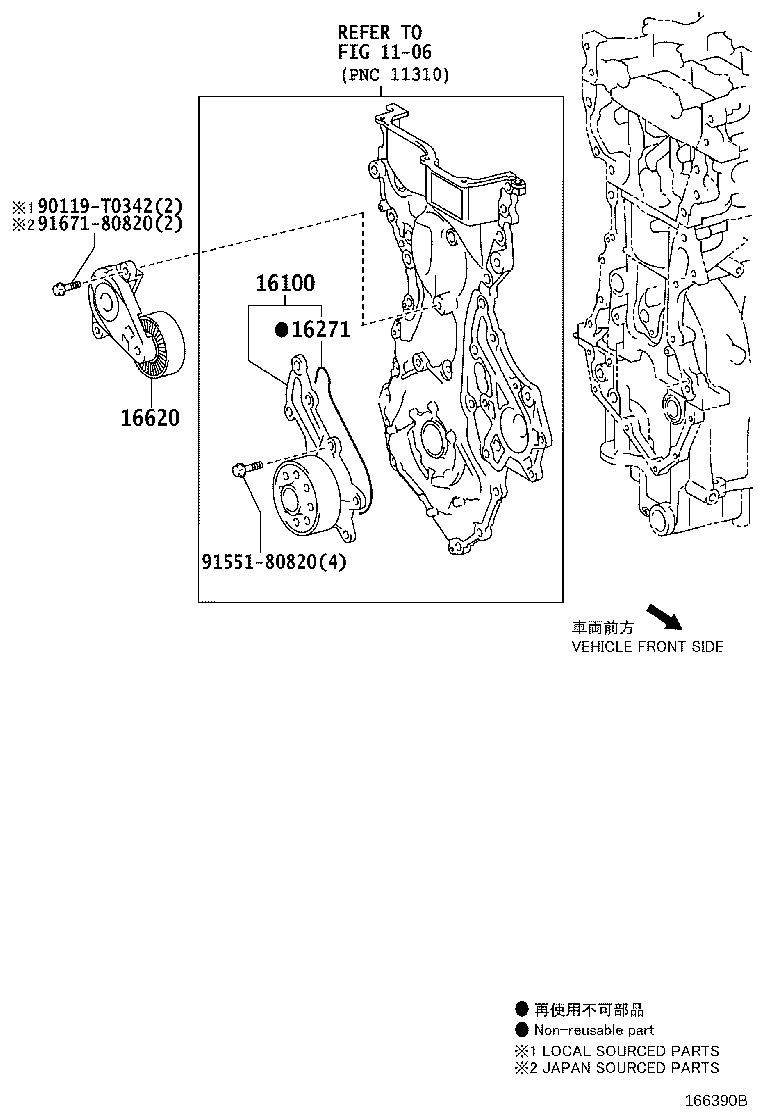

Figure 166390B

166390B 2016-04 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
