Exhaust Pipe

4 part groups · 4 illustrations

Illustrations

Figure 177781C

177781C 2012-09 → 2016-04

Figure 177779B

177779B 2012-09 → 2016-04

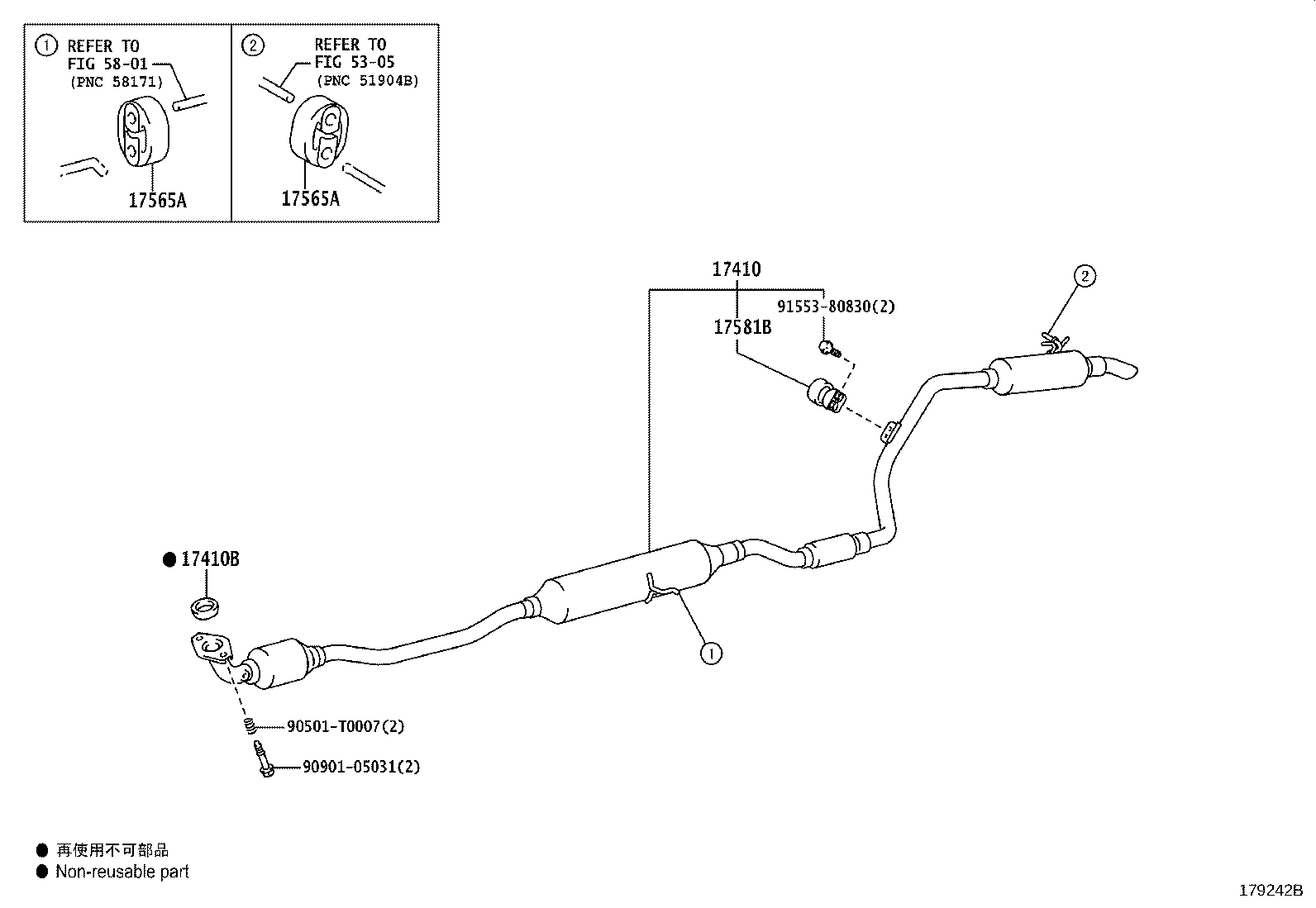

Figure 179242B

179242B 2016-04 → —

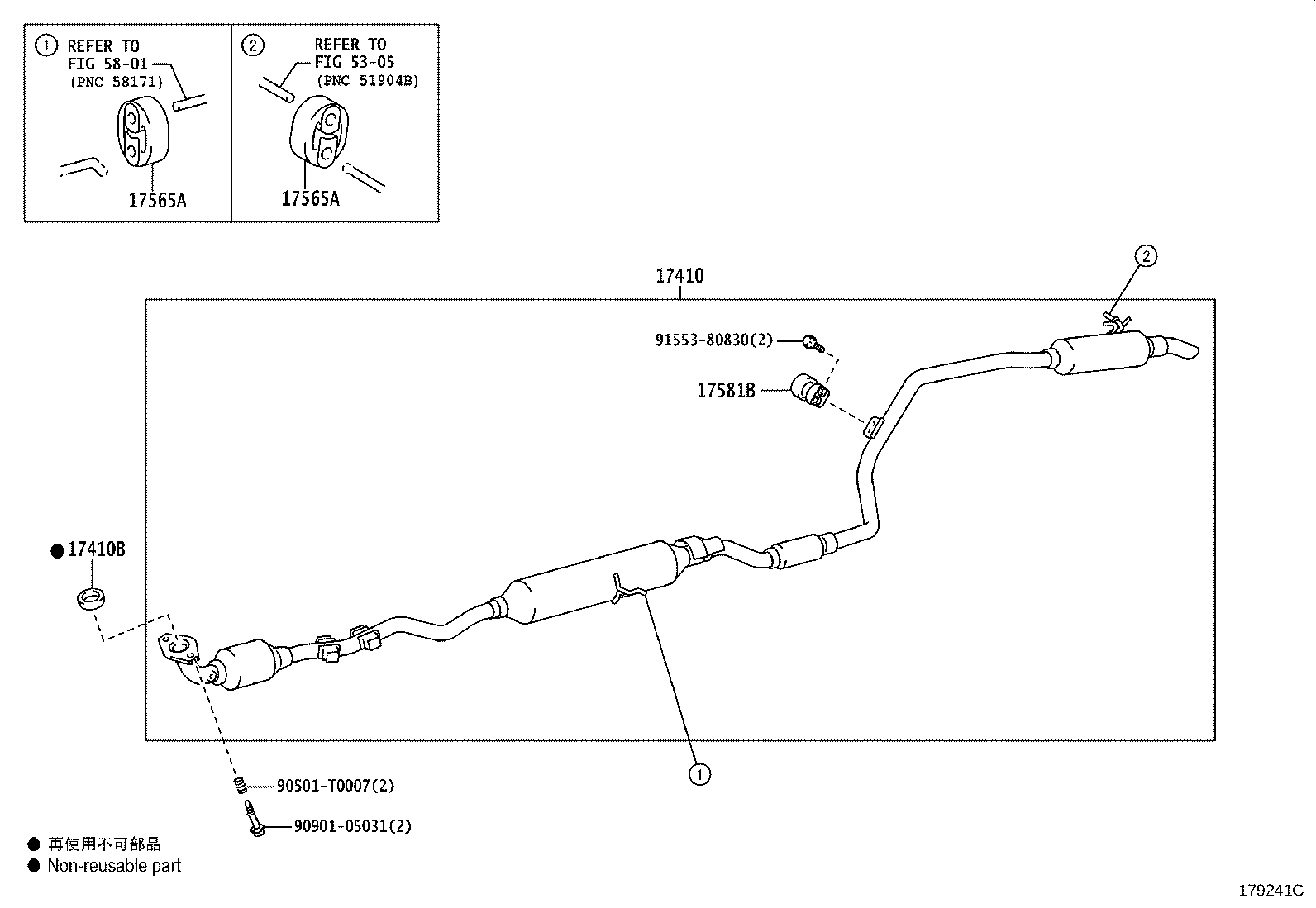

Figure 179241C

179241C 2016-04 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4
17581B	Damper, Exhaust Pipe, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
