Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 3 illustrations

Illustrations

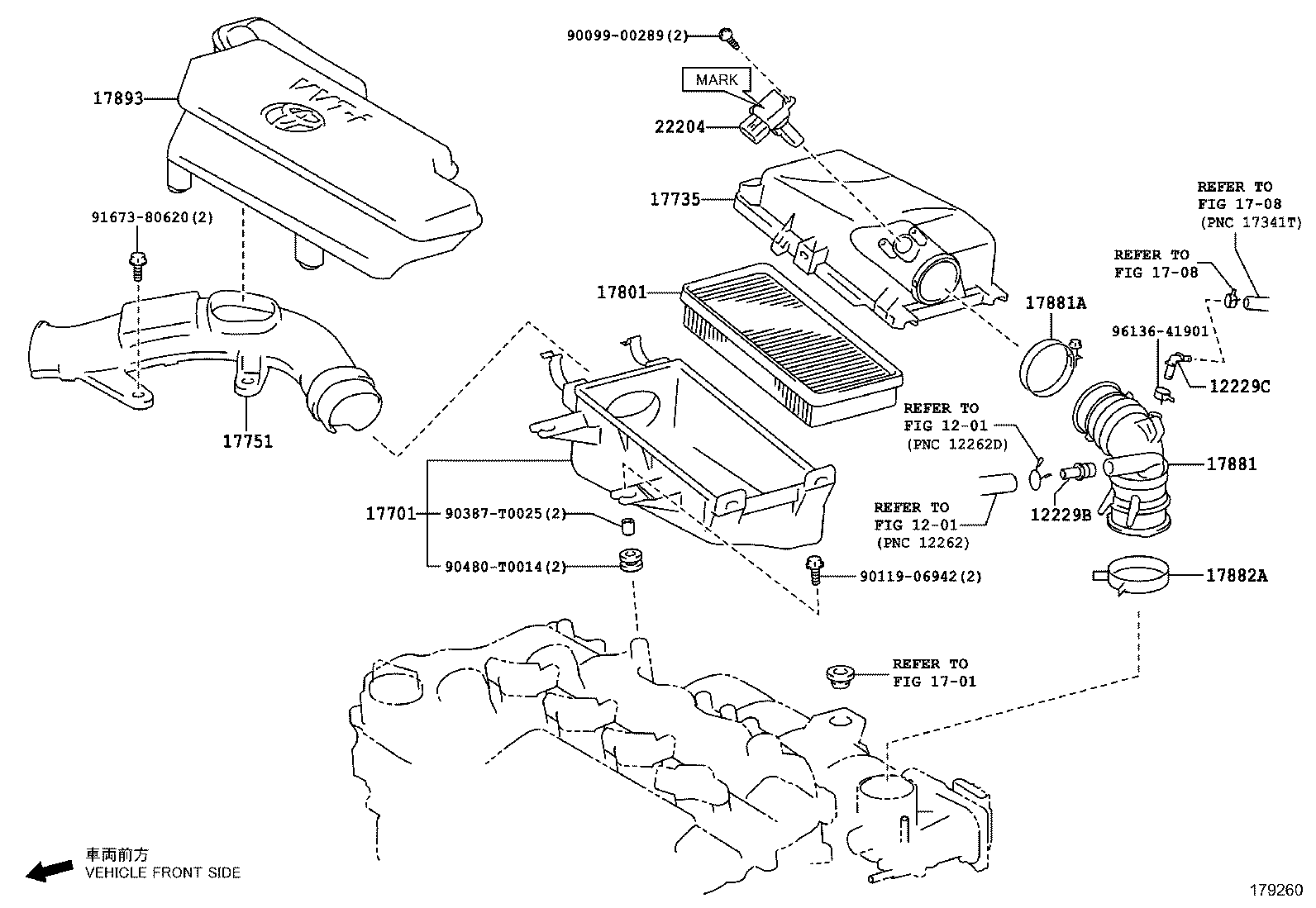

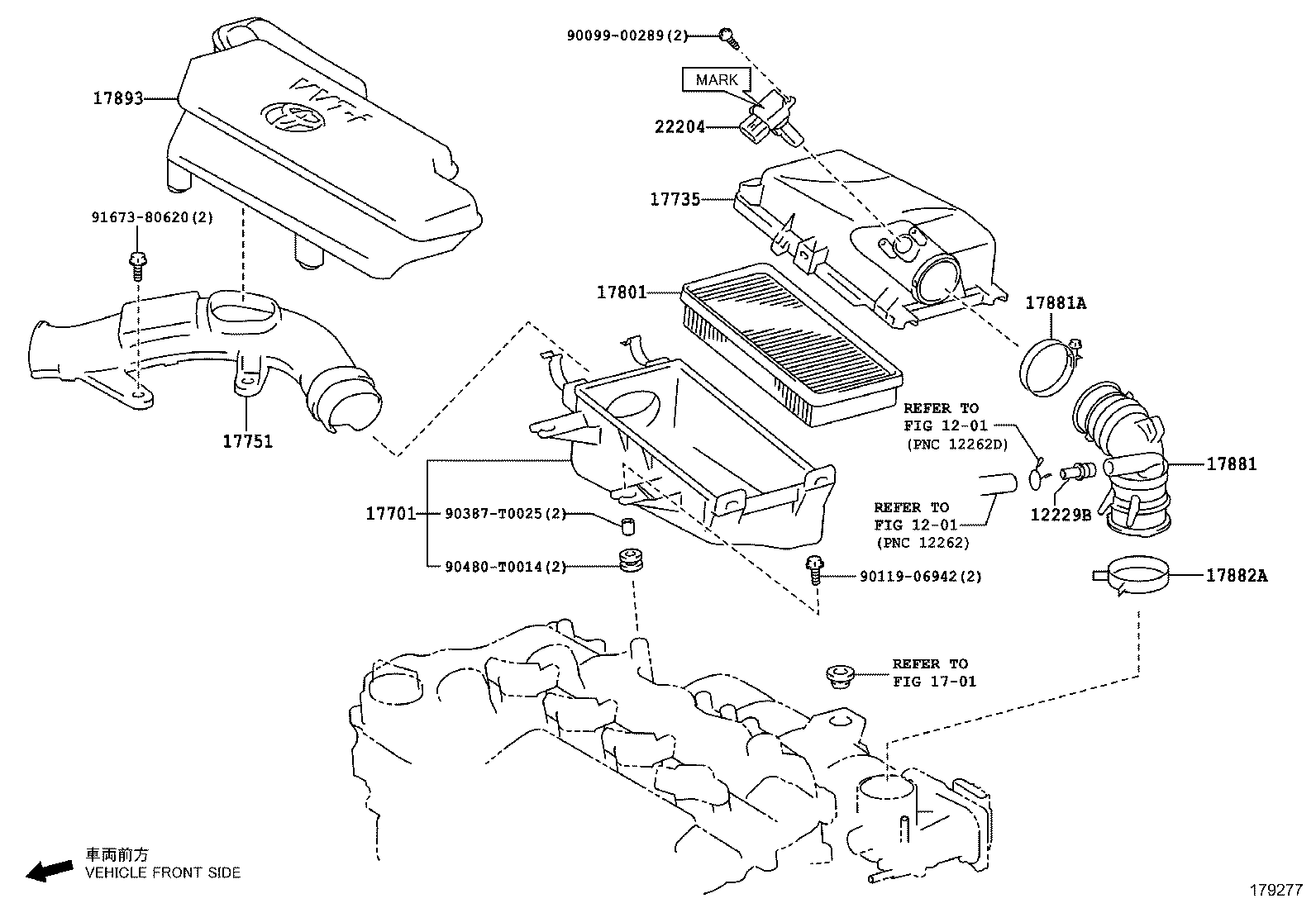

Figure 177765A 177765A 2012-09 → — Figure 179260 179260 2016-04 → — Figure 179277 179277 2016-04 → —

Part groups

PNCDescription
12229B Pipe, Ventilation, NO.1
12229C Pipe, Ventilation, NO.2
17700M Clamp(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
