Vacuum Piping

8 part groups · 3 illustrations

Illustrations

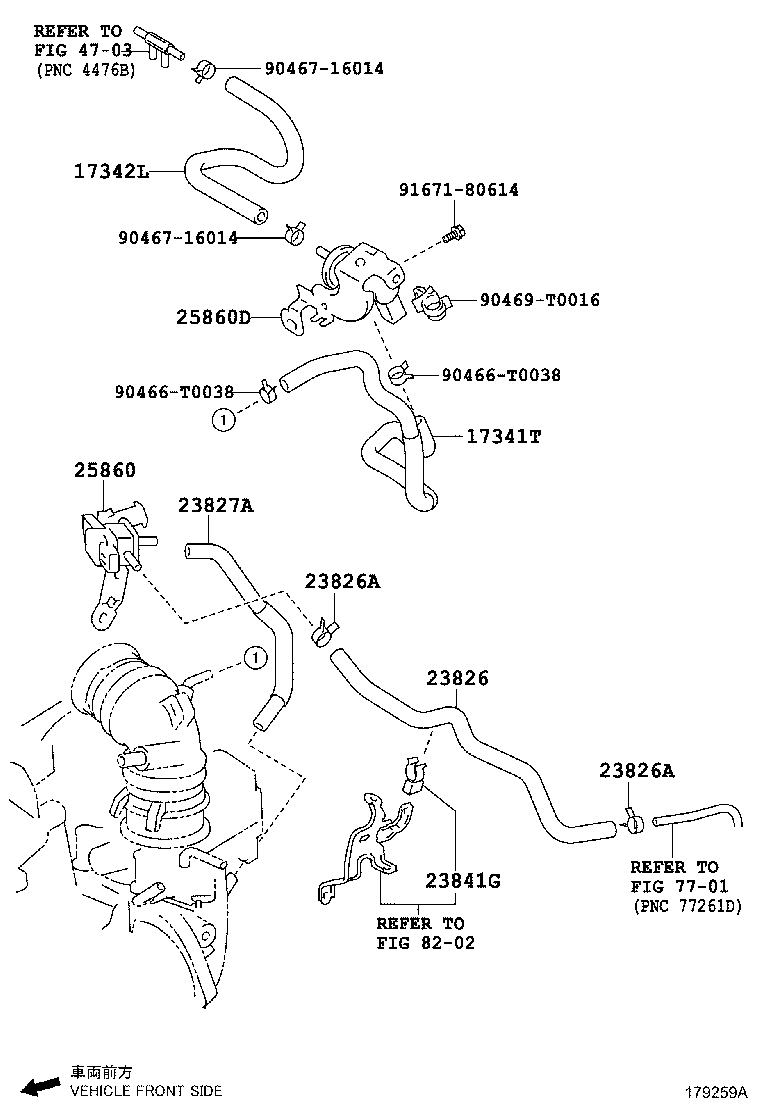

Figure 177775A 177775A 2012-09 → — Figure 179259A 179259A 2016-04 → — Figure 179276 179276 2016-04 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
