Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

20 part groups · 3 illustrations

Illustrations

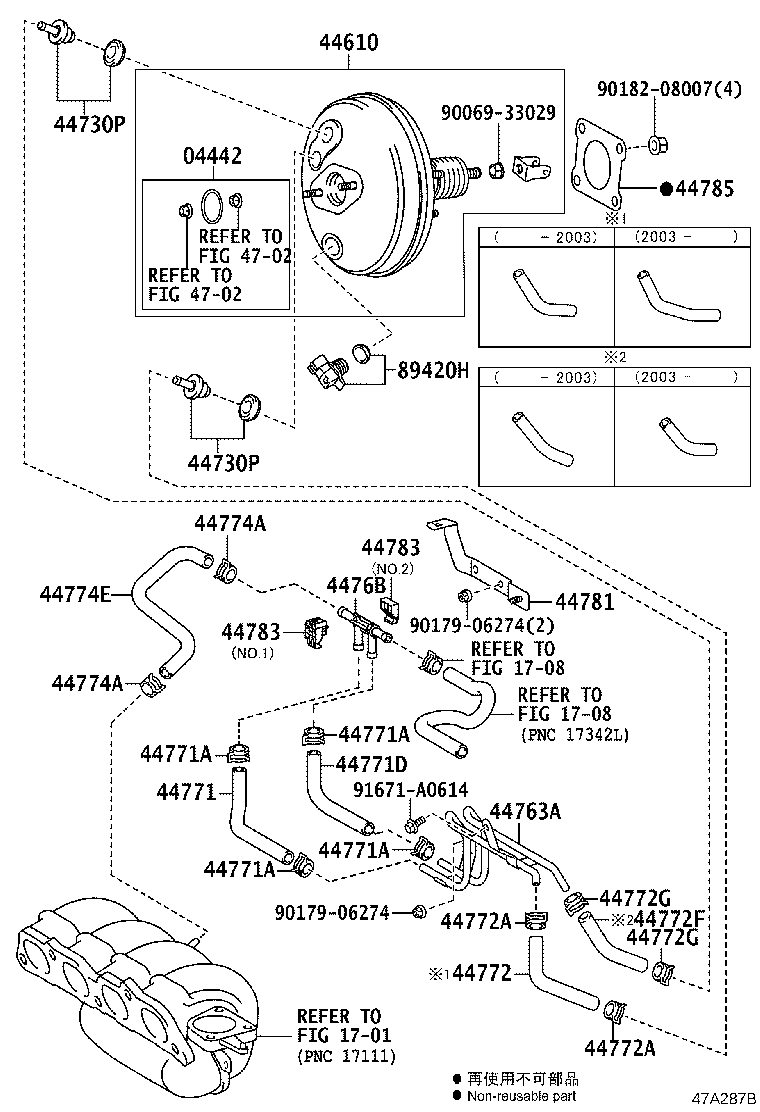

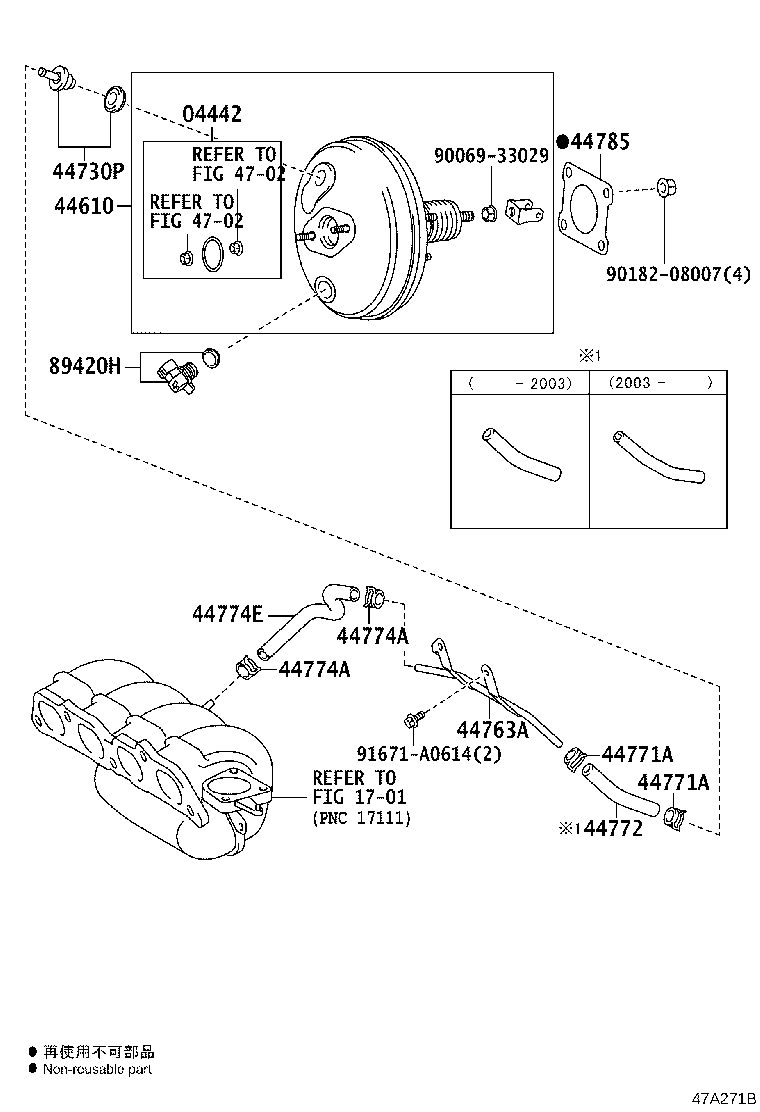

Figure 478498A 478498A 2012-09 → — Figure 47A271B 47A271B 2016-04 → — Figure 47A287B 47A287B 2016-04 → —

Part groups

PNCDescription
04442 Fitting Kit, Brake Booster
44610 Booster Assy, Brake
44730P Valve Assy, Vacuum Check, NO.1
44763A Tube, Hose TO Hose, NO.1
4476B Ejector, Brake Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44771D Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772F Hose, Check Valve TO Check Valve
44772G Clip(FOR CHECK VALVE TO CHECK VALVE HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44781 Bracket, Hose
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
