Toyota Etios
2012-09 → present · chassis NGK1# · catalogue 137310 · General
Supported model
Data version 2018-02

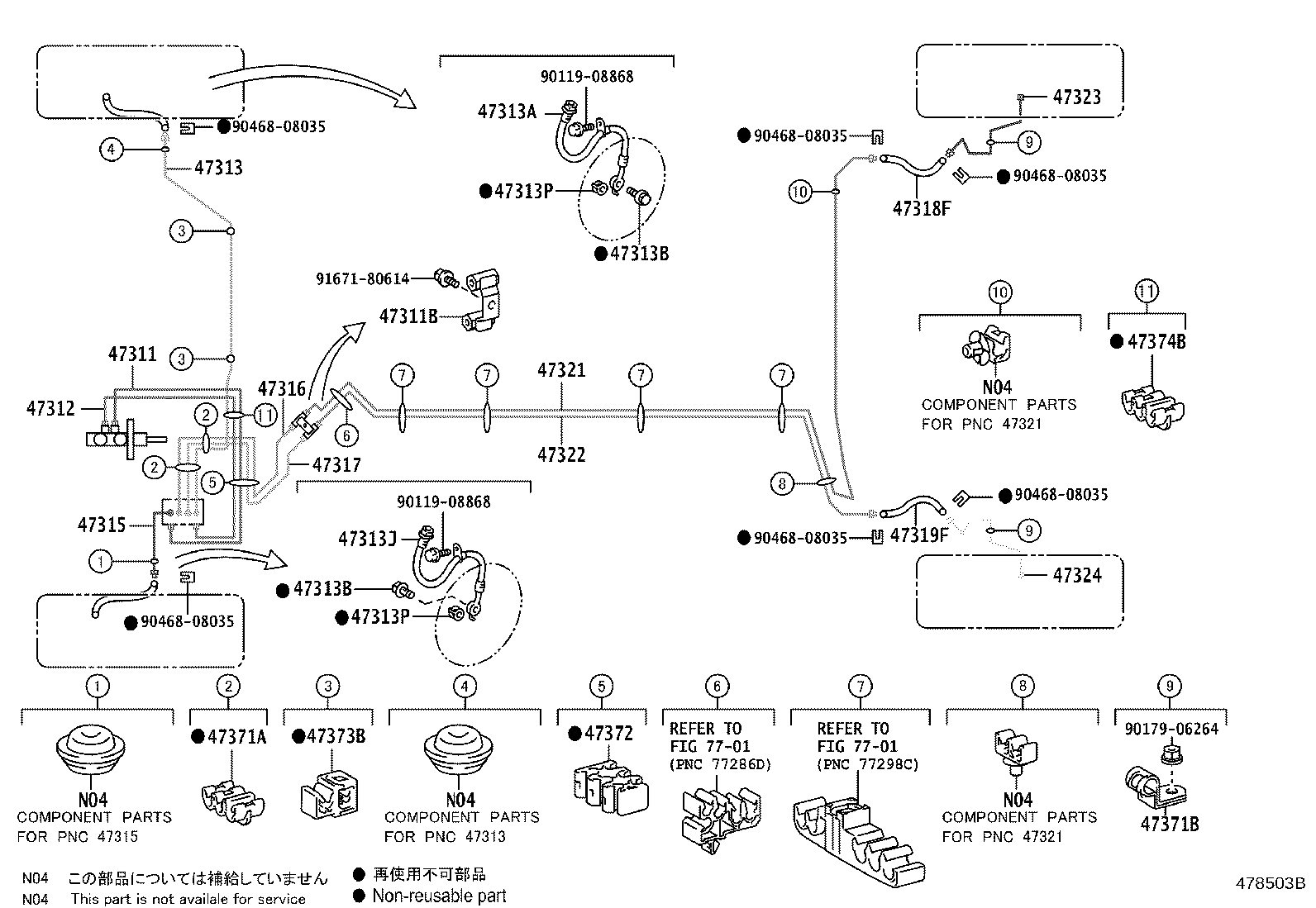

Brake Tube & Clamp
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44547B | Cushion, Brake Actuator Bracket |
| 44590 | Bracket Assy, Brake Actuator |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47900 | Valve Assy, Load Sensing W/Spring |
| 47931 | Bracket, Load Sensing Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
