Toyota Etios
2012-09 → present · chassis NGK1# · catalogue 137310 · General
Supported model
Data version 2018-02

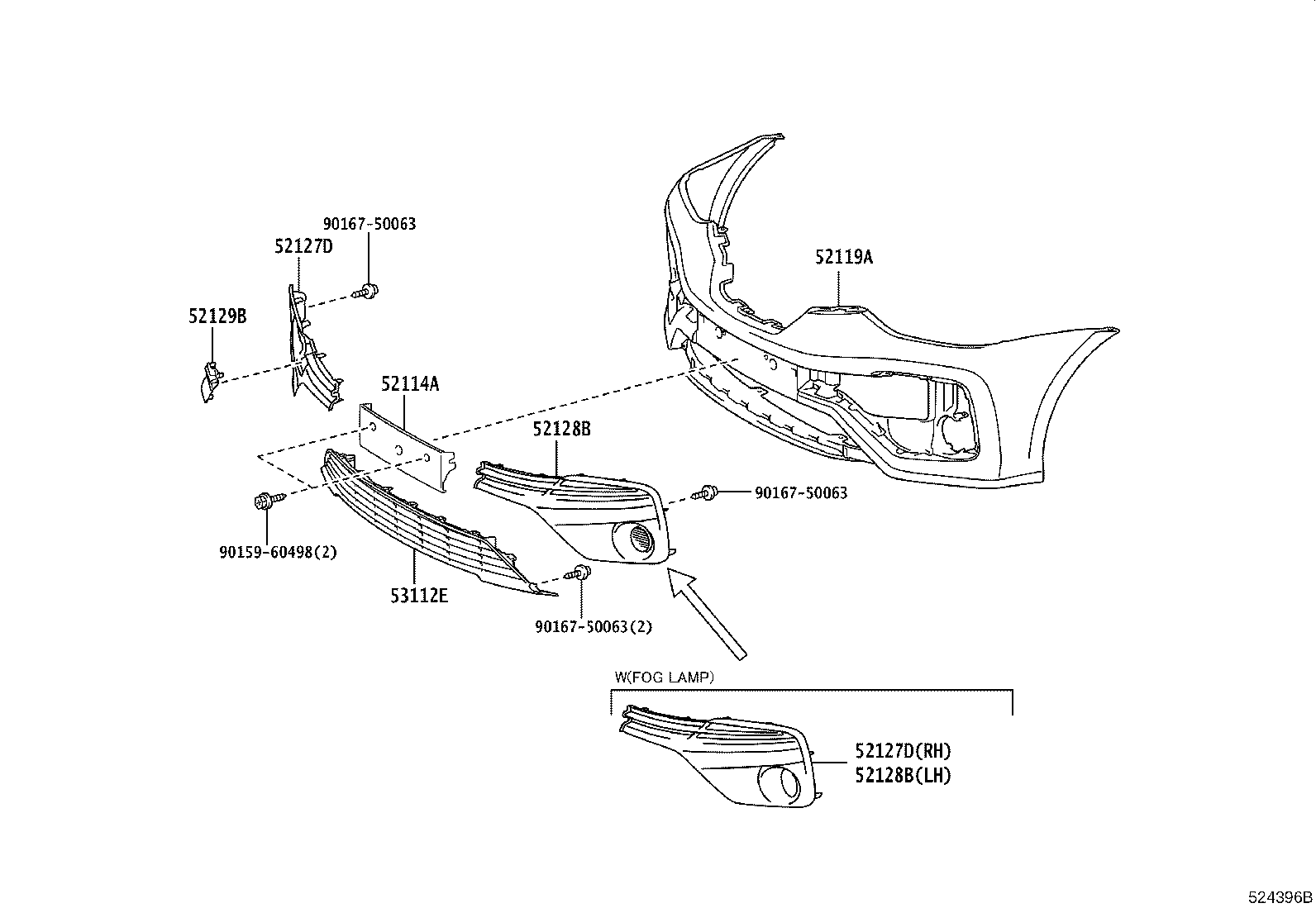

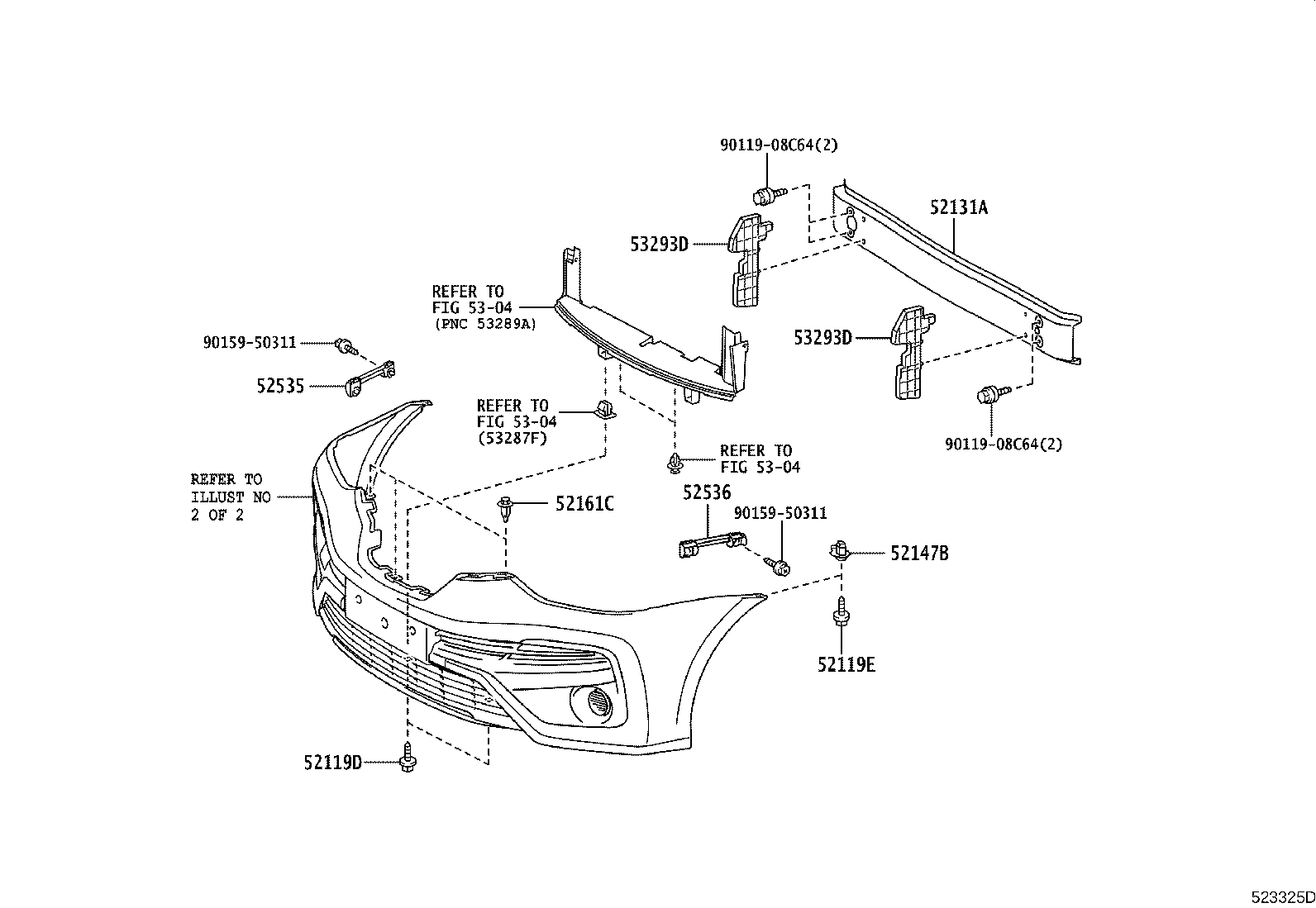

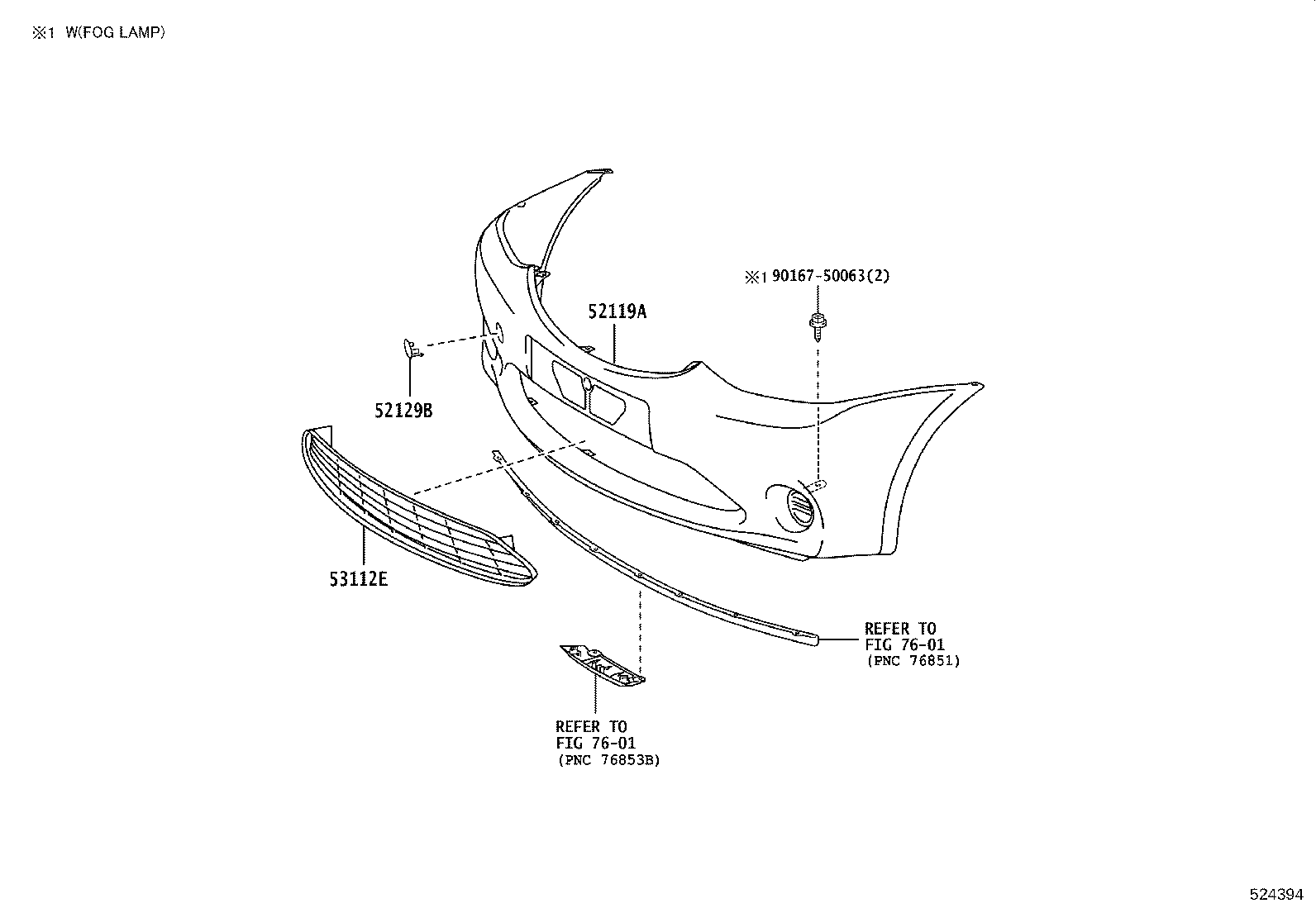

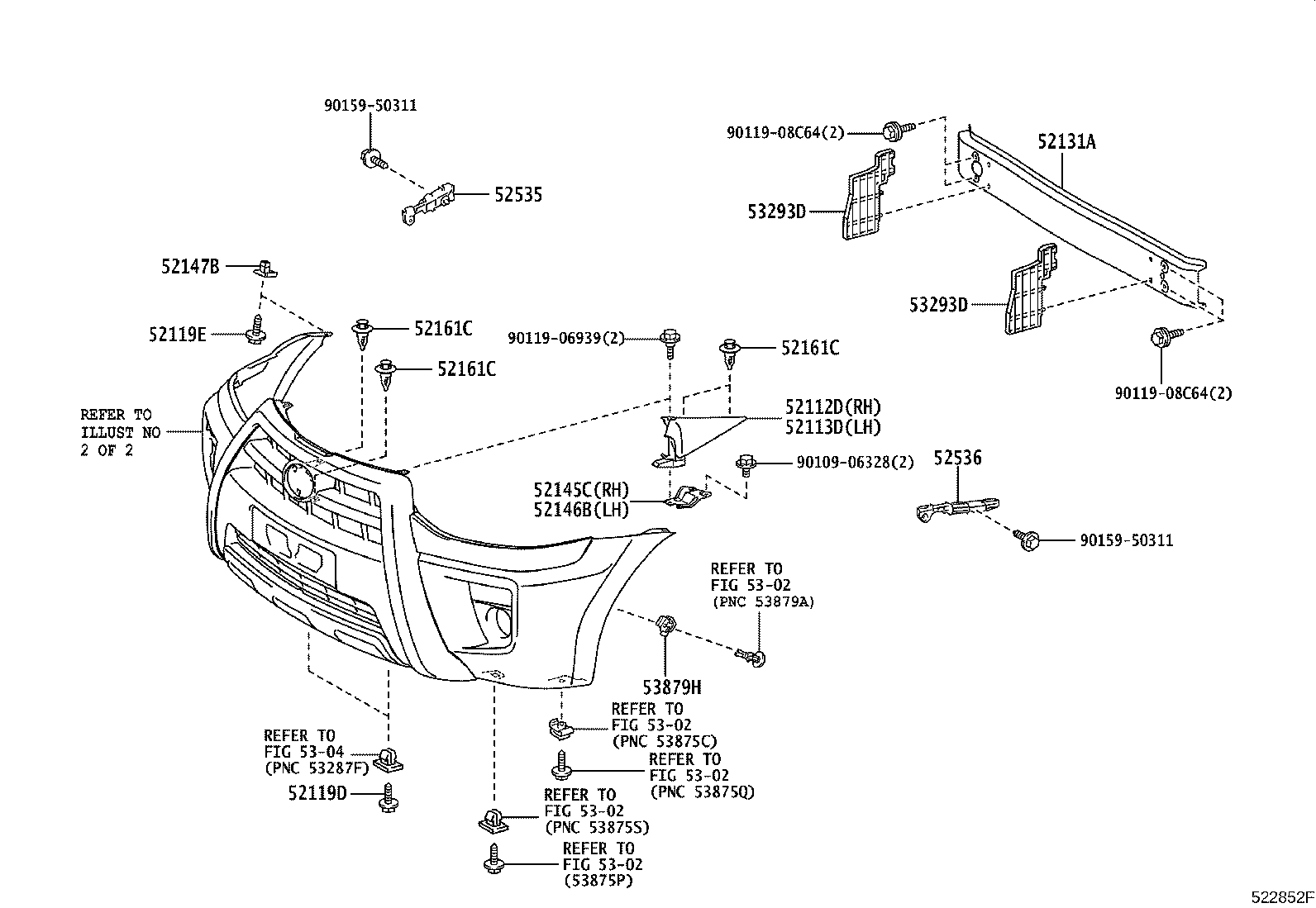

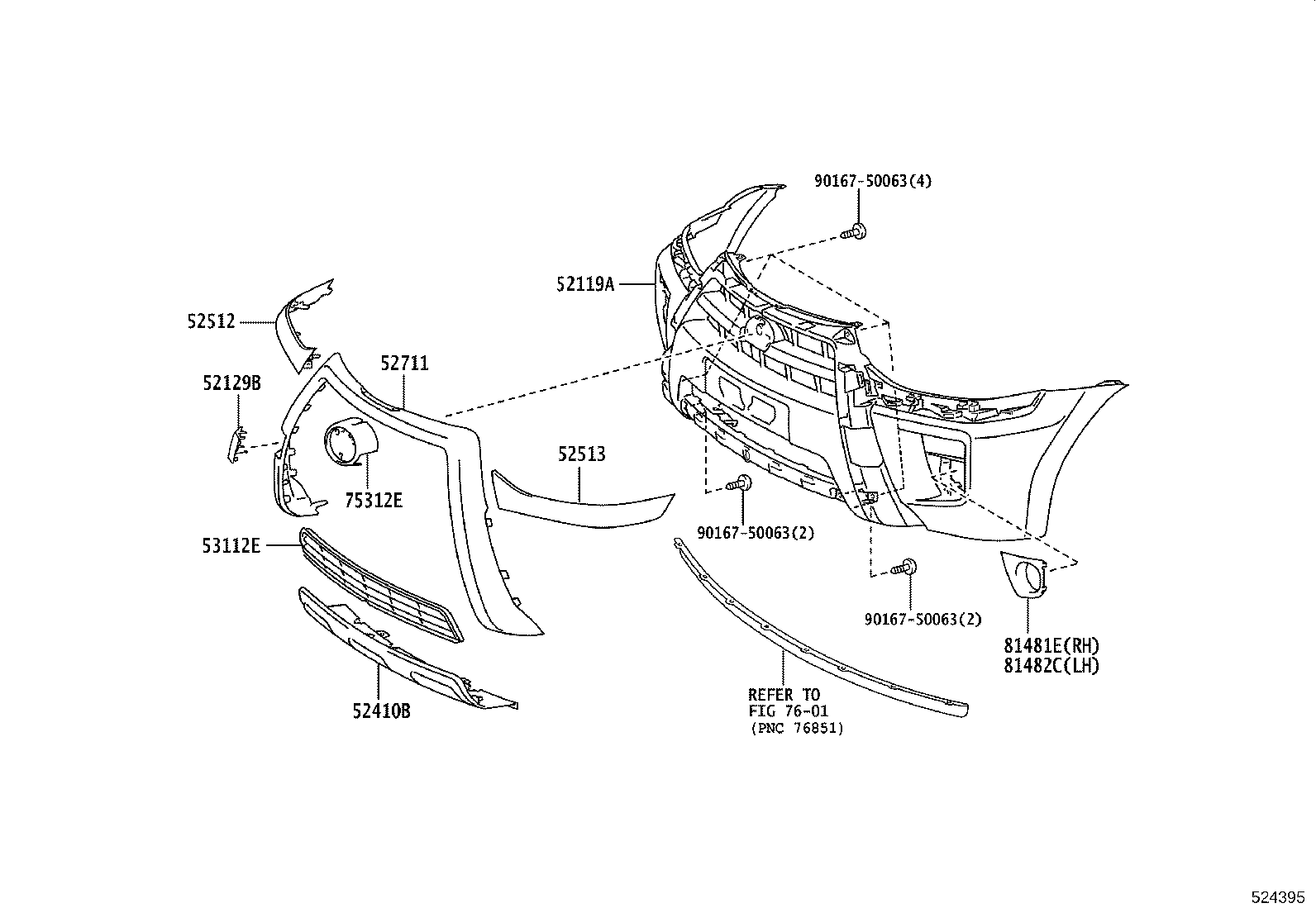

Front Bumper & Bumper Stay
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52119E | Screw, NO.2 |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52147B | Bracket, Front Bumper Mounting |
| 52161C | Piece, Front Bumper |
| 52410B | Guard Assy, Front Bumper |
| 52512 | Filler, Front Bumper, RH |
| 52513 | Filler, Front Bumper, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52711 | Moulding, Front Bumper |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53293D | Deflector, Radiator Upper Air |
| 53879H | Retainer, Front Fender Liner |
| 75312E | Base, Radiator Grille Emblem |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
