Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

14 part groups · 2 illustrations

Illustrations

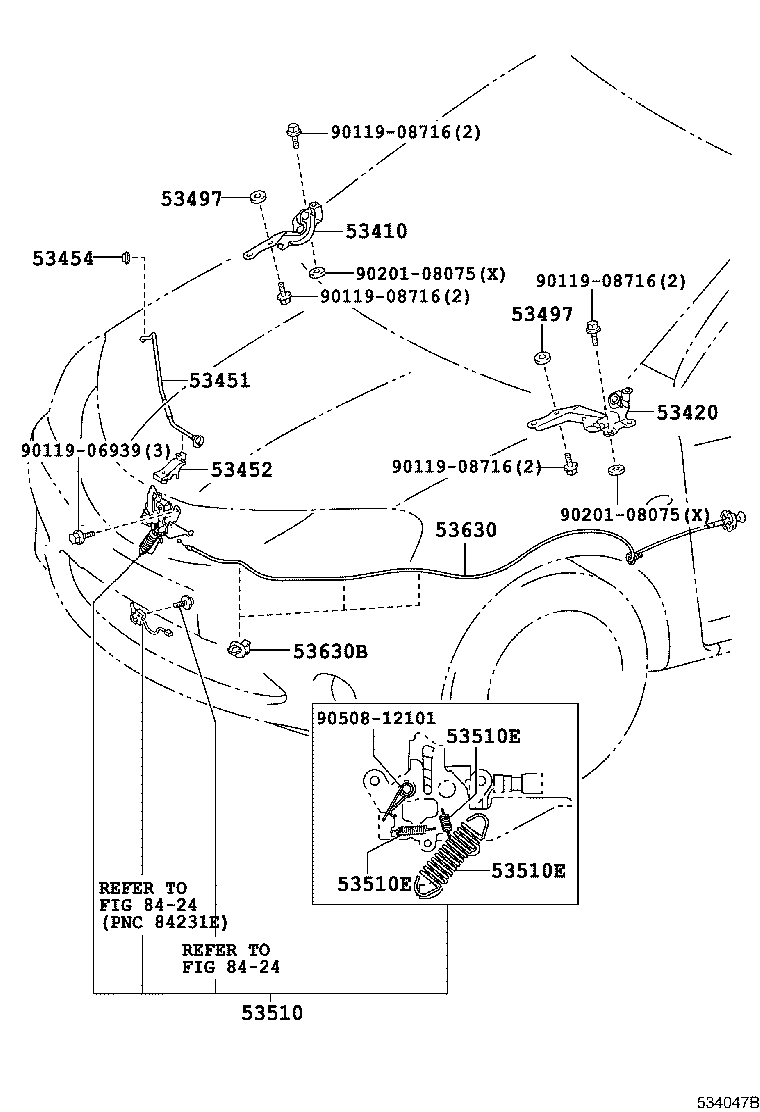

Figure 534871B 534871B 2012-09 → — Figure 534047B 534047B 2013-11 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53452 Holder, Hood Stay
53454 Clip, Hood Support Rod
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53577 Bolt, Hood Lock
53579 Cap, Hood Lock Nut
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
