Toyota Etios
2012-09 → present · chassis NGK1# · catalogue 137310 · General
Supported model
Data version 2018-02

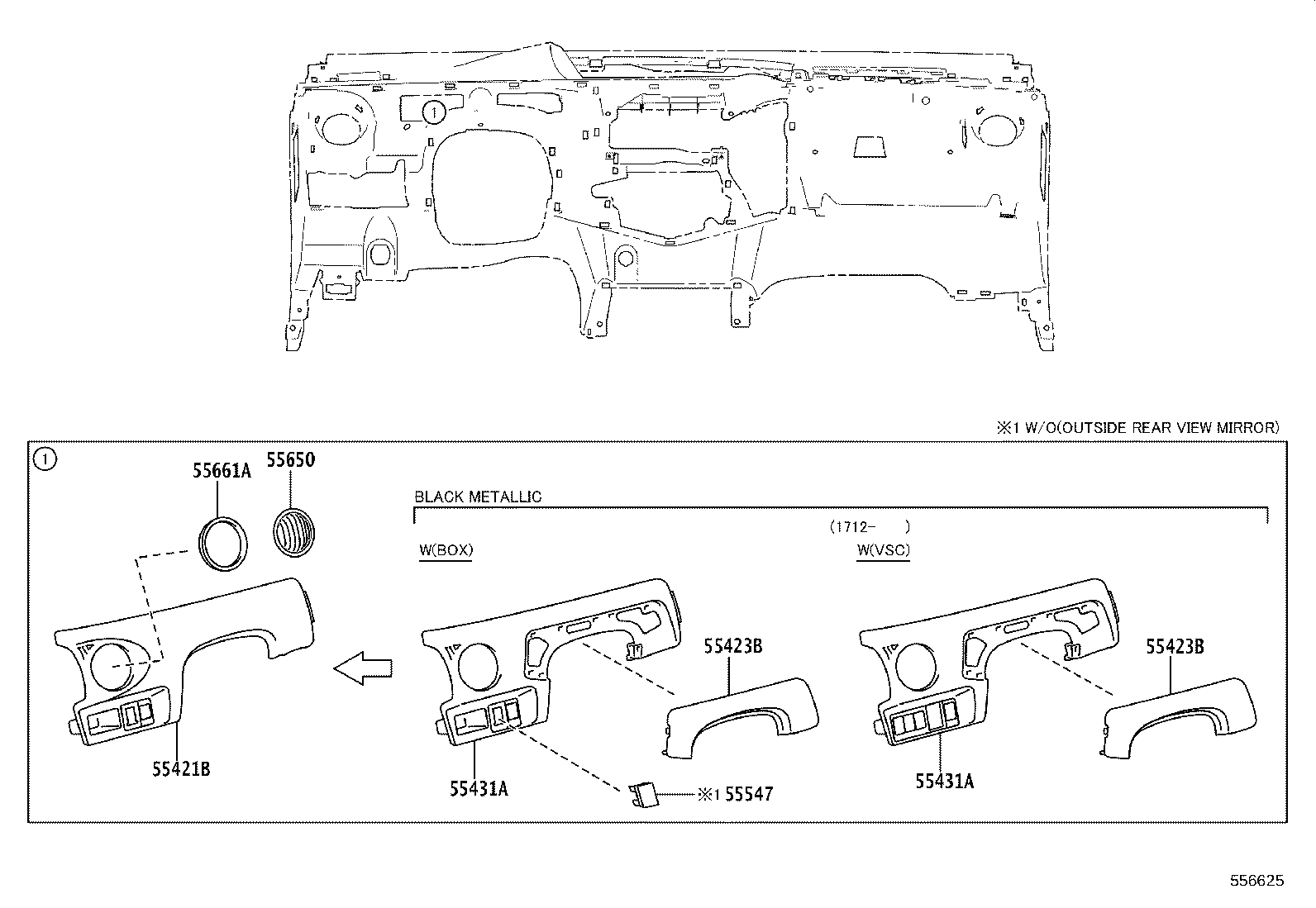

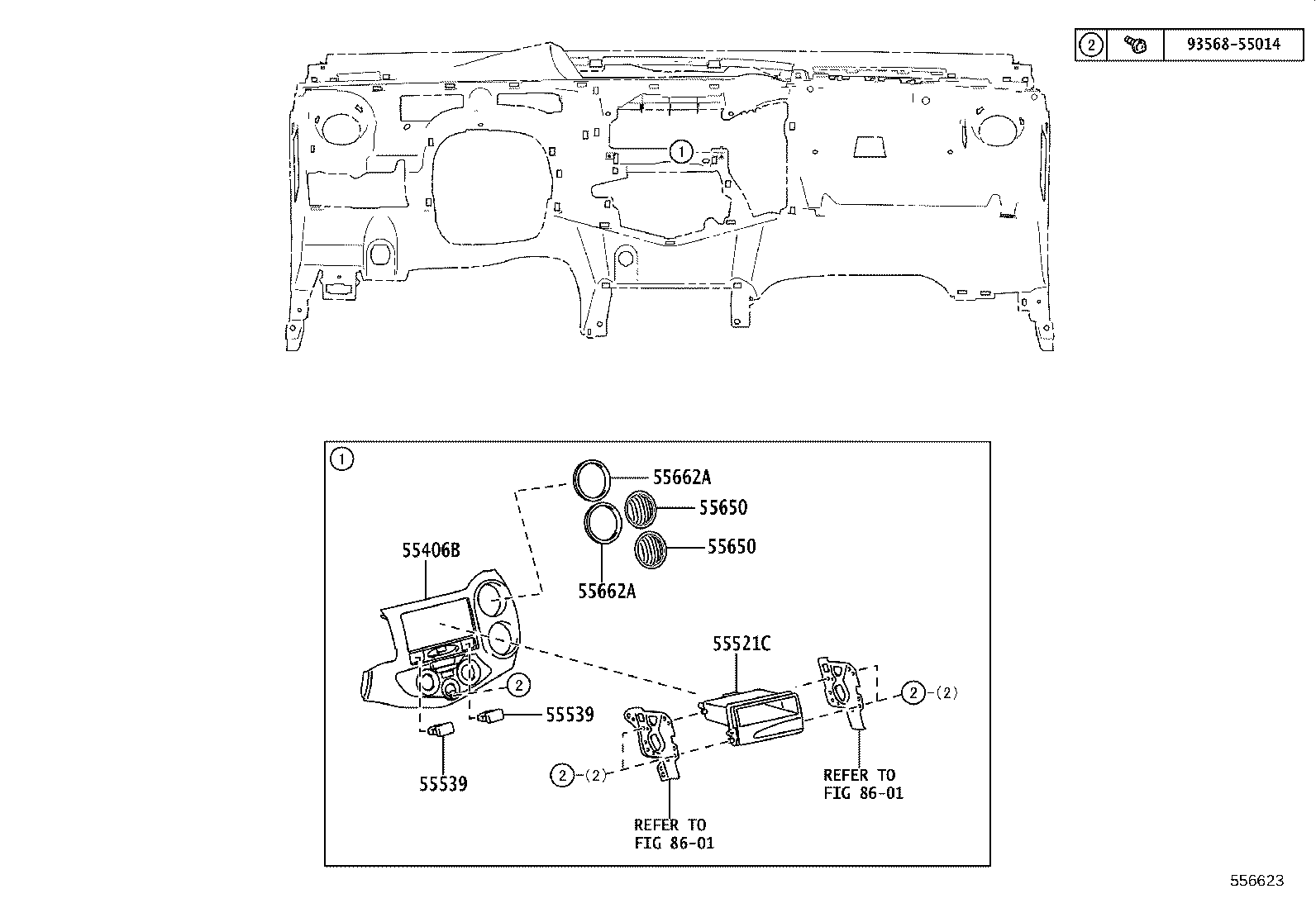

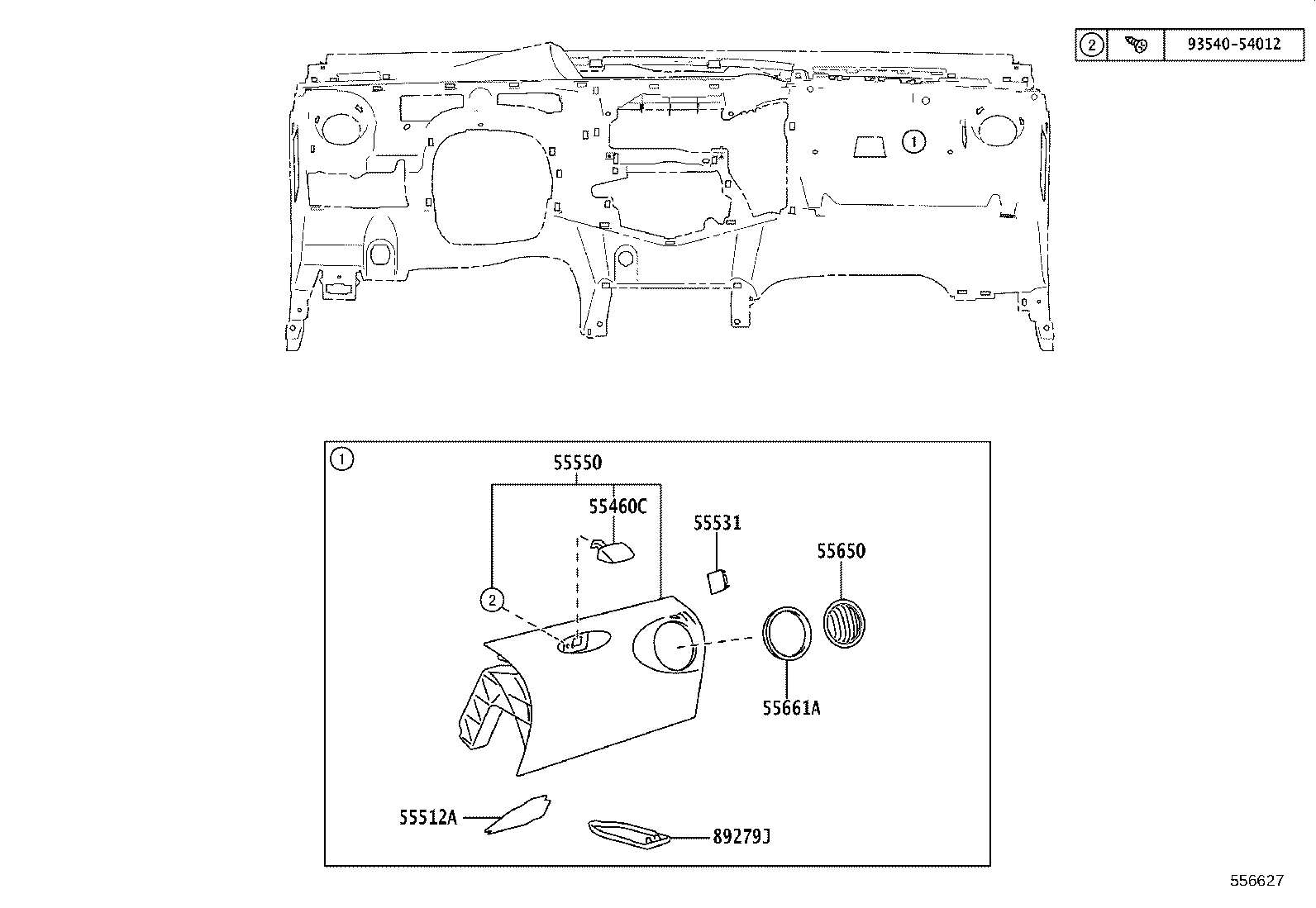

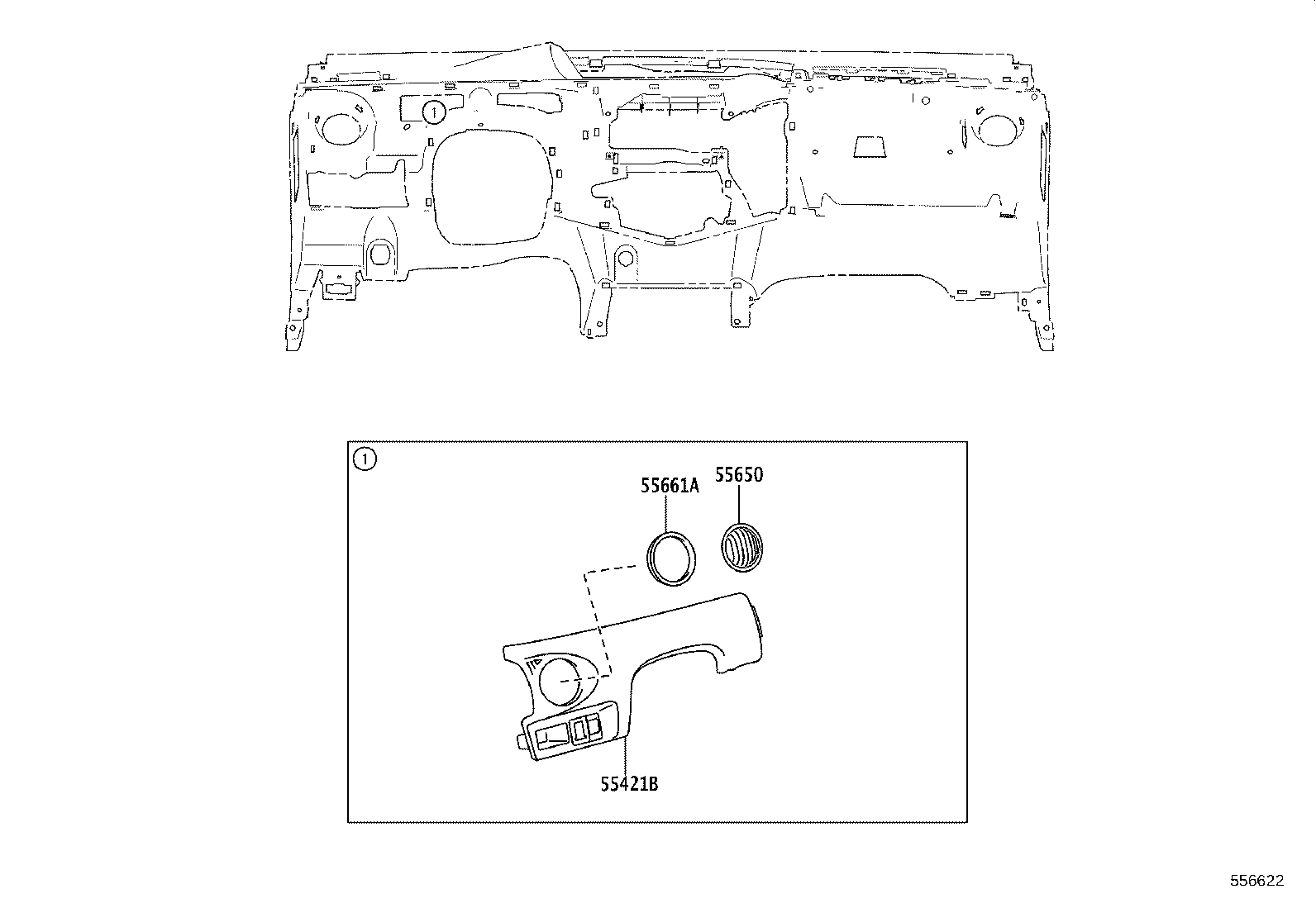

Instrument Panel & Glove Compartment
37 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55351A | Brace, Instrument Panel TO Floor |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55392C | Cushion, Instrument Panel, Lower NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55423B | Cover, Instrument Cluster Finish Panel |
| 55431A | Panel, Instrument Panel Finish |
| 55460C | Lock Assy, Instrument Panel Box |
| 55474E | Panel Sub-assy, Instrument Panel Speaker, NO.3 |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55512A | Plate, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55531 | Panel, Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 89279J | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
